Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD23B400L

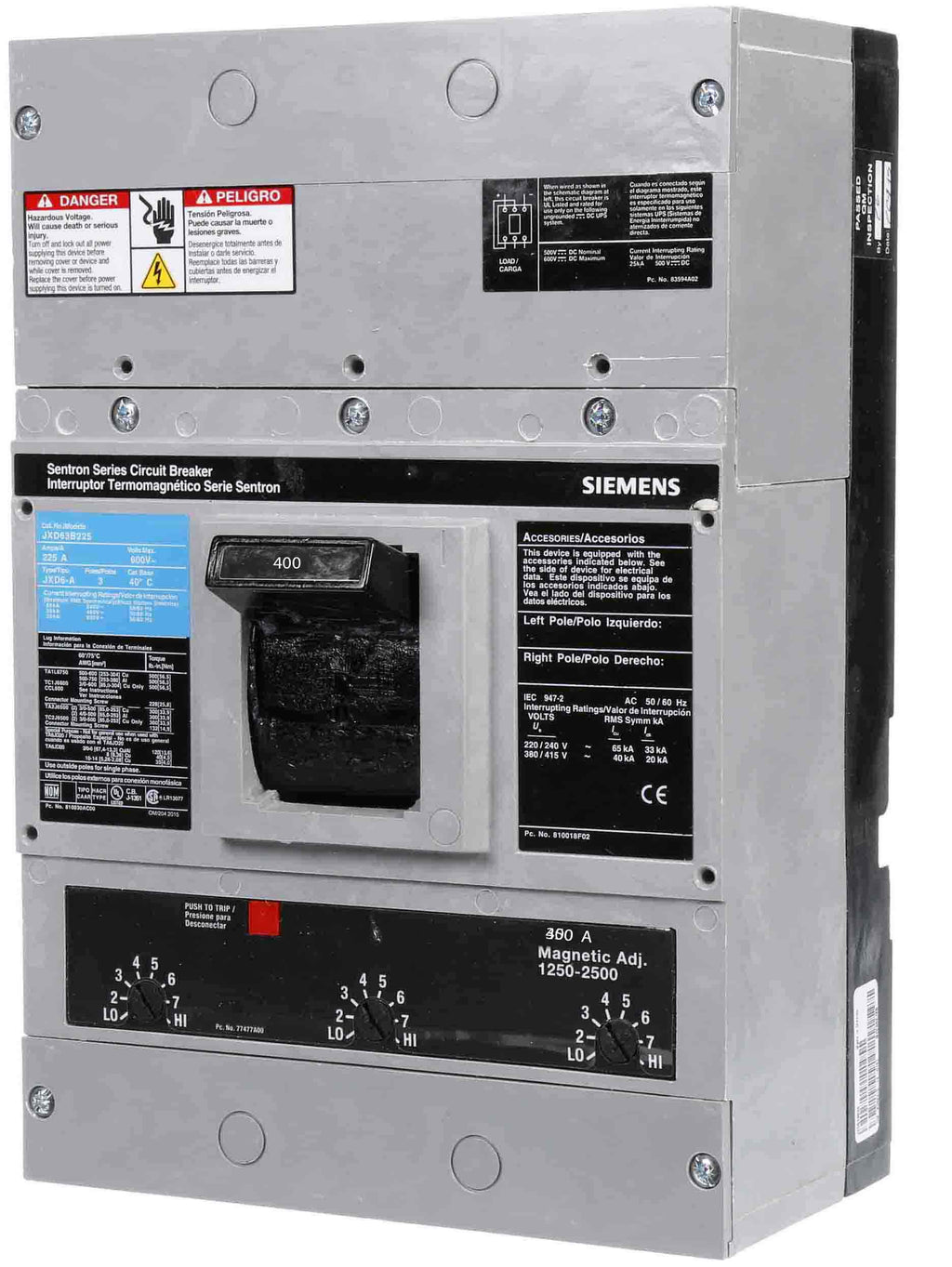

JXD23B400L is a Siemens 3 pole, 400 amp, 240 volt molded case circuit breaker designed for reliable power distribution and protection in industrial and commercial applications.This Siemens Sentron Series circuit breaker features a feed-thru design and is built for bolt-in mounting. It provides thermal magnetic protection and is suitable for use in panelboards and switchgear where high interrupt capacity is required.
- Part Number: JXD23B400L
- Manufacturer: Siemens
- Series/Frame: Sentron Series, JXD Frame
- Amperage: 400A
- Voltage: 240V
- Poles: 3
- Mounting Type: Bolt-In
- Interrupt Rating: 65kA @ 240V
- Terminal Type: Feed-Thru (Lug Included)
- Trip Unit: Thermal Magnetic
- Application: Molded Case Circuit Breaker
Specifications
- Part Number: JXD23B400L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 240
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643009394
- GTIN : 00783643009394
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.705
- Weight : 19.533
- Standards : RoHS
- Certification : UL, IEC
- Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
