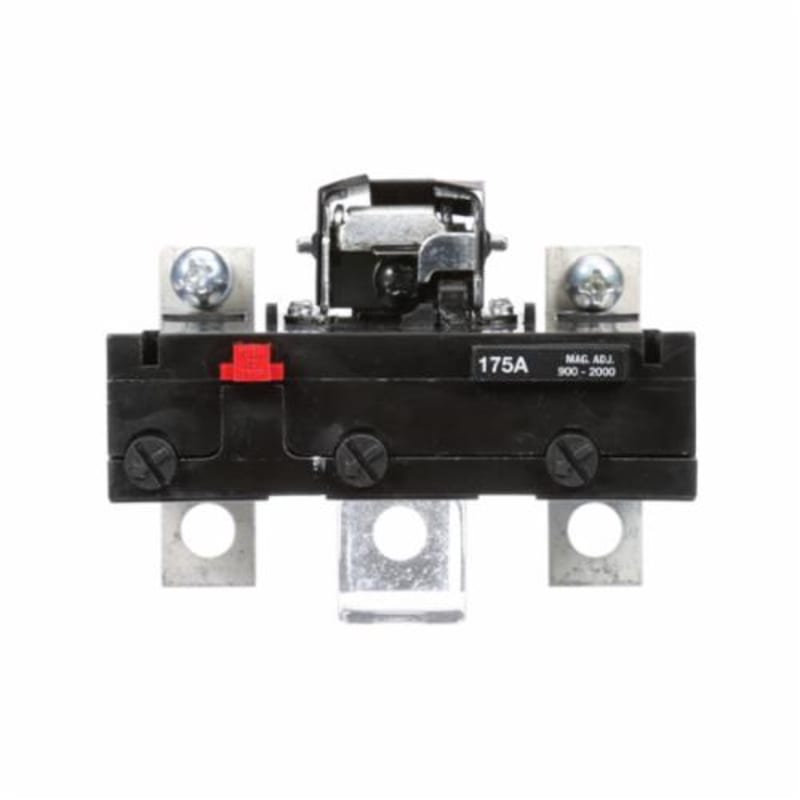

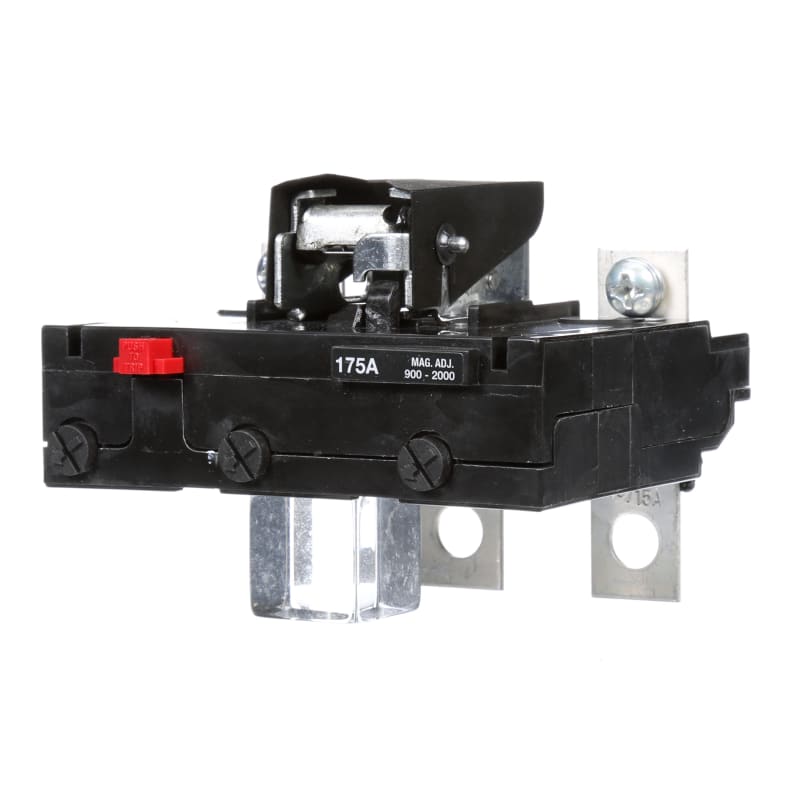

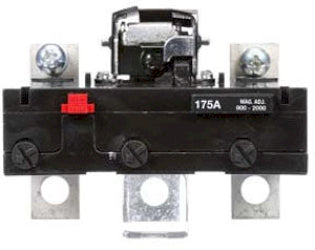

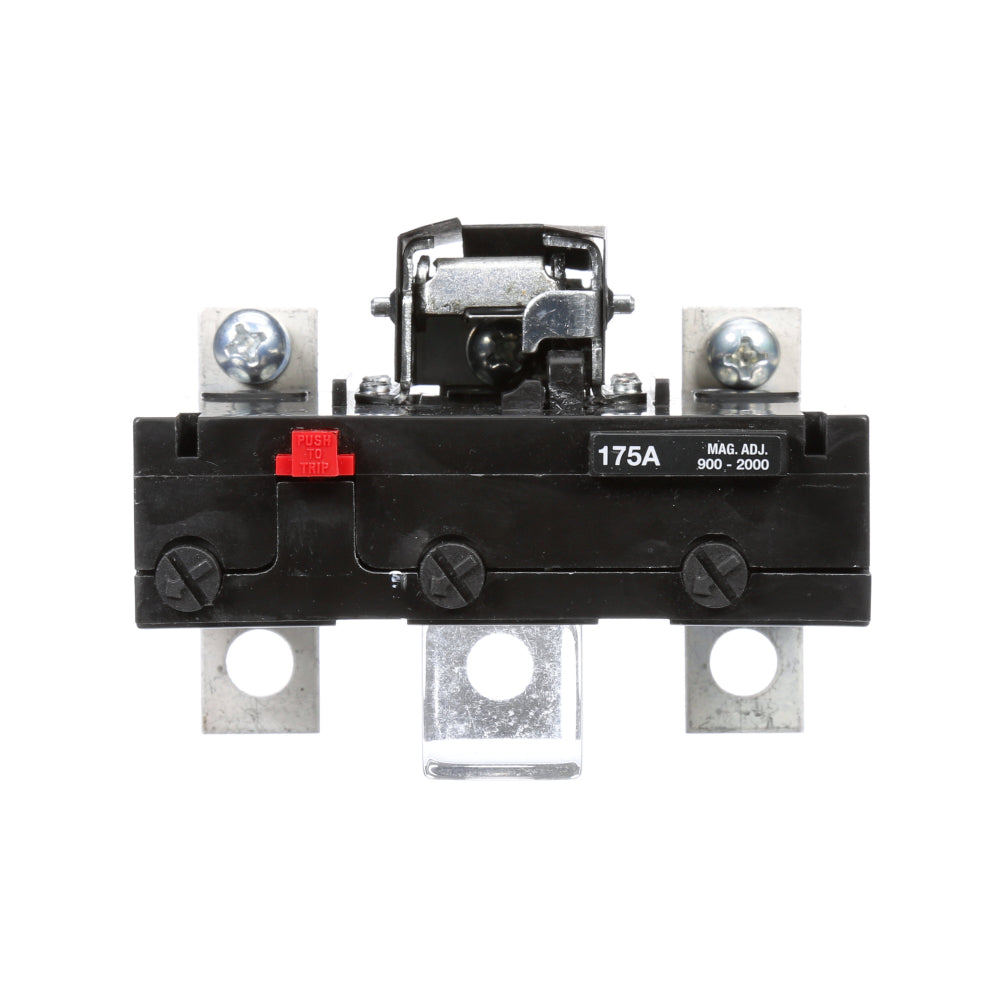

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Trip Unit
- Series
- Sentron Series
- Frame
- FD
- Rated current
- 175
- Max current rating
- 175
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Country of origin
- Mexico
Show all specifications (7 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Amperage Maximum
- 175
- UPC
- 078364321196
- GTIN
- 00783643211964
- Weight
- 1.199
- Certification
- UL, CSA, IEC
- Wire Size
- AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
Product description & additional details
FD63T175
FD63T175 is a Siemens 3-pole molded case circuit breaker trip unit rated for 175 amps and 600VAC operation.
This FD Series breaker features a 22kA interrupt rating at 600V, interchangeable thermal magnetic trip unit, and meets UL 489 and IEC 60947-2 standards. It includes line and load side lugs and is designed for bolt-on mounting in industrial and commercial power distribution applications.
- Key Specifications
- Amperage: 175 Amps
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Interrupt Rating: 22kA at 600V
- Frame Series: FD
- Trip Unit Type: Interchangeable Thermal Magnetic
- Mounting Type: Bolt-On
- Certifications: UL 489, IEC 60947-2
- Wire Range: Compatible with CU/AL lugs
- Dimensions: Approx. 5.1" L x 3.9" W x 4.7" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FD63T175
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Trip Unit
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Amperage Maximum : 175
- Protection : Thermal Magnetic
Product Data
- UPC : 078364321196
- GTIN : 00783643211964
- Country of Origin : Mexico
- Weight : 1.199
- Certification : UL, CSA, IEC
- Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
