JLL36250M75 - Square D 250 Amp 600 VAC 3 Pole PowerPact J Frame Motor Circuit Protector

JLL36250M75

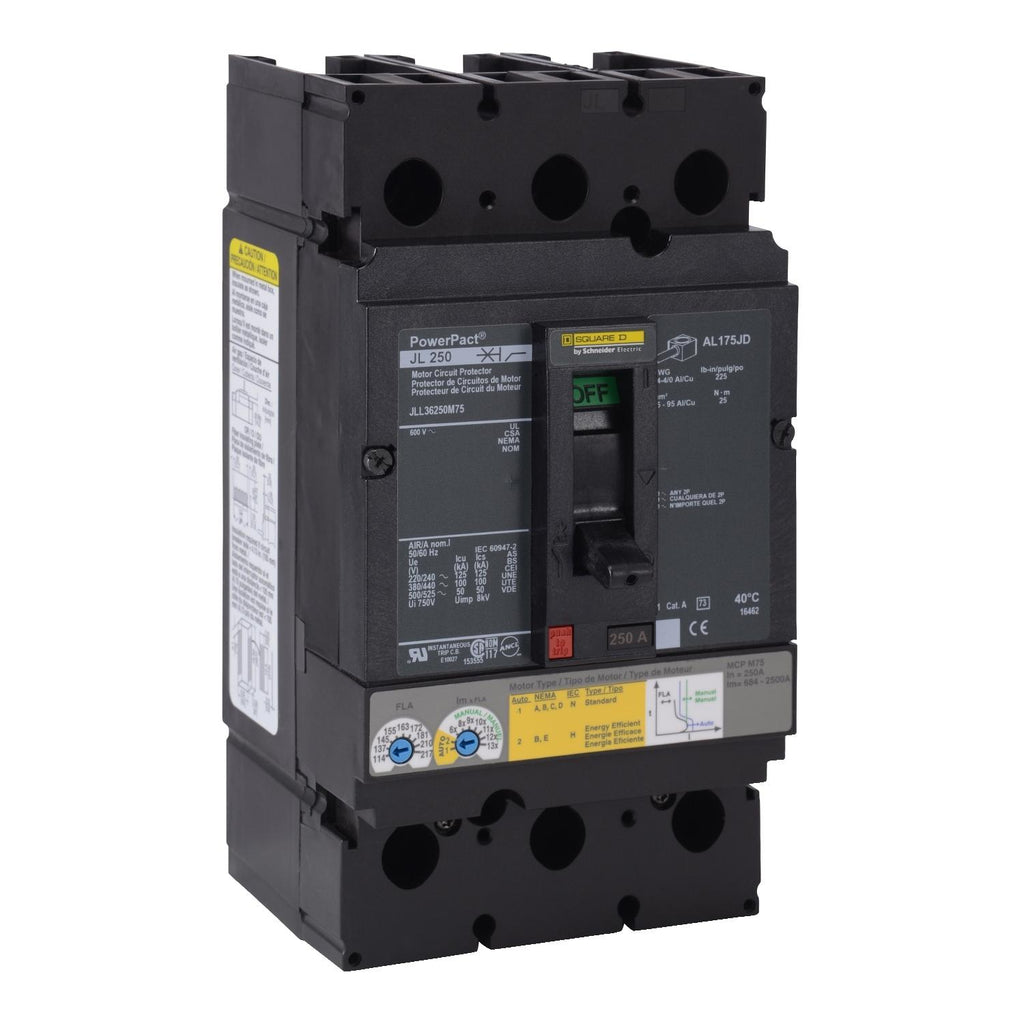

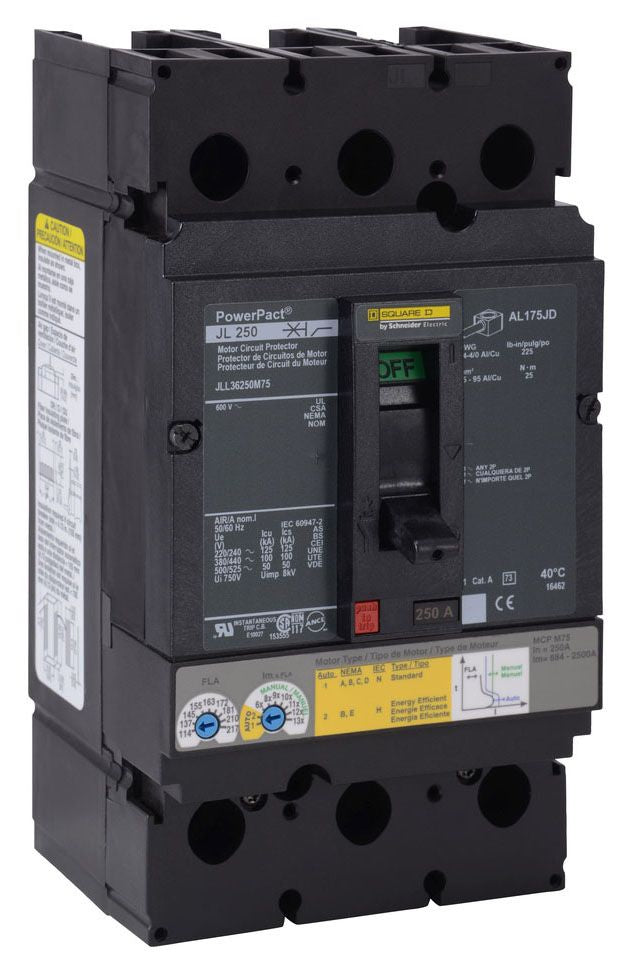

JLL36250M75 is a Square D PowerPact J Frame Motor Circuit Protector rated for 250 Amp, 600 VAC, and 3 poles with unit mount design.This molded case circuit breaker provides thermal magnetic, current limiting, and adjustable trip protection specifically designed for motor overload and short circuit applications. It features a breaking capacity of up to 100kA at 600 VAC, adjustable instantaneous trip range, and lugs on both line and load sides. The breaker complies with UL 489, UL 508, CSA, IEC 60947-2, and is CE marked, ensuring reliable and safe operation in industrial environments.

Key Specifications
• Amperage: 250 Amp
• Voltage Rating: 600 VAC maximum
• Poles: 3
• Frame Type: PowerPact J Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 50kA to 125kA at 600 VAC (L Interrupt Rating)
• Trip Unit: Thermal Magnetic, Adjustable Instantaneous Trip
• Standards: UL 489, UL 508, CSA C22.2 #14, IEC 60947-2, CE Marked
• Application: Motor overload and short circuit protection
• Lugs on line and load sides
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JLL36250M75
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : L
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Magnetic Only



Product Data

• UPC : 785901661009
• GTIN : 00785901661009
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.214
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
