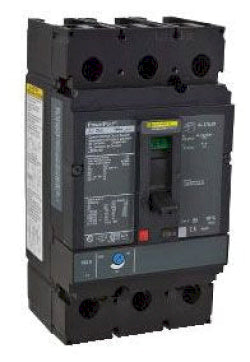

JJM36200 - Square D PowerPact J 200A 600VAC 3-Pole Molded Case Circuit Breaker

JJM36200

JJM36200 is a Square D PowerPact J-Frame molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This three-pole unit mount breaker features thermal magnetic trip technology with current limiting capability and adjustable settings for reliable performance in industrial and commercial applications.Key Specifications

• Part Number: JJM36200
• Manufacturer: Square D by Schneider Electric
• Frame Type: J-Frame PowerPact
• Amperage: 200 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3-Pole
• Mounting: Bolt-On Unit Mount
• Trip Type: Thermal Magnetic, Current Limiting
• Interrupt Rating: 100 kA @ 240 VAC, 65 kA @ 480 VAC, 25 kA @ 600 VAC
• Frequency: 50/60 Hz
• Certification: UL 489 Listed
• Dimensions: 4.09 inch Width x 3.39 inch Depth x 7.52 inch Height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJM36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJM
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901660897
• GTIN : 00785901660897
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
