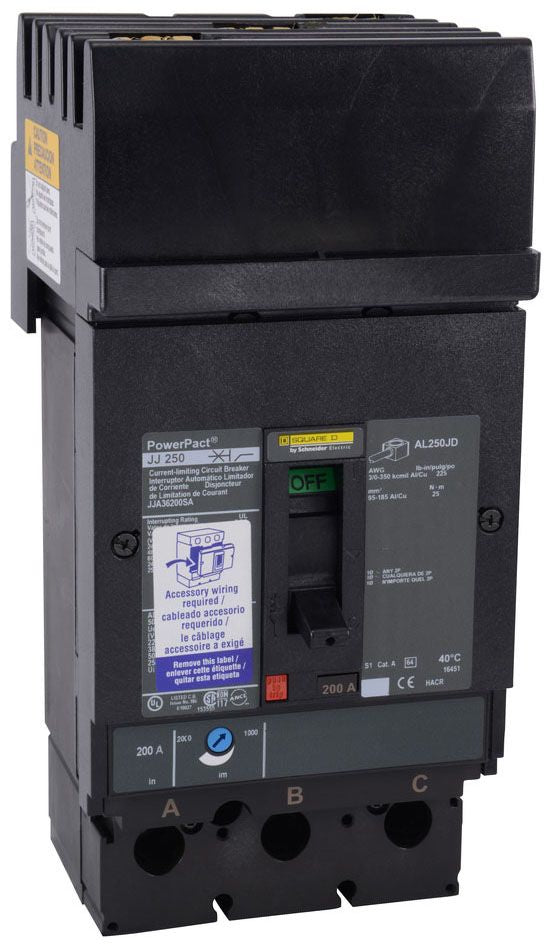

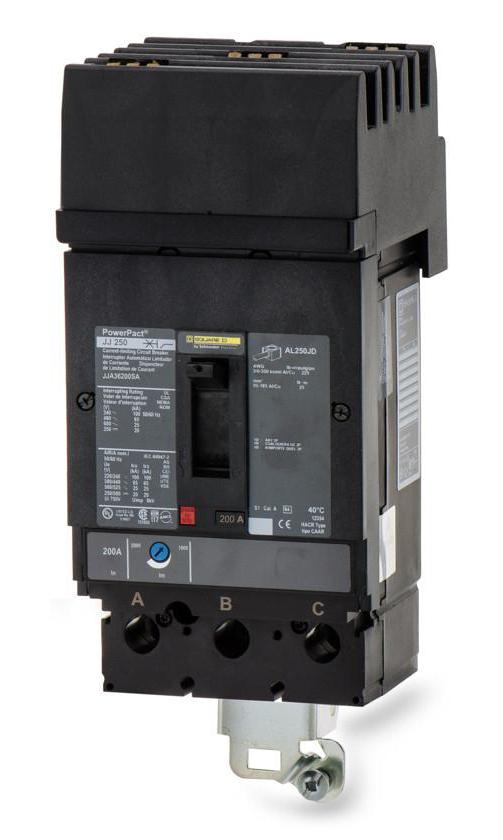

JJA36200SA - Square D 200A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker

JJA36200SA

JJA36200SA is a Square D PowerPact J-Frame molded case circuit breaker providing 200 amps of protection with a 3-pole design and I-Line mounting.This circuit breaker features a thermal-magnetic trip unit and is rated for a maximum voltage of 600 VAC and 250 VDC. It has interrupt ratings of 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC, and 20 kA at 250 VDC, making it suitable for a wide range of industrial and commercial applications. The breaker is UL 489 listed and CSA certified, ensuring compliance with safety standards.

Key Specifications
• Amperage: 200 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: PowerPact J-Frame
• Mounting Type: I-Line Plug-In
• Interrupt Ratings: 100 kA @ 240 VAC, 65 kA @ 480 VAC, 25 kA @ 600 VAC, 20 kA @ 250 VDC
• Trip Unit: Thermal-Magnetic
• Certifications: UL 489, CSA
• Manufacturer: Square D (Schneider Electric)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JJA36200SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJA
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901428633
• GTIN : 00785901428633
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 7
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
