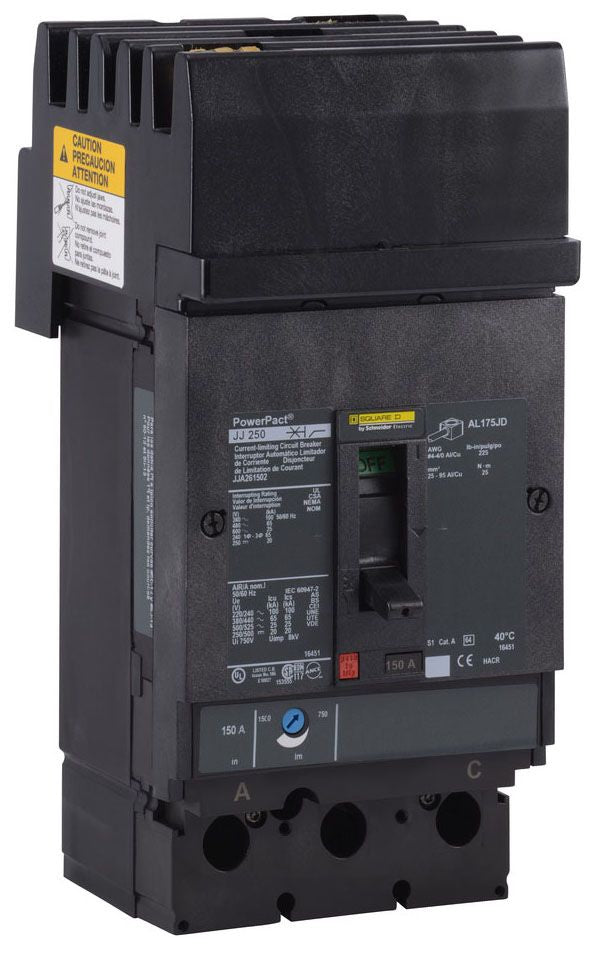

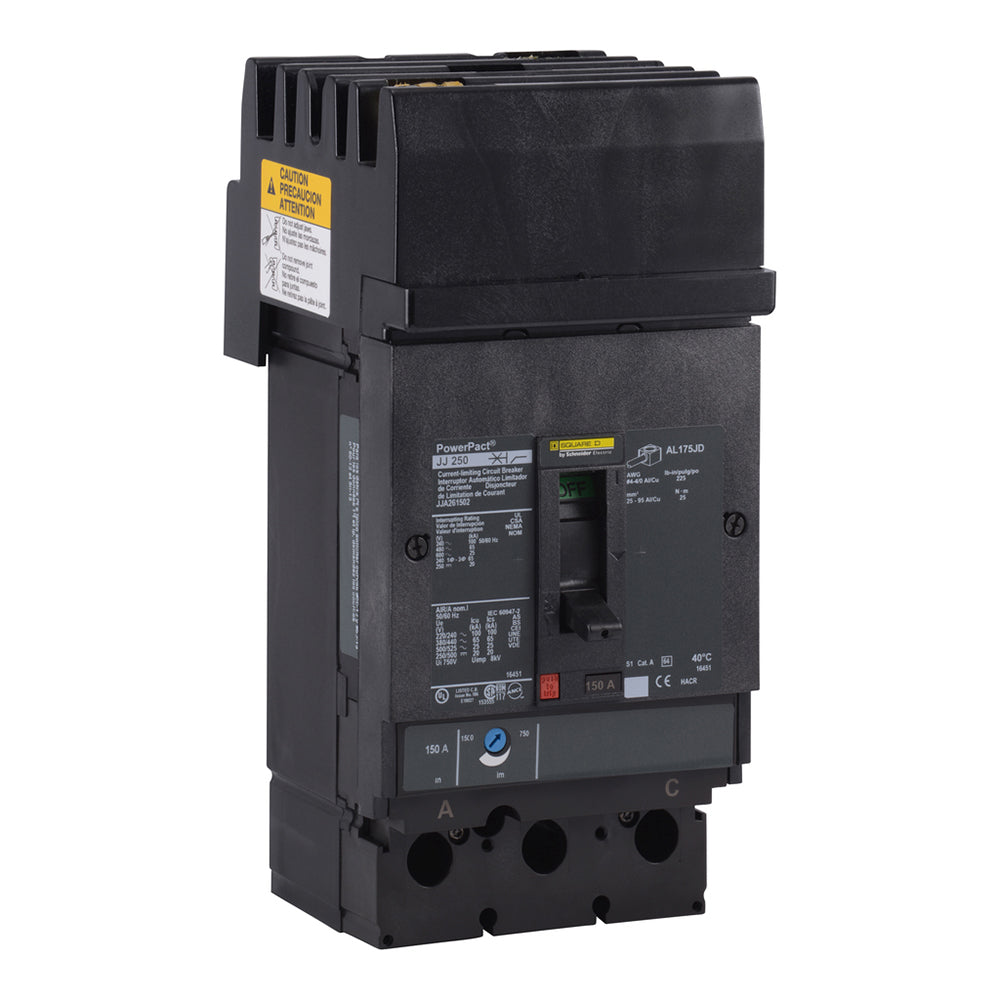

JJA262002 - Square D PowerPact J-Frame 200A 2 Pole 600VAC 25kA I-Line Thermal Magnetic Circuit Breaker

JJA262002

JJA262002 is a Square D PowerPact J-Frame 200A 2 pole I-Line circuit breaker designed for reliable overcurrent protection in AC systems. This breaker features thermal magnetic trip technology and is rated for 600VAC with a 25kA interrupt rating at 600VAC. It is suitable for I-Line panelboard installations and provides robust protection for commercial and industrial applications. The JJA262002 circuit breaker is part of the PowerPact J-Frame series, known for its durability and compliance with UL, CSA, and IEC standards. It features dual-break rotating contacts for reduced peak current during faults and includes an integral push-to-trip button for manual operation. The breaker is designed for easy installation and removal in I-Line applications, with I-Line terminations on the line side and mechanical lugs on the load side.

• Part Number: JJA262002
• Manufacturer: Square D
• Series/Frame: PowerPact J-Frame
• Amperage: 200A
• Poles: 2
• Voltage: 600VAC
• Interrupt Rating: 25kA at 600VAC
• Mounting Type: I-Line
• Tripping Mechanism: Thermal Magnetic
• Standards: UL, CSA, IEC
• Continuous Current Rating: 80%
• Application: AC Systems

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJA262002
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJA
• Voltage : 600
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901939160
• GTIN : 00785901939160
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.97
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
