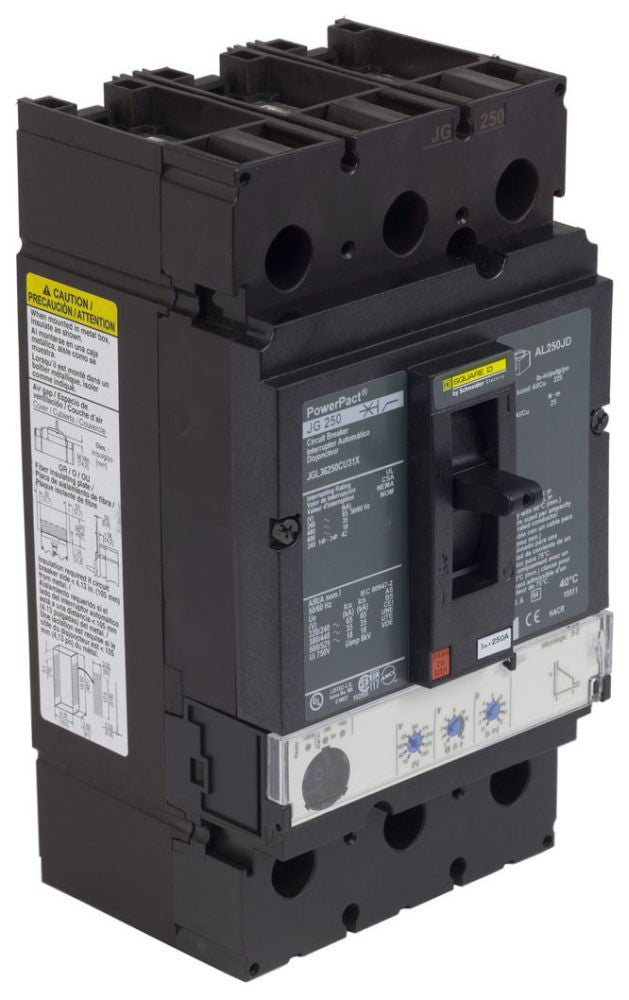

JGL36250CU31X - Square D 250A 600VAC 3-Pole PowerPact J Frame Molded Case Circuit Breaker

JGL36250CU31X

JGL36250CU31X is a Square D 3-pole molded case circuit breaker with a 250 Amp rating and 600 VAC voltage capacity. It features a PowerPact J frame design for reliable circuit protection.This circuit breaker includes a toggle actuator, Micrologic 3.2 trip unit with adjustable current limiting, and a 18kA interrupt rating at 600 VAC. It is UL 489 listed and designed for unit mount applications, compatible with common PowerPact accessories.

Key Specifications
• Amperage: 250 A
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: PowerPact J Frame
• Interrupt Rating: 18 kA at 600 VAC, 35 kA at 480 VAC, 65 kA at 240 VAC
• Trip Unit: Micrologic 3.2, adjustable current limiting
• Mounting Type: Unit Mount
• Actuator Type: Toggle
• Certifications: UL 489 Listed
• Dimensions: Approx. 6.4" H x 4.12" W x 4.36" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36250CU31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : G
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901582014
• GTIN : 00785901582014
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
