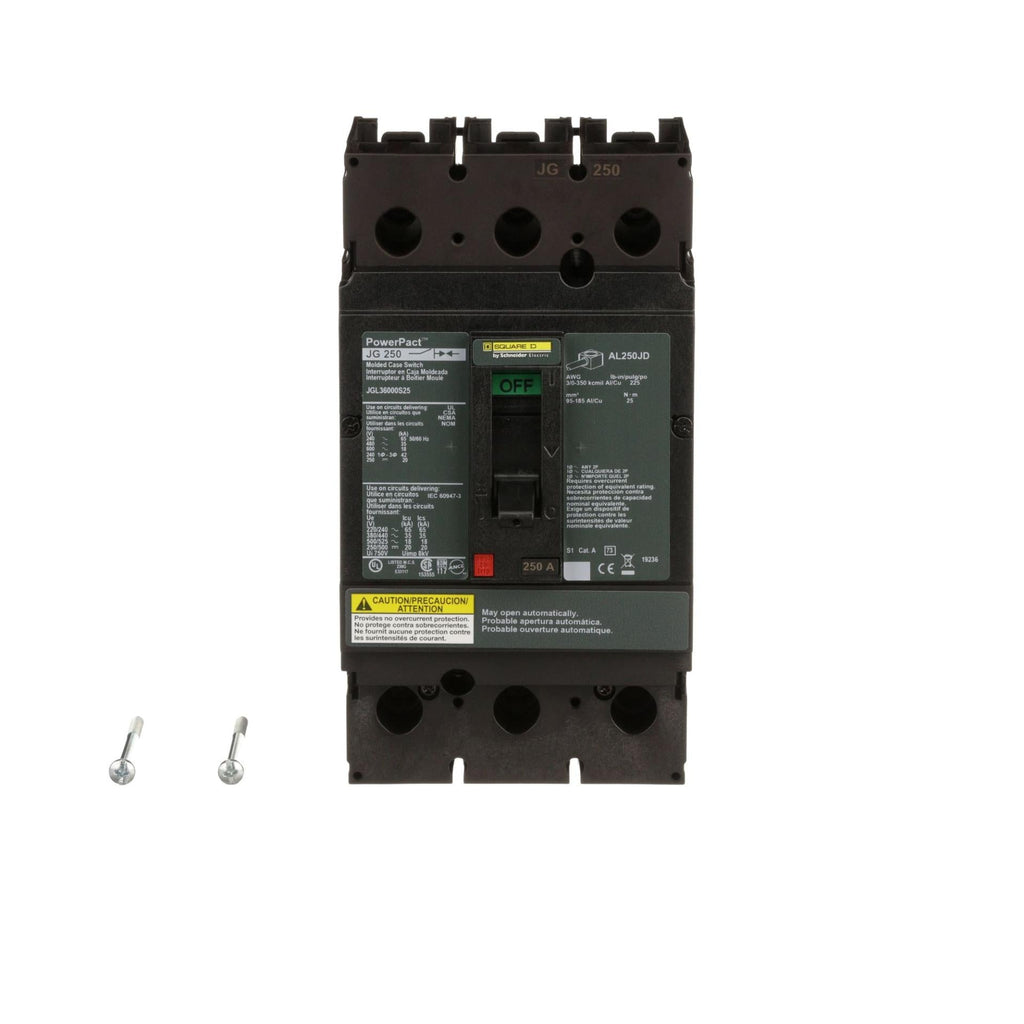

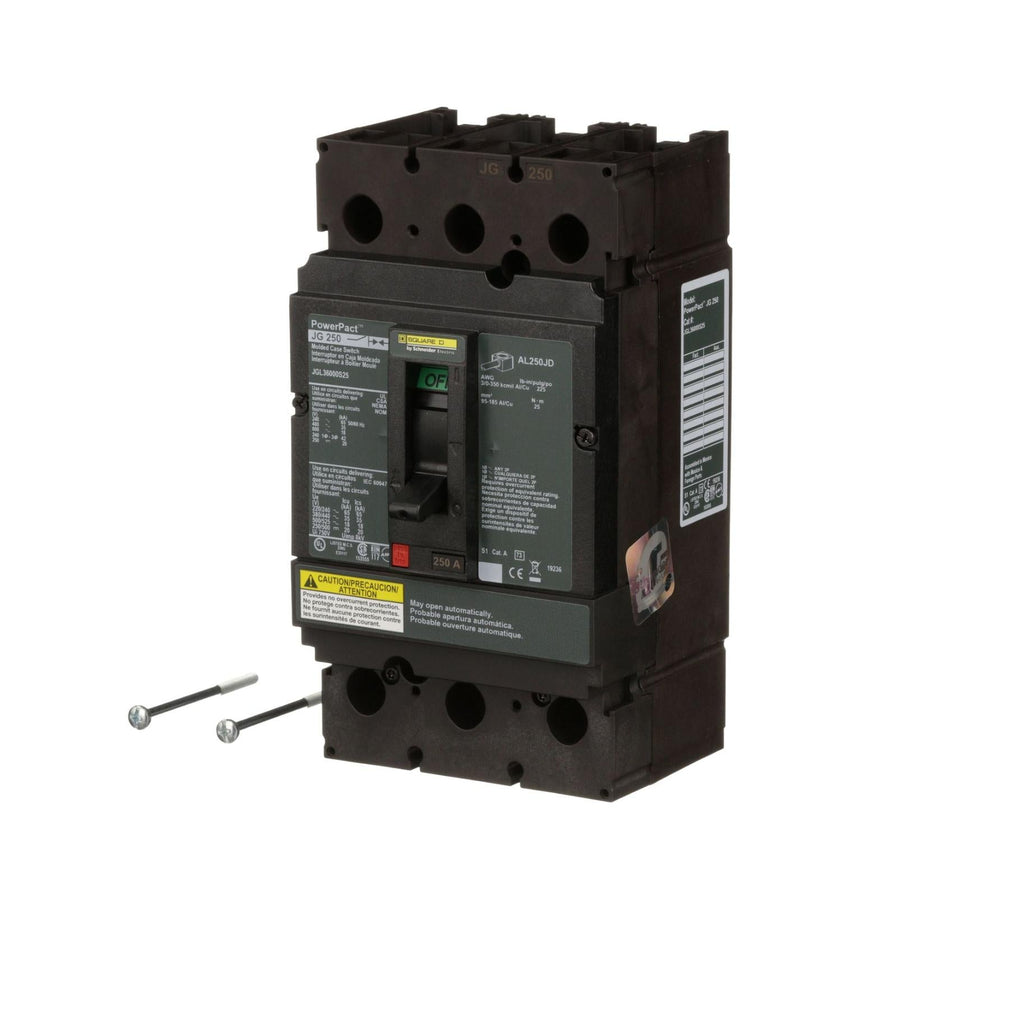

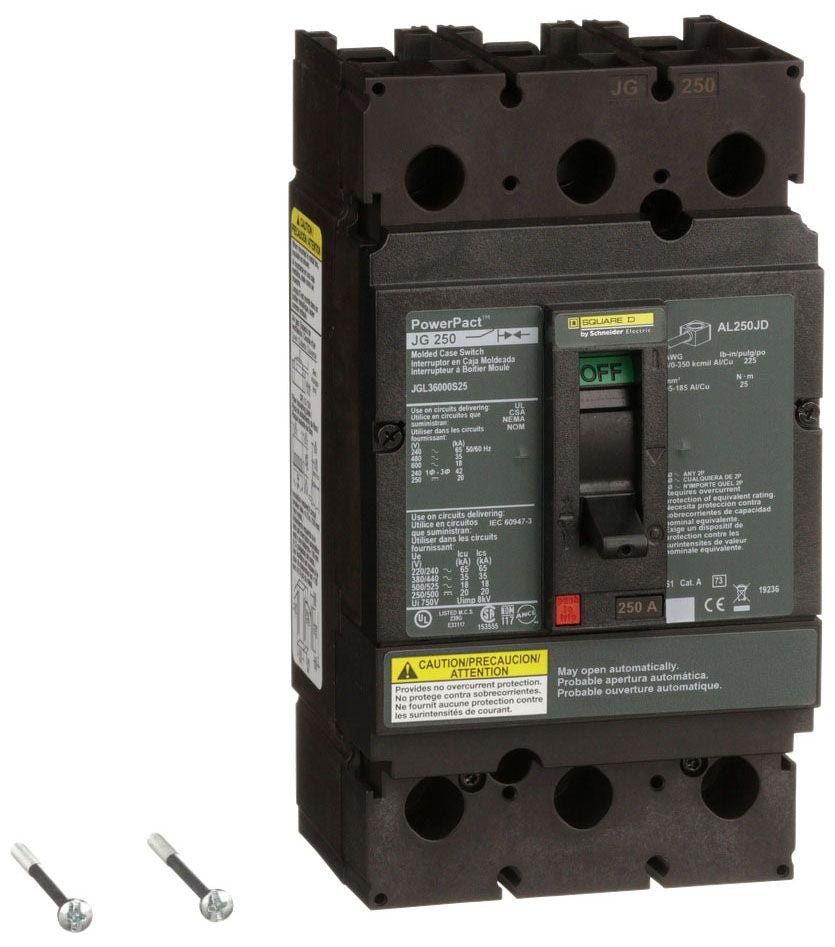

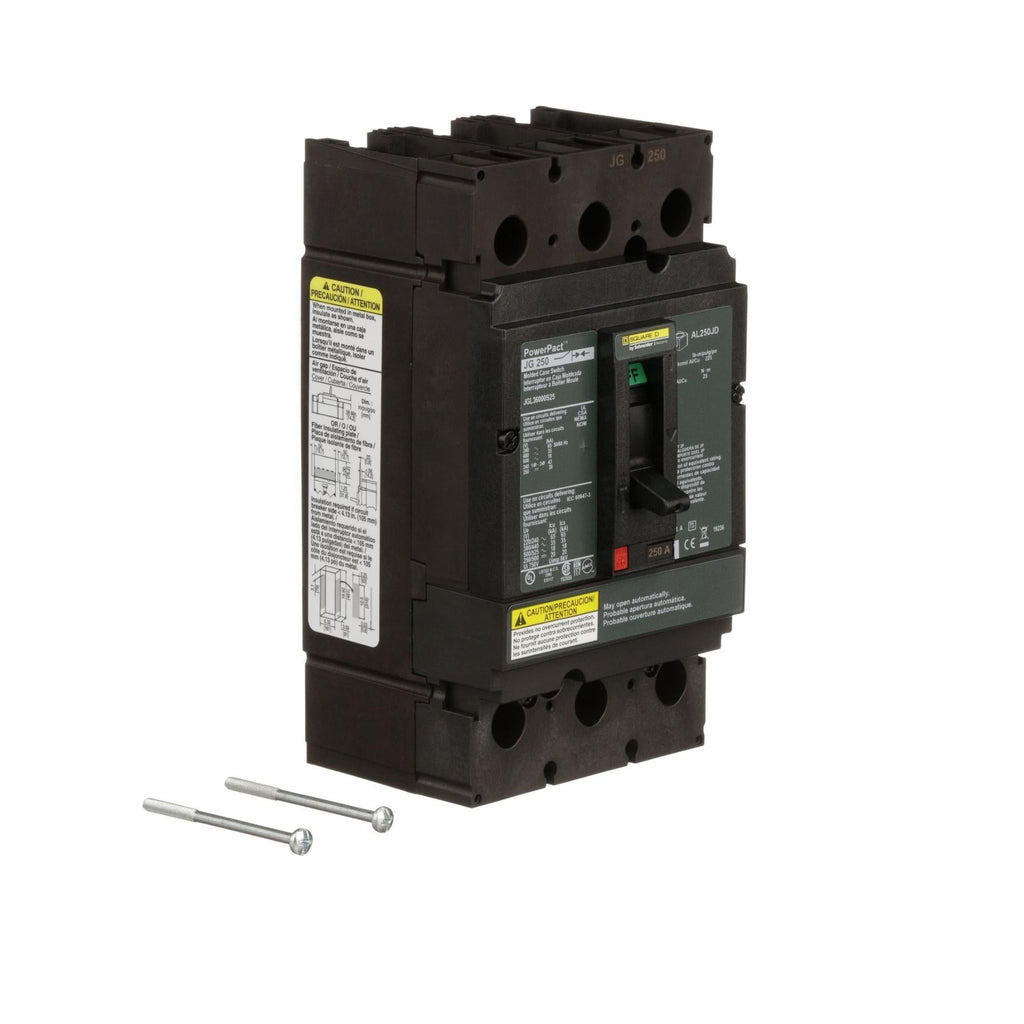

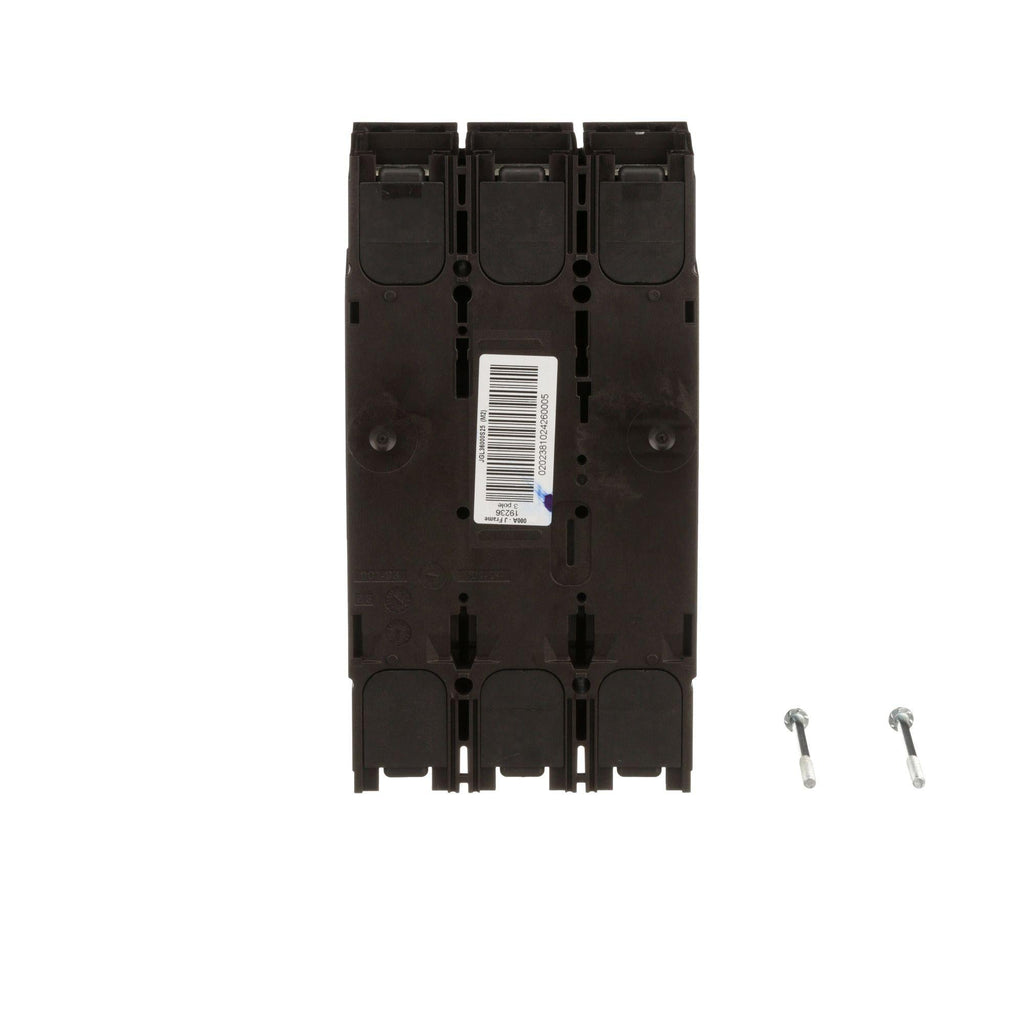

JGL36000S25 - Square D 250 Amp 600VAC 3 Pole Molded Case Circuit Breaker J Frame

JGL36000S25

JGL36000S25 is a 3 pole, 250 amp molded case circuit breaker from Square D designed for high performance in power distribution applications.This Square D JGL36000S25 circuit breaker features a 600 VAC and 250 VDC voltage rating with a 65kA interrupting rating at 240 VAC. It uses a unit mount type with line and load side lug connections suitable for wire sizes from 3/0 AWG to 350 kcmil aluminum or copper. The breaker includes long time and instantaneous trip functions with a thermal magnetic trip unit and is UL, CSA, CE, IEC, NMX, and CCC certified. It is designed for use with I Line panelboards and has a toggle actuator.

• Amperage: 250 A
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 65 kA at 240 VAC
• Frame Type: JGL (J Frame)
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Terminal Connection: Line and Load Side Lug
• Wire Size Range: 3/0 AWG to 350 kcmil Aluminum/Copper
• Approvals: UL, CSA, CE, IEC, NMX, CCC
• Actuator Type: Toggle
• For Use With: I Line Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36000S25
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
• Breaker Type : Shunt Trip
• Protection : Non-Automatic
• Phase Connection : ABC

Product Data

• UPC : 785901598862
• GTIN : 00785901598862
• Country of Origin : Mexico
• Dimensions : 7.52 in (191.008 mm) x 4.12 in (104.65 mm) x 4.5 in (114.3 mm) (Height x Width x Depth)
• Weight : 5
• Panel Type : I Line Panelboards
• Standards : CCC, CE, CSA, IEC, UL Listed
• Certification : CCC, CE, CSA, IEC, UL Listed
• Wire Size : x AWG 3/0...350 kcmil ( aluminium/copper )
