Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
JGA36225

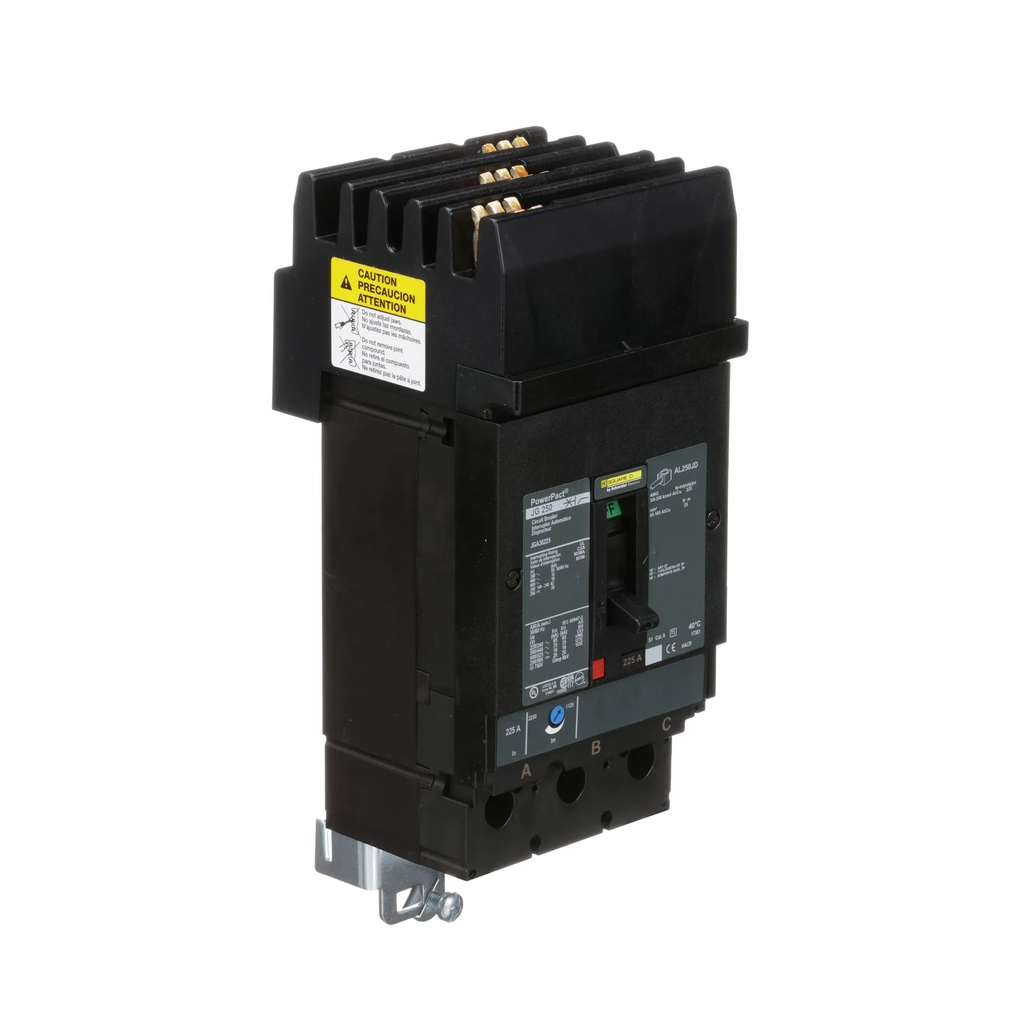

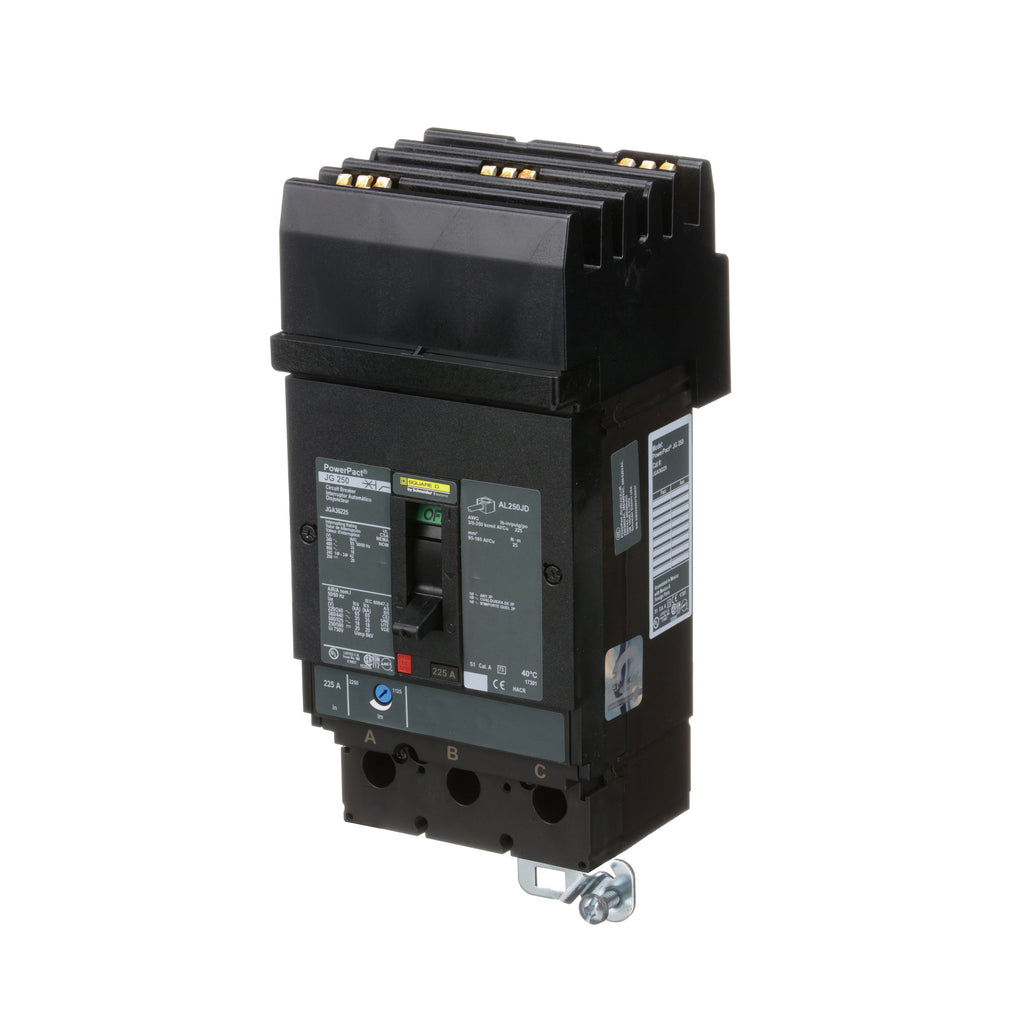

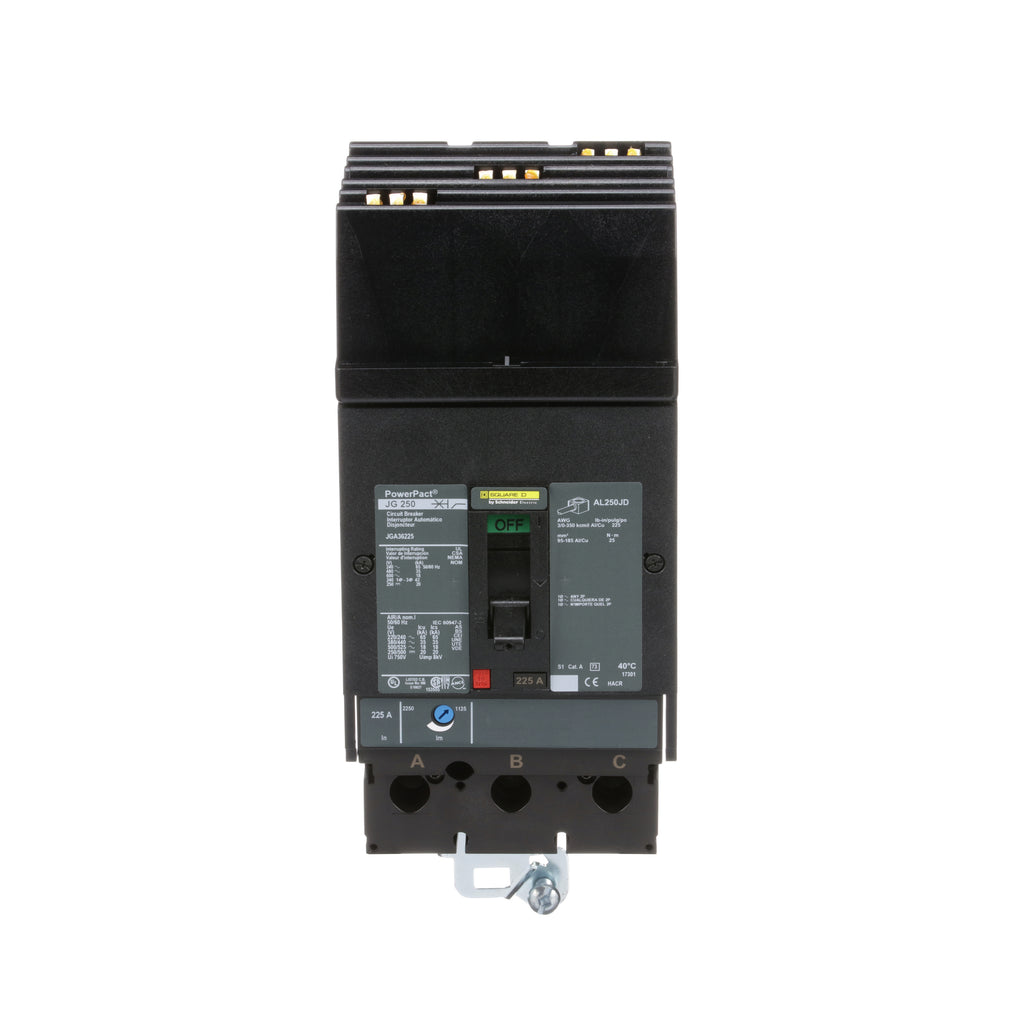

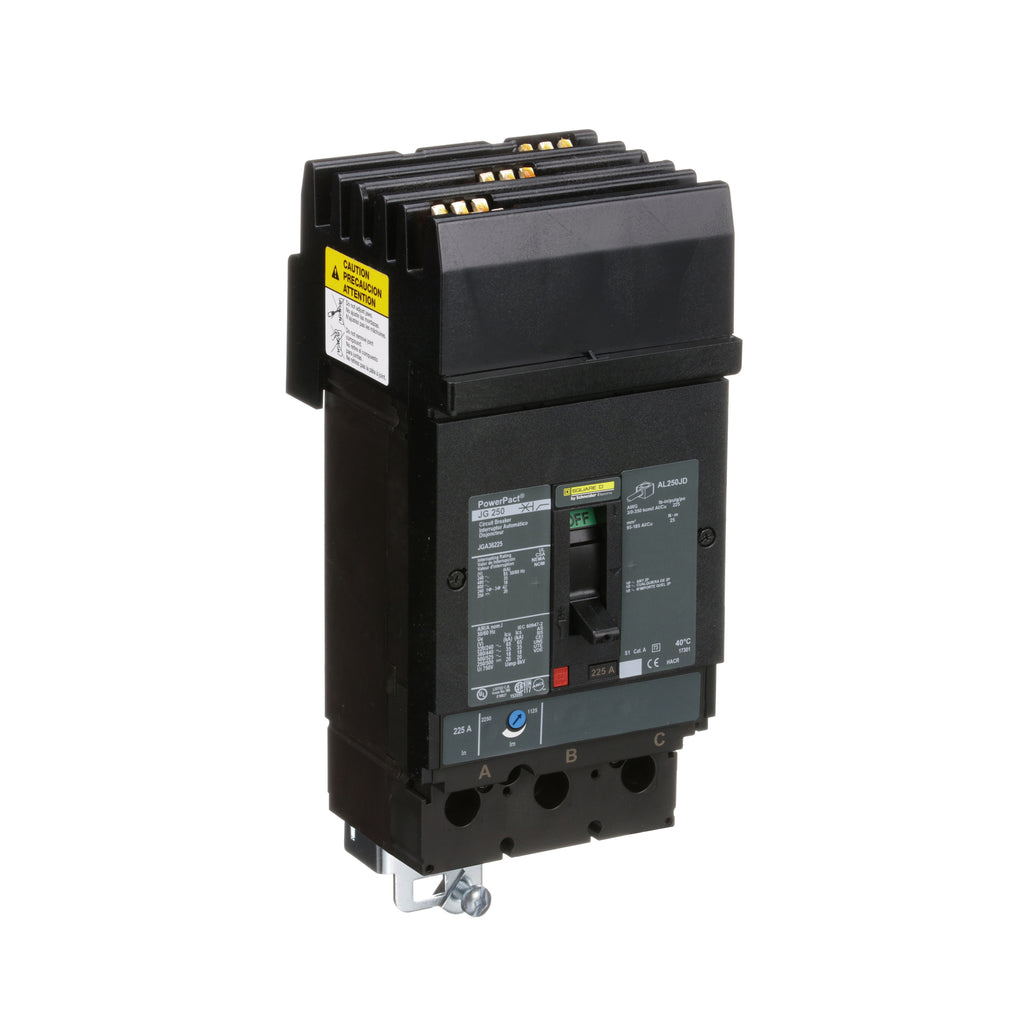

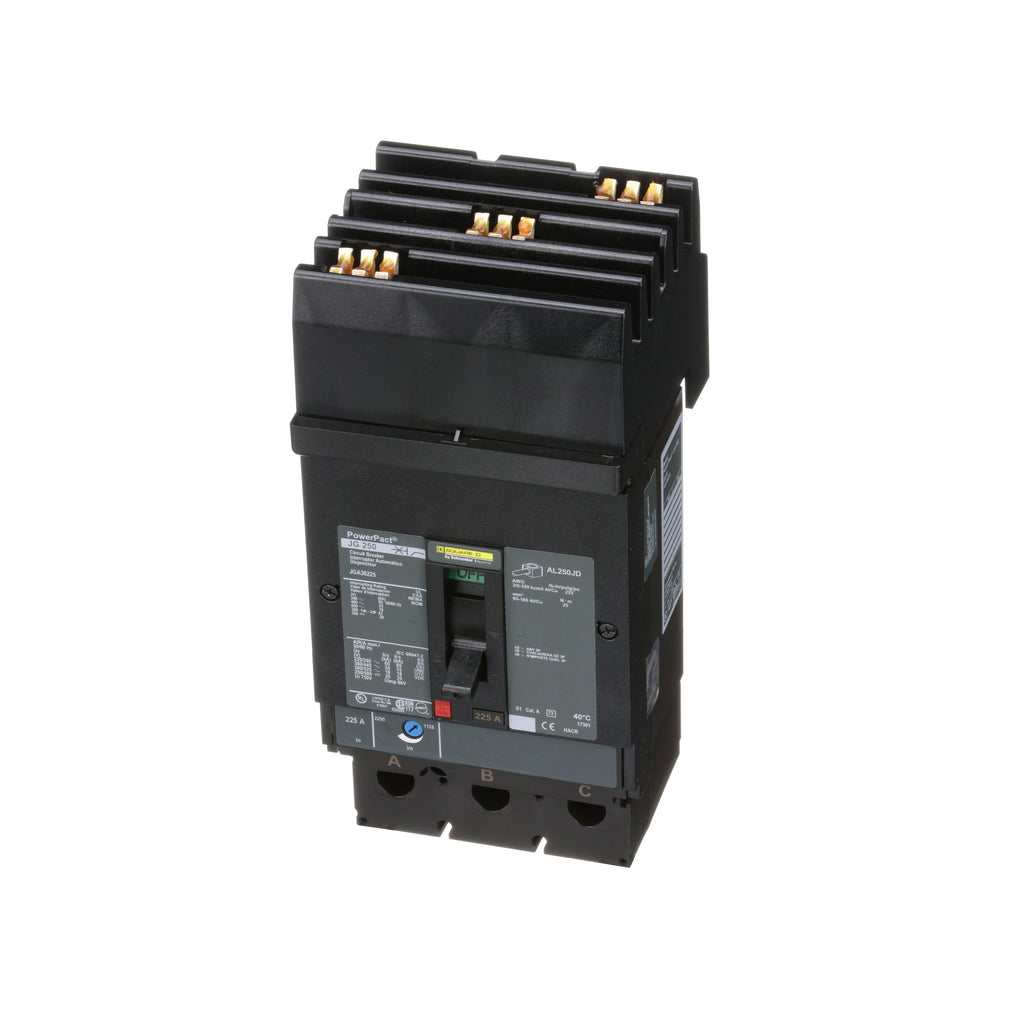

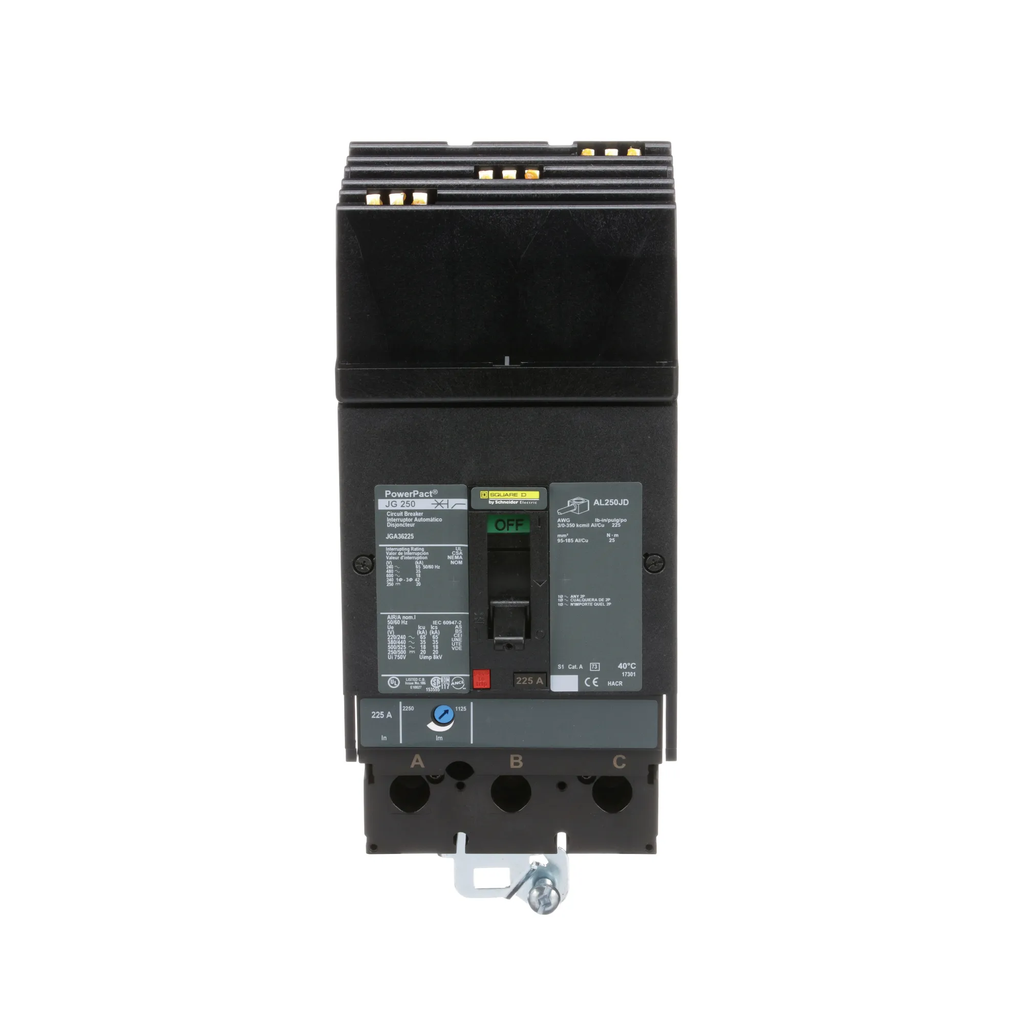

JGA36225 is a Square D PowerPact molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial power distribution systems.
This 3-pole breaker features a 225A current rating, 600VAC voltage rating, and 18kA interrupt capacity, with a thermal magnetic trip unit for adjustable protection. It is designed for I-Line plug-on mounting, making installation quick and secure in compatible panelboards. The JGA series frame is compact yet robust, suitable for a wide range of applications. The breaker is UL, CSA, and CE listed for compliance with North American and international standards.
-
Key Specifications
- Part Number: JGA36225
- Manufacturer: Square D (Schneider Electric)
- Series/Frame: PowerPact JGA
- Amperage: 225A
- Voltage: 600VAC, 250VDC
- Poles: 3

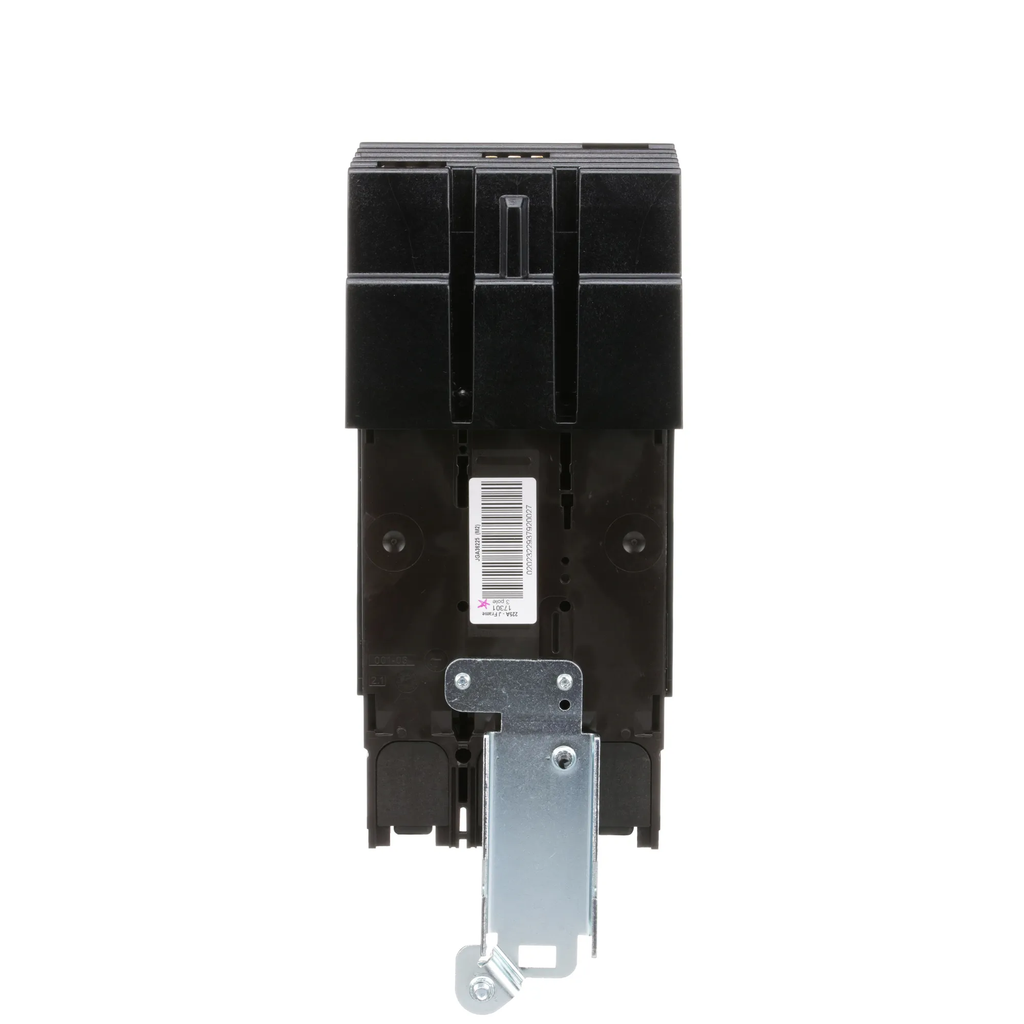

- Mounting Type: I-Line Plug-On
- Interrupt Rating: 18kA at 600VAC
- Trip Unit: Thermal Magnetic (adjustable magnetic trip 1125–2250A)
- Certifications: UL, CSA, CE
- Frequency: 50/60 Hz
- Wire Size: 3/0 AWG to 350 kcmil
- Temperature Range: -13°F to 158°F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JGA36225
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JGA
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Line/Load Lug
- Frame Size : 250A/JG
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901795841
- GTIN : 00785901795841
- Country of Origin : Mexico

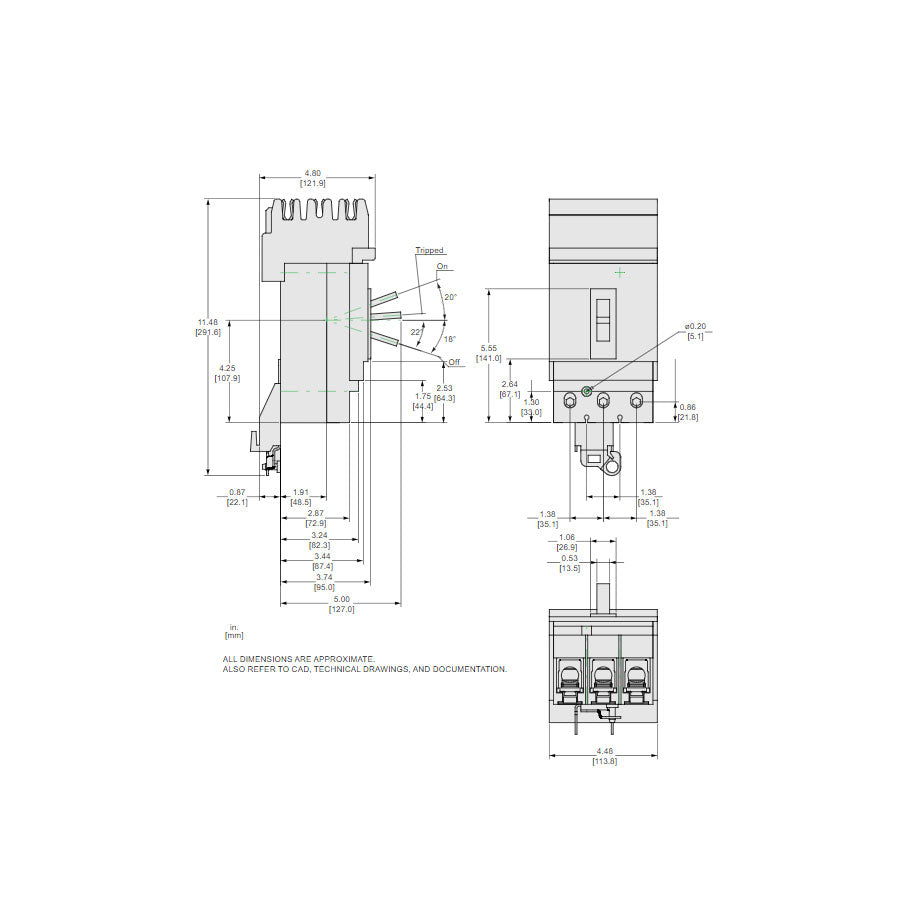

- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 6.66
- Panel Type : I Line Panelboards
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
