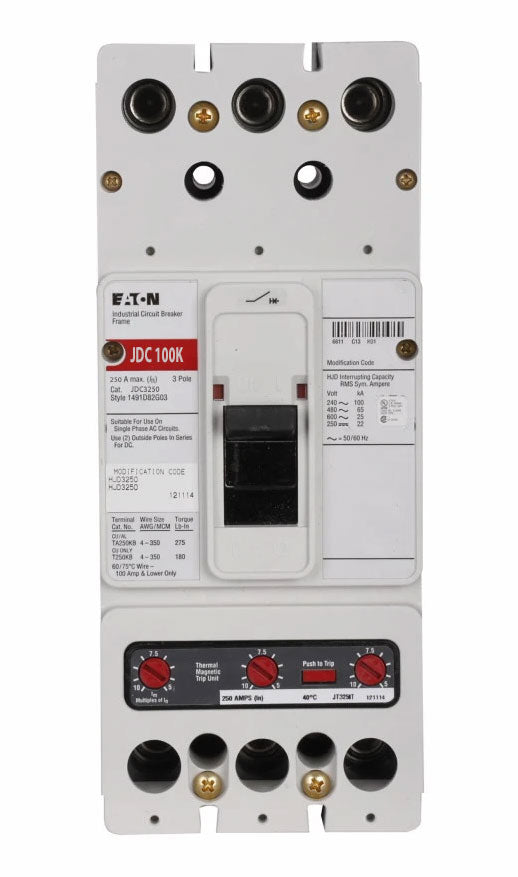

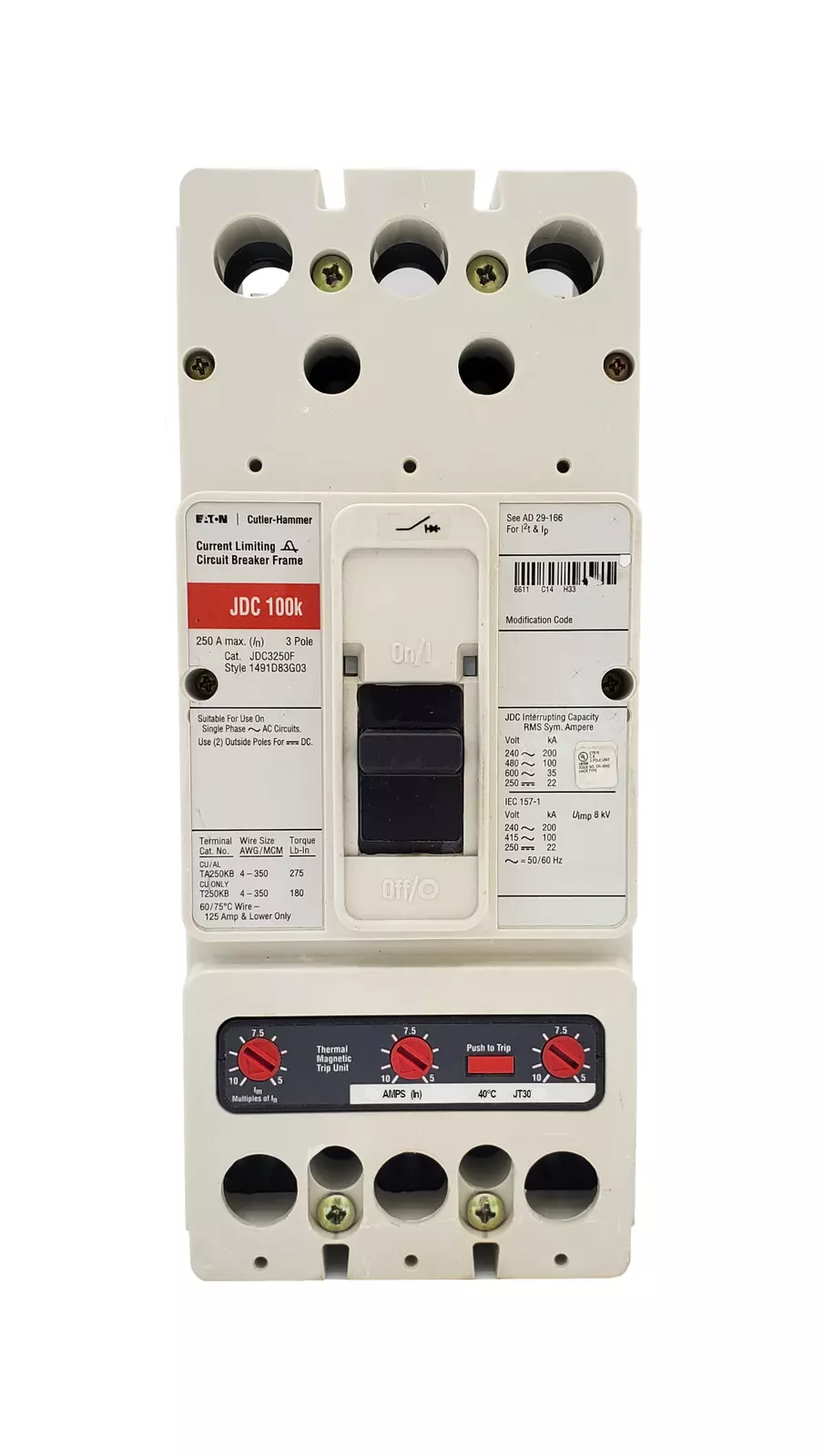

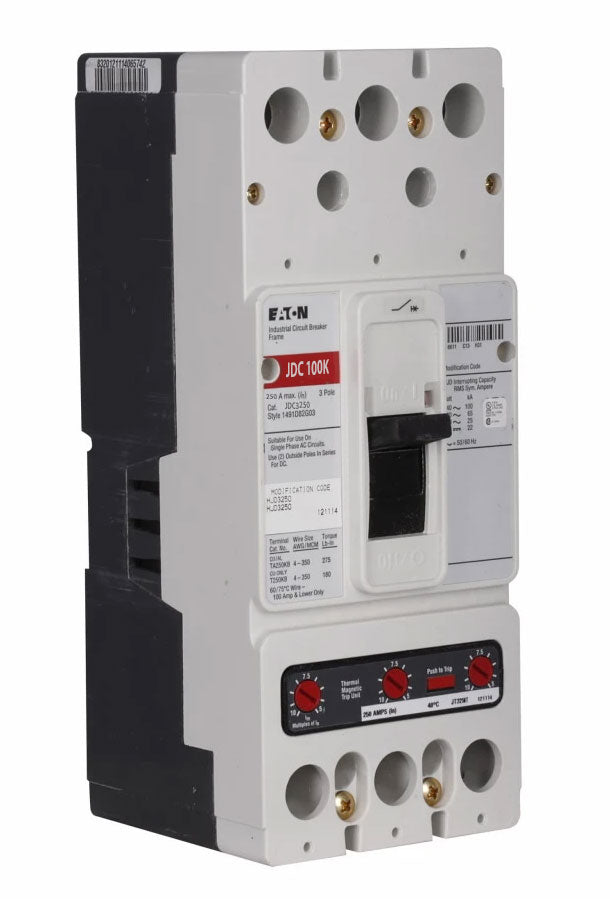

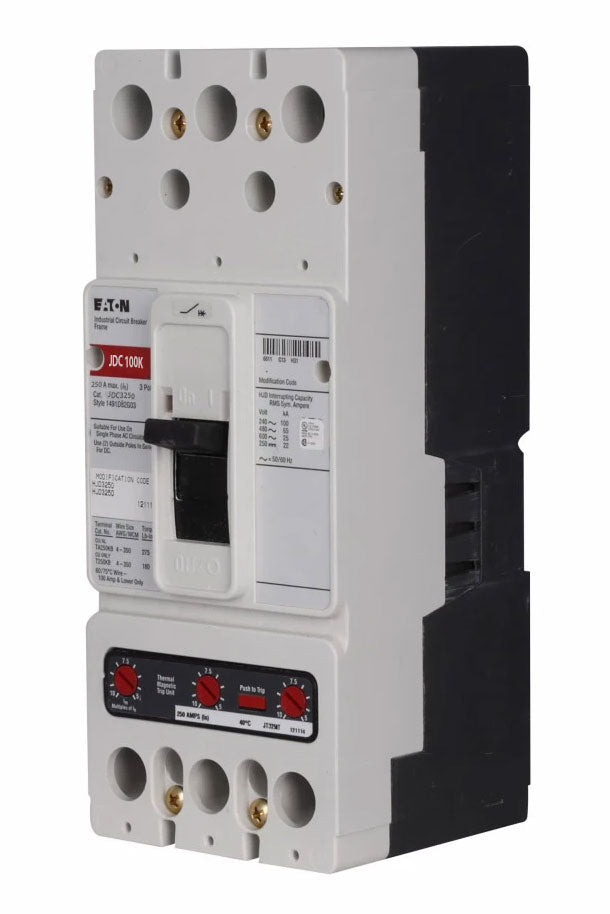

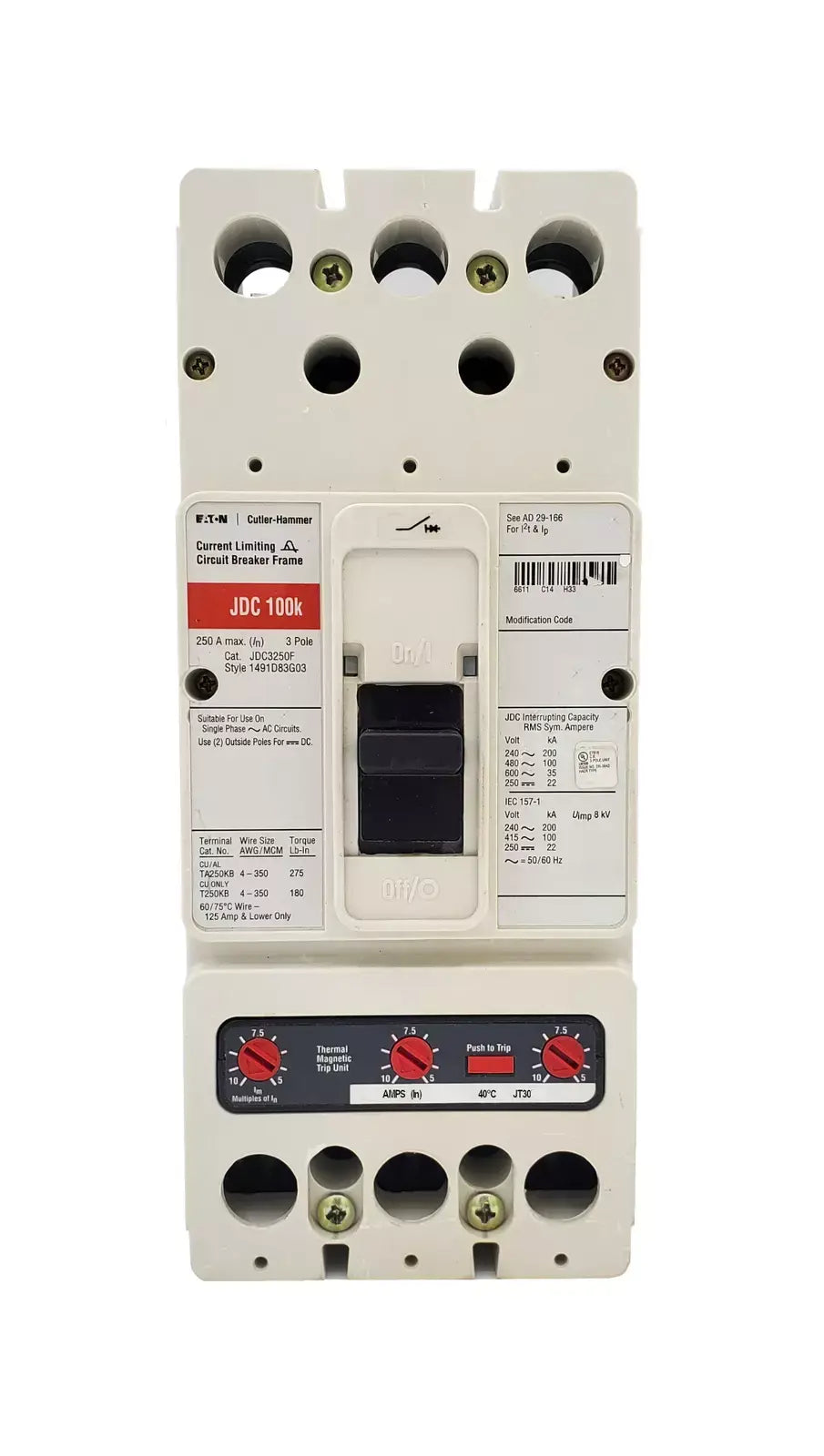

JDC3250 - Westinghouse Series C J-Frame 3 Pole 250A 600V Molded Case Circuit Breaker

JDC3250

JDC3250 is a Westinghouse Series C J-Frame 3 Pole 250A 600V molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a feed-thru connection, thermal magnetic trip unit, and is suitable for reverse fed applications. Engineered for durability and safety, the JDC3250 offers a 100kA interrupt rating at 480V, current limiting capability, and non-interchangeable trip unit for added security. It is ideal for use in switchgear, panelboards, and motor control centers where high performance and dependability are required.

• Part Number: JDC3250
• Manufacturer: Westinghouse
• Series/Frame: Series C J-Frame
• Poles: 3
• Amperage: 250A
• Voltage: 600V AC
• Interrupt Rating: 100kA @ 480V
• Mounting Type: Feed-Thru
• Trip Unit: Thermal Magnetic
• Current Limiting: Yes
• Reverse Fed Suitable: Yes
• Non-Interchangeable Trip: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDC3250
• Manufacturer : Westinghouse
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDC
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679340929
• GTIN : 00786679340929
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 14.25
• Certification : UL Listed
