Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB3225X

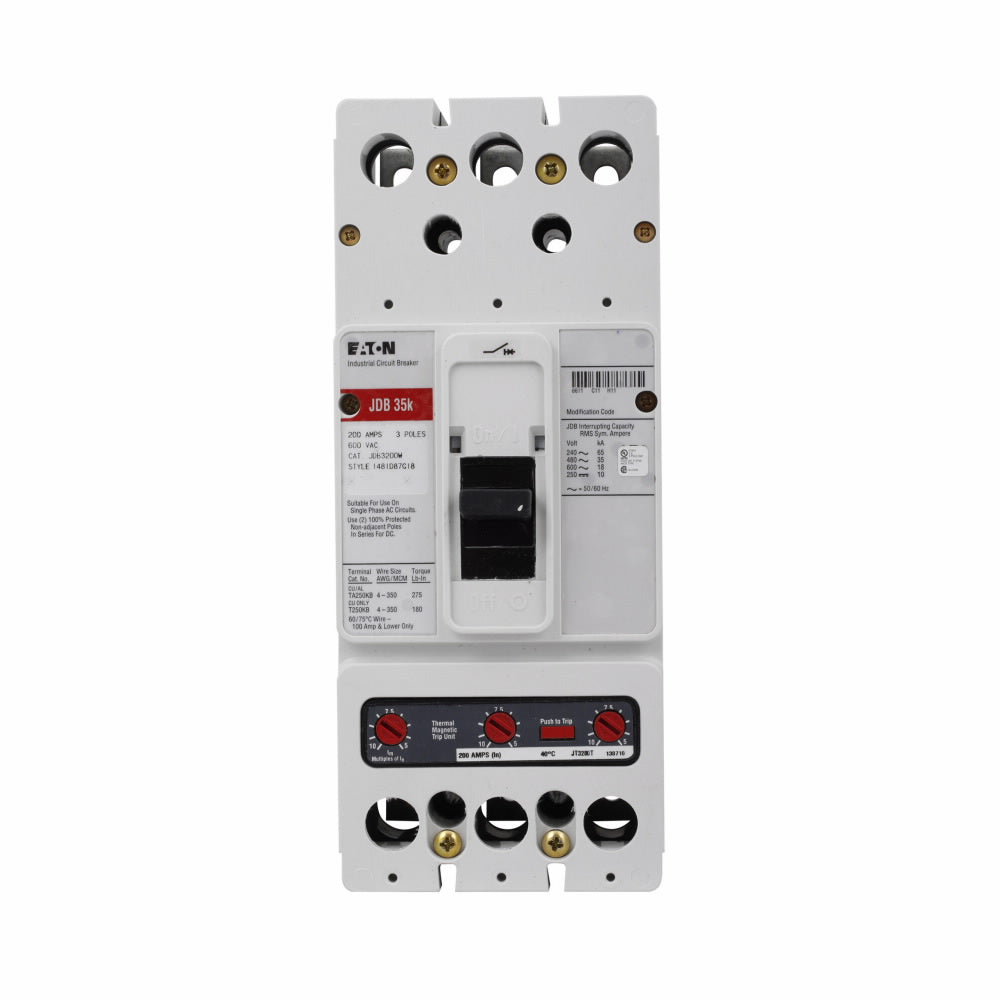

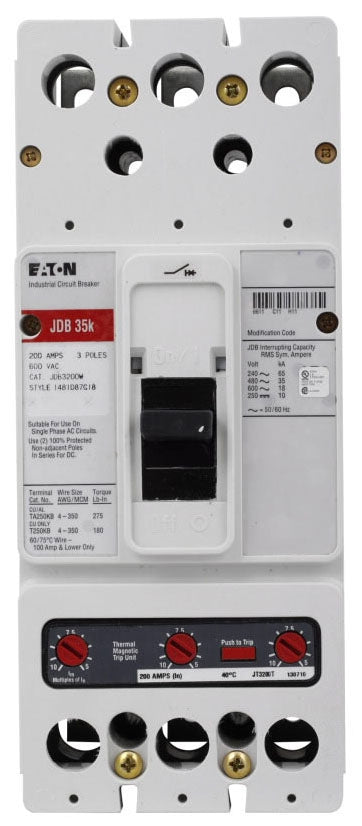

JDB3225X is a 225 amp, 3-pole molded case circuit breaker from Eaton's J-Frame Series C line designed for industrial power distribution applications.This Eaton JDB3225X circuit breaker features a thermal magnetic trip unit (T186 trip type) and is rated for 600 volts AC and 250 volts DC. It is factory sealed and constructed with an aluminum frame, providing reliable protection and durability. The breaker is designed for three-pole operation and suitable for use in various electrical systems requiring robust circuit interruption.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: 3
- Series/Frame: Series C, J-Frame
- Trip Unit: Thermal Magnetic (T186)
- Mounting Type: Molded Case
- Material: Aluminum Frame
- Part Number: JDB3225X
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
- UPC : 786679025468
- GTIN : 00786679025468
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 11.25
- Certification : UL Listed
