Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB3125W

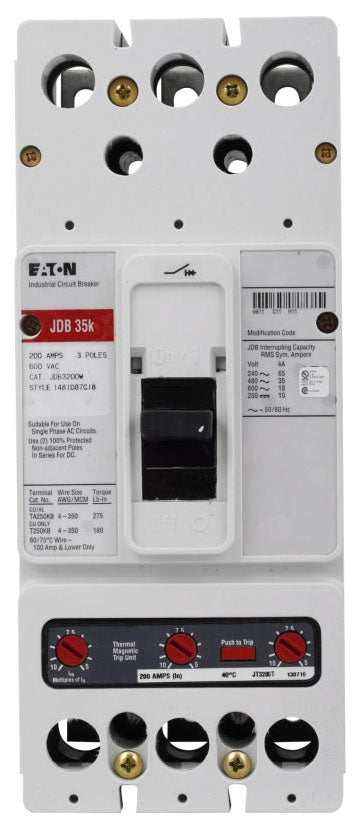

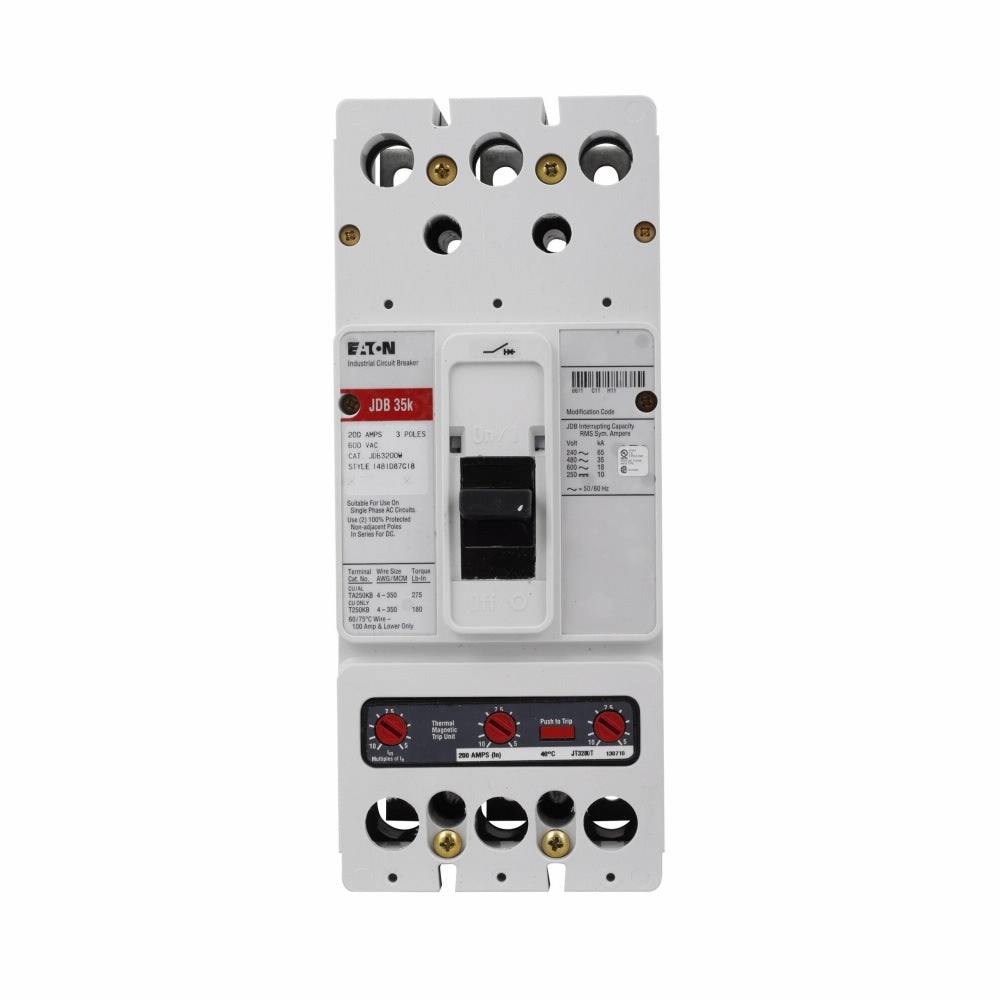

JDB3125W is a 3 pole, 125 amp, 600 volt molded case circuit breaker from Eaton's Series C J-Frame family.This Eaton JDB3125W circuit breaker features a fixed thermal and fixed magnetic trip unit, designed for reliable protection in industrial and commercial electrical systems. It supports bolt-on mounting and has an interrupt rating of 35kA at 480V AC, ensuring high fault current interruption capability.
- Key Specifications
- Amperage: 125A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: J-Frame
- Series: Series C
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 35kA at 480V AC
- Mounting Type: Bolt-On
- Certifications: UL Listed, CSA Certified
- Part Number: JDB3125W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
- UPC : 786679516256
- GTIN : 00786679516256
- Country of Origin : Dominican Republic
- Dimensions : 12.25 in x 6.25 in x 6.75 in (Length/Depth x Height x Width)
- Weight : 10.8
- Certification : UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
