Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB2250W

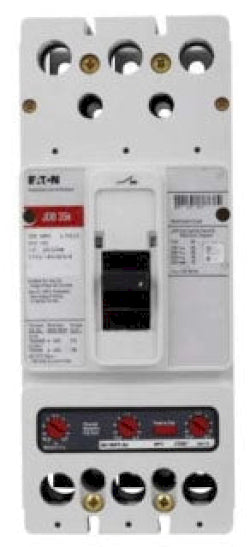

JDB2250W is a molded case circuit breaker designed for reliable protection in low voltage distribution systems.This Eaton JDB2250W circuit breaker features a J-Frame design and is rated for 250 amps, 2 poles, and 600 volts. It is suitable for industrial and commercial applications requiring robust circuit protection. The breaker is factory sealed and built to meet demanding electrical safety standards.
- Part Number: JDB2250W
- Manufacturer: Eaton
- Amperage: 250A
- Poles: 2
- Voltage: 600V
- Frame Type: J-Frame
- Mounting Type: Molded Case
- Interrupt Rating: 65 kAIC at 240VAC, 35 kAIC at 480VAC
- Series: Series C
- Frequency Rating: 50 to 60 Hz
- Weight: 11.25 lbs
- Dimensions: 4.13" W x 10.49" H x 10.49" L
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: JDB2250W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679516171
- GTIN : 00786679516171
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 11.25
- Certification : UL Listed
