Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB2250

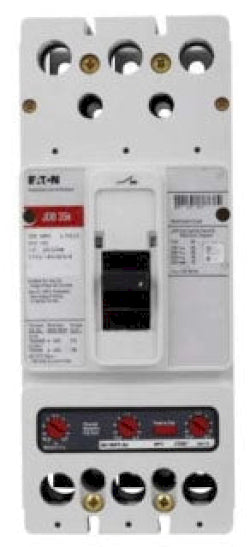

JDB2250 is a Series C complete molded case circuit breaker manufactured by Eaton with fixed thermal and fixed magnetic trip protection for reliable power distribution. This J-frame breaker delivers robust performance in industrial and commercial applications with aluminum line and load terminals rated for 50/60 Hz operation. Key Specifications
- Amperage Rating: 250A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: 2-Pole
- Frame Type: J-Frame
- Circuit Breaker Type: JDB
- Trip Unit: Fixed Thermal, Fixed Magnetic
- Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Terminal Material: Aluminum
- Frequency Rating: 50/60 Hz
- Certifications: UL Listed
- Product Height: 4.13 in
- Product Weight: 10.5 lb
Specifications
- Part Number: JDB2250
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679516164
- GTIN : 00786679516164
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 10.5
- Certification : UL Listed
