Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JD62F400

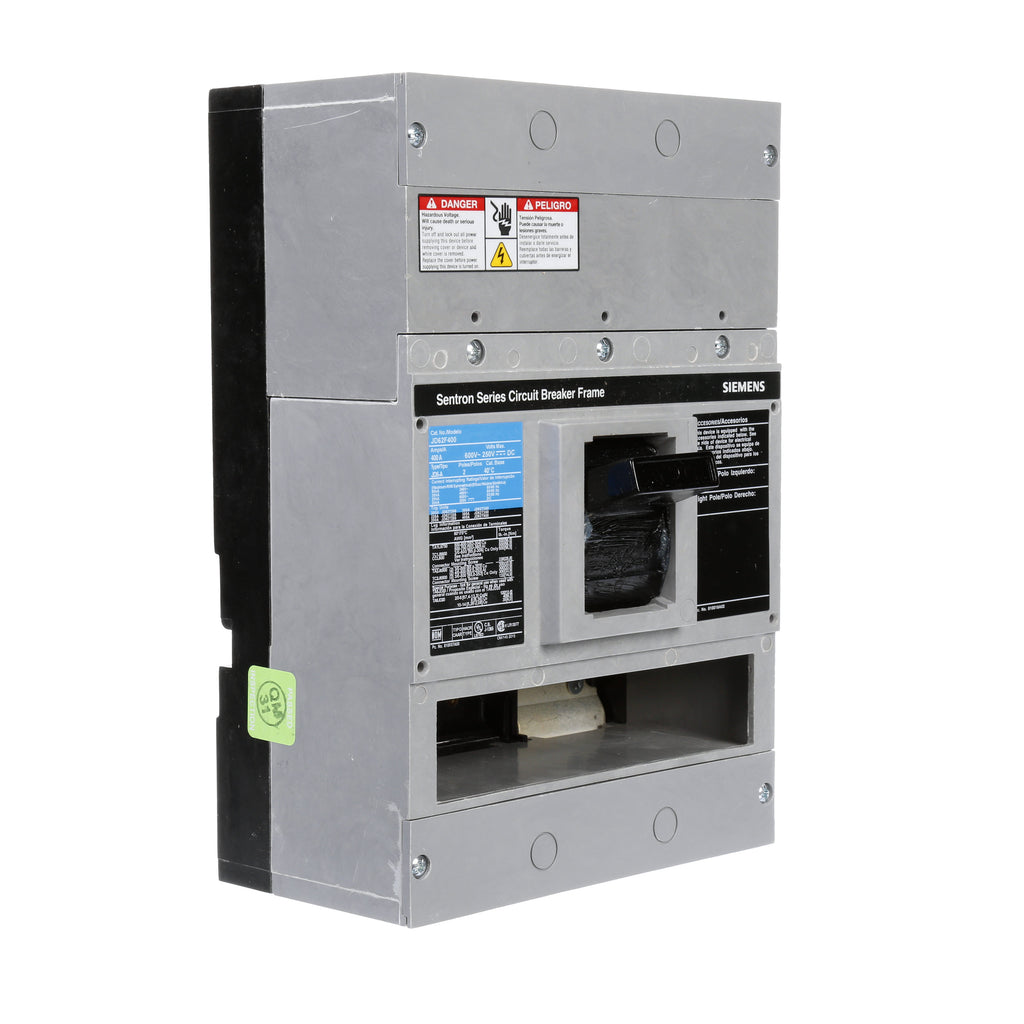

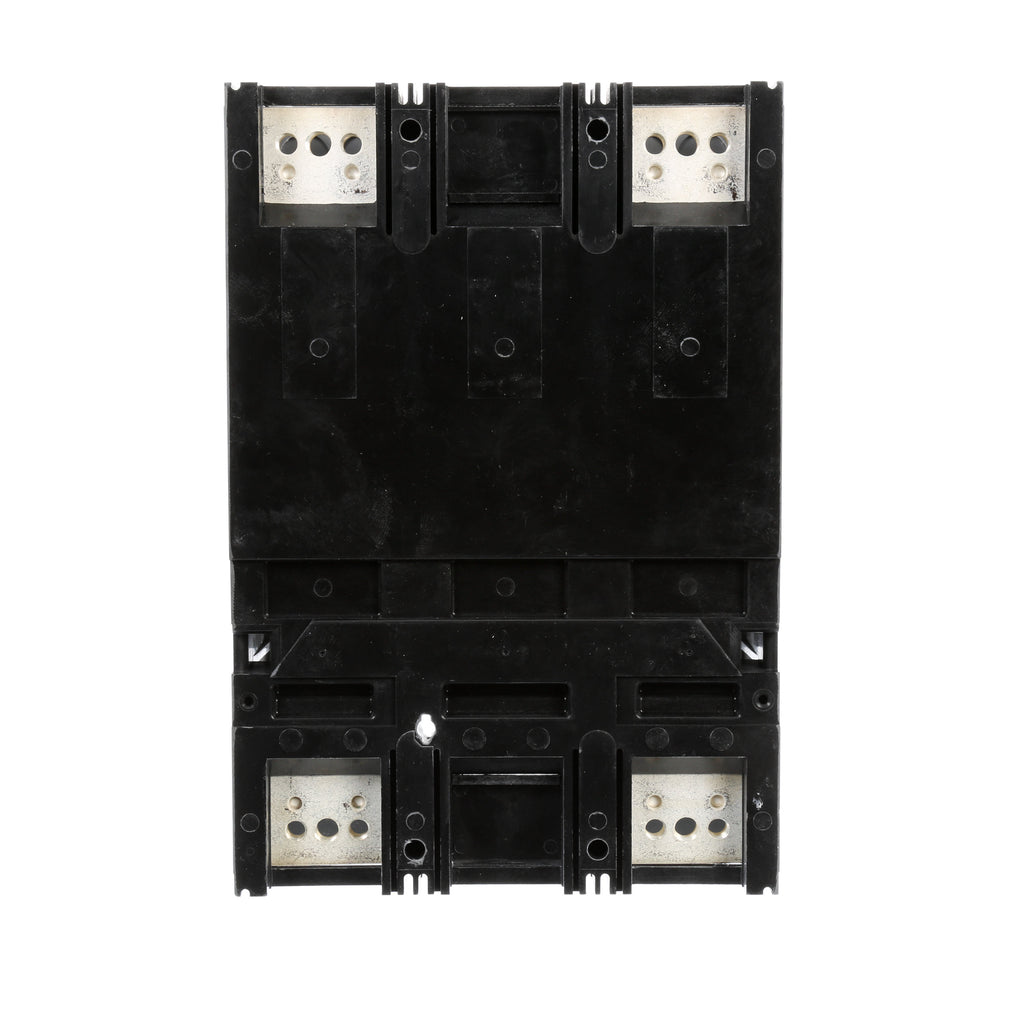

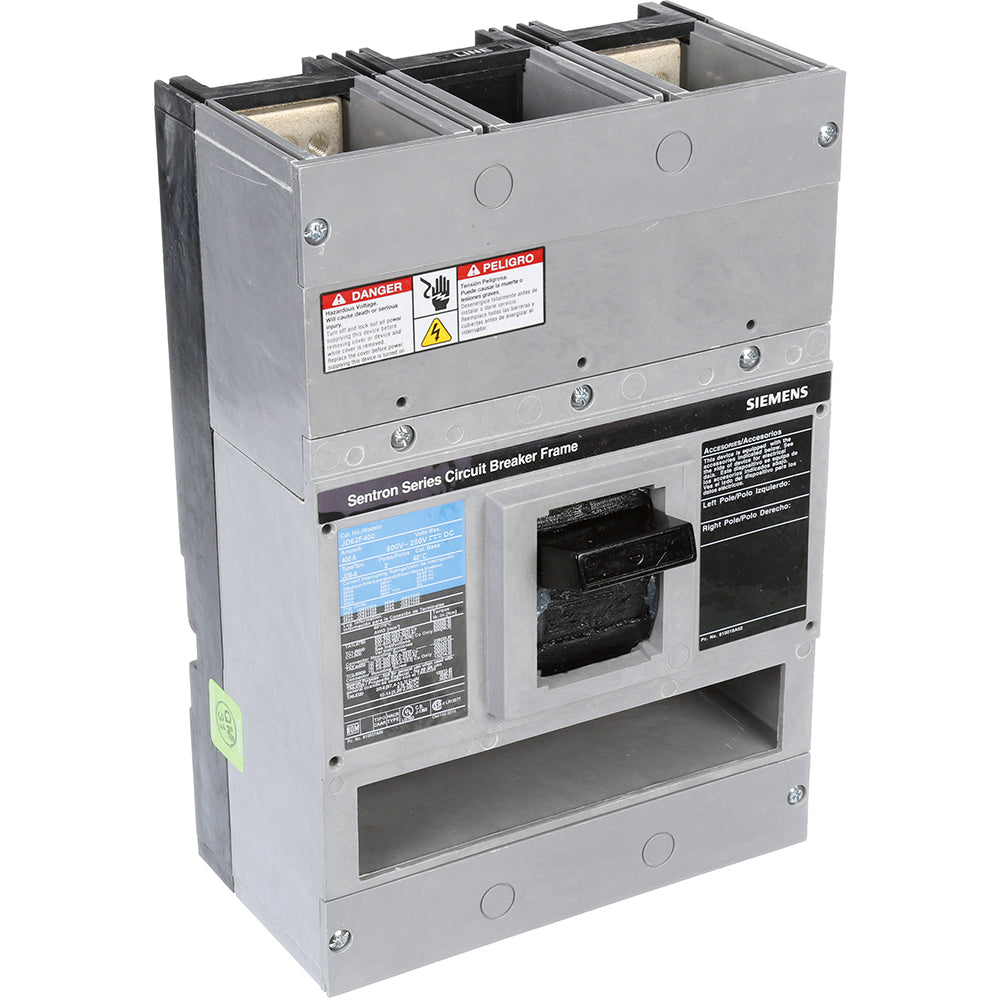

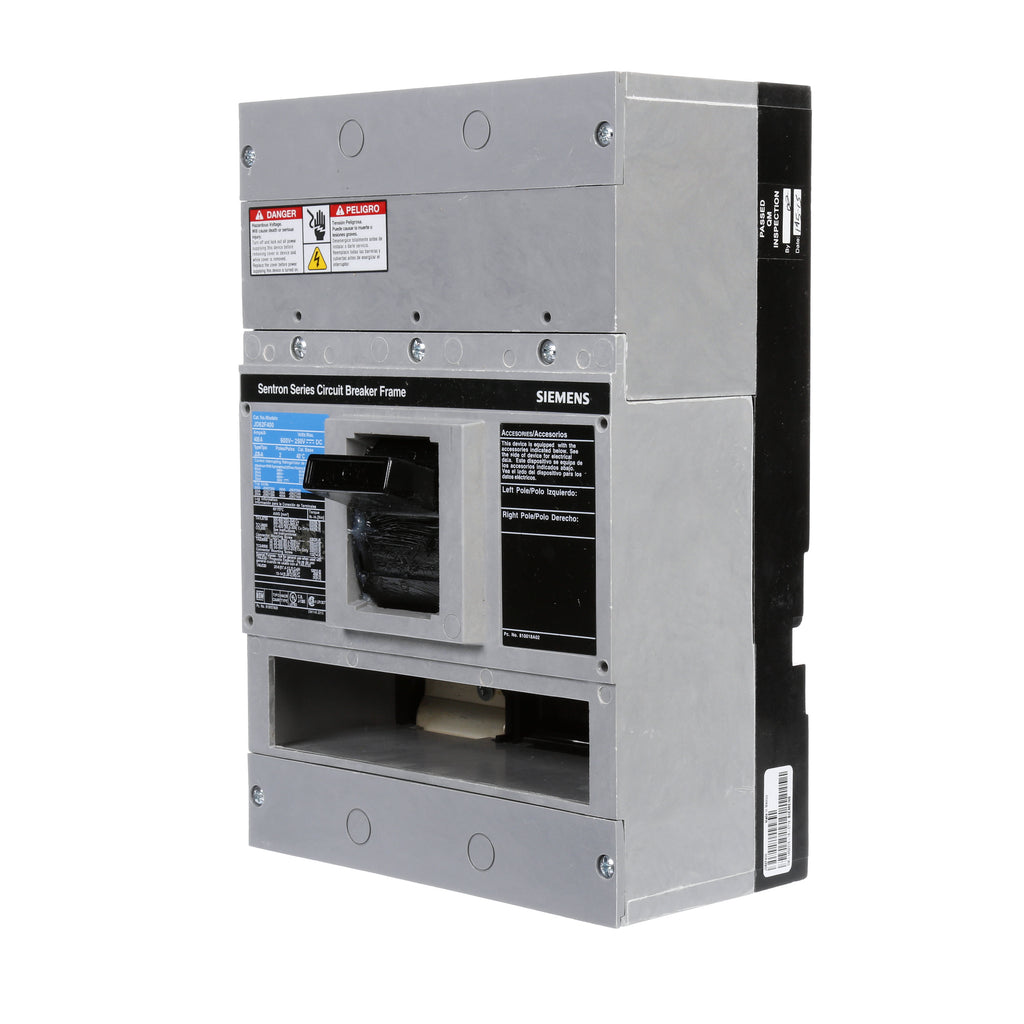

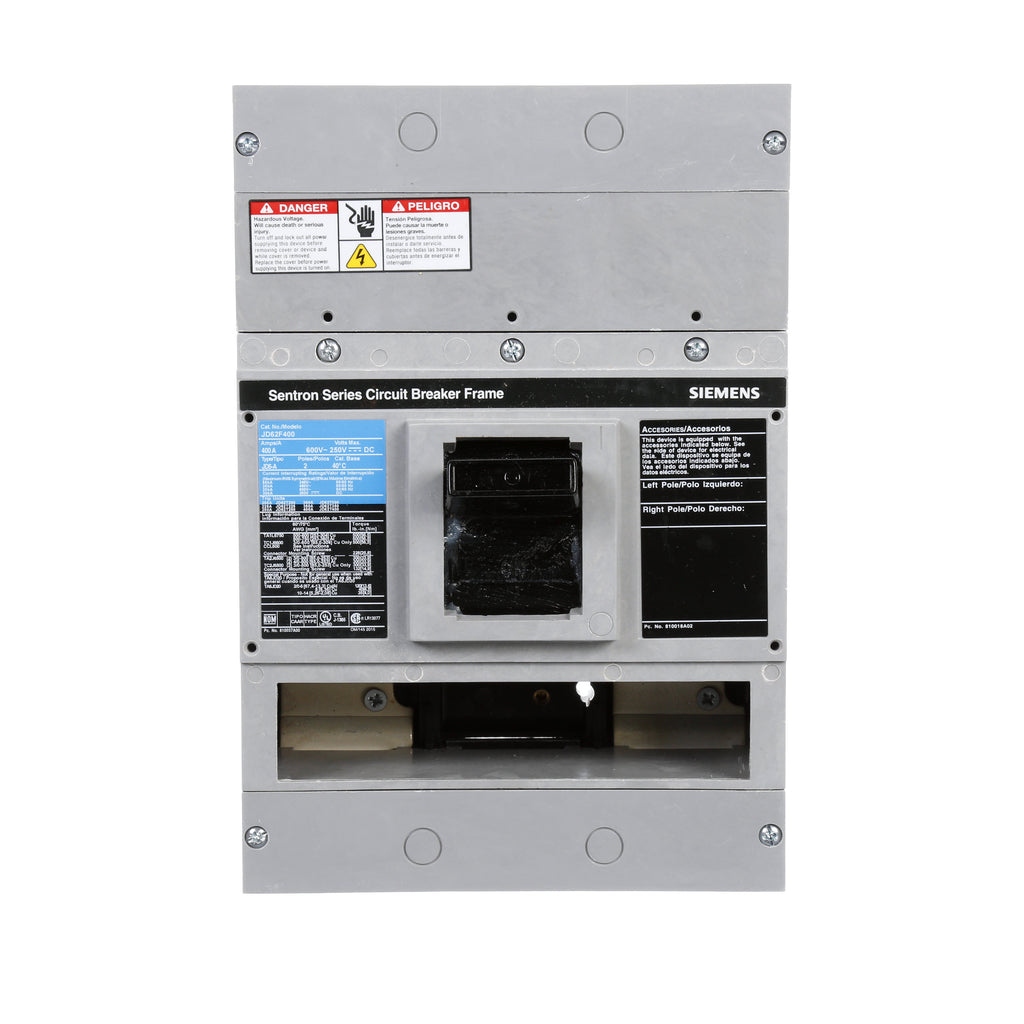

JD62F400 is a Siemens 2-pole circuit breaker designed for 400 ampere current and 600 volt applications.JD62F400 features a JD frame with a 35kA interrupt rating at 480V AC, suitable for reliable power distribution and protection. It includes lug-type line side terminations and meets industry certifications for safety and performance.
- Amperage: 400A
- Voltage Rating: 600V AC
- Poles: 2
- Frame/Series: JD Frame
- Interrupt Rating: 35kA at 480V AC
- Mounting Type: Plug-in or bolt-on (typical for JD frame)
- Trip Unit: Thermal-magnetic (standard for JD series)
- Line Side Termination: Lug included
- Certifications: UL Listed, CSA Certified
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: JD62F400
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JD
- Voltage : 600
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643213227
- GTIN : 00783643213227
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.705
- Weight : 13.3
- Standards : RoHS
- Certification : UL, IEC
