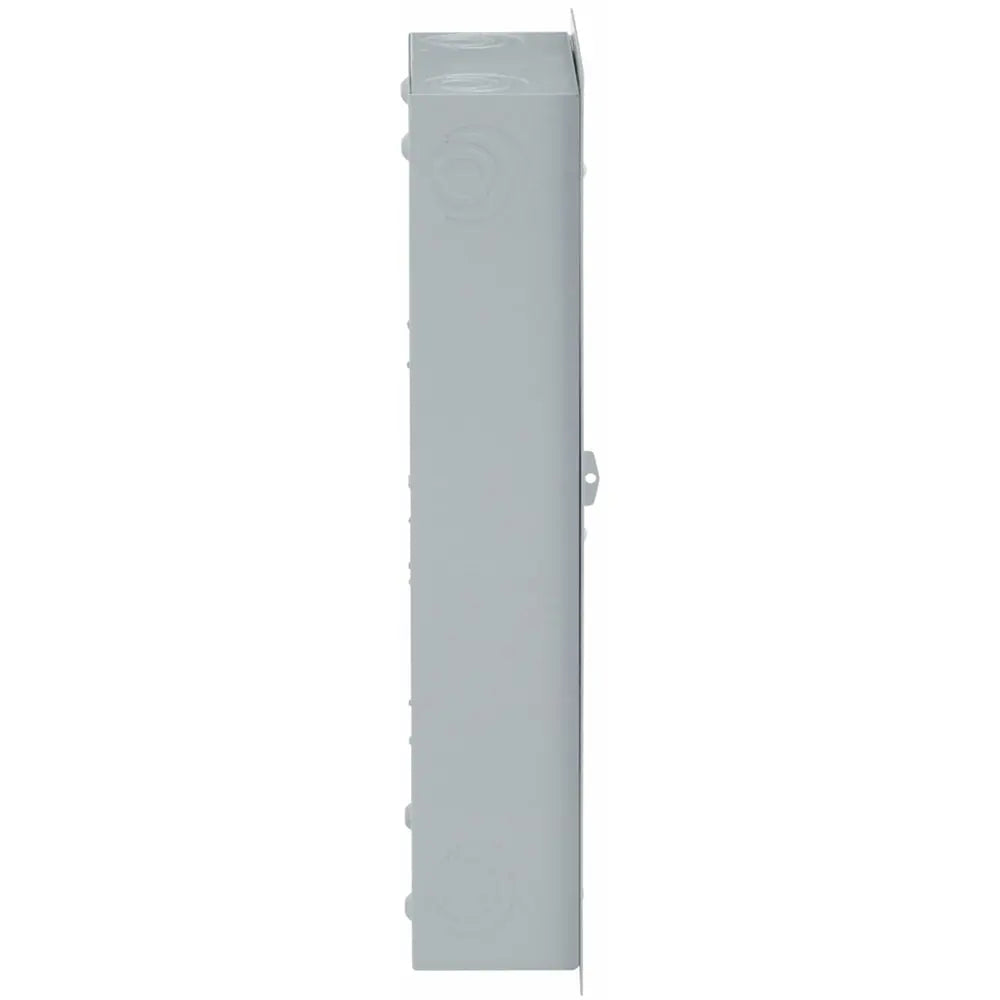

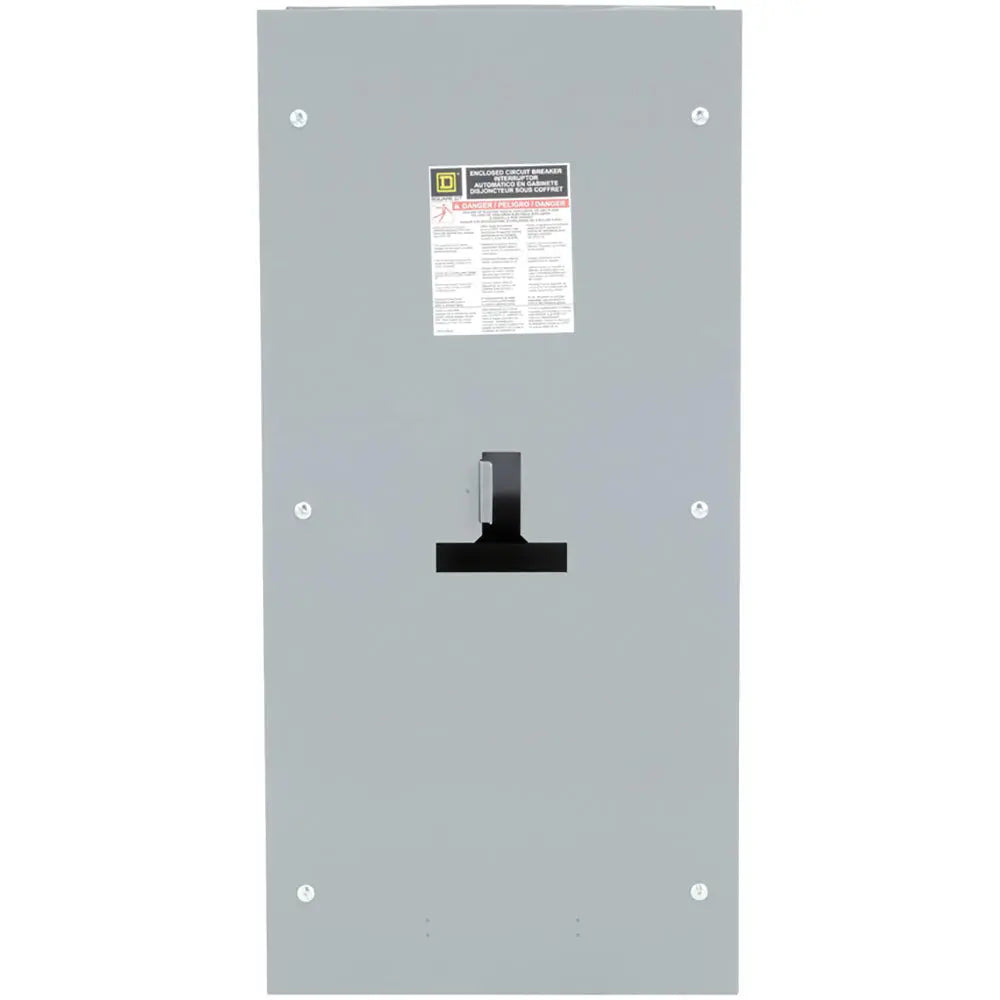

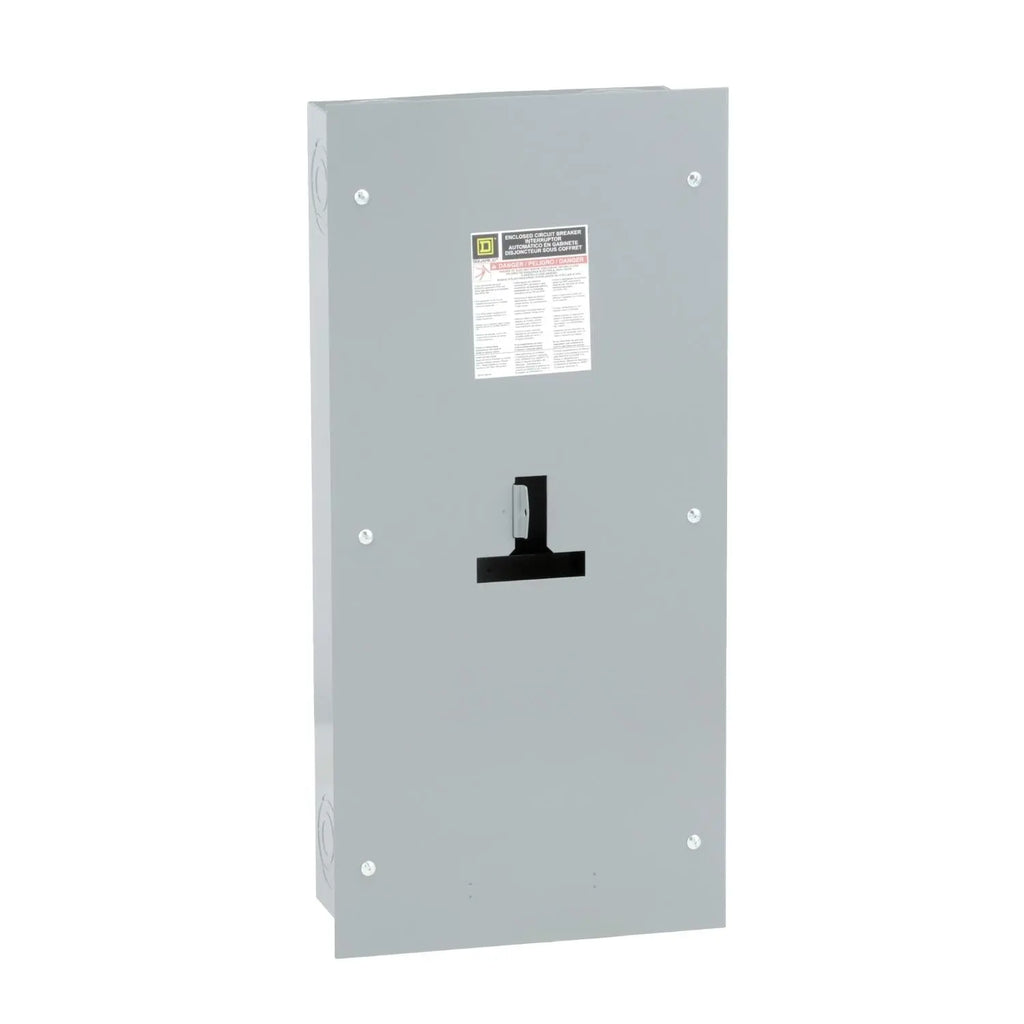

J250F - Square D PowerPacT H/J 15-250A 600V 2-3 Pole NEMA 1 Flush Mount Circuit Breaker Enclosure

J250F

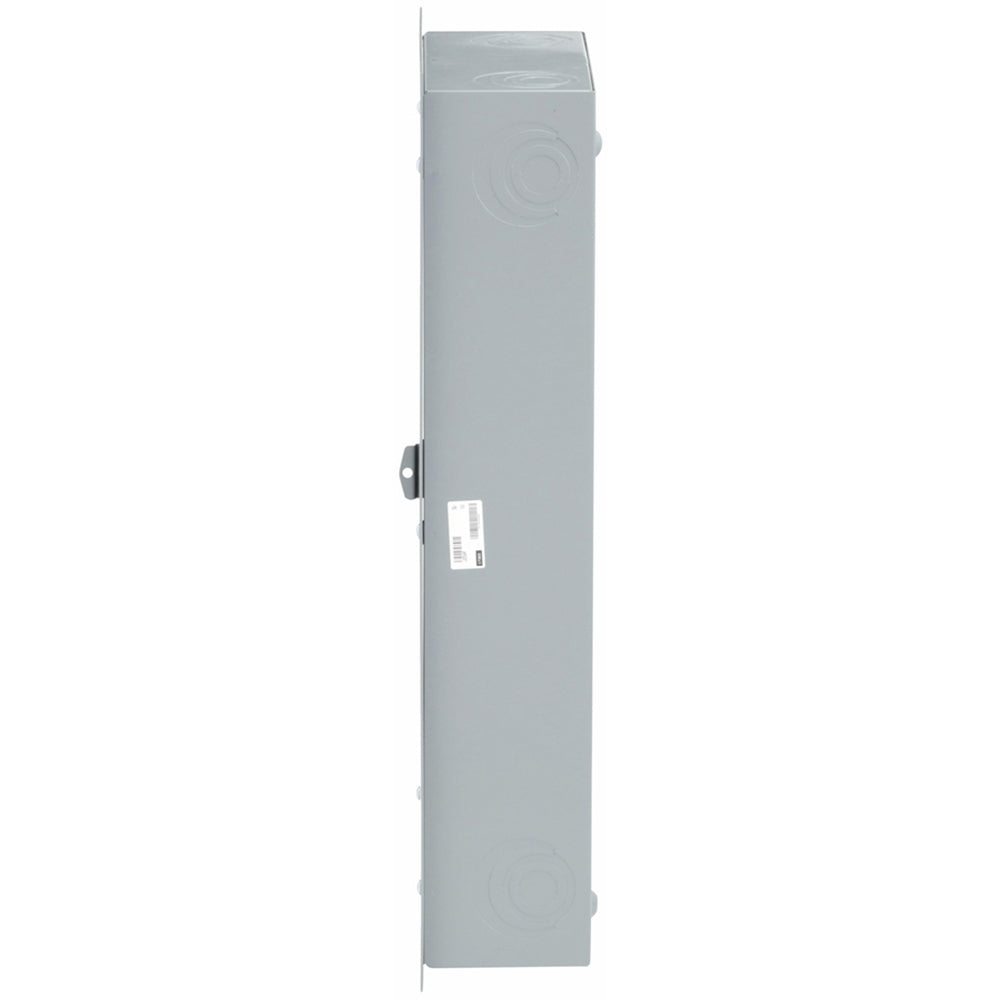

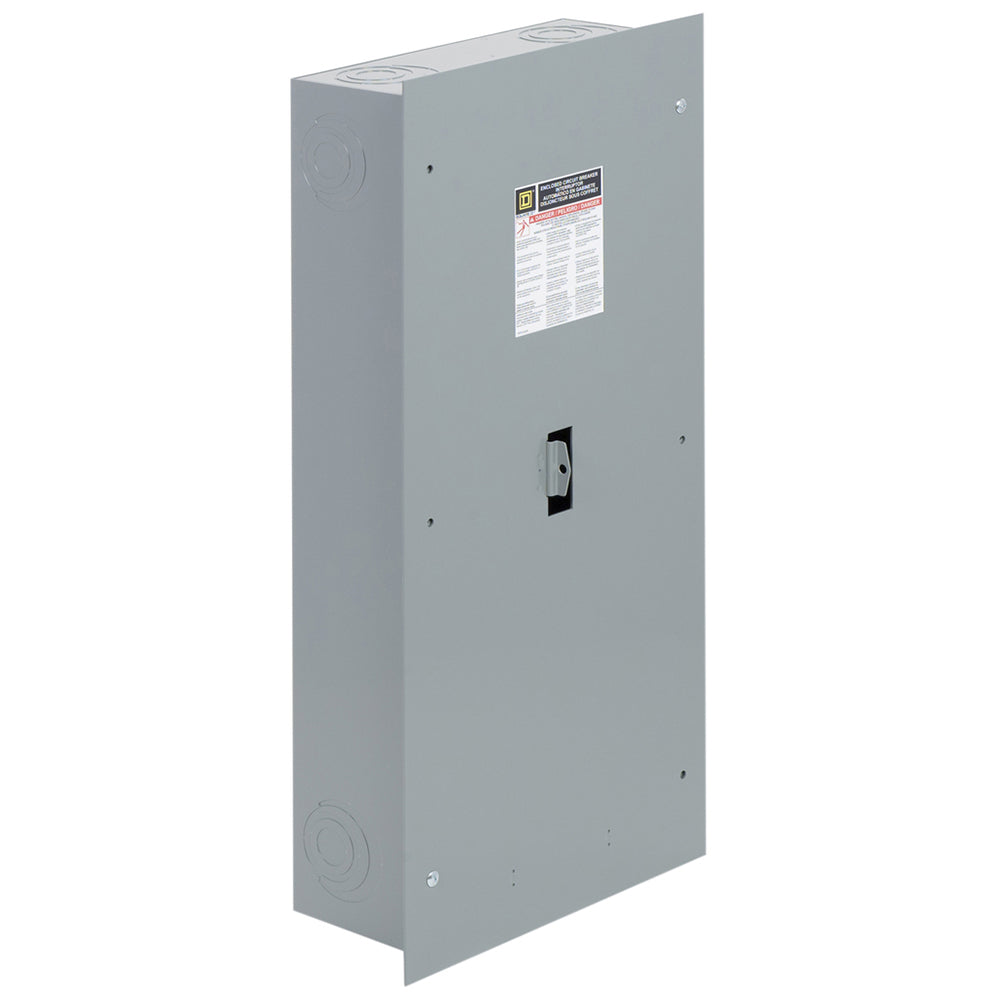

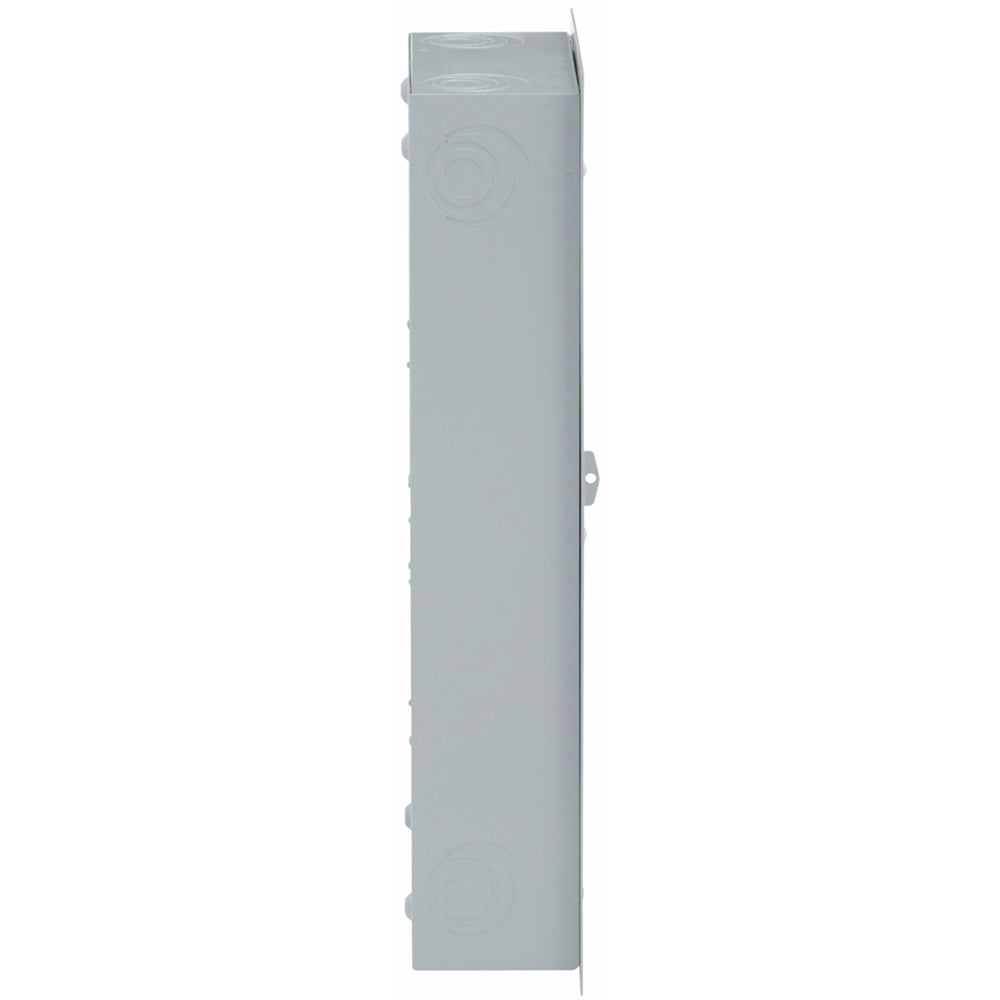

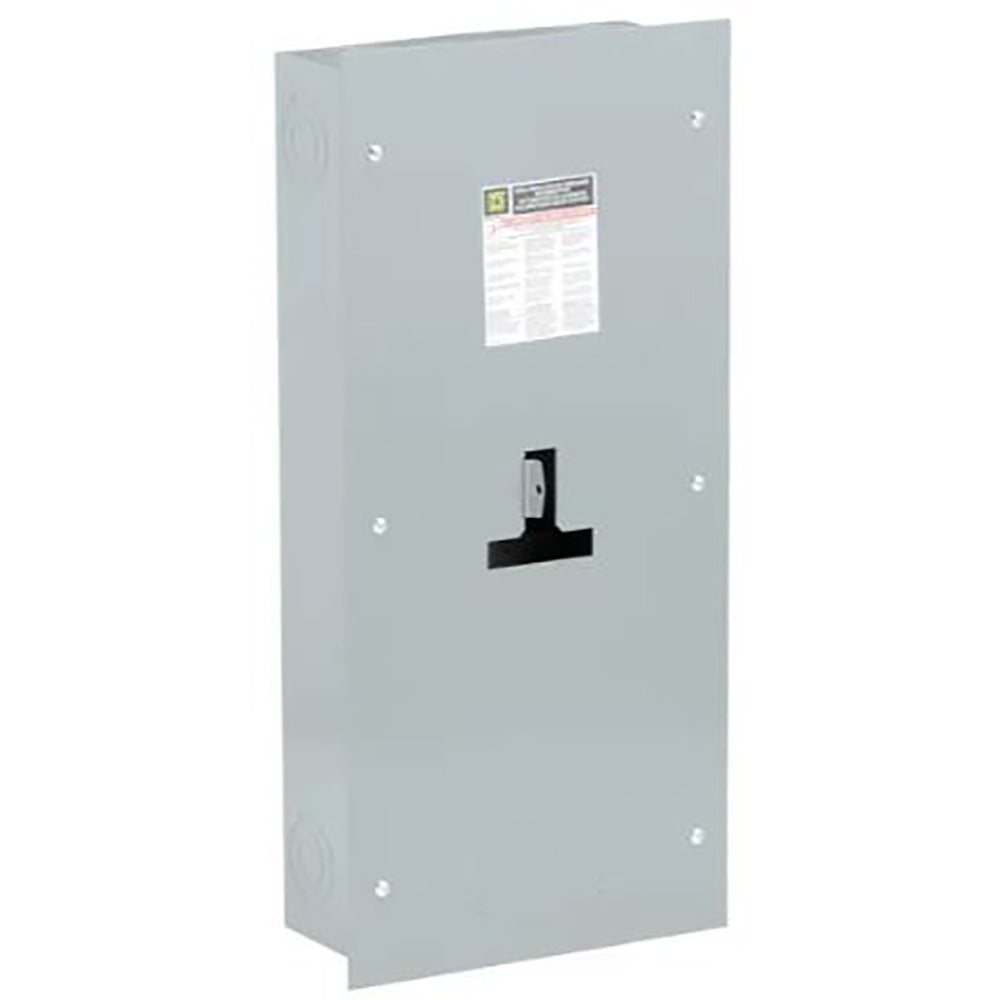

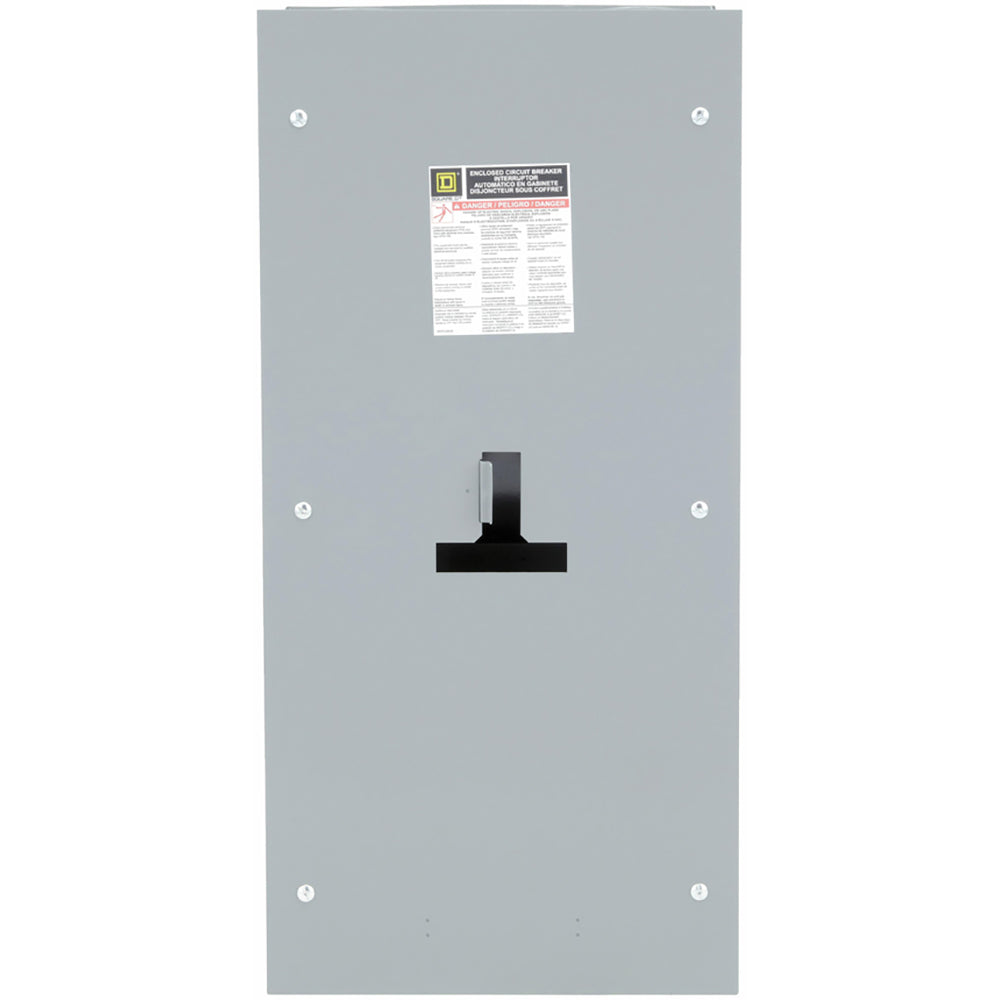

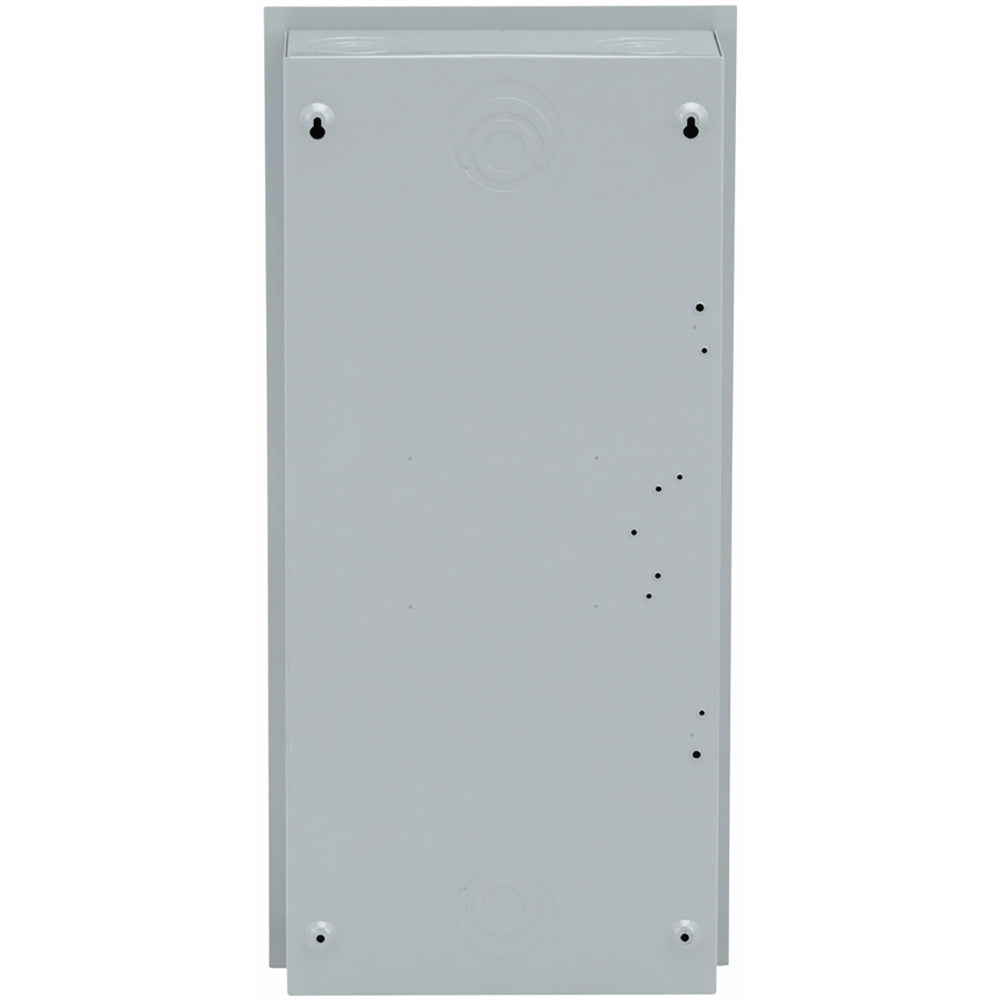

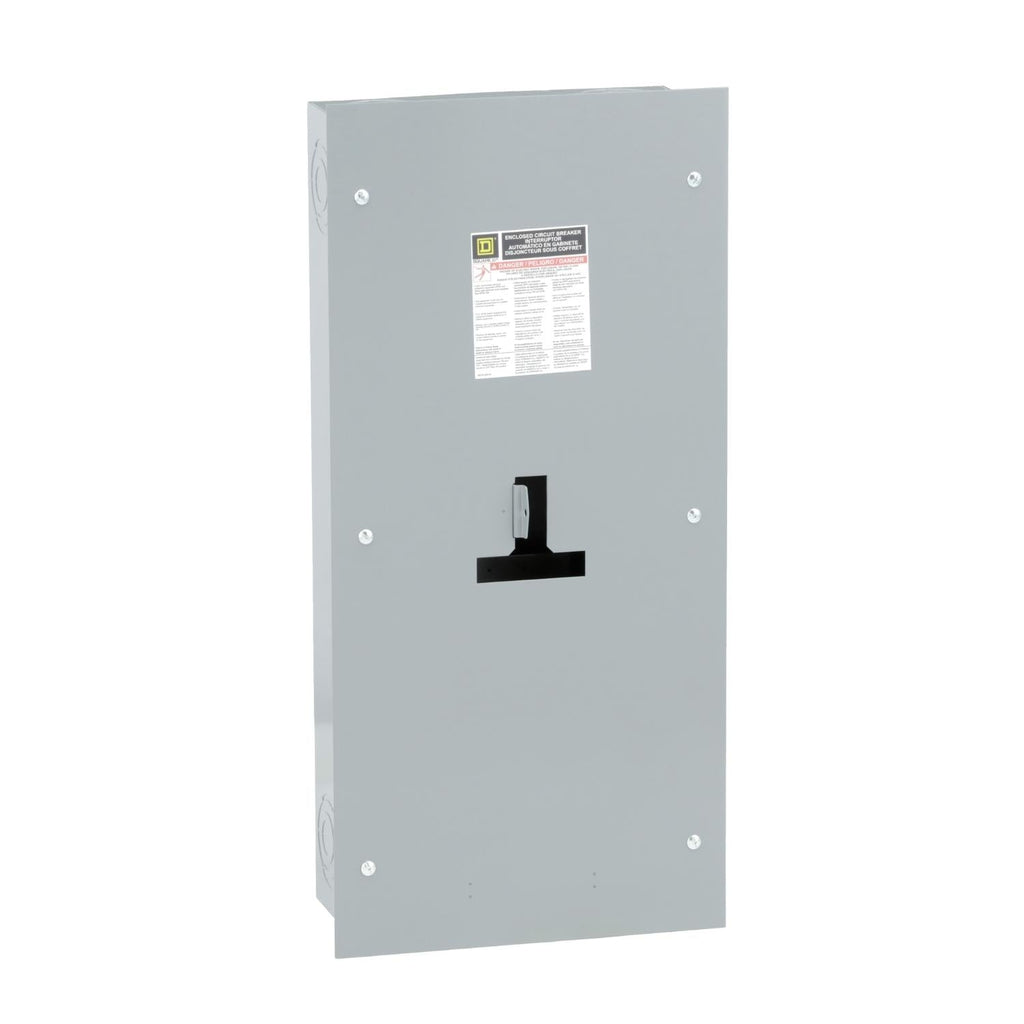

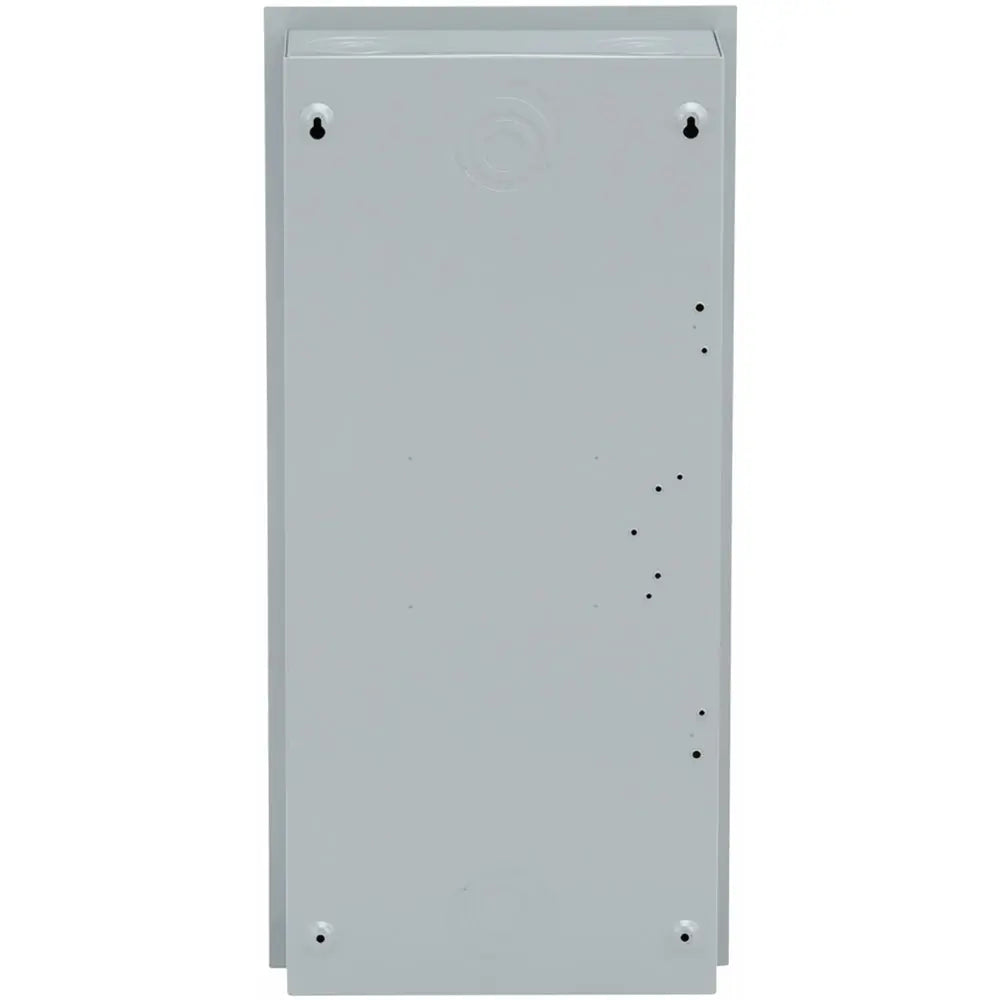

J250F is a NEMA 1 flush mount circuit breaker enclosure designed for PowerPacT H/J series breakers, supporting 2-3 pole configurations and a wide amperage range.This enclosure provides reliable protection for circuit breakers in commercial and industrial applications. It features a durable design suitable for flush mounting and is compatible with breakers rated up to 600V. The enclosure is UL 489 listed and CSA certified, ensuring compliance with North American safety standards.

• Part Number: J250F
• Manufacturer: Square D
• Series/Frame: PowerPacT H/J
• Amperage: 15-250A
• Voltage: 600V
• Poles: 2-3 Pole
• Mounting Type: Flush Mount
• Enclosure Type: NEMA 1, IP30
• Certifications: UL 489 Listed, CSA Certified
• Dimensions: 15.42" W x 32.5" H x 6" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Please note that circuit breakers are not included with the enclosures and must be purchased separately.

Specifications

• Part Number: J250F
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Enclosure
• Family : Powerpact
• Type : J
• Voltage : 600
• Amperage : 250
• Temp Rating : -13–158 °F (-25–70 °C)
• Nema Rating : 1
• Compatible Frames : HDL,HGL,HJL,HLL,JDL,JGL,JJL,JLL

Product Data

• UPC : 078590141728
• GTIN : 00785901417286
• Country of Origin : Mexico
• Dimensions : 32.5 in (825.5 mm) x 15.42 in (391.67 mm) x 6 in (152.4 mm) (Height x Width x Depth)
• Weight : 35.78
