Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Enclosure
- Series
- Powerpact
- Frame
- J
- Rated current
- 250
- Voltage
- 600V
- NEMA rating
- 1
- Country of origin
- Mexico
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Compatible Frames
- HDL,HGL,HJL,HLL,JDL,JGL,JJL,JLL
- UPC
- 785901568049
- GTIN
- 00785901568049
- Dimensions
- 31.36 in (796.54 mm) x 14.36 in (364.74 mm) x 6 in (152.4 mm) (Height x Width x Depth)
Show all specifications (2 more)
- Weight
- 36.251
- Certification
- NEMA 1
Product description & additional details

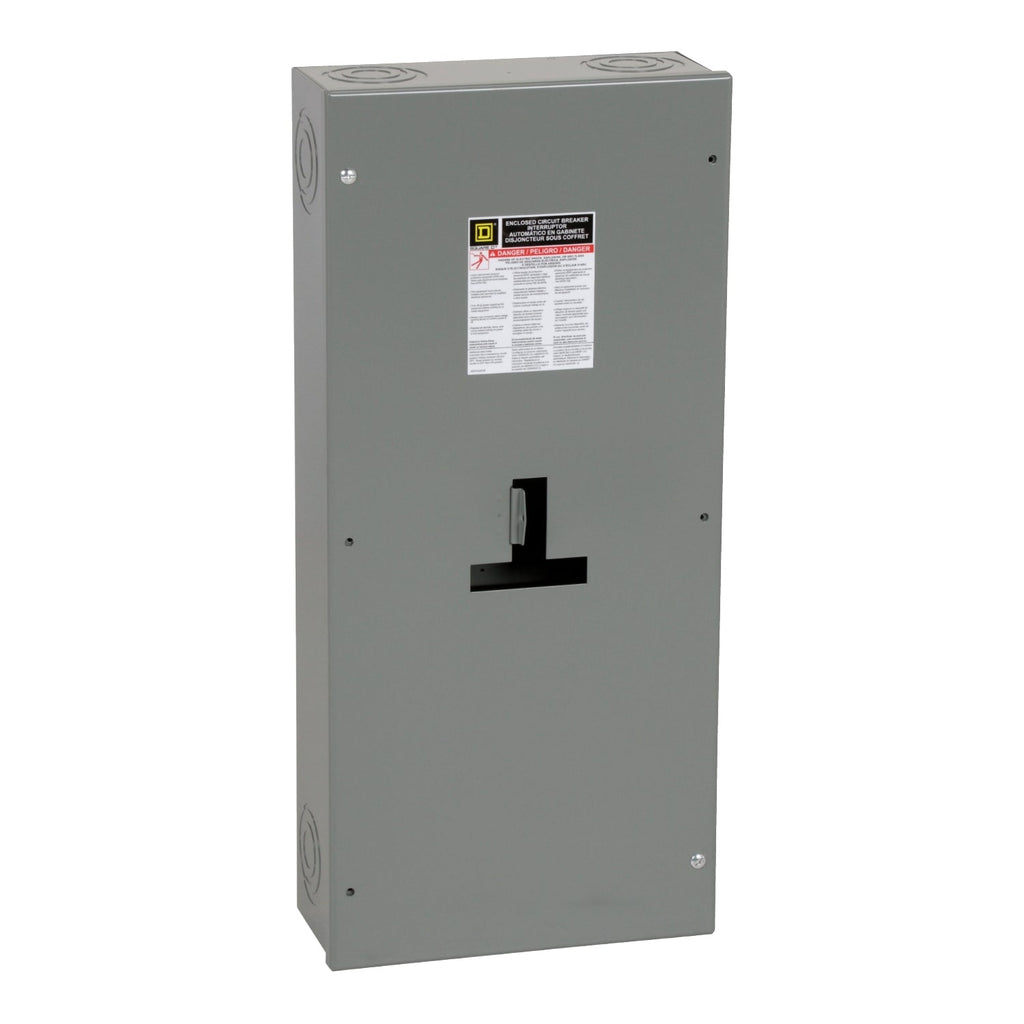

J250S
J250S is a Square D circuit breaker enclosure designed for 15 to 250 Amp PowerPact H and J frame circuit breakers with 2 or 3 poles and 600 Volt rating.This enclosure features a NEMA 1 surface mount design with dimensions 14.36 inches wide, 31.36 inches high, and 6 inches deep, made of durable steel with a gray baked enamel finish.
- Compatible with HDL, HGL, HJL, HLL, JDL, JGL, JJL, JLL frame thermal magnetic molded case breakers
- Supports 80% or 100% rated circuit breakers
- UL 489 Listed, CSA Certified, REACH and RoHS Compliant
- Suitable for service entrance equipment with neutral assembly installed
- Interrupt rating up to 25 kAIR at 600 Vac
- Mounting type: Surface mount
- NEMA 1 enclosure rating (indoor use)
- Operating temperature range 32 to 140 °F
- Steel enclosure material with gray baked enamel finish
- Dimensions: 14.36" W x 31.36" H x 6" D
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: J250S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Family : Powerpact
- Type : J
- Voltage : 600
- Amperage : 250
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Nema Rating : 1
- Compatible Frames : HDL,HGL,HJL,HLL,JDL,JGL,JJL,JLL
Product Data
- UPC : 785901568049
- GTIN : 00785901568049
- Country of Origin : Mexico
- Dimensions : 31.36 in (796.54 mm) x 14.36 in (364.74 mm) x 6 in (152.4 mm) (Height x Width x Depth)
- Weight : 36.251
- Certification : NEMA 1
