Product Info
- Manufacturer:Eaton
- Sub-Category:Breaker Type
Description
IBPED3015GN

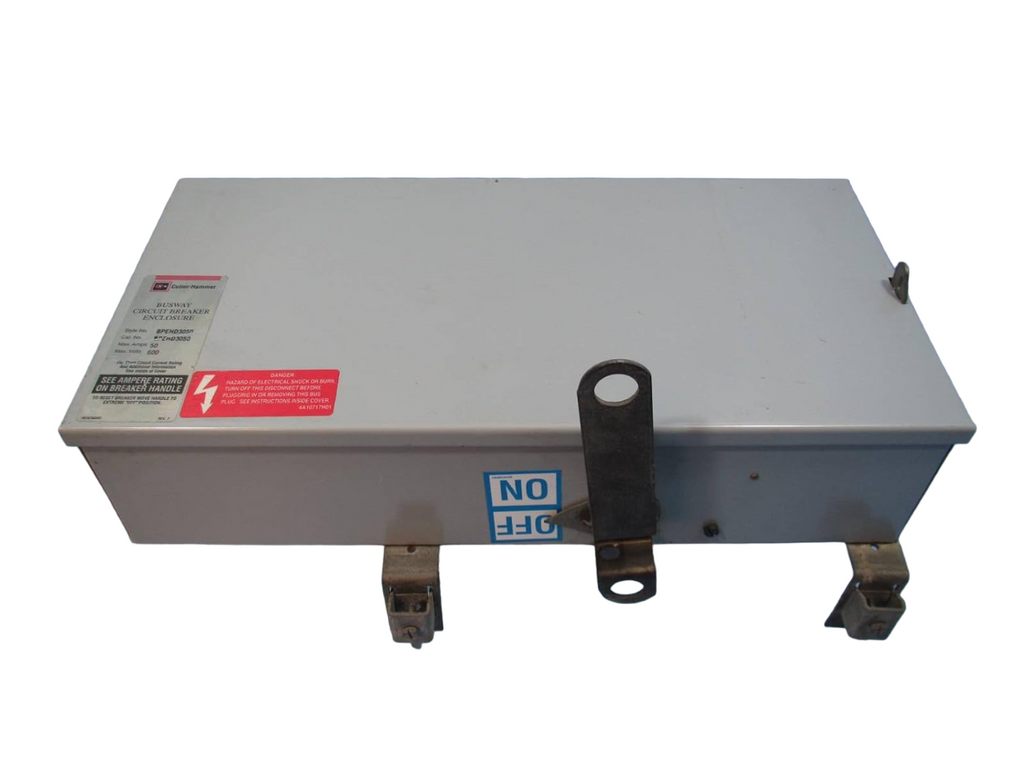

IBPED3015GN is an Eaton breaker-style bus plug rated for 15 amperes at 240 volts with three-pole, four-wire configuration designed for plug-in busway systems. This unit provides overcurrent protection and disconnect capability for industrial and commercial power distribution applications. The breaker type design allows for safe isolation and protection of branch circuits connected to busway feeder systems.
- Amperage Rating: 15A
- Voltage Rating: 240V
- Poles: Three-pole, four-wire with ground
- Mounting Type: Plug-in
- Interrupt Rating: 65 kAIC at 240V
- Product Type: Breaker-style bus plug
- Certifications: ANSI UL 857, CSA Certified, IEEE Certified
- NEMA Compliant
Specifications
- Part Number: IBPED3015GN
- Manufacturer : Eaton
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : POW-R-WAY I And II
- Type : IBPED
- Voltage : 240
- Amperage : 15
- Phase : 3
- AIC rating : 65kA@240V
- Wire : 4
- Compatible Frames : ED
Product Data
- Weight : 40
