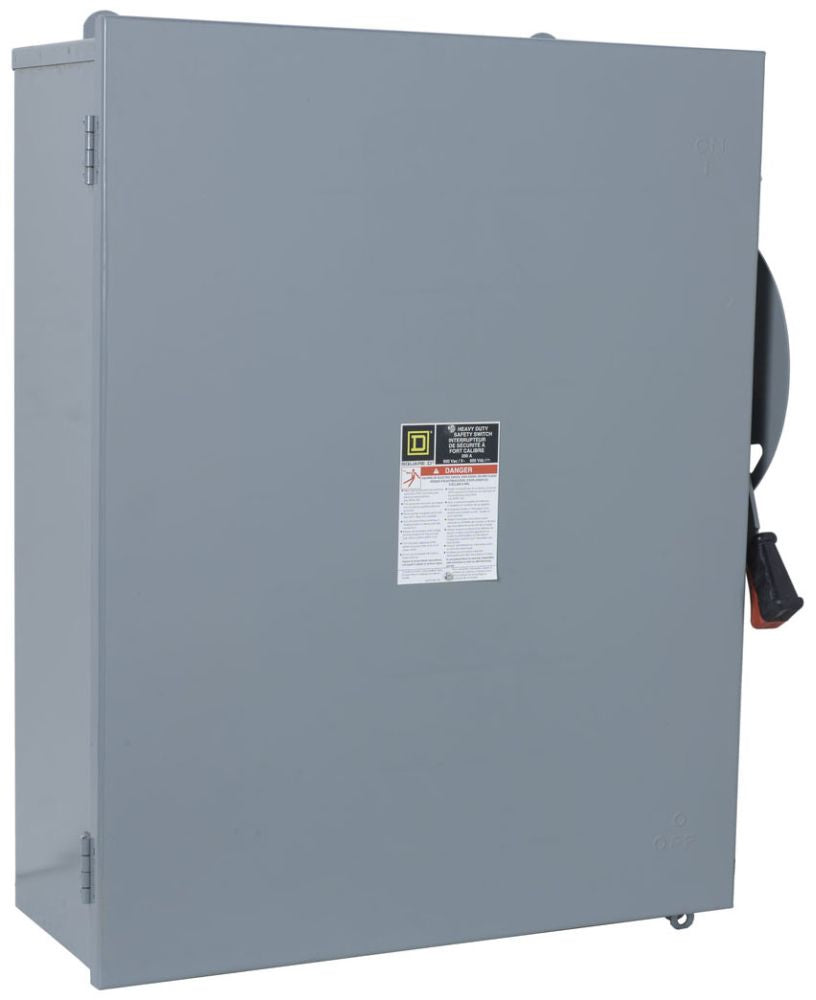

HU464 - Square D 200 Amp 600V 4-Pole Non-Fusible Heavy Duty Safety Switch, NEMA 1, Series F, 200kA AIC

HU464

HU464 is a Square D heavy duty, non-fusible safety switch designed for reliable power distribution in industrial applications.

This 3-phase, 4-pole safety switch features a 200 Amp current rating, 600V AC/DC voltage rating, and a robust NEMA 1 steel enclosure. It is part of the Square D Series F line, offering a high interrupting capacity of 200kA at 600V. The HU464 is engineered for safety and durability, with a standard motor power rating of 150 HP at 600V and 50 HP at 240V for 2-phase motors. Its single-throw design ensures straightforward operation, and it is suitable for a wide range of commercial and industrial environments.

Key Specifications

• Amperage: 200A
• Voltage: 600V AC/DC
• Poles: 4
• Mounting Type: NEMA 1 steel enclosure
• Interrupt Rating: 200kA at 600V
• Series/Frame: Series F
• Trip Unit: Non-fusible (no trip unit)
• Certifications: UL Listed, NEMA 1 rated
• Motor Power Rating: 150 HP at 600V, 50 HP at 240V (2-phase)
• Enclosure: Heavy duty, single throw
• Wire Size: Accepts AWG 6 to 250 kcmil copper
• Weight: Approximately 80 lbs (36.3 kg)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU464
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : HU
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 4
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : ED

Product Data

• UPC : 785901505952
• GTIN : 00783164089301
• Country of Origin : United States
• Dimensions : 29 in (736.6 mm) x 24.88 in (631.95 mm) x 8.75 in (222.25 mm) (Height x Width x Depth)
• Weight : 43.499
