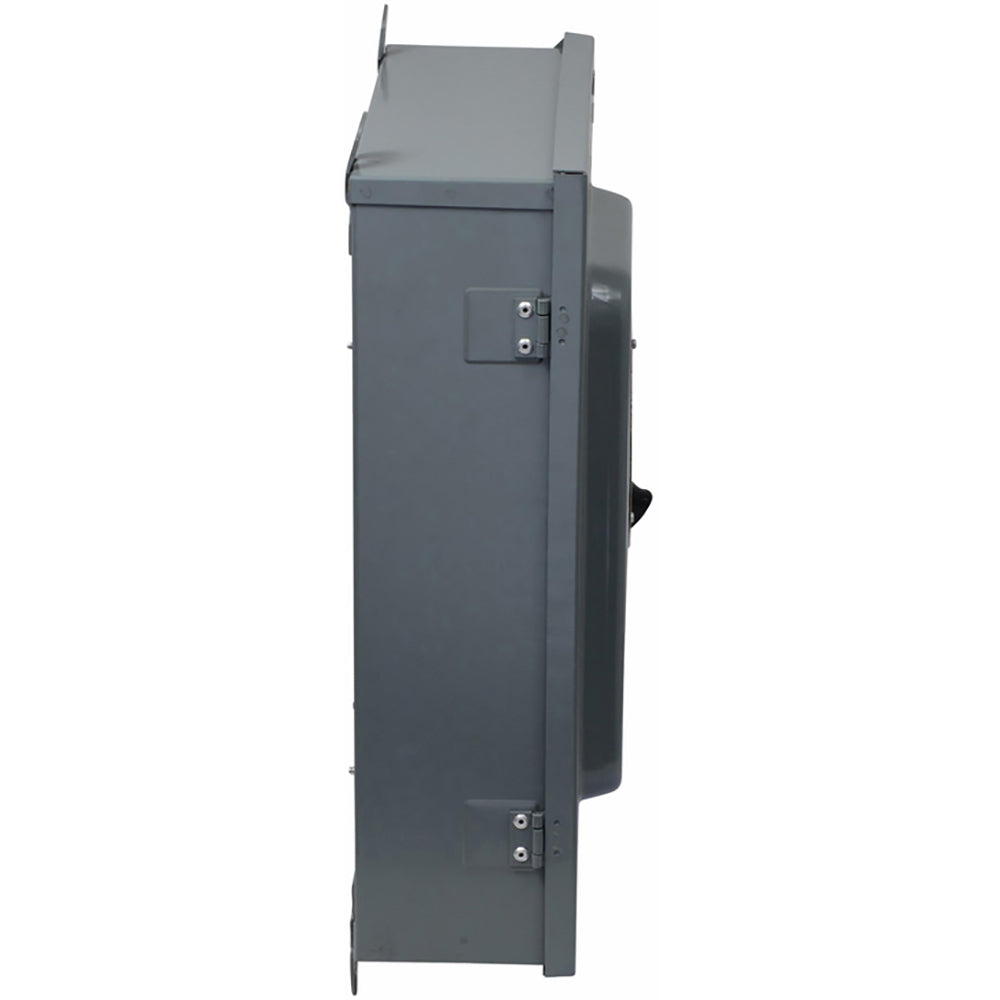

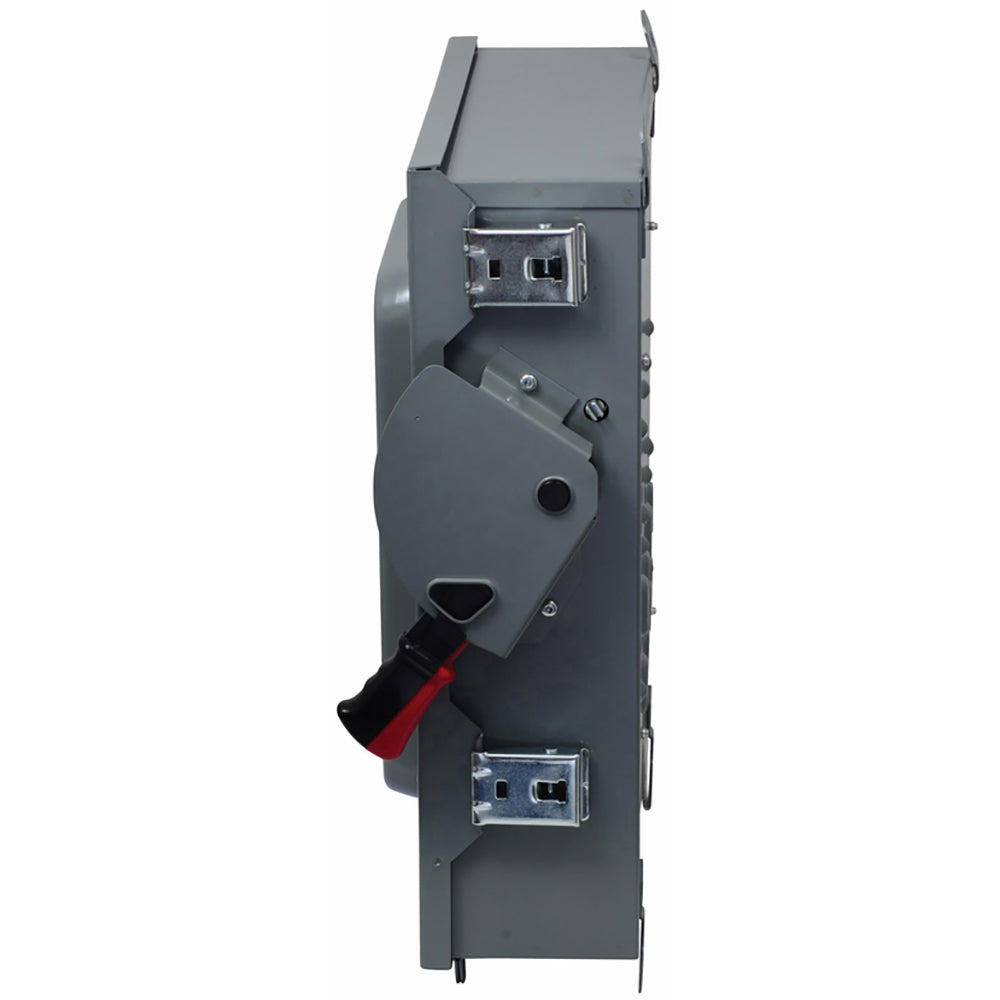

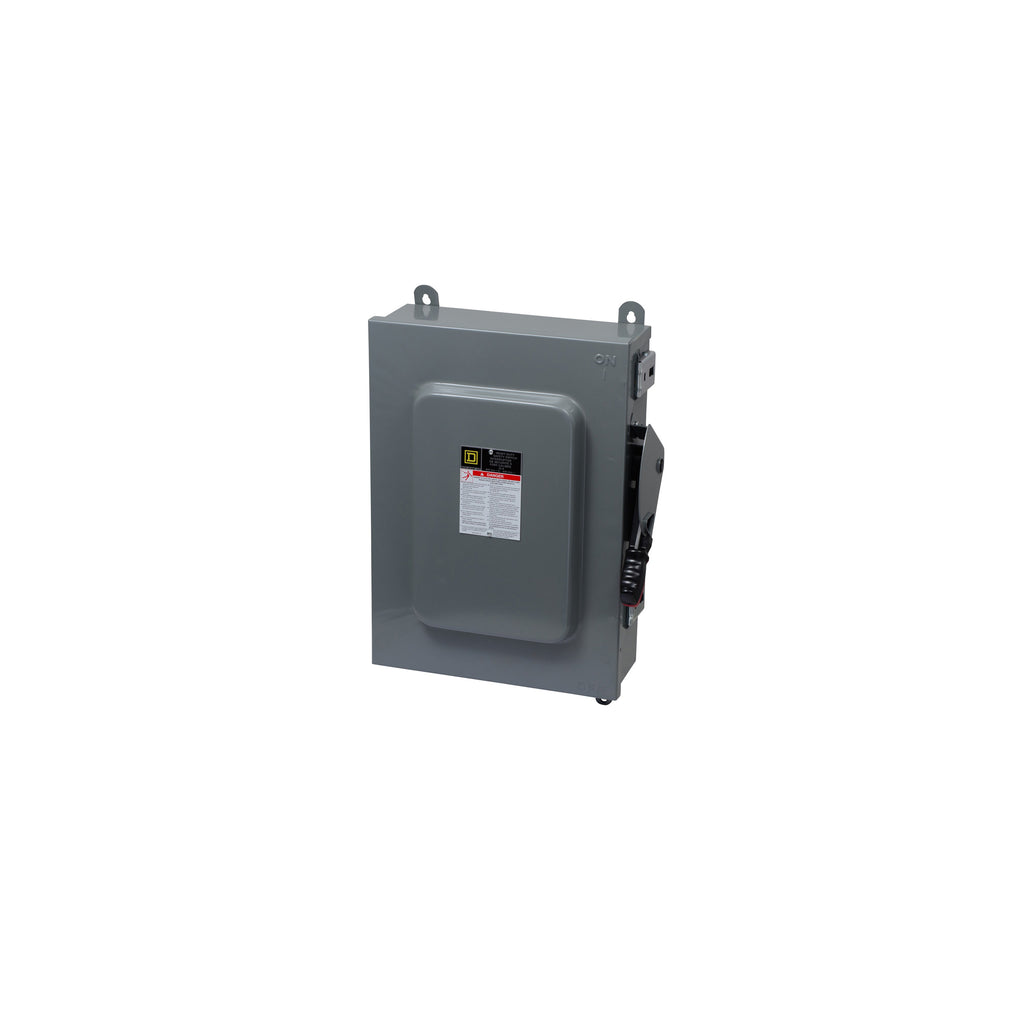

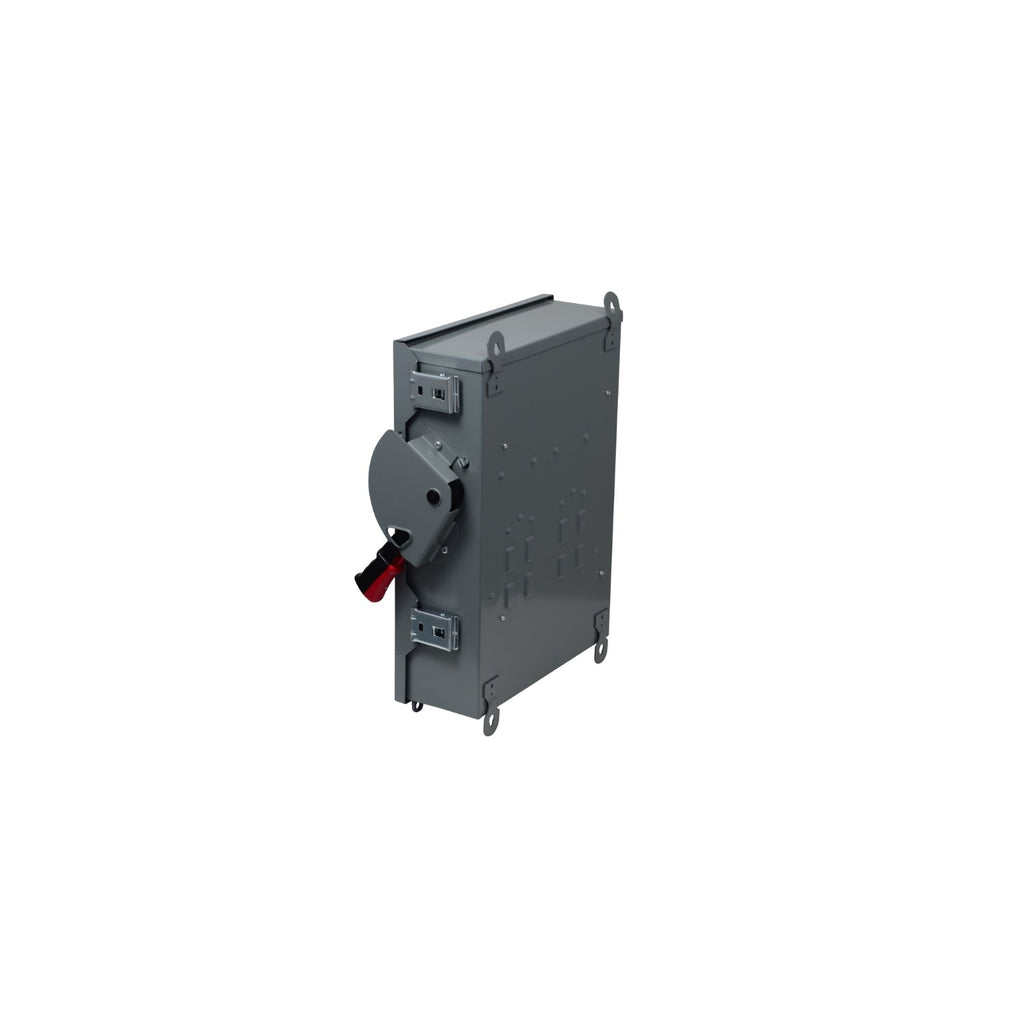

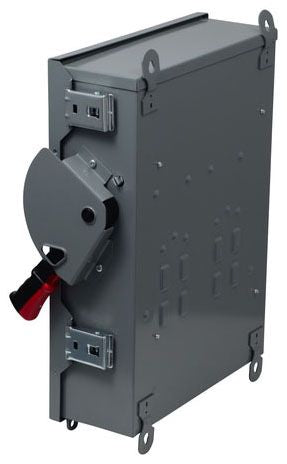

HU461 - Square D 30 Amp 600 Volt 4 Pole Heavy Duty Safety Switch NEMA 1 Non-Fusible

HU461

HU461 is a Square D heavy duty safety switch designed for 30 Amp, 600 Volt applications with 4 poles and a NEMA 1 enclosure.This single throw, non-fusible disconnect switch features a steel enclosure with dimensions of 16.13 in W x 6.85 in D x 20.5 in H. It offers a 200kA interrupting rating at 600V and supports both AC and DC voltages. The switch includes a quick make/quick break mechanism, visible blade indication, and a handle lock-off provision for safety. It is UL listed and suitable for industrial power distribution needs.

Key Specifications
• Amperage: 30 Amp
• Voltage Rating: 600 VAC/DC
• Poles: 4
• Enclosure Type: NEMA 1
• Interrupt Rating: 200kA at 600V
• Mounting Type: Surface Mount
• Disconnect Type: Heavy Duty, Non-Fusible
• Dimensions: 16.13" W x 6.85" D x 20.5" H
• Handle: Single Throw with ON/OFF indication
• UL Listed
• Steel Enclosure
• Series/Frame: HU Type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU461
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600 AC/DC
• Amperage : 30
• Phase : 3
• Poles : 4
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : ED

Product Data

• UPC : 785901507802
• GTIN : 00785901507802
• Country of Origin : United States
• Dimensions : 20.5 in (520.7 mm) x 16.13 in (409.70 mm) x 6.85 in (173.99 mm) (Height x Width x Depth)
• Weight : 29.231
• Certification : UL Listed
