Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU461DS

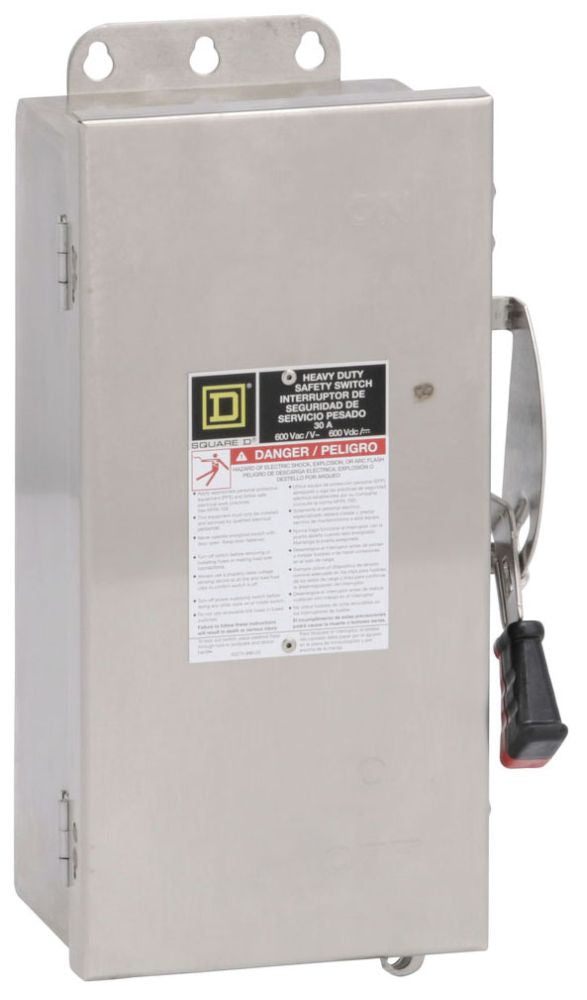

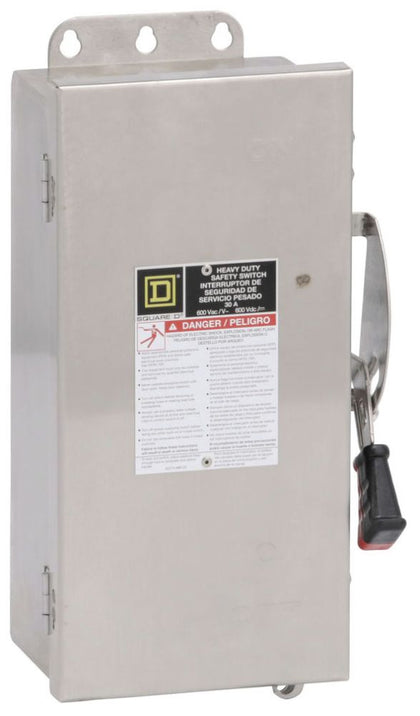

HU461DS is a heavy duty, non-fusible safety disconnect switch rated for 600 VAC/VDC at 30 amperes with 4 poles and single throw contact form. This corrosion-resistant, dusttight switch features a 304 stainless steel enclosure designed for demanding industrial environments and outdoor applications requiring rainproof protection. The F6 frame provides robust construction suitable for motor control and power distribution applications.
- Voltage Rating: 600 VAC/VDC
- Amperage: 30 A
- Poles: 4
- Contact Form: Single Throw
- Enclosure Material: 304 Stainless Steel
- Enclosure Type: Corrosion-Resistant, Dusttight, Rainproof
- Horsepower: 25 hp at 600 VAC 2-Phase, 30 hp at 600 VAC 3-Phase
- Dimensions: 16.85 in W x 6.97 in D x 20.82 in H
- Certifications: NEMA 4, 4X, 5
- Fusible: Non-Fusible
Specifications
- Part Number: HU461DS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 4
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 5
- Compatible Frames : ED
Product Data
- UPC : 785901507826
- GTIN : 00785901507826
- Country of Origin : United States
- Dimensions : 20.82 in (528.83 mm) x 16.85 in (427.99 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
- Weight : 19.31
