Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description

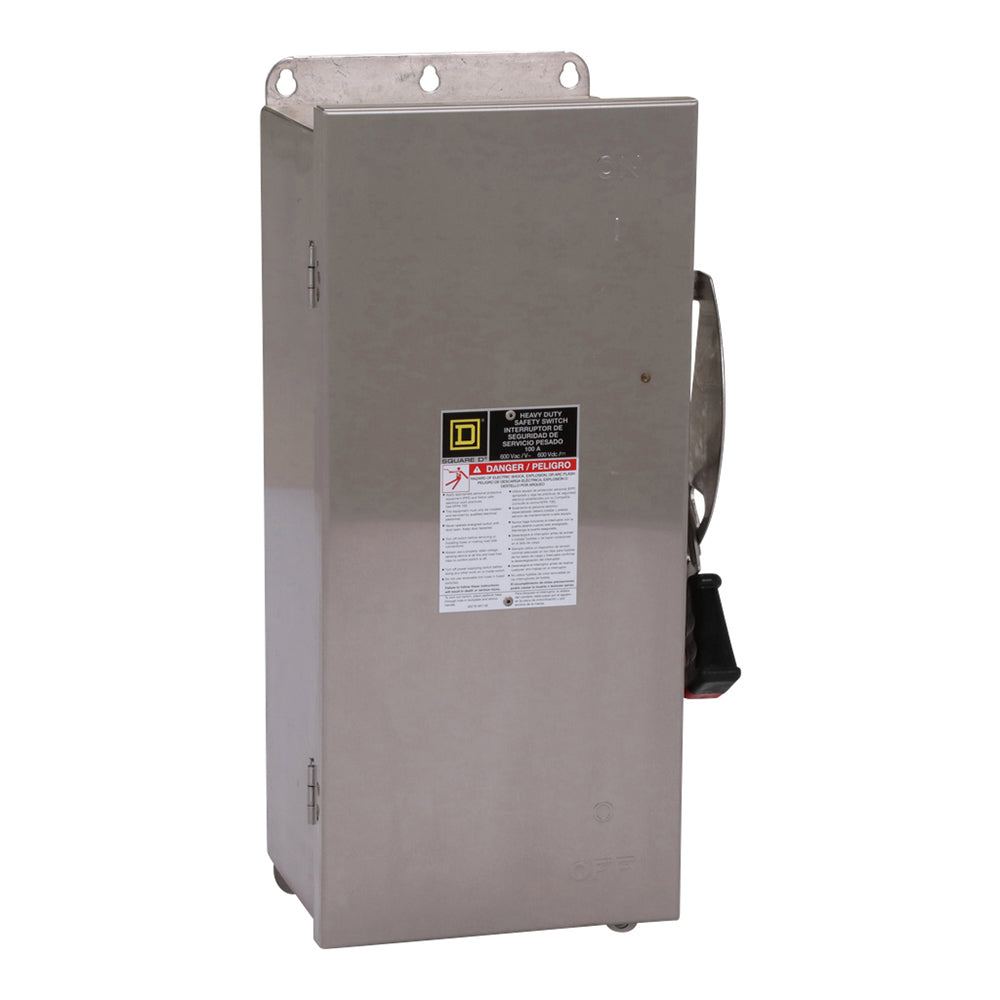

HU363DSEI
HU363DSEI is a heavy duty, non-fusible safety switch from Square D designed for industrial power distribution applications.This switch features a 100 ampere rating, 600 volts AC/DC maximum voltage, and 3 poles. It is housed in a NEMA 4/4X/5 enclosure made of 304 stainless steel, providing robust protection for indoor or outdoor use. The switch supports motor loads up to 20 hp at 240 V single phase and 40 hp at 240 V three phase. It includes an interlock kit for enhanced safety and meets heavy duty performance standards.
- Key Specifications
- Amperage: 100 A
- Voltage: 600 V AC/DC
- Poles: 3
- Enclosure: NEMA 4/4X/5, 304 Stainless Steel
- Mounting Type: Surface mount
- Interrupt Rating: Heavy Duty
- Fusibility: Non-fusible
- Motor HP Rating: 20 HP (1 phase), 40 HP (3 phase) at 240 V
- Series/Frame: HU Series
- Trip Unit: Single throw
- Certifications: RoHS compliant
Specifications
- Part Number: HU363DSEI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600 AC
- Amperage : 100
- Phase : 3
- Poles : 3
- Configuration : Single
- Compatible Frames : NSX
Product Data
- UPC : 078590107801
- GTIN : 00785901078012
- Country of Origin : United States
- Dimensions : 20.82 in (528.83 mm) x 11.25 in (285.75 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
- Weight : 22
- Certification : UL listed
