Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU363DF

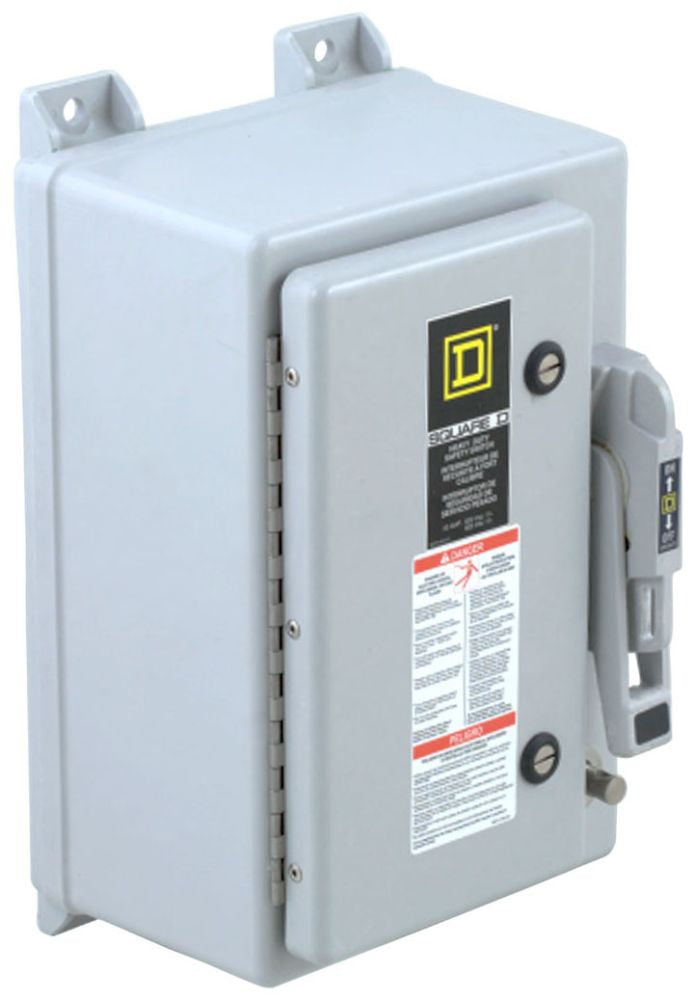

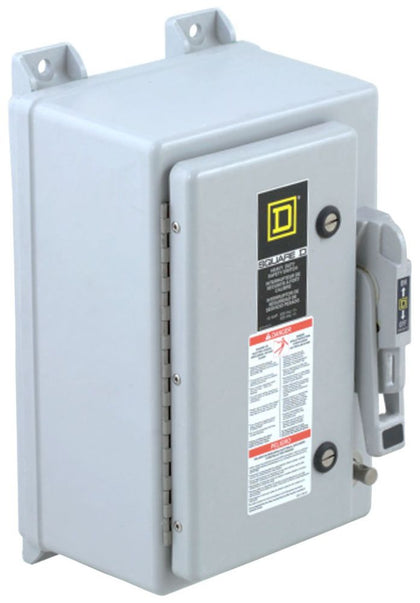

HU363DF is a Square D heavy duty, non-fusible safety switch designed for reliable power distribution control.
This 3-pole, 100 amp switch operates at 600 volts AC/DC and features a corrosion-resistant fiberglass reinforced polyester enclosure rated NEMA 4X for watertight and dusttight protection. It is a single throw type with a 3-pole, 3-pole single throw contact form suitable for industrial applications. The switch is UL listed and RoHS compliant, ensuring safety and environmental standards compliance.
- Key Specifications
- Amperage: 100A
- Voltage: 600V AC/DC
- Poles: 3
- Mounting Type: Heavy Duty Enclosure
- Enclosure Material: Fiberglass Reinforced Polyester
- NEMA Rating: 4X
- Contact Form: 3-Pole Single Throw
- Type: Non-Fusible
- Certifications: UL Listed, RoHS Compliant
- Dimensions: 13.7 in Width x 12 in Depth x 24.78 in Height
- Weight: 39.99 lbs
- Part Number: HU363DF
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : HU
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
- UPC : 785901627913
- GTIN : 00785901629023
- Country of Origin : Mexico
- Dimensions : 24.78 in (629.41 mm) x 13.7 in (348.0 mm) x 12 in (304.8 mm) (Height x Width x Depth)
- Weight : 39.291 lb
