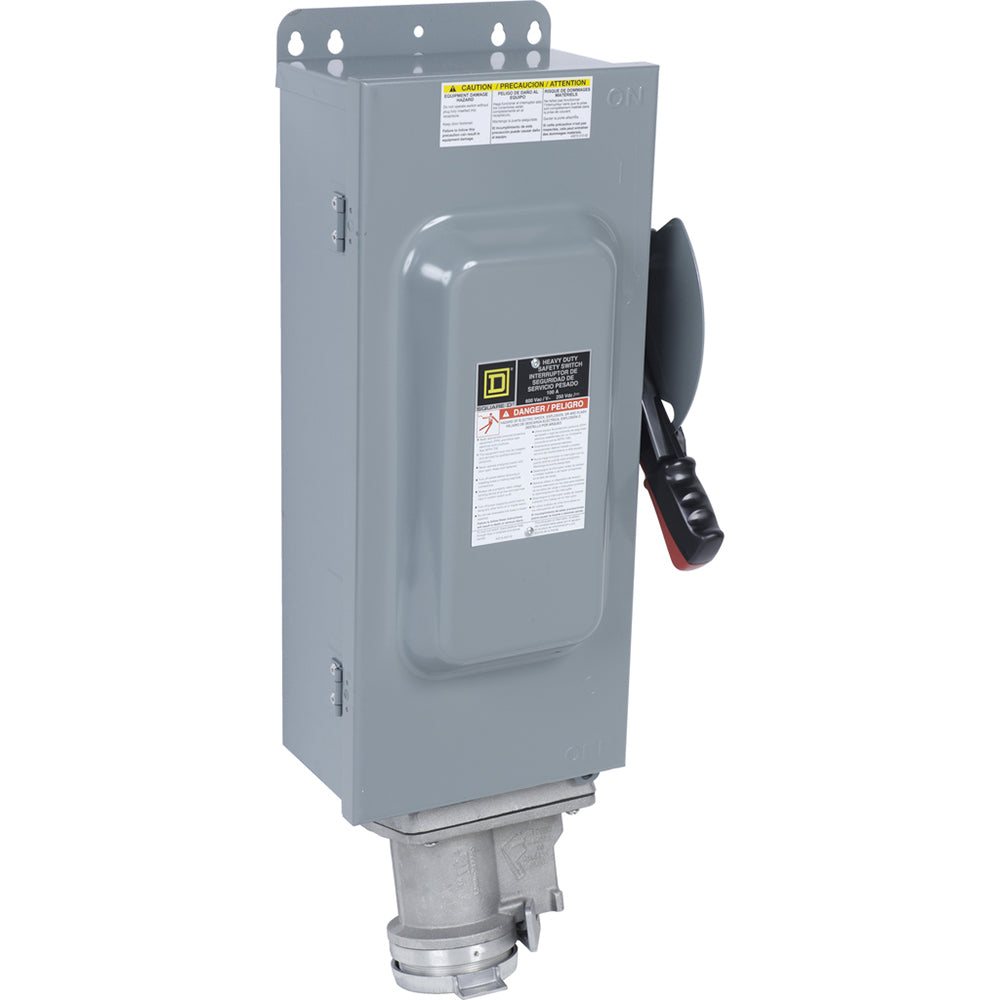

HU363AWC - Square D Safety Switch Heavy Duty Non-Fusible 100A 600V 3-Pole NEMA 12K

HU363AWC

HU363AWC is a heavy-duty non-fusible safety disconnect switch designed for industrial and commercial power distribution applications.

This Square D safety switch features a galvannealed steel enclosure rated NEMA 3R/12, providing indoor dust and drip-tight protection. The unit is equipped with a Crouse-Hinds Arktite receptacle connector for reliable connections in demanding environments. The interlocked design ensures safe operation, and the switch is suitable for service entrance applications when equipped with optional neutral assembly or equipment grounding kit.

• Amperage Rating: 100A
• Voltage Rating: 600 VAC/VDC, 3 Phase
• Poles: 3
• Horsepower Rating: 100 HP
• Disconnect Type: Non-Fusible
• Enclosure Material: Galvannealed Steel
• NEMA Rating: NEMA 3R/12K
• Connector Type: Crouse-Hinds Arktite Receptacle
• Enclosure Dimensions: 10.5 In W x 20.5 In H x 7 In D
• Wire Configuration: 4 Wire
• Design Type: Interlocked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU363AWC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 12

Product Data

• UPC : 785901077985
• GTIN : 00785901077985
• Country of Origin : United States
• Dimensions : 20.5 in (520.7 mm) x 10.5 in (266.7 mm) x 7 in (177.8 mm) (Height x Width x Depth)
• Weight : 30.001
• Certification : UL listed
