Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU362AWC

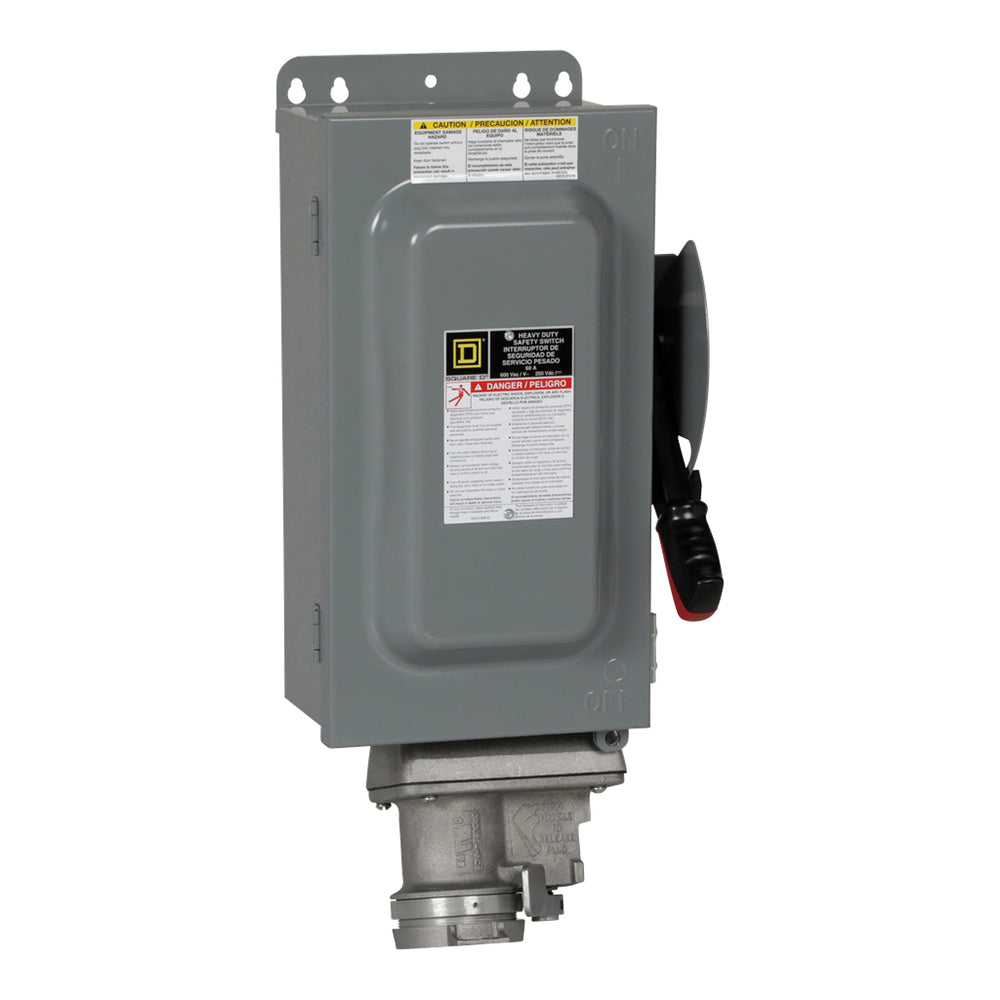

HU362AWC is a Square D non-fusible heavy duty safety switch rated for 600 VAC/DC at 60 amperes with 3-pole configuration and 60 horsepower rating. This industrial-grade receptacle switch features an interlocked design with galvanized steel enclosure construction, suitable for commercial and industrial power distribution applications requiring reliable load disconnection and motor control. The switch accommodates up to 200,000 rms symmetrical amperes short circuit current and supports wire sizes from AWG 14 to AWG 2 aluminum conductors.
- Amperage Rating: 60 A
- Voltage Rating: 600 VAC/DC, 3-Phase
- Poles: 3
- Horsepower: 60 HP
- Type: Non-Fusible, Heavy Duty
- Enclosure Material: Galvanized Steel
- Enclosure Rating: NEMA 3R/12
- Design: Interlocked Receptacle Switch
- Wire Configuration: 4 Wire
- Short Circuit Rating: 200,000 rms symmetrical amperes
Specifications
- Part Number: HU362AWC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600 AC
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 3R/12
Product Data
- UPC : 78590119563
- GTIN : 00785901195634
- Country of Origin : United States
- Dimensions : 16.5 in (419.1 mm) x 10.5 in (266.7 mm) x 7 in (177.8 mm) (Height x Width x Depth)
- Weight : 24.03
- Certification : UL listed
