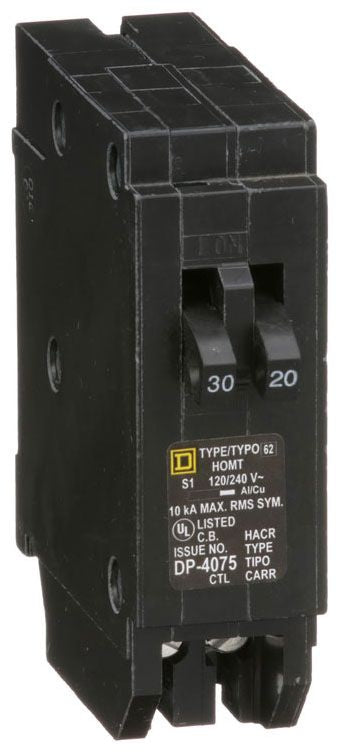

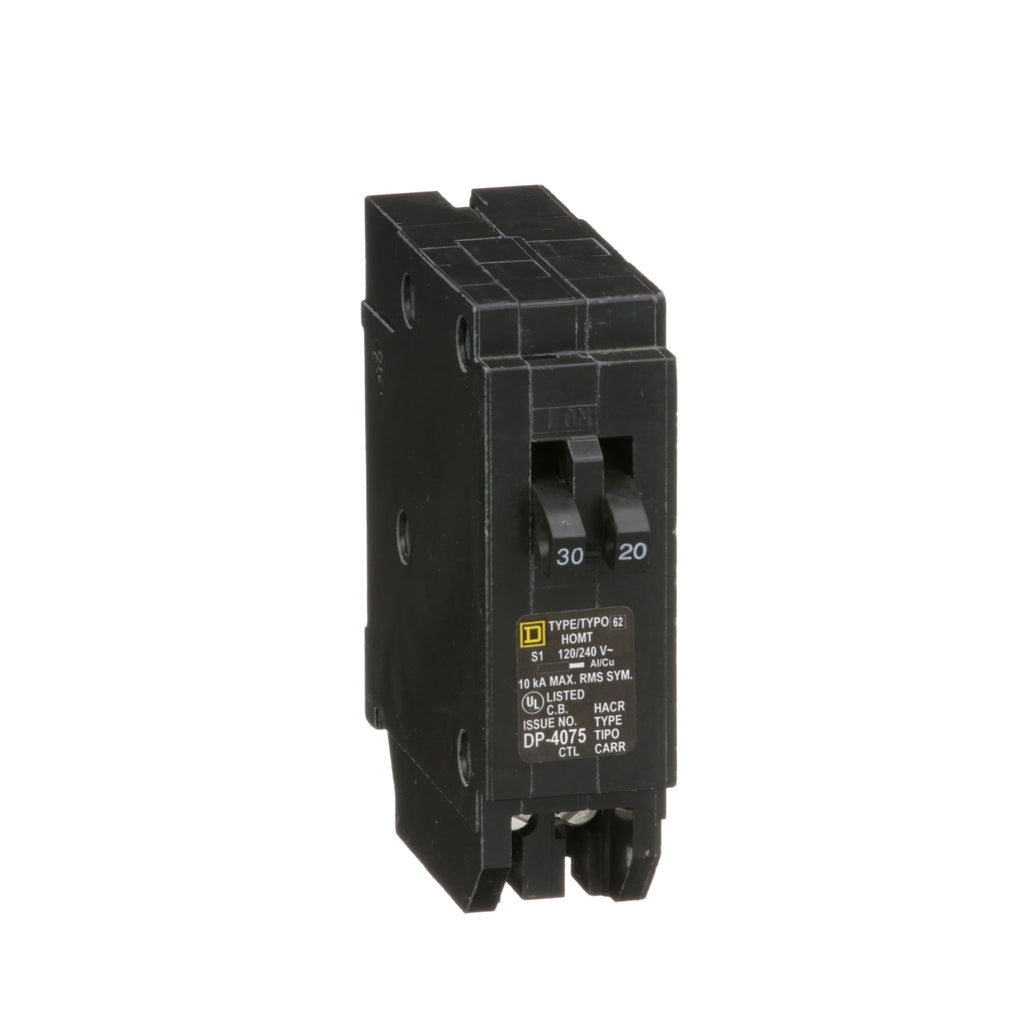

HOMT3020 - Square D Homeline 30/20 Amp 1-Pole Tandem Circuit Breaker 120/240V 10kA Plug-On

HOMT3020

HOMT3020 is a Square D Homeline tandem circuit breaker designed for dual circuit protection with 30 and 20 amp single poles.This thermal magnetic miniature circuit breaker plugs into Homeline load centers and provides reliable protection for residential and light commercial electrical systems. It supports 120/240 volts AC, has a 10,000 A interrupt rating, and fits standard Homeline panels. The breaker is UL listed and ANSI certified for safety and performance.

Key Specifications
• Manufacturer: Square D
• Series: Homeline
• Type: Tandem Circuit Breaker
• Poles: 1-pole tandem (two circuits)
• Amperage: 30 Amp and 20 Amp poles
• Voltage: 120/240 VAC
• Interrupt Rating: 10,000 AIC
• Mounting: Plug-On
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, ANSI Certified
• Conductor Size: 14-8 AWG compatible

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT3020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lugs
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Tandem

Product Data

• UPC : 785901706366
• GTIN : 00785901706366
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.43
• Standards : UL Listed
• Certification : UL Listed
