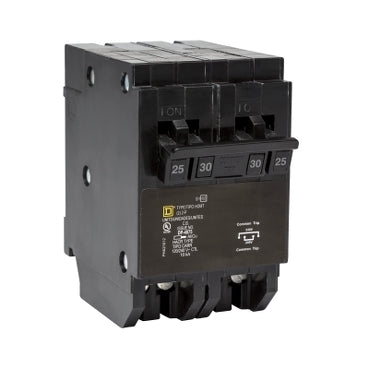

HOMT225230 - Square D Homeline Quad Tandem Circuit Breaker 2 Pole 25/30A 120/240V 10kA Plug-In

HOMT225230

HOMT225230 is a Square D Homeline quad tandem circuit breaker featuring 2 poles with dual ratings of 25A and 30A for 120/240V applications and a 10kA interrupt rating.This plug-in mounted miniature circuit breaker combines one 2-pole 25A breaker and one 2-pole 30A breaker in tandem, designed for use in Homeline load centers. It supports wire sizes from 14 AWG to 8 AWG copper or aluminum and is HACR rated for HVAC applications. The breaker is UL listed and provides reliable circuit protection with a 10,000 A interrupting capacity at 240 VAC.

Key Specifications
• Manufacturer: Square D
• Series: Homeline
• Type: Quad tandem miniature circuit breaker
• Poles: 2 (two tandem 2-pole breakers)
• Amperage: 25A and 30A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA AIR
• Mounting Type: Plug-in
• Wire Size: 14 AWG to 8 AWG copper/aluminum
• Certifications: UL Listed, HACR rated
• Dimensions: 3.13" H x 1.97" W x 3.23" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT225230
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : Homeline
• Voltage : 120/240VAC
• Amperage : 25, 30
• Phase : 1
• Poles : 2, 2
• AIC rating : 10kAIC at 240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Compatible Frames : HOM

Product Data

• UPC : 785901970385
• GTIN : 00785901970385
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.23 in (82.04 mm) (Height x Width x Depth)
• Weight : 1
• Standards : RoHS, HACR
• Certification : UL
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
