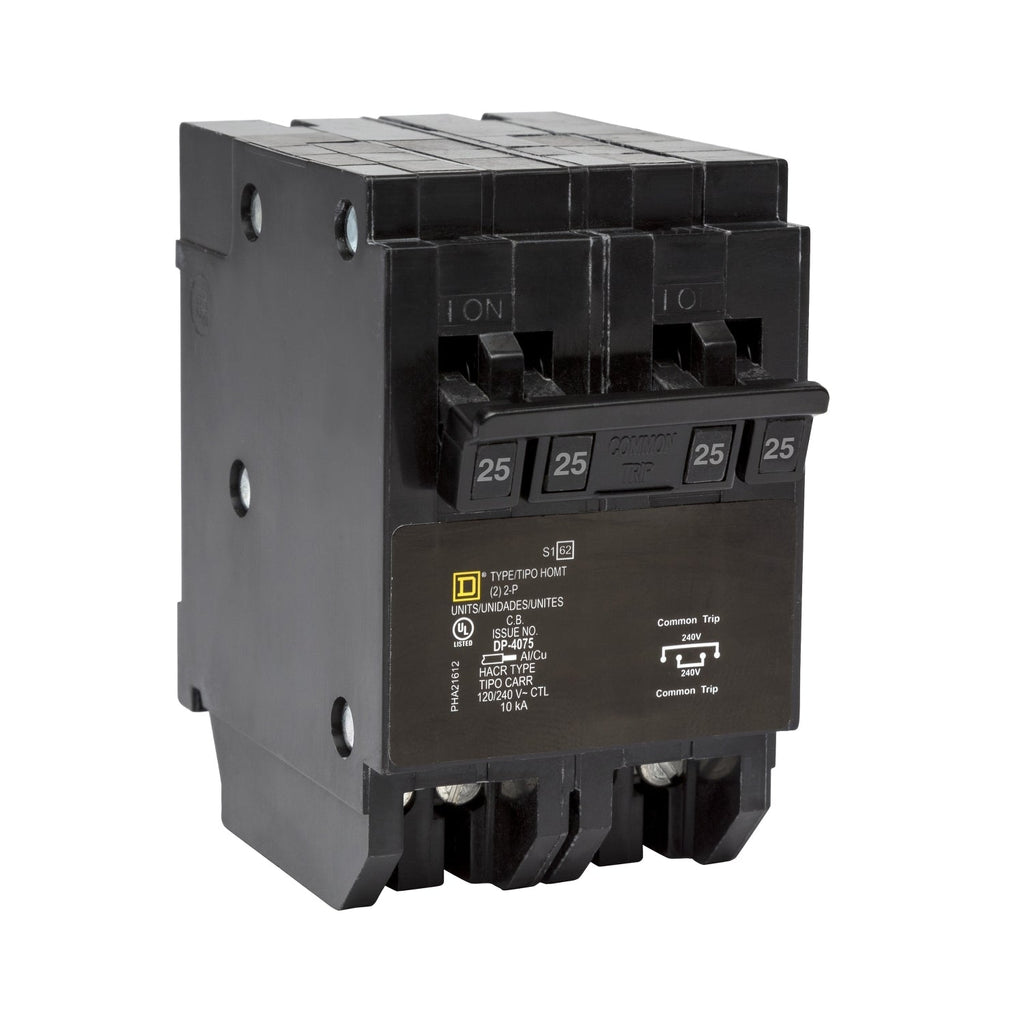

HOMT225225 - Square D Homeline Quad Tandem Circuit Breaker 25A 120/240VAC 2-Pole Plug-In 10kA Interrupt

HOMT225225

HOMT225225 is a Square D Homeline quad tandem circuit breaker designed for residential and light commercial use.This 2-pole, 25 amp thermal magnetic breaker operates at 120/240VAC with a 10kA interrupt rating and plug-in mounting type.

Key Specifications
• Manufacturer: Square D
• Series: Homeline
• Amperage: 25A per 2-pole breaker
• Voltage: 120/240VAC
• Poles: 2 (quad tandem configuration: two 2-pole breakers)
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 240V
• Trip Unit: Thermal Magnetic with long time and instantaneous trip functions
• Terminal Connection: Box lugs
• Wire Gauge: 14 to 8 AWG copper or aluminum
• Certifications: UL Listed, HACR rated, RoHS compliant
• Frame Type: HOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT225225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : Homeline
• Voltage : 120/240VAC
• Amperage : 25, 25
• Phase : 1
• Poles : 2, 2
• AIC rating : 10kAIC at 240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Compatible Frames : HOM

Product Data

• UPC : 785901970286
• GTIN : 00785901970286
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.23 in (82.04 mm) (Height x Width x Depth)
• Weight : 1
• Standards : RoHS, HACR
• Certification : UL
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
