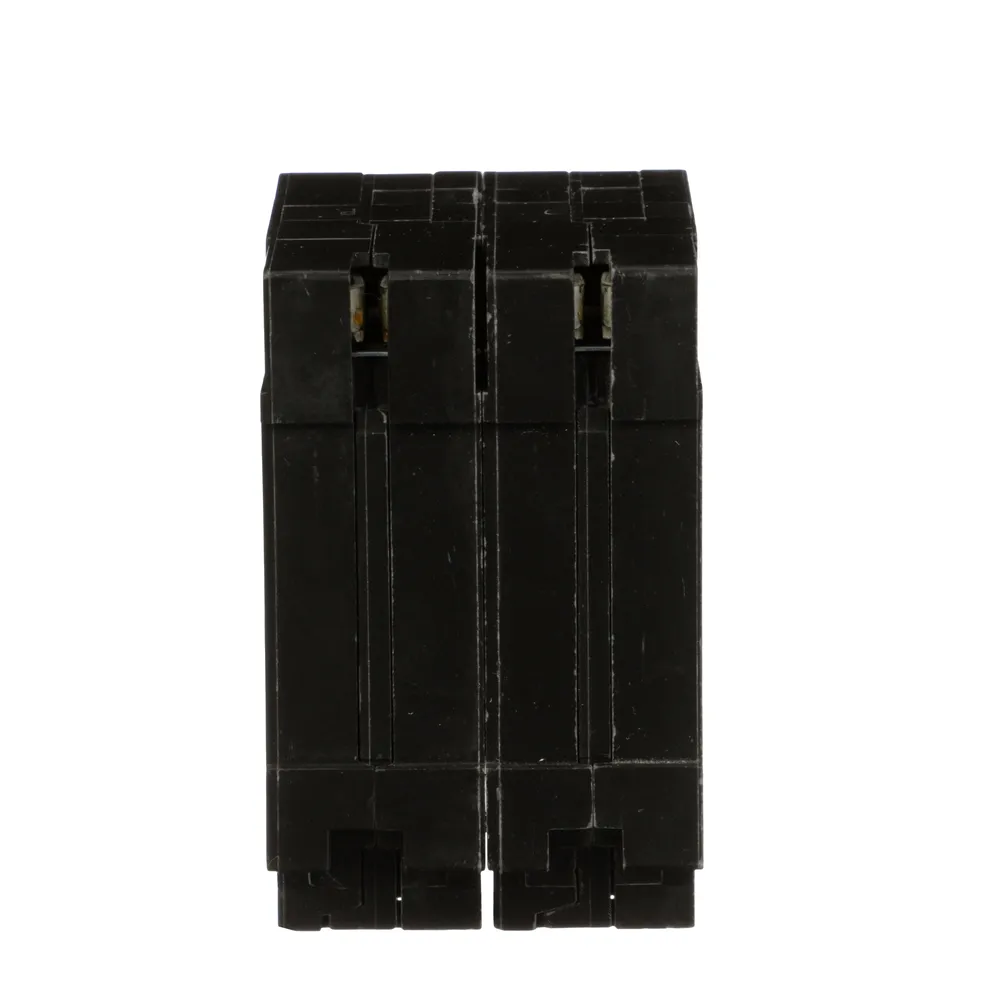

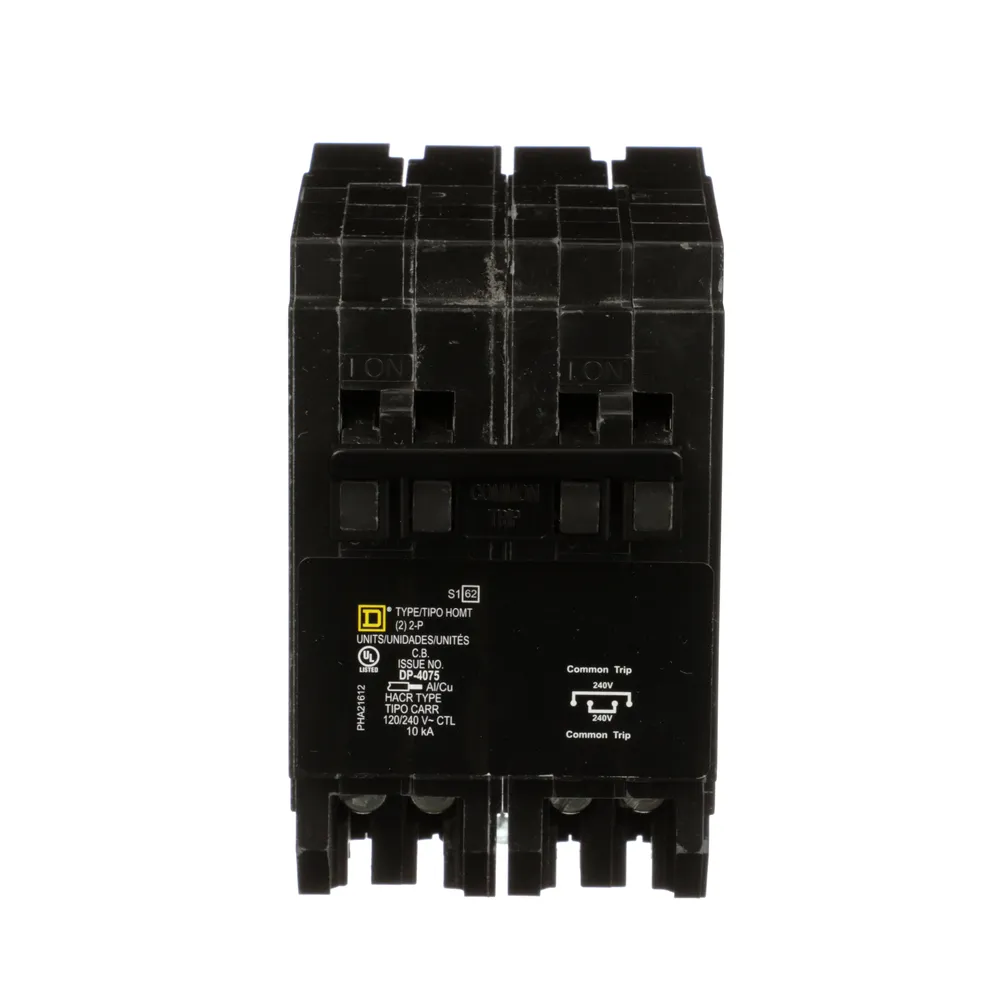

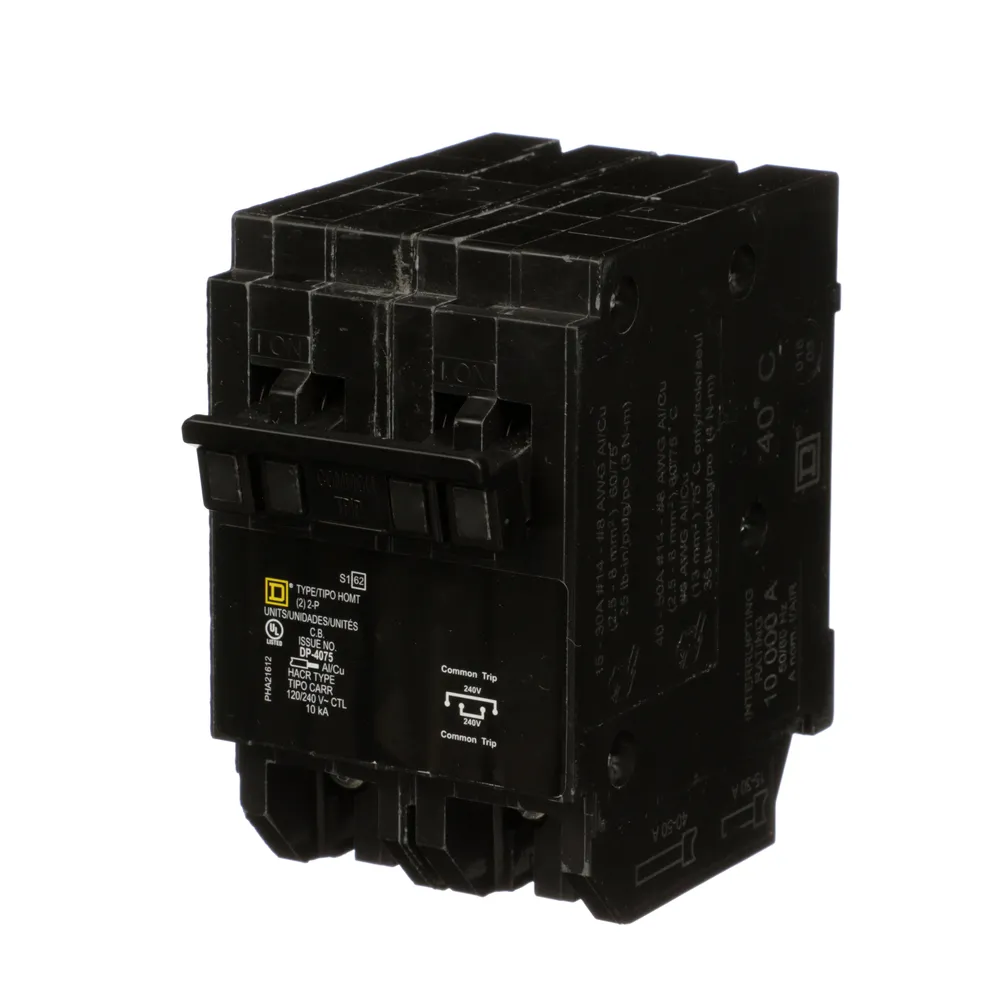

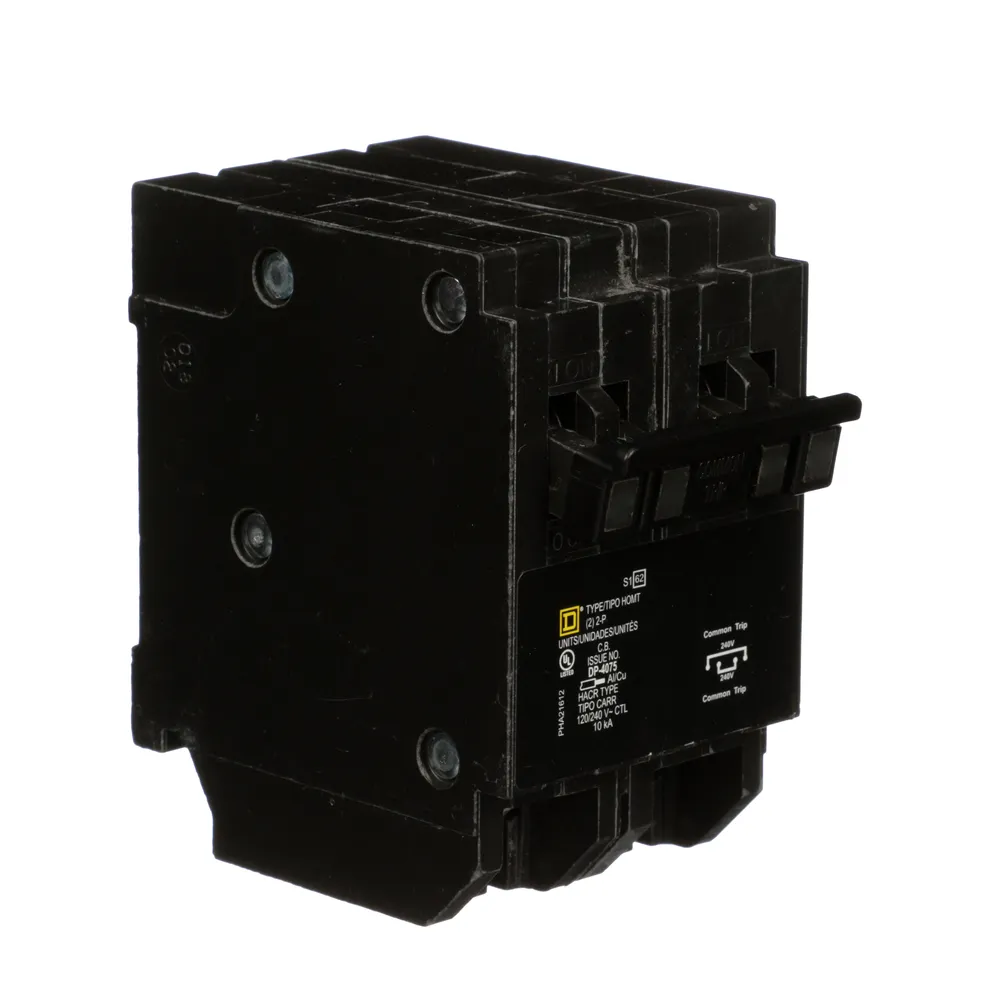

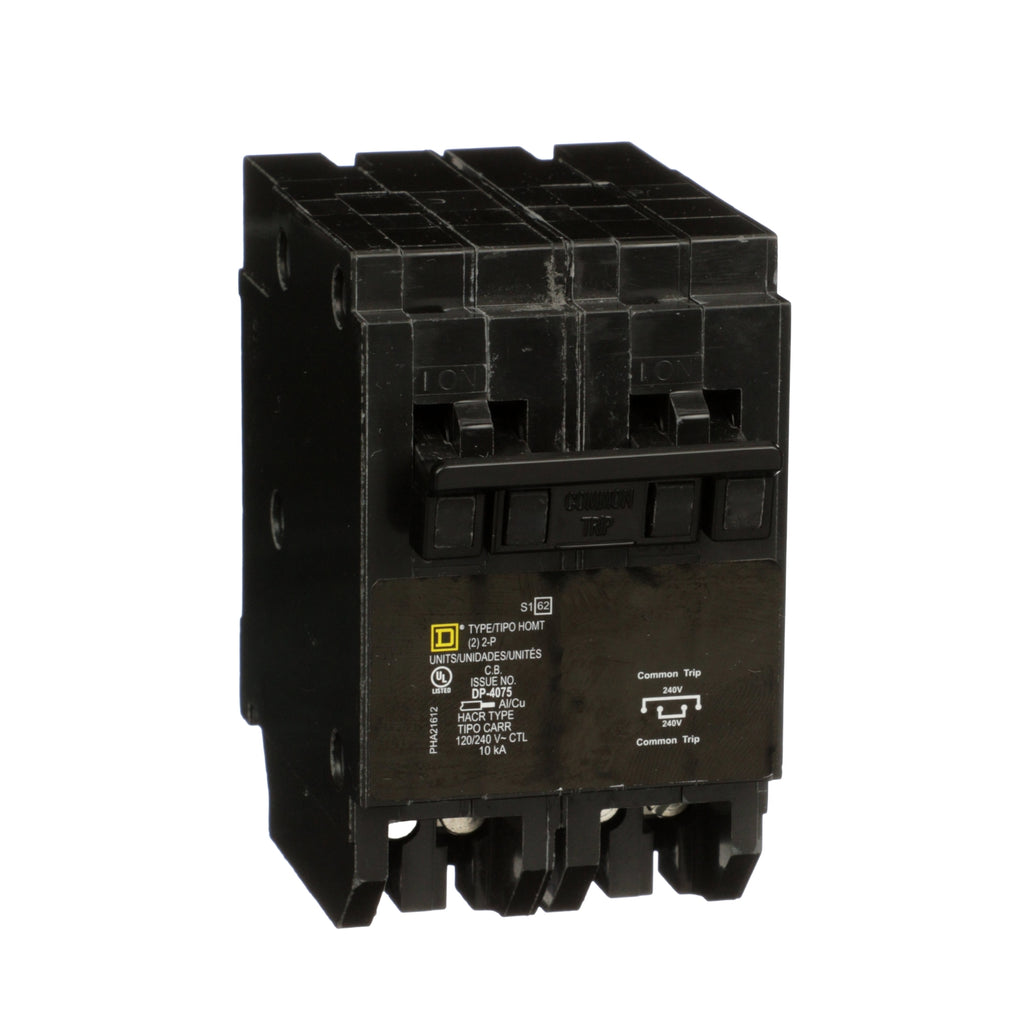

HOMT215215 - Square D 15A 120/240V Quad Tandem Mini Circuit Breaker Plug-In Mount Homeline Series

HOMT215215

HOMT215215 is a Square D Homeline quad tandem mini circuit breaker designed for reliable branch circuit protection in residential and light commercial applications. This plug-in mount breaker features a compact design for space-saving installation in compatible Square D Homeline load centers. The HOMT215215 provides dual 15A 120/240V protection with a 10kA AIR interrupt rating, ensuring safety and durability. Its quad tandem configuration allows for two 2-pole circuits in a single space, ideal for panel upgrades or high-density wiring needs. The breaker is compatible with 14 to 8 AWG copper or aluminum wire and is UL listed for safety.

• Part Number: HOMT215215
• Manufacturer: Square D
• Series: Homeline
• Amperage: 15A
• Voltage: 120/240V AC
• Poles: 2 x 2 Pole (Quad Tandem)
• Mounting Type: Plug-In
• Interrupt Rating: 10kA AIR
• Wire Size: 14 to 8 AWG (Cu/Al)
• Frame: Mini
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT215215
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901969150
• GTIN : 00785901969150
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.23 in (82.04 mm) (Height x Width x Depth)
• Weight : 0.84
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
