HOMT215220 - Square D Homeline Quad Tandem Circuit Breaker 15A & 20A 2 Pole 120/240V Plug-In 10kA AIR

HOMT215220

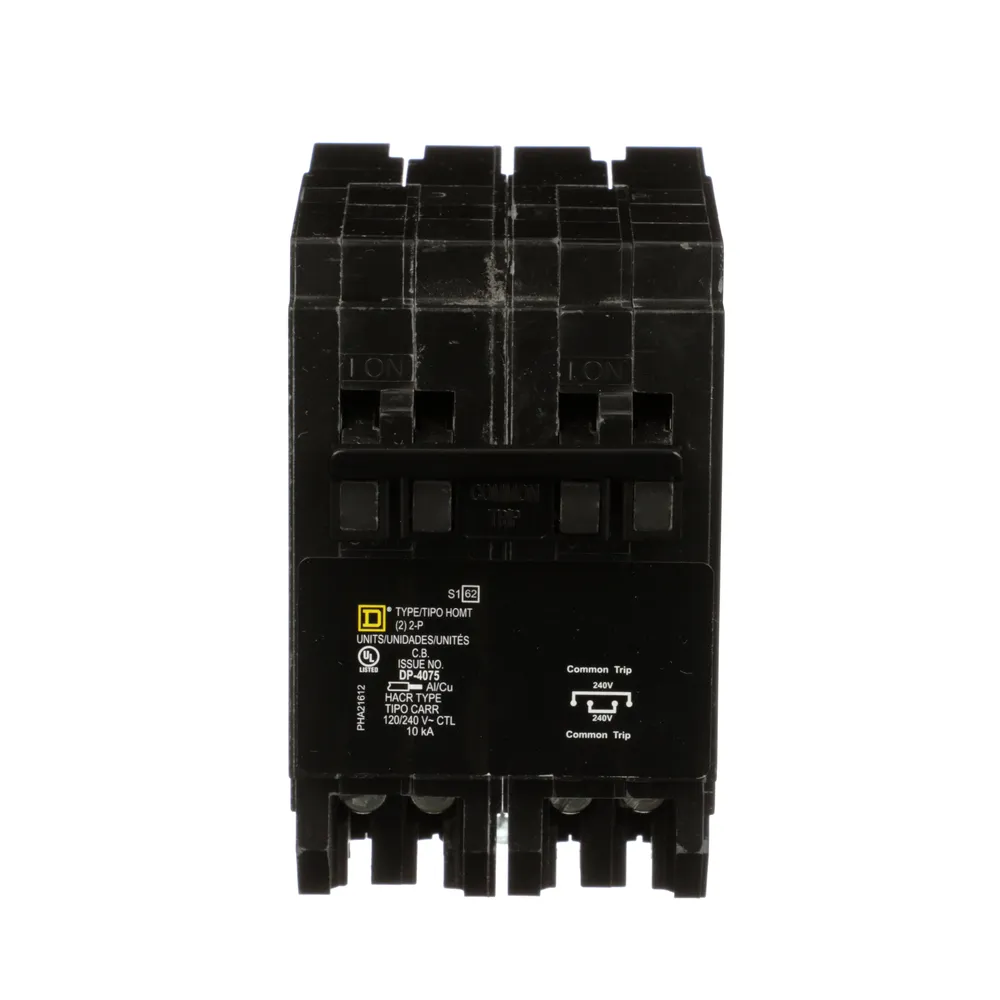

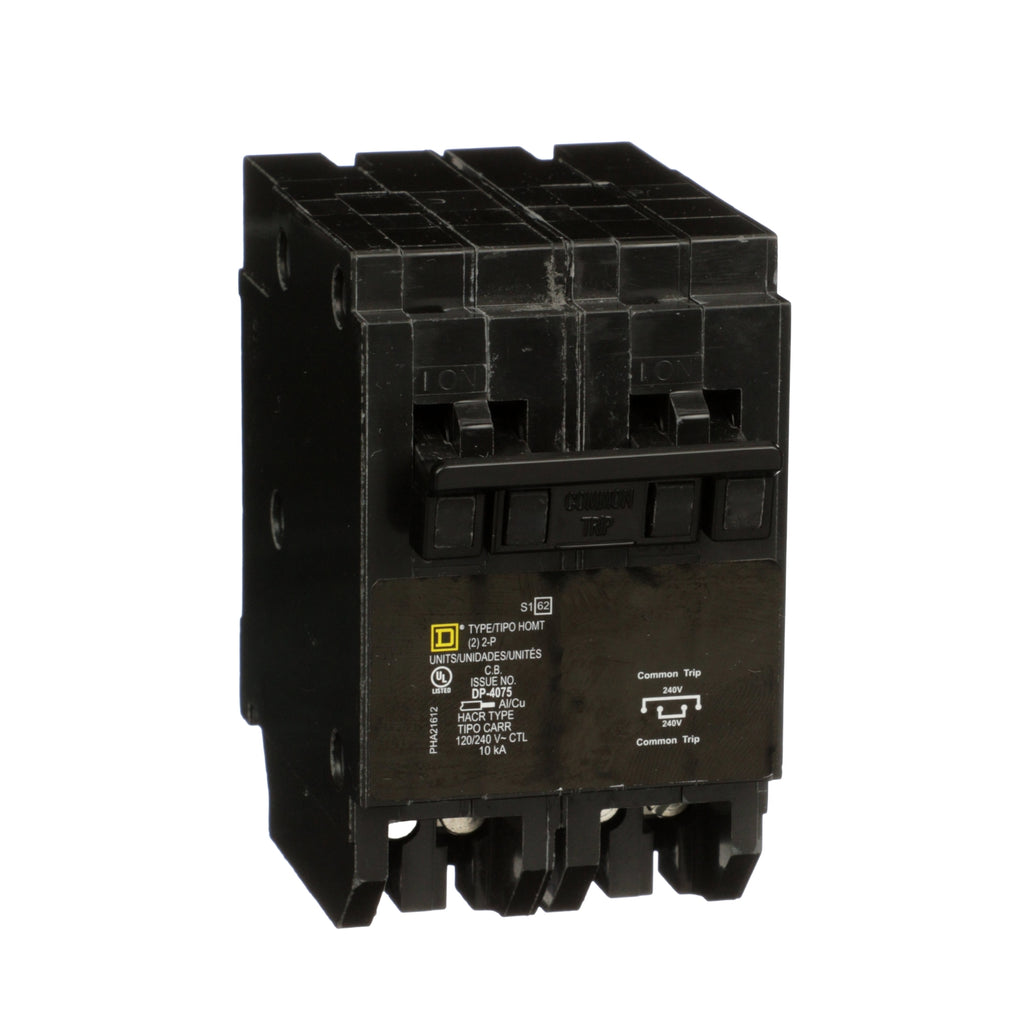

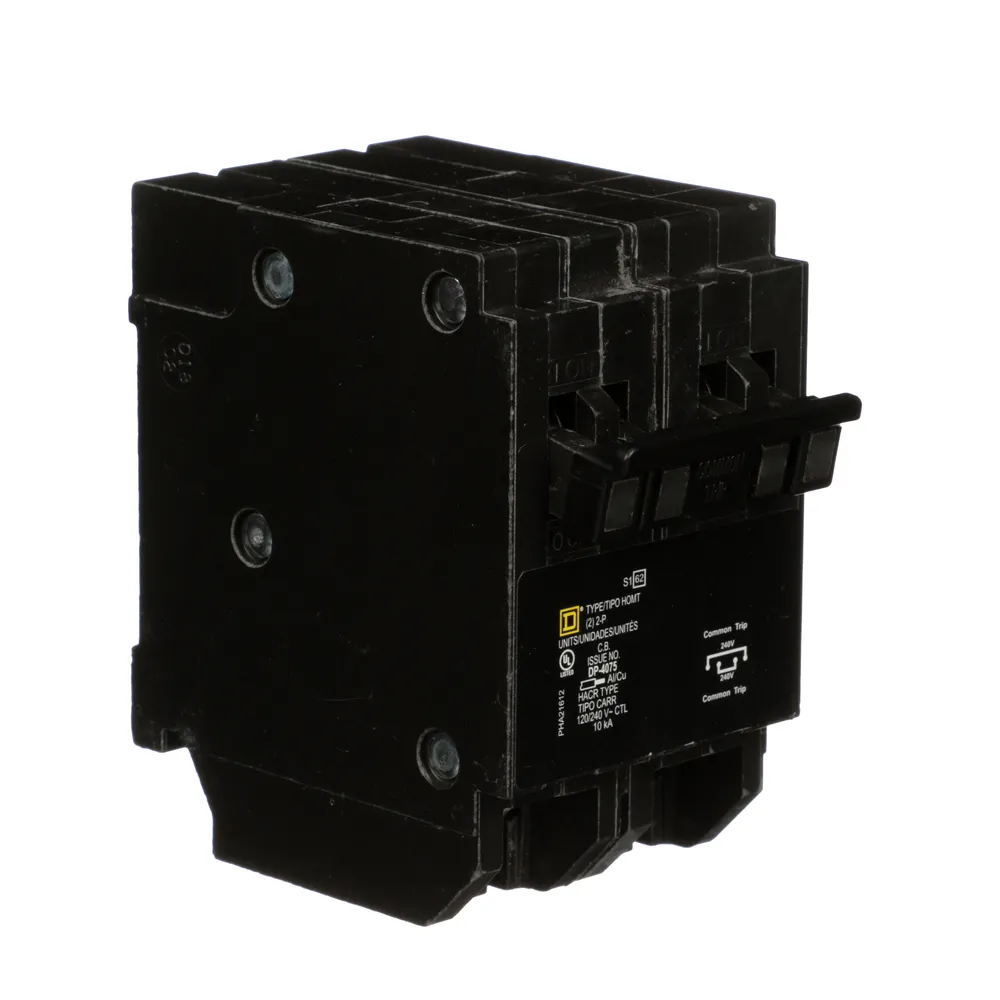

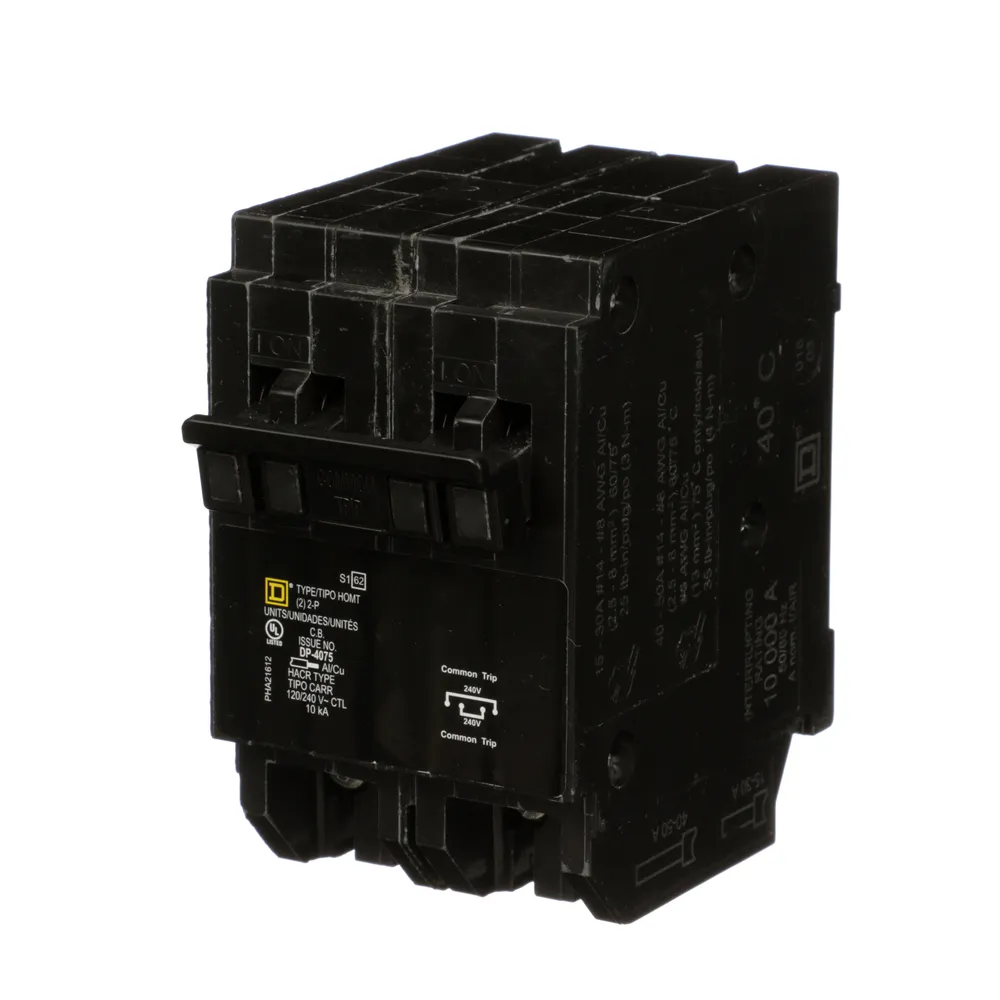

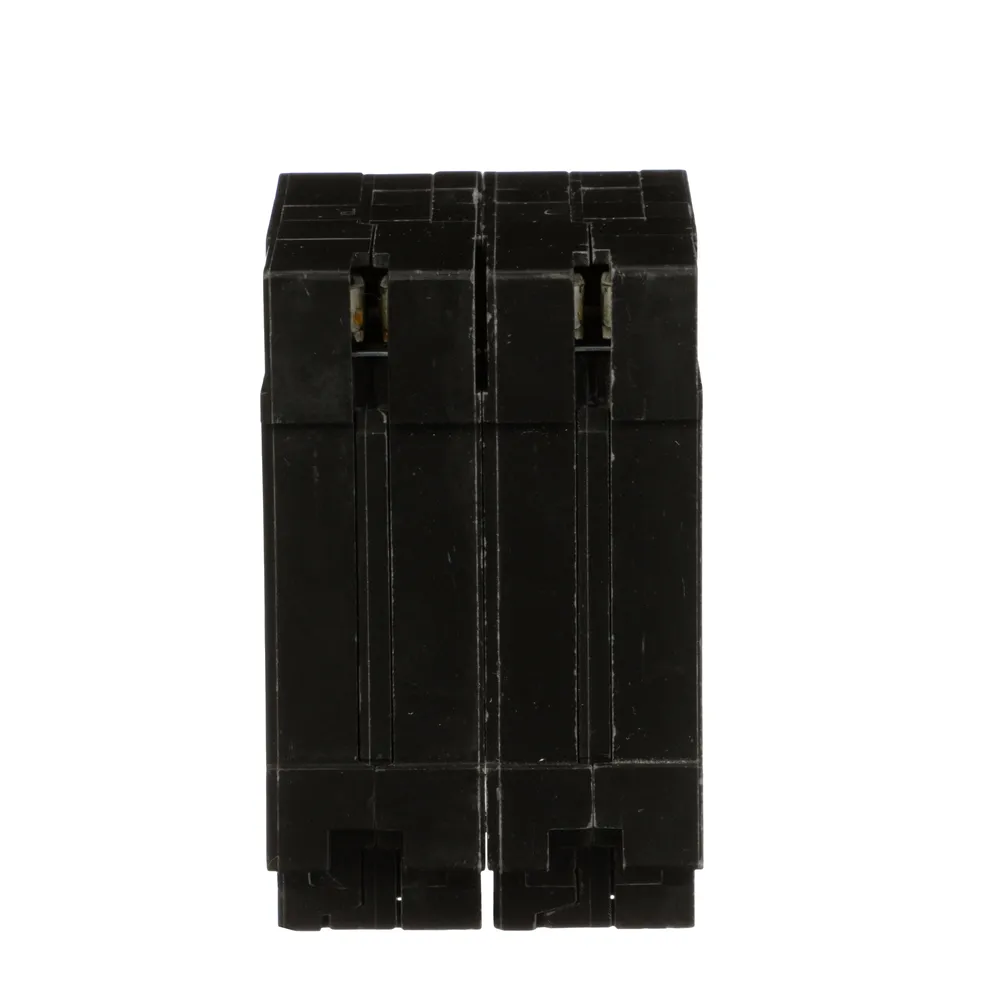

HOMT215220 is a Square D Homeline quad tandem circuit breaker designed for residential and commercial circuit protection.This miniature circuit breaker features a unique quad tandem design with one 2-pole breaker rated at 15 amps and another 2-pole breaker rated at 20 amps. It supports 120/240 VAC voltage and has a 10 kA interrupting rating (AIC). The breaker is UL listed and HACR rated, with a plug-in mounting type for easy installation. It accepts copper or aluminum wire sizes from AWG 14 to AWG 8 and provides reliable protection against overloads and short circuits.

Key Specifications
• Manufacturer: Square D
• Series: Homeline
• Type: Quad Tandem Miniature Circuit Breaker
• Amperage: 15A & 20A (2 poles each)
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA AIR
• Mounting Type: Plug-in
• Number of Poles: 2
• Certifications: UL Listed, HACR Rated
• Wire Size: AWG 14 to AWG 8 (Copper/Aluminum)
• Dimensions: 1.97" W x 3.13" H x 3.23" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT215220
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901969181
• GTIN : 00785901969181
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.23 in (82.04 mm) (Height x Width x Depth)
• Weight : 1
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
