Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HOMT2020250

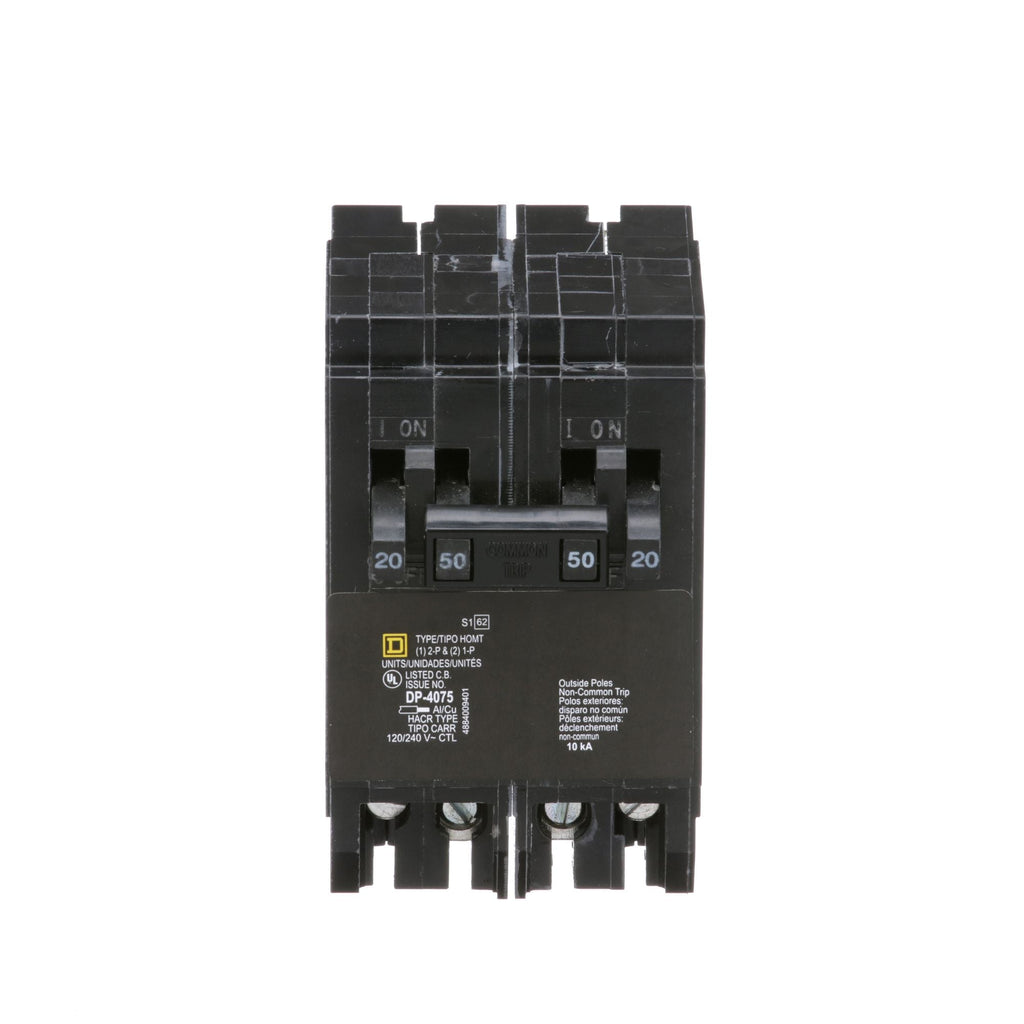

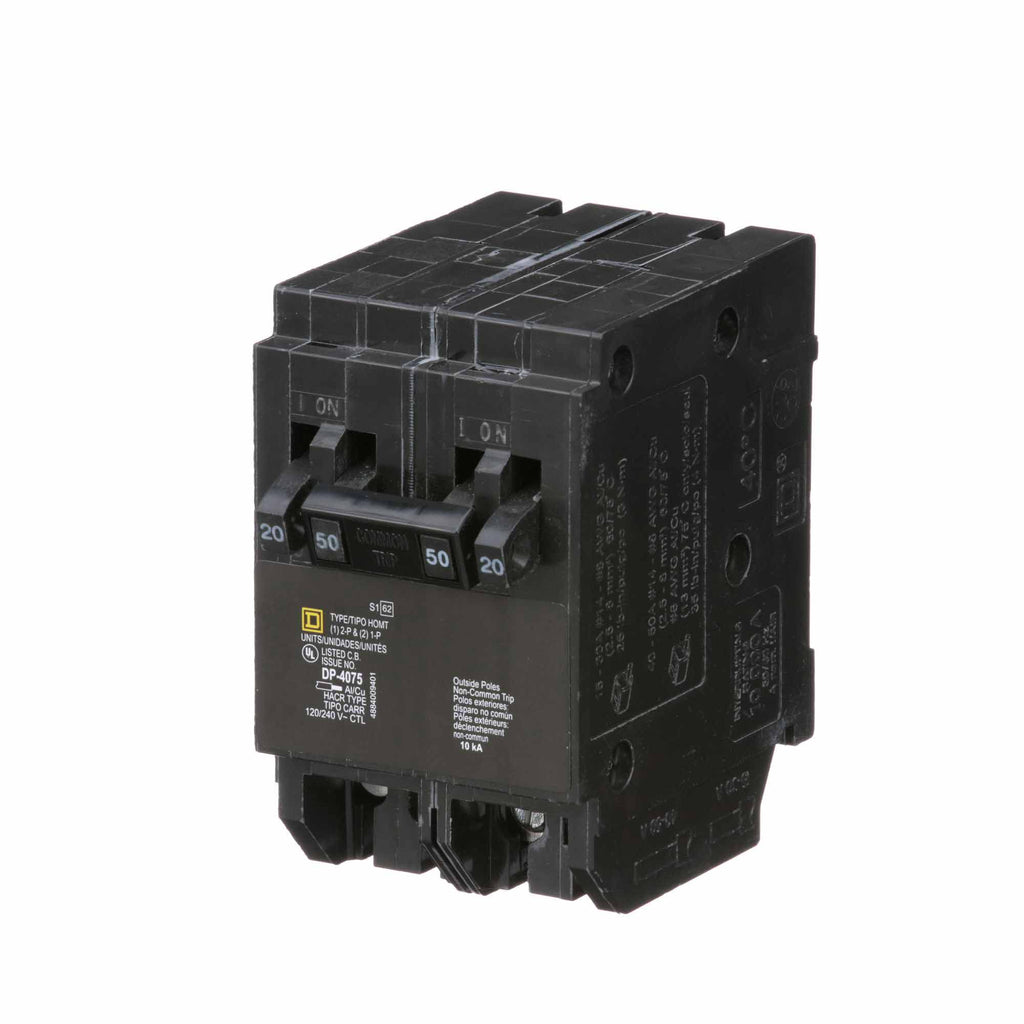

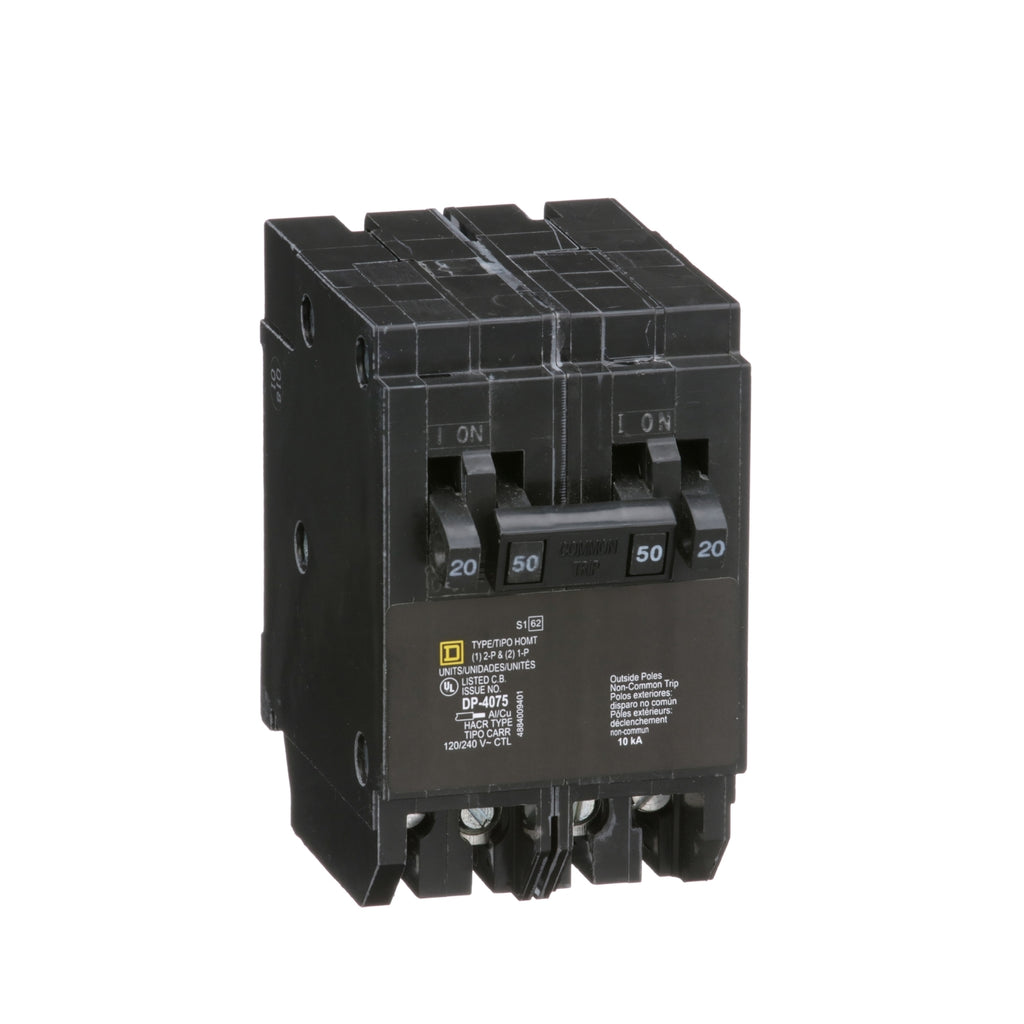

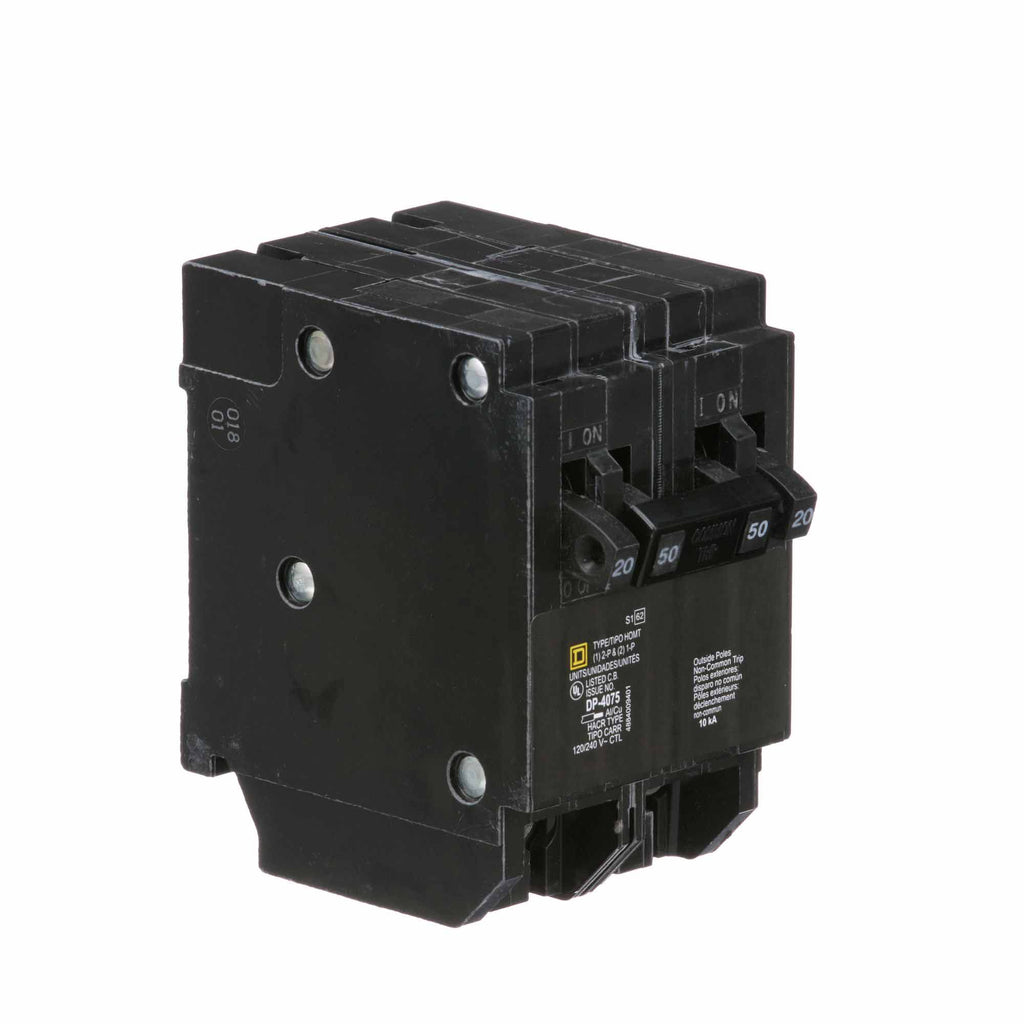

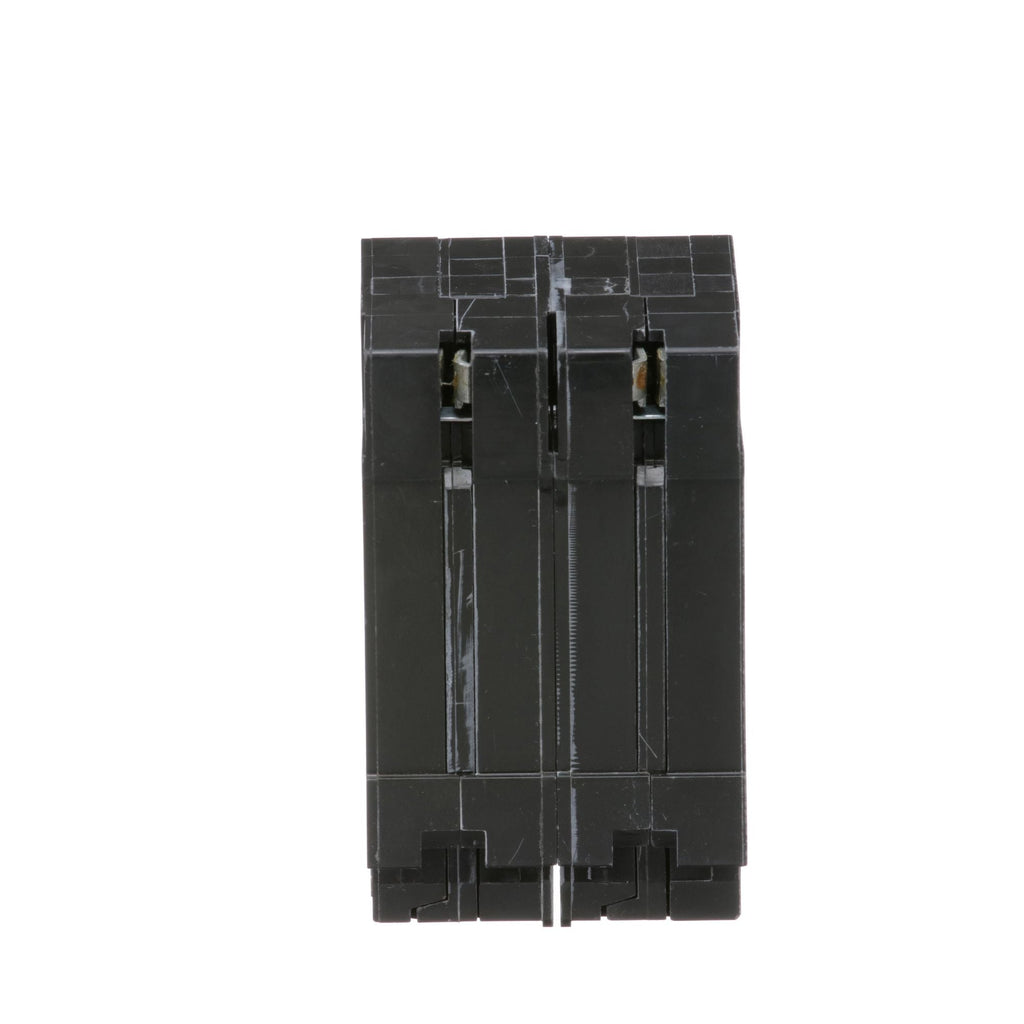

HOMT2020250 is a Square D Homeline quad tandem circuit breaker designed for fast installation and superior circuit protection in residential and commercial applications.
This plug-in breaker features a 2-pole 50A and two 1-pole 20A circuits in a compact quad tandem design, occupying only two pole spaces in Homeline load centers. It provides 10 kA interrupting capacity, thermal magnetic trip protection, and is HACR rated for HVAC equipment. The breaker accepts 14–6 AWG copper or 12–6 AWG aluminum wire for the 2-pole section, and 14–8 AWG copper or aluminum for the 1-pole sections.
-
Key Specifications
- Part Number: HOMT2020250
- Manufacturer: Square D
- Series/Frame: Homeline
- Amperage: 2-Pole 50A, 1-Pole 20A x2
- Voltage: 120/240V AC
- Poles: 4 (2-pole + 2x 1-pole in tandem)
- Mounting Type: Plug-In
- Interrupt Rating: 10 kA @ 120/240V
- Trip Unit: Thermal Magnetic
- Wire Size: 14–6 AWG Cu, 12–6 AWG Al (2-pole); 14–8 AWG Cu/Al (1-pole)
- Certifications: UL Listed, CSA Certified, HACR

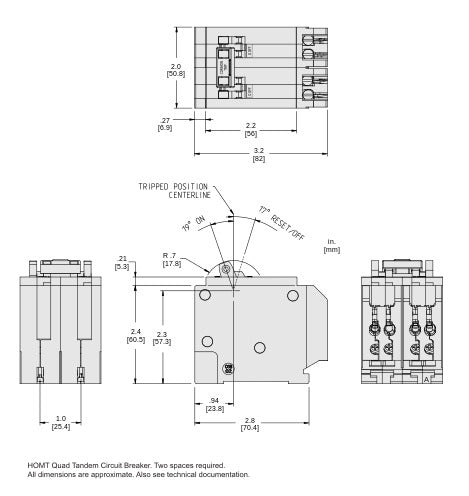

- Dimensions: 3.13" H x 2" W x 2.98" D
- Weight: 1.1 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HOMT2020250
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOMT
- Voltage : 240
- Amperage : 50
- Phase : 1
- Poles : 4
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Box Lugs
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 6 AWG (Cu/Al), 8 AWG (Al)
- Breaker Type : Quad Tandem
- Protection : Thermal Magnetic
Product Data
- UPC : 785901377054
- GTIN : 00785901377054
- Country of Origin : Mexico
- Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 0.85
- Standards : UL Listed
- Certification : UL Listed
- Wire Size : 1x AWG 14 to AWG 6, Copper, 1x AWG 12 to AWG 6, Aluminum, 1x AWG 12 to AWG 8, Aluminum
