HOMT2020230 - Square D Homeline Quad Tandem Circuit Breaker 120/240V 2 Pole 30A 1 Pole 20A Plug-In 10kA

HOMT2020230

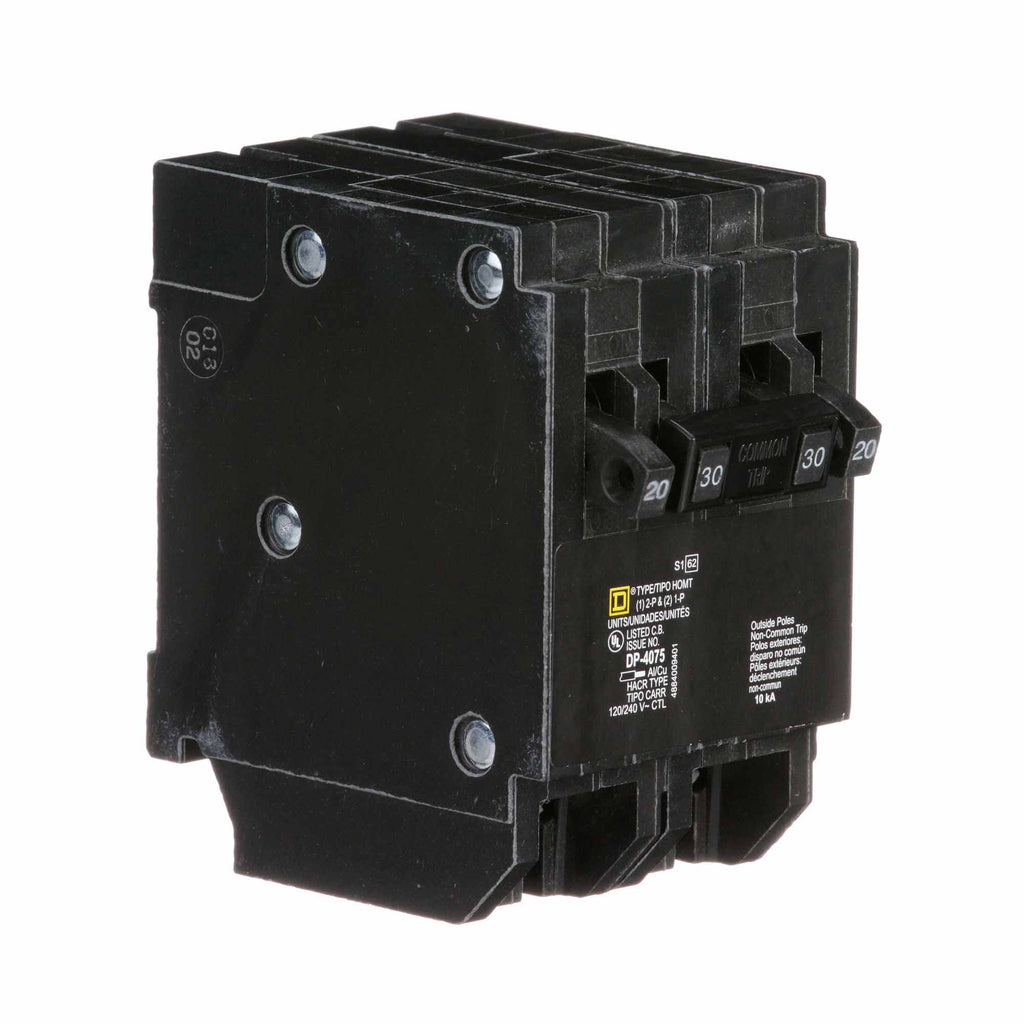

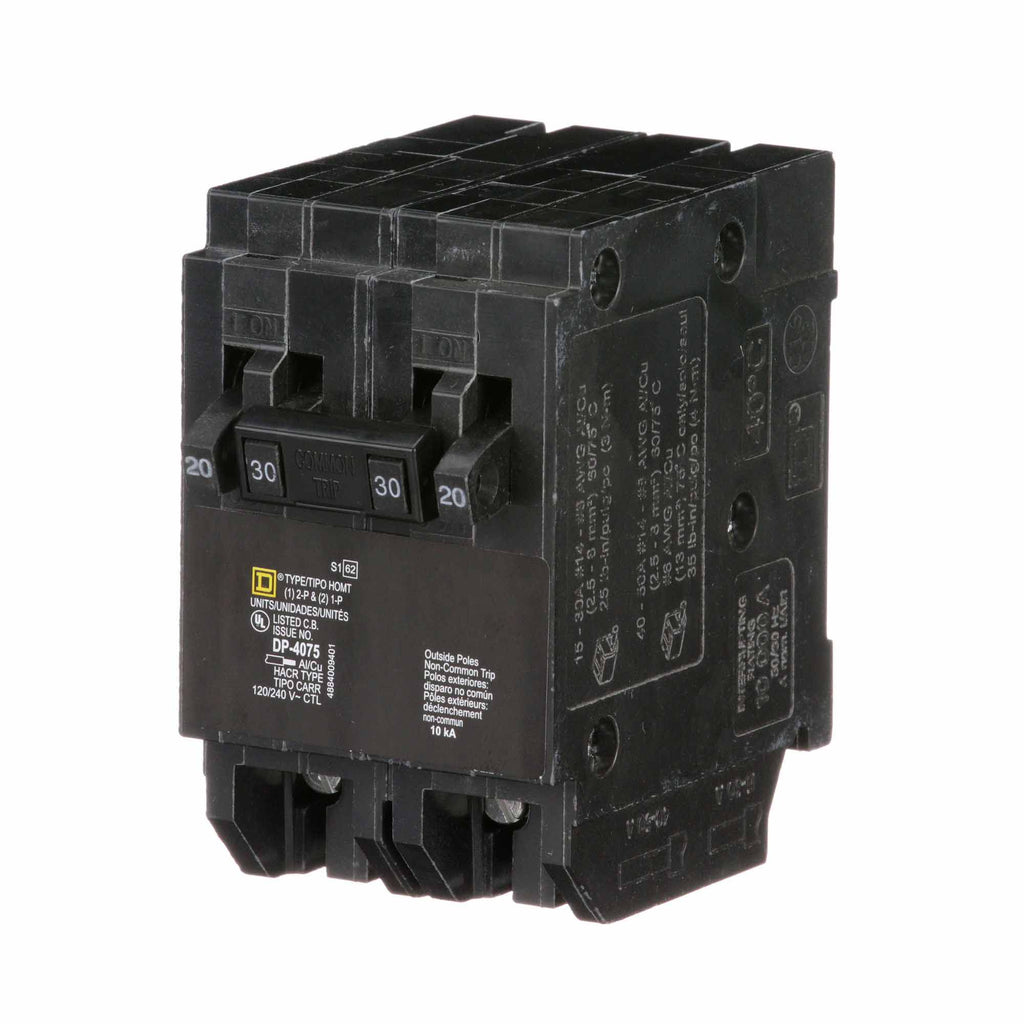

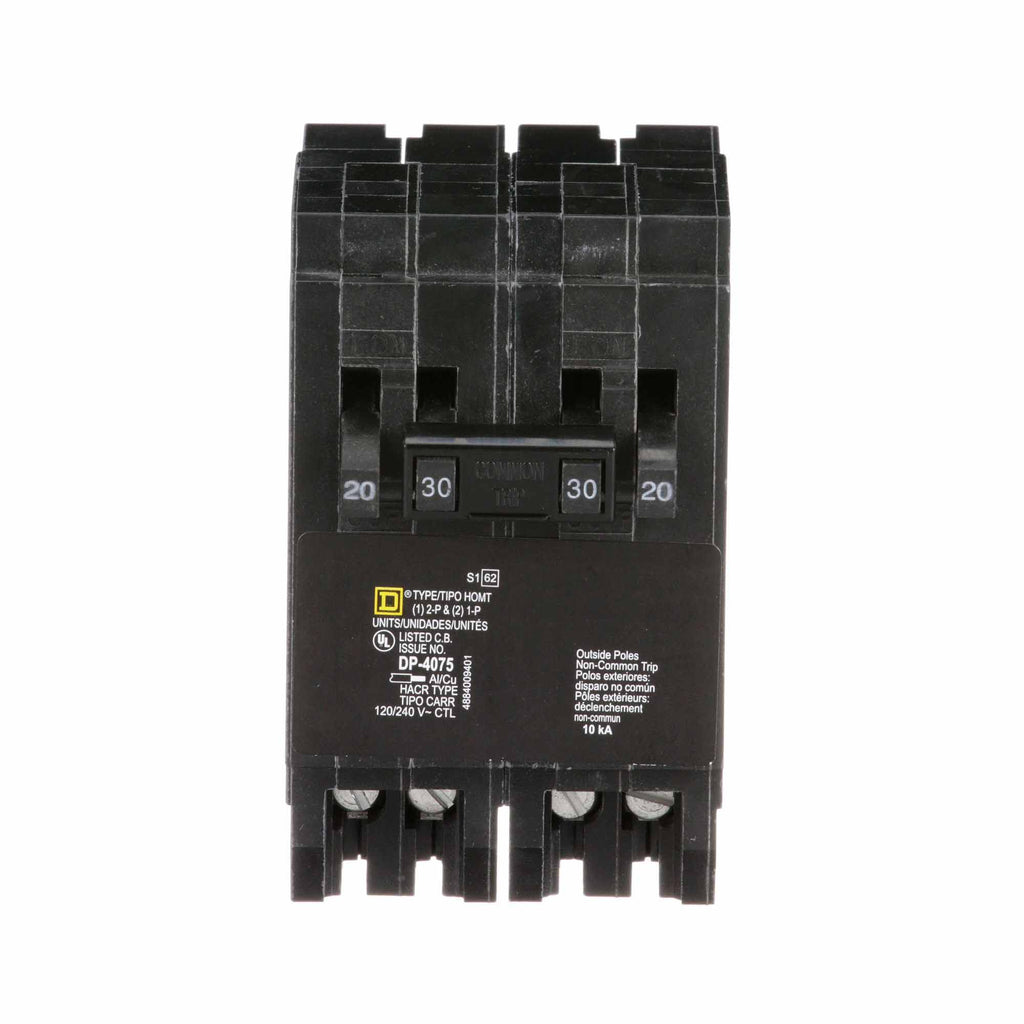

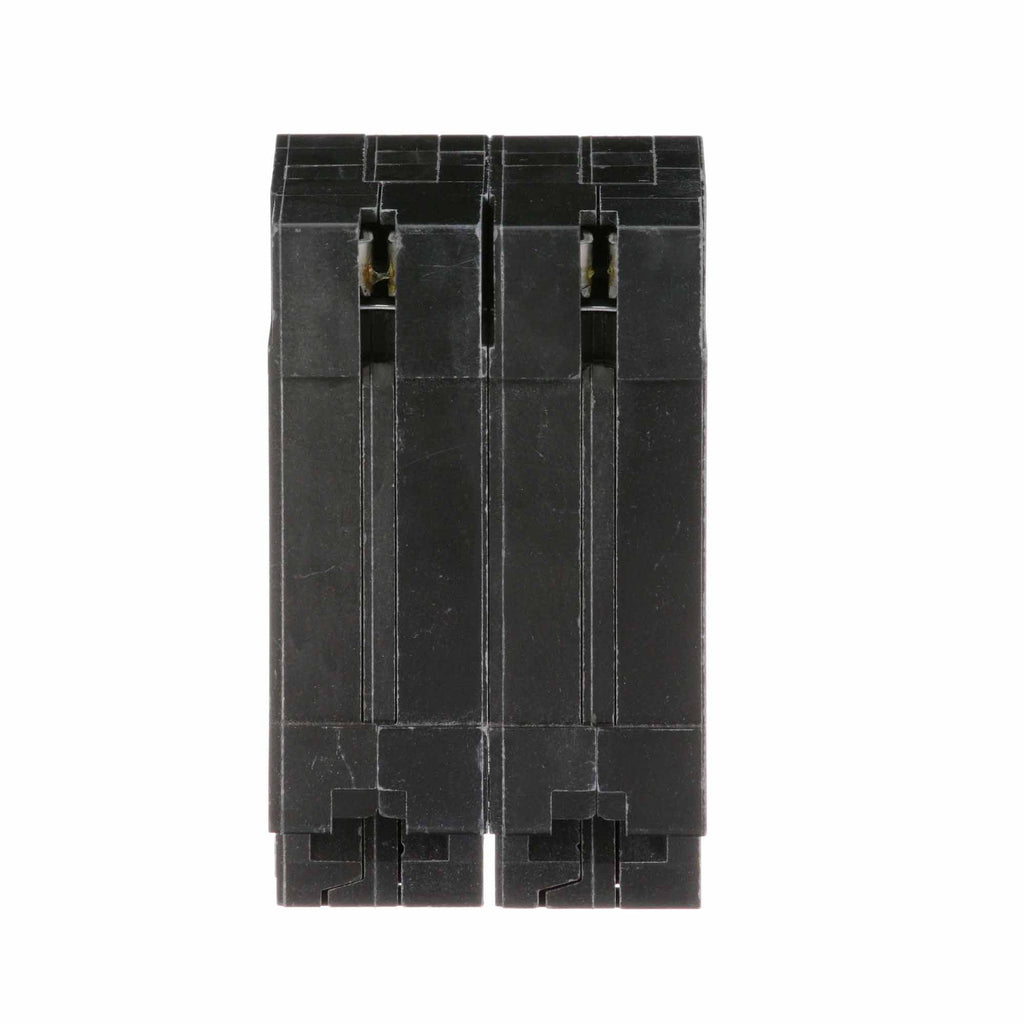

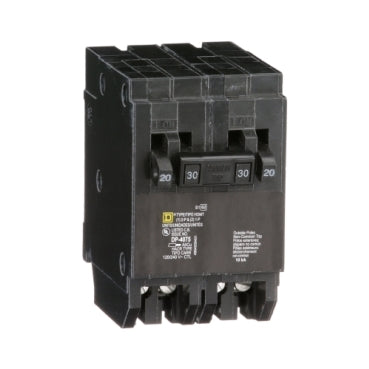

HOMT2020230 is a Square D Homeline quad tandem circuit breaker designed for residential and commercial use.This circuit breaker features a 2-pole 30 amp and two 1-pole 20 amp breakers with a 120/240 VAC voltage rating and a 10 kA interrupt rating. It uses a plug-in mounting type compatible with Homeline load centers and accepts 14 to 8 AWG copper or aluminum wire. The breaker has a thermal magnetic trip unit and is UL listed and CSA certified for safety and reliability.

Key Specifications
• Manufacturer: Square D
• Part Number: HOMT2020230
• Type: Quad Tandem Circuit Breaker
• Voltage Rating: 120/240 VAC
• Amperage: 2 Pole 30A, 1 Pole 20A, 1 Pole 20A
• Interrupt Rating: 10 kA
• Mounting Type: Plug-In
• Wire Size: 14 to 8 AWG (Copper/Aluminum)
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified
• Frame/Series: Homeline (HOM)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT2020230
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 4
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Tandem
• Protection : Thermal Magnetic

Product Data

• UPC : 78590110103
• GTIN : 00785901101031
• Country of Origin : Mexico

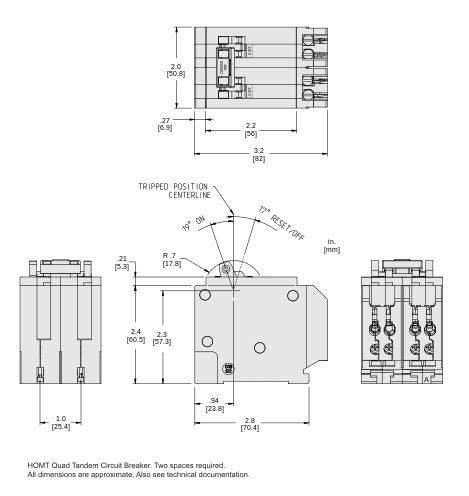

• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.85
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
