HOMT2020220 - Square D Homeline Quad Tandem Circuit Breaker, 2 Pole 20A, 1 Pole 20/20A, 120/240V, 10kA, Plug-In, UL Listed, CSA Certified

HOMT2020220

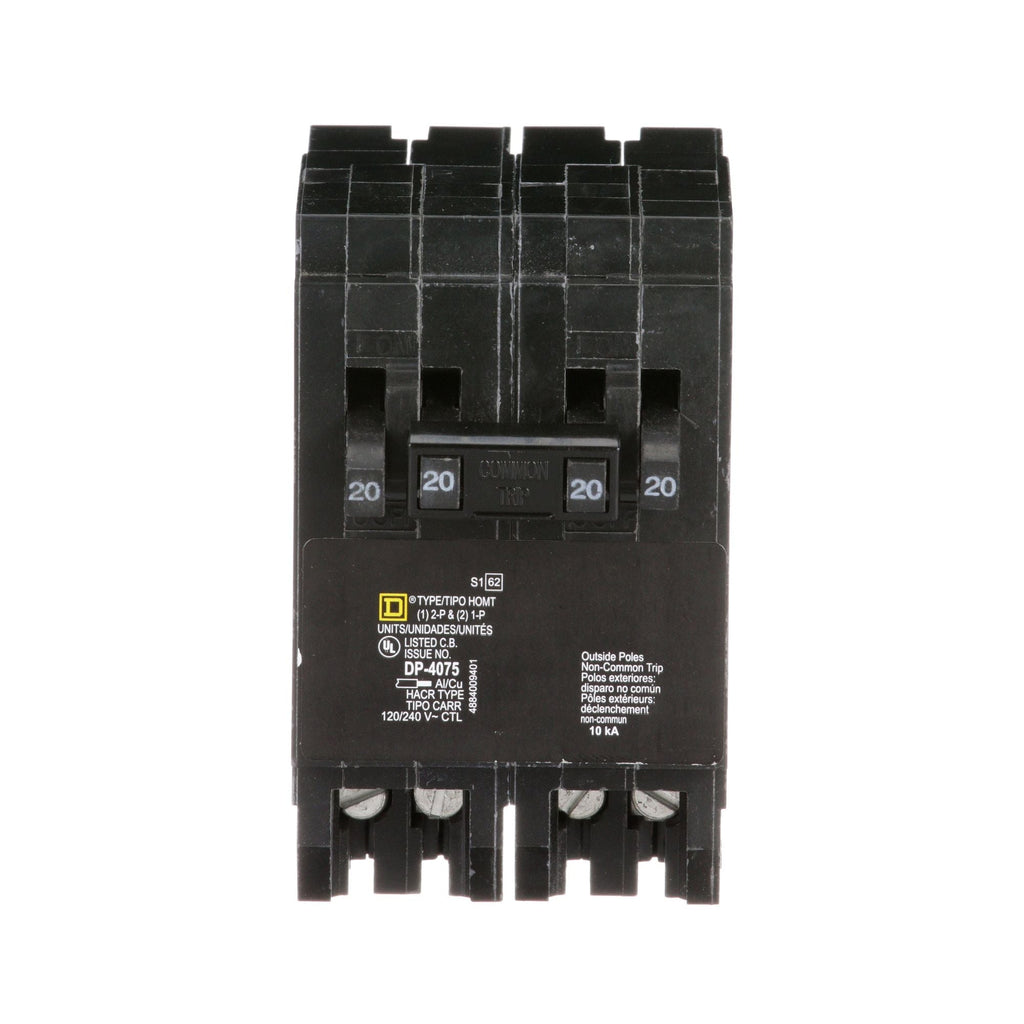

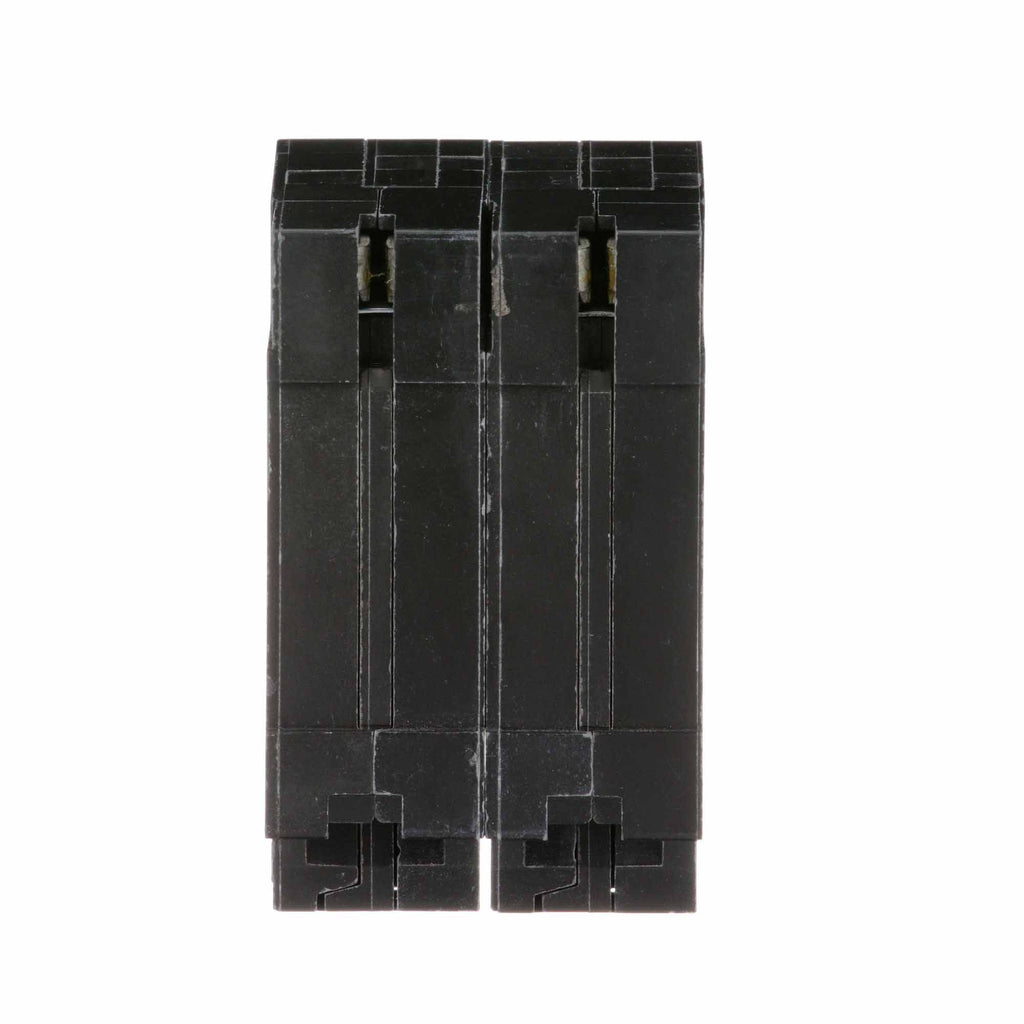

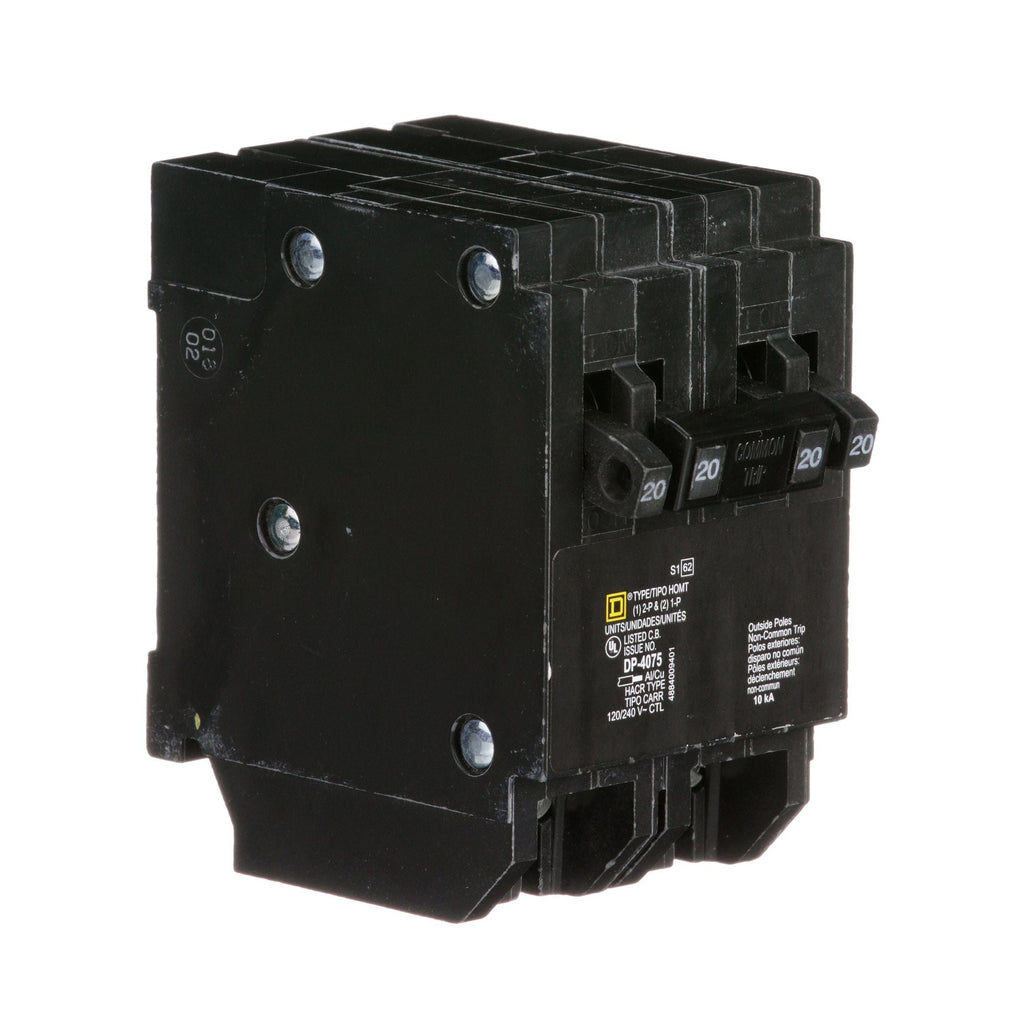

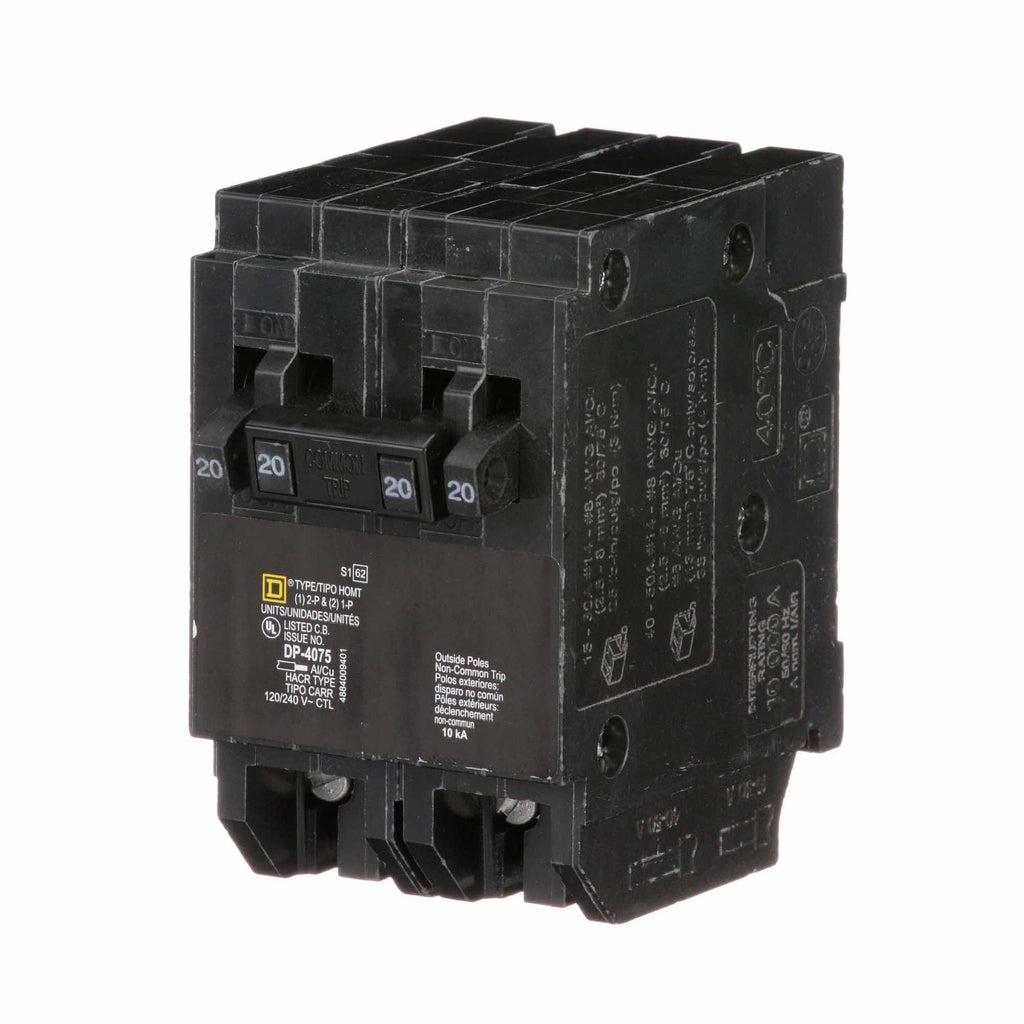

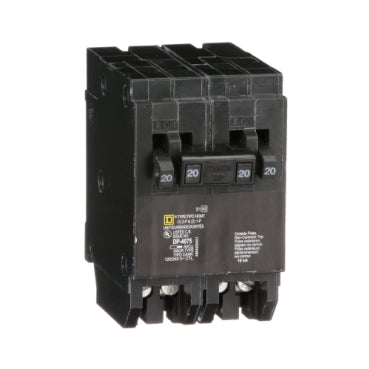

HOMT2020220 is a Square D Homeline quad tandem circuit breaker designed for efficient power distribution in residential and light commercial applications.

This plug-in miniature circuit breaker features a 2-pole 20A and a 1-pole 20/20A configuration, supporting 120/240V AC systems with a 10kA interrupt rating. It is compatible with 14–8 AWG copper or aluminum wire and is engineered for use in Square D Homeline load centers. The unit is UL listed, CSA certified, and HACR rated for reliable performance and safety.

Key Specifications
• Part Number: HOMT2020220
• Manufacturer: Square D
• Series/Frame: Homeline
• Amperage: 2 pole 20A, 1 pole 20/20A
• Voltage: 120/240V AC
• Poles: Quad tandem (2 outside, 2 inside)
• Mounting Type: Plug-in
• Interrupt Rating: 10,000 A (10kA)
• Trip Unit: Thermal-magnetic
• Wire Size: 14–8 AWG (copper or aluminum)
• Certifications: UL Listed, CSA Certified, HACR

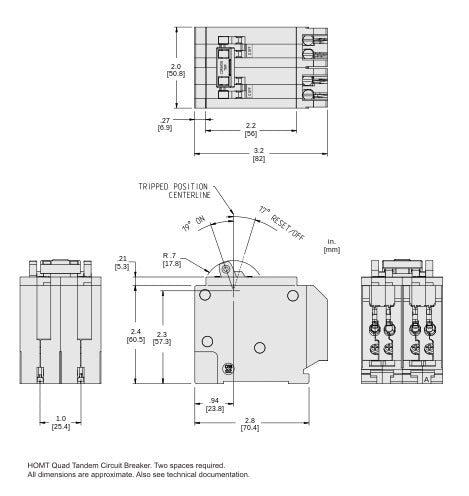

• Dimensions: 3.13" H x 2" W x 2.98" D
• Operating Temperature: Up to 104°F (40°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT2020220
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 4
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Tandem
• Protection : Thermal Magnetic

Product Data

• UPC : 785901101024
• GTIN : 00785901101024
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.84
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
