2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

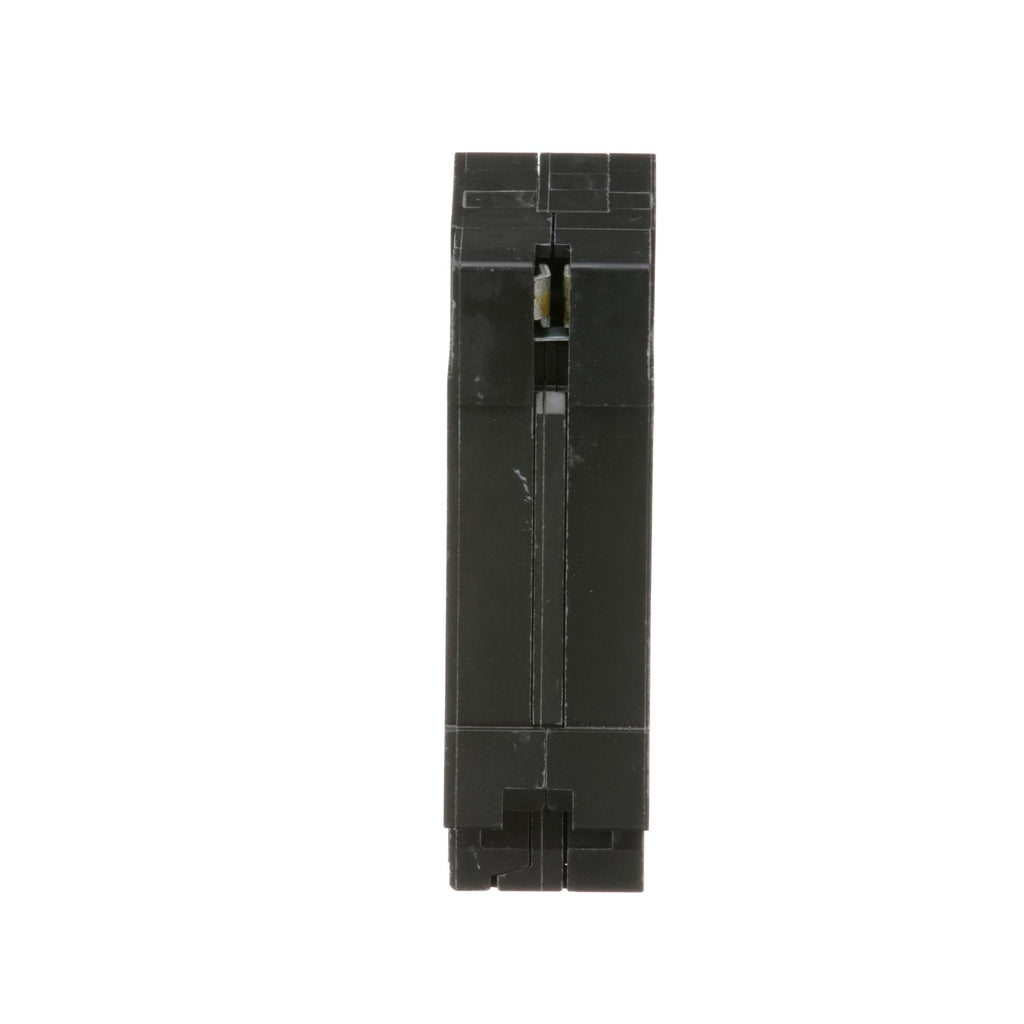

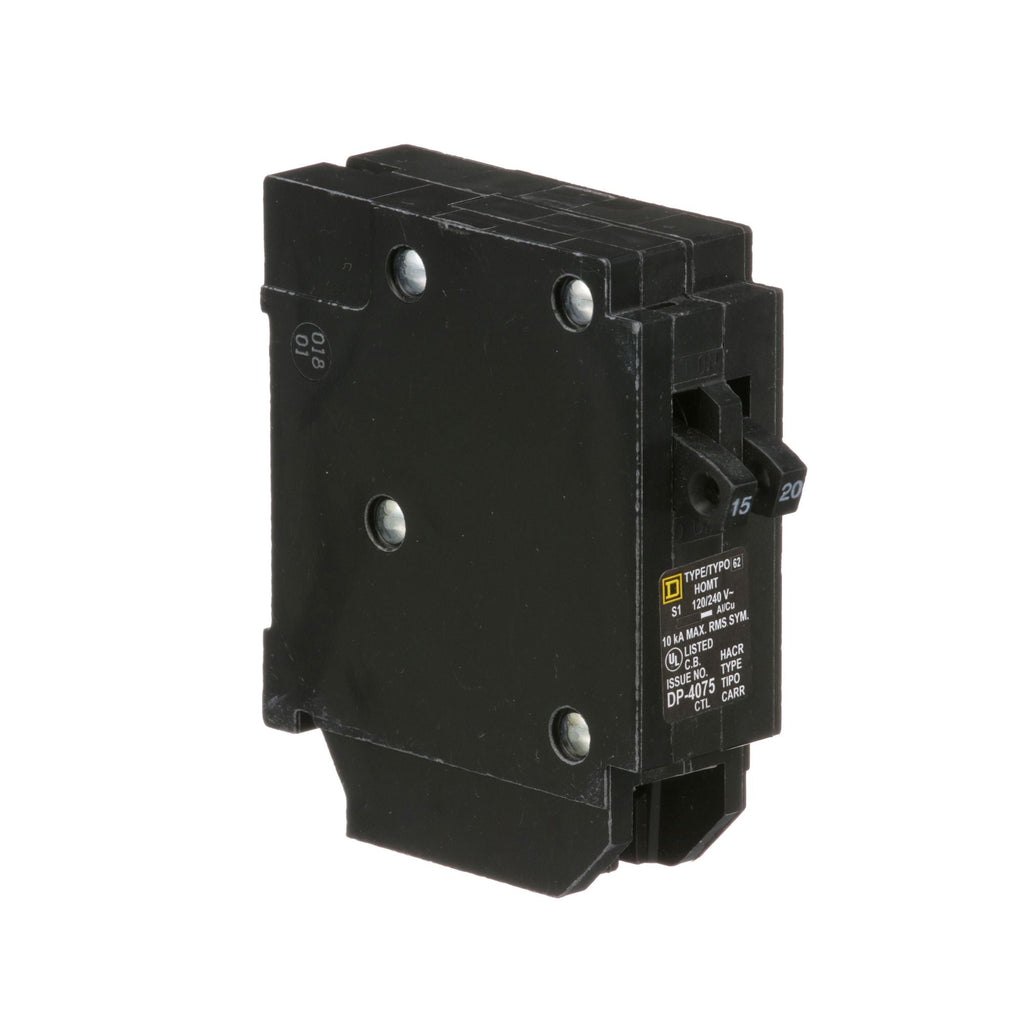

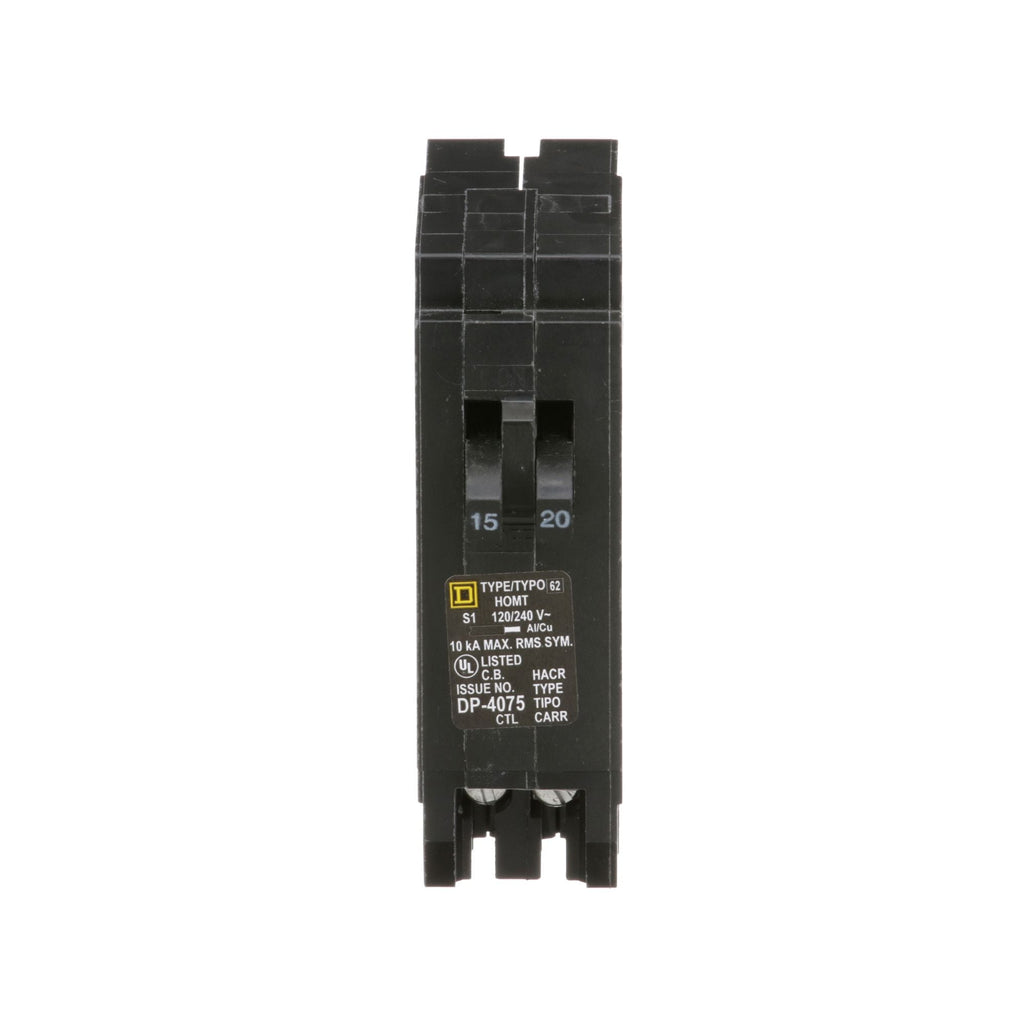

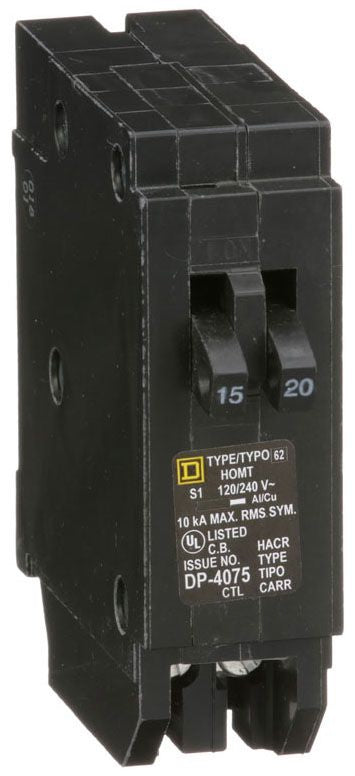

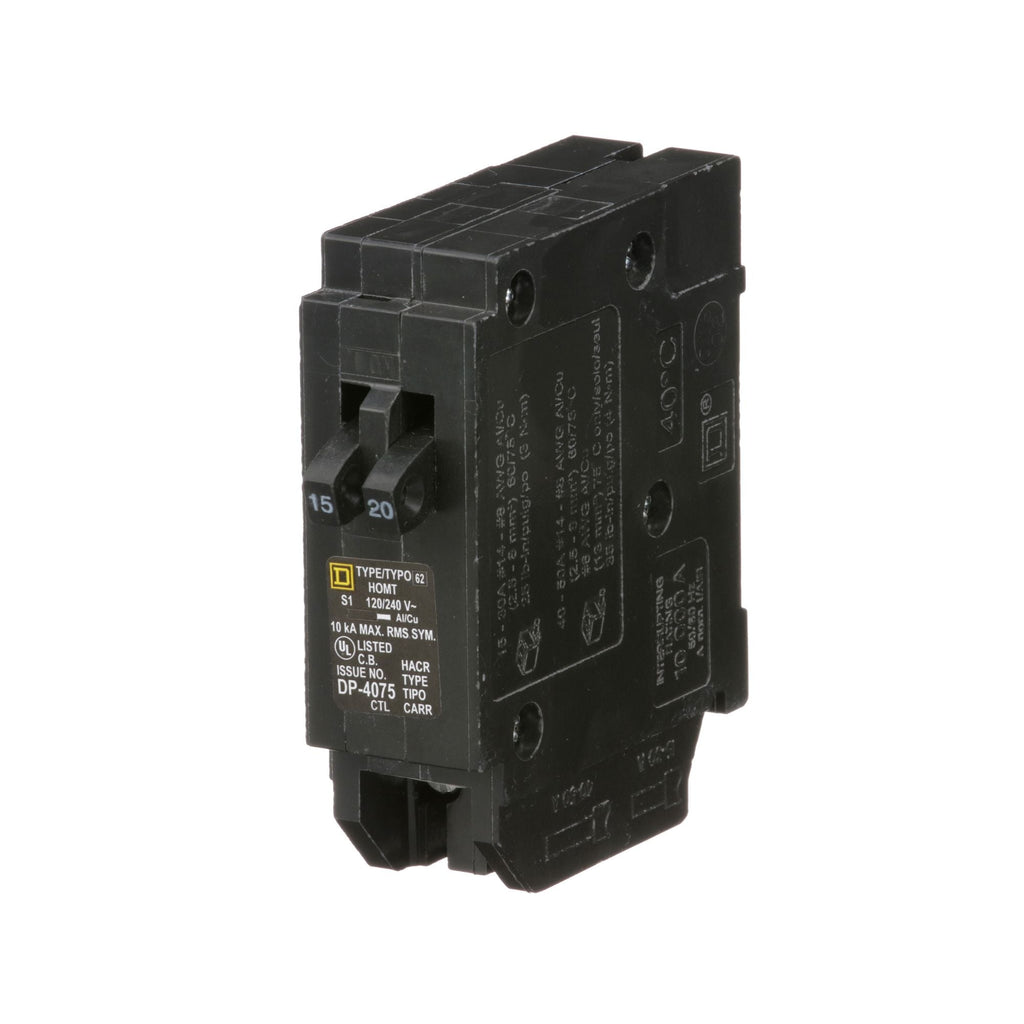

HOMT1520
HOMT1520 is a Square D Homeline tandem miniature circuit breaker designed for fast, reliable circuit protection in residential and commercial applications.
This tandem breaker combines two single-pole circuits in one space, offering individual switching and tripping for each circuit. It features a plug-in mounting design for easy installation in Homeline load centers, thermal magnetic trip protection, and is rated for use with 14–8 AWG copper or aluminum wire. The HOMT1520 is engineered for superior overload and short-circuit protection, with a compact form factor that saves panel space.
-
Key Specifications
- Part Number: HOMT1520
- Manufacturer: Square D
- Series/Frame: Homeline
- Amperage: 15A and 20A (tandem)
- Voltage: 120/240V AC
- Poles: 1 (tandem, two circuits in one space)
- Mounting Type: Plug-in
- Interrupt Rating: 10 kA at 120/240V
- Trip Unit: Thermal magnetic (long-time and instantaneous)
- Wire Size: 14–8 AWG (copper or aluminum)
- Certifications: UL Listed, CSA Certified, HACR
- Dimensions: 3.13" H x 1" W x 2.98" D
- Weight: 0.43–0.45 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HOMT1520
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOMT
- Voltage : 120/240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/HOM
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type : Tandem
- Protection : Thermal Magnetic
Product Data
- UPC : 785901065418
- GTIN : 00785901065418
- Country of Origin : Mexico
- Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 0.43
- Panel Type : Homeline Load Center
- Standards : CSA Certified, HACR, UL Listed
- Certification : CSA Certified, HACR, UL Listed
- Wire Size : 1x AWG 12 to AWG 8, Aluminum
