Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HOMT1515250

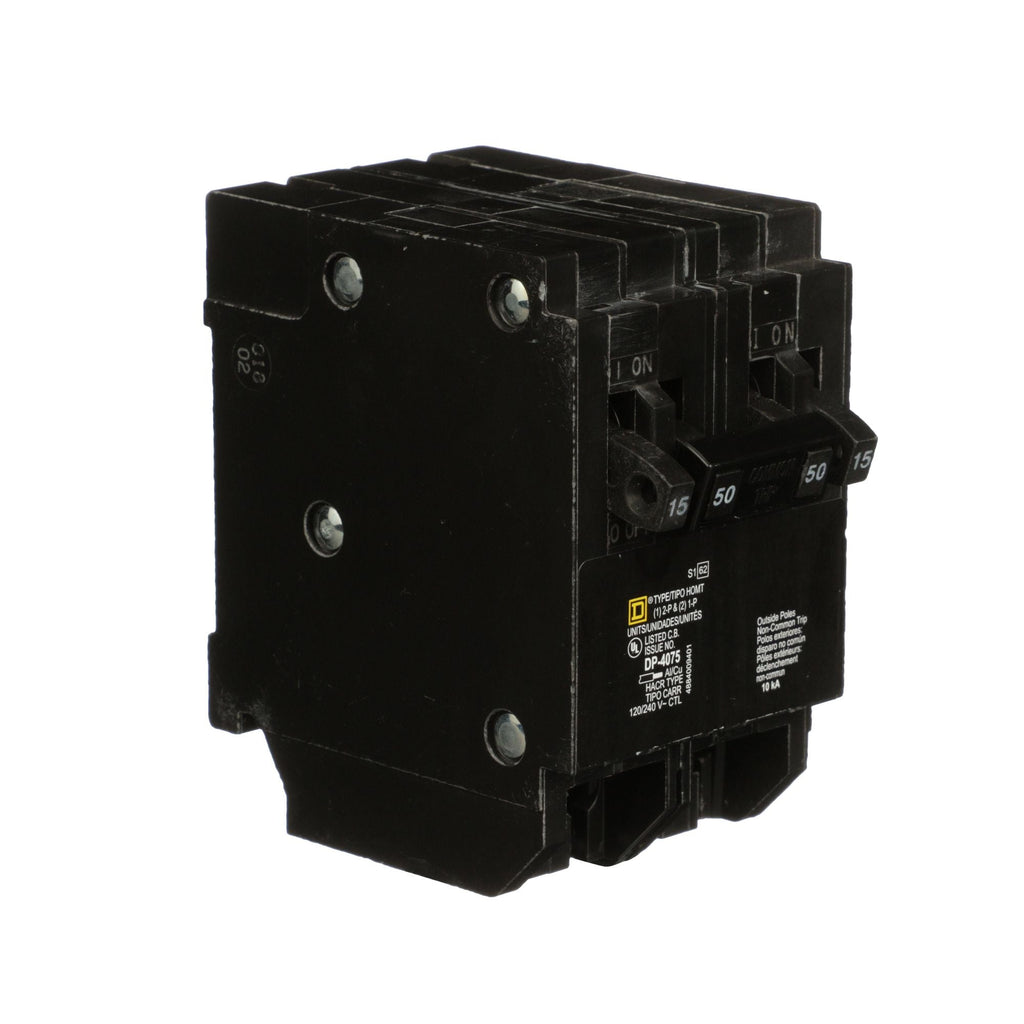

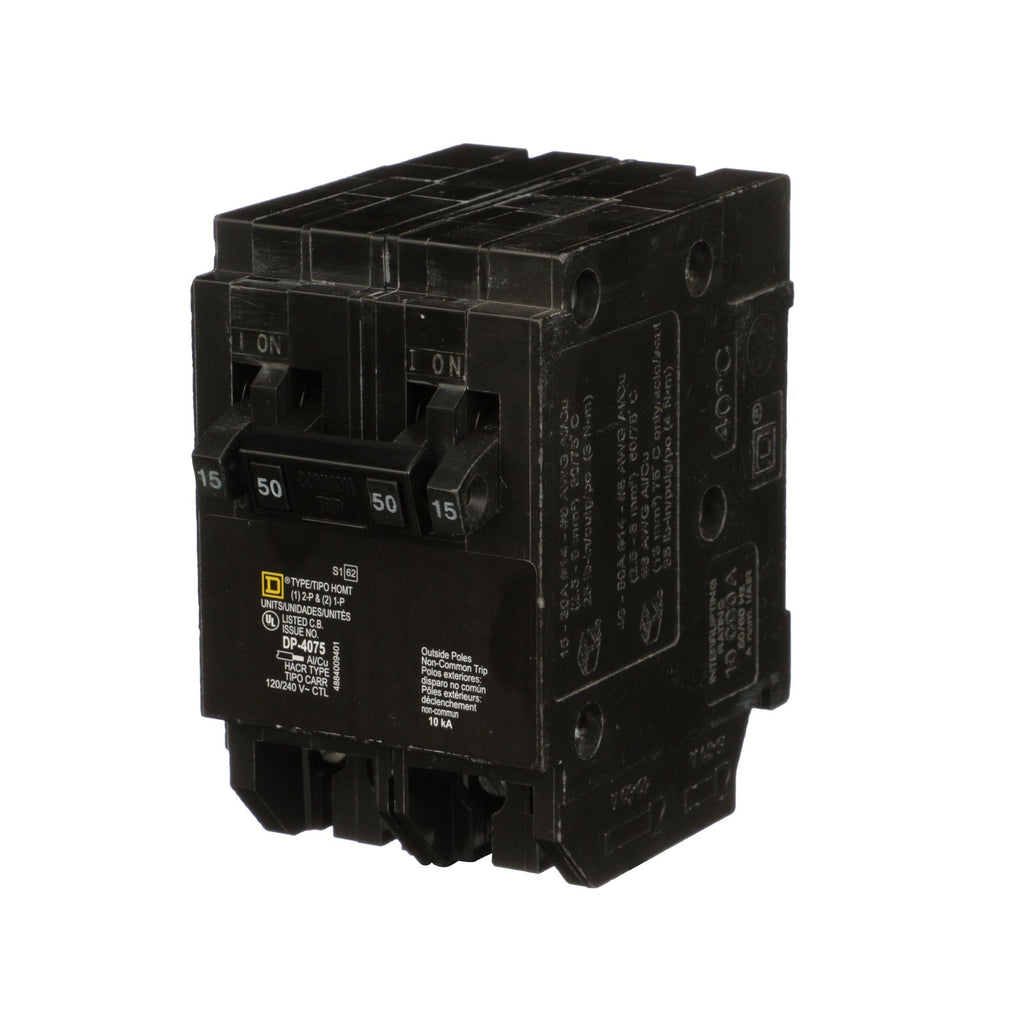

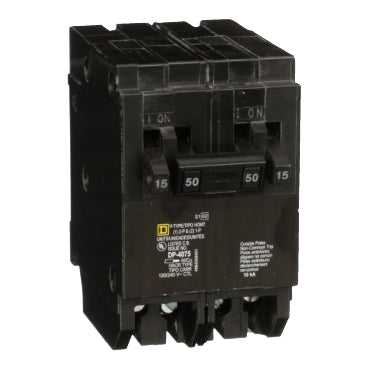

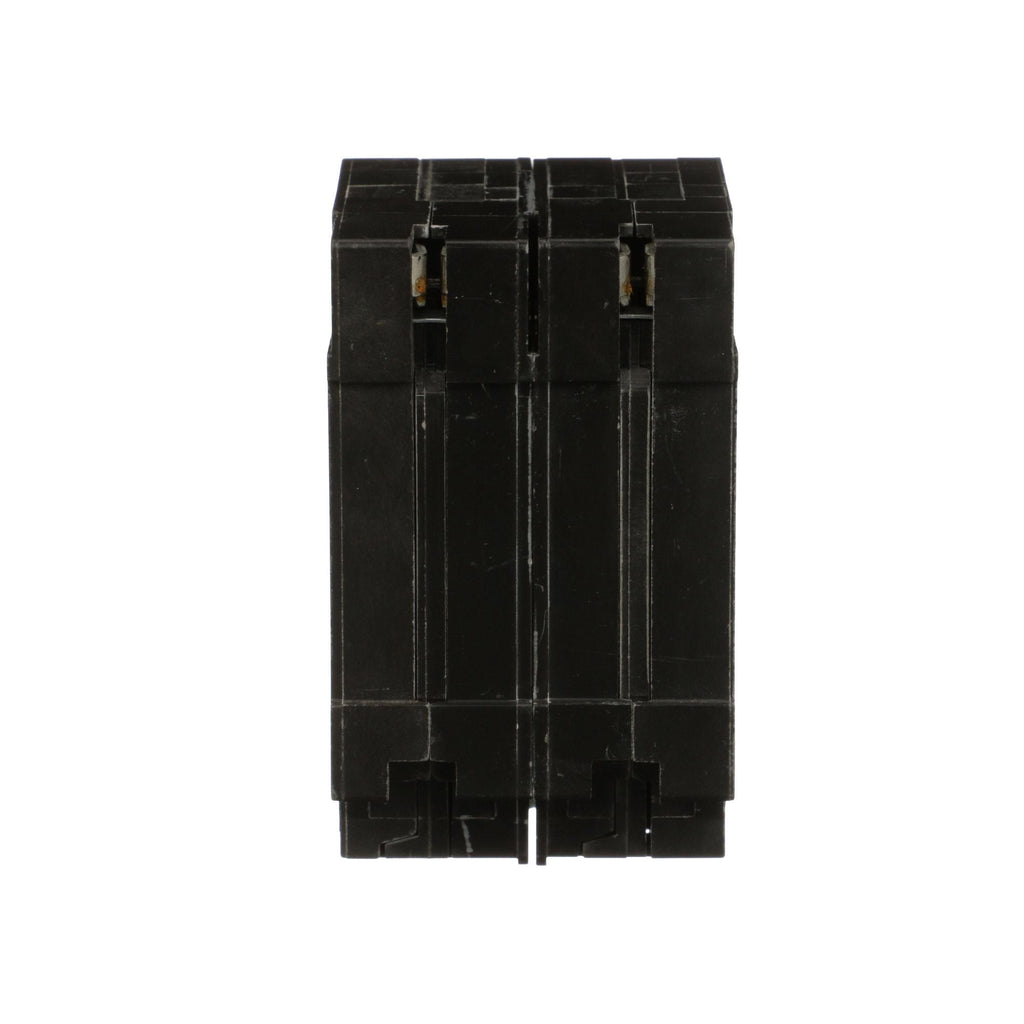

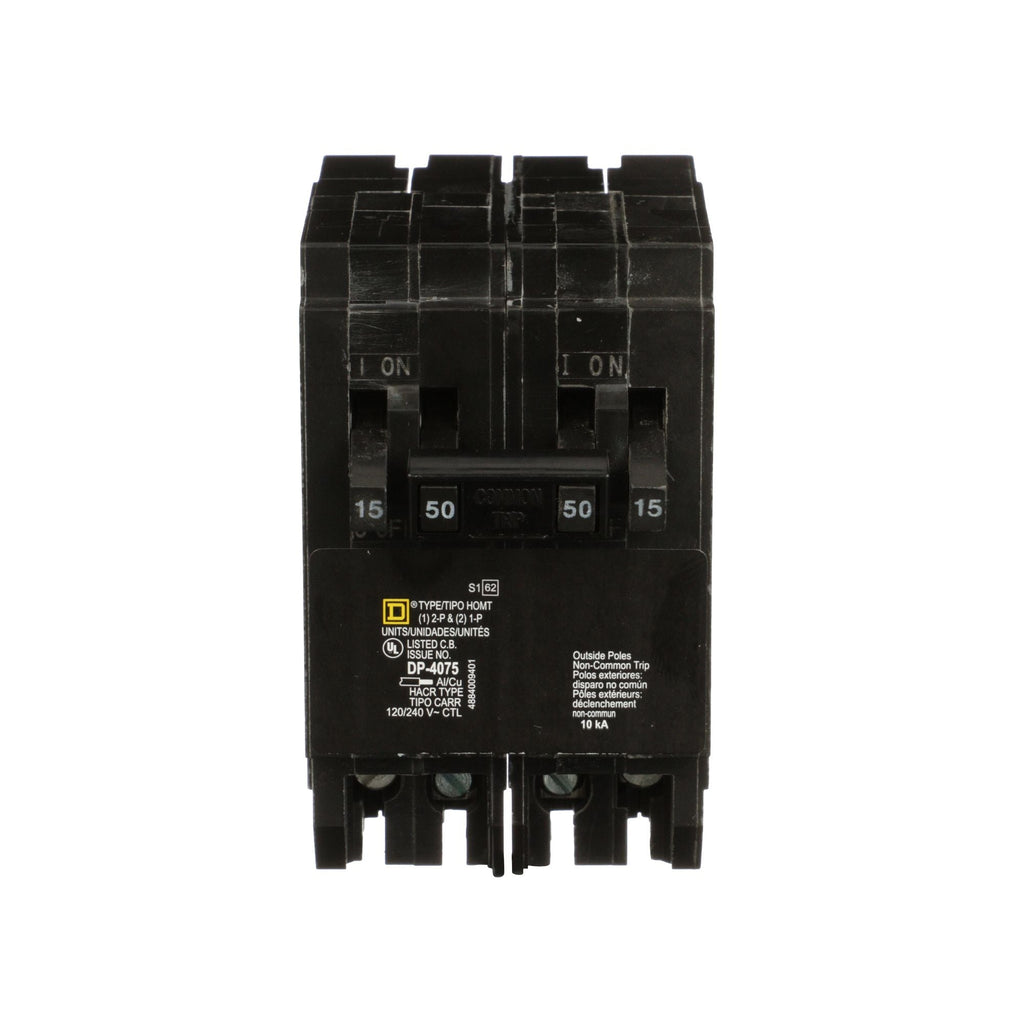

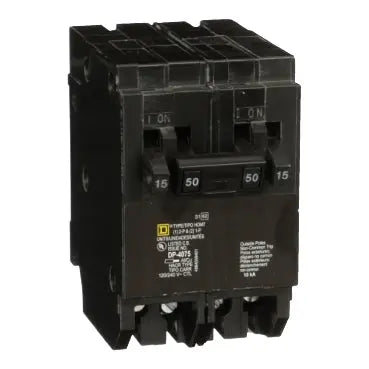

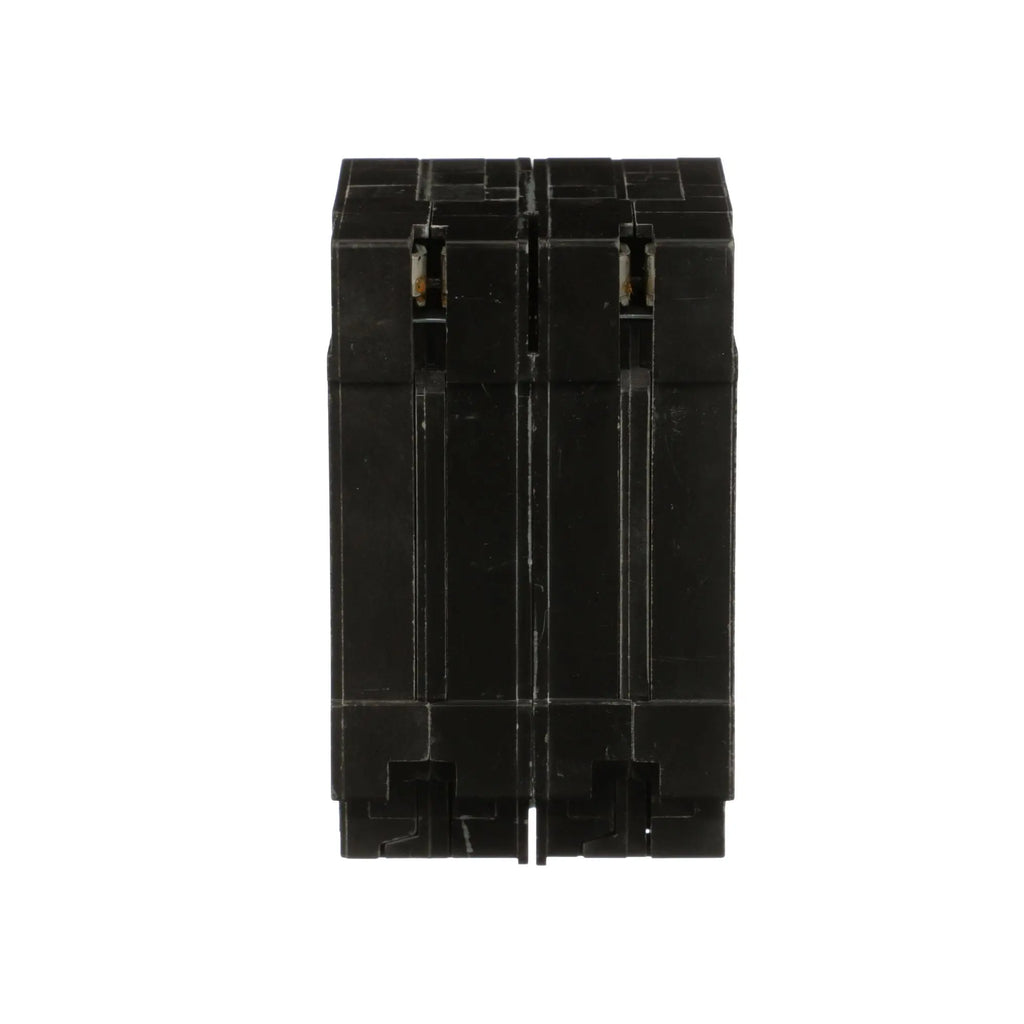

HOMT1515250 is a Square D Homeline quad tandem mini circuit breaker designed for fast installation and reliable circuit protection in residential and light commercial applications.
This plug-in breaker combines two single-pole 15A and one two-pole 50A circuit breakers in a compact, space-saving design. It is engineered for Homeline load centers, offering thermal-magnetic trip protection, a 10 kA interrupting rating, and compatibility with a range of wire sizes. The breaker is UL Listed and HACR rated for air conditioning and refrigeration equipment.
-
Key Specifications
- Part Number: HOMT1515250
- Manufacturer: Square D
- Series/Frame: Homeline
- Amperage: 2x 15A (1P), 1x 50A (2P)
- Voltage: 120/240V AC
- Poles: 2x Single-Pole, 1x Two-Pole
- Mounting Type: Plug-In
- Interrupt Rating: 10 kA
- Trip Unit: Thermal-Magnetic, Common Trip
- Certifications: UL Listed, HACR Rated
- Wire Size (2P): 14–6 AWG Copper, 12–6 AWG Aluminum
- Wire Size (1P): 14–8 AWG Copper or Aluminum

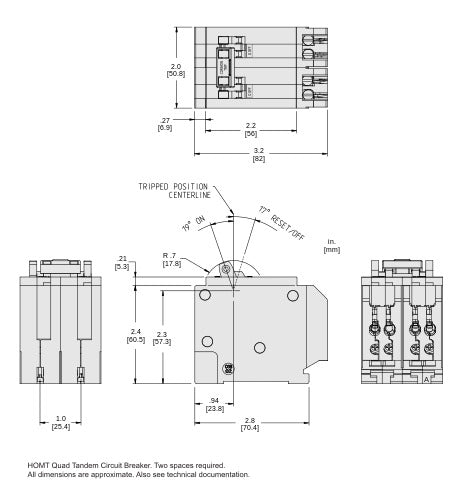

- Dimensions: 3.13" H x 2.00" W x 2.98" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HOMT1515250
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOMT
- Voltage : 240
- Amperage : 50
- Phase : 1
- Poles : 4
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Box Lugs
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 6 AWG (Cu/Al), 8 AWG (Al)
- Breaker Type : Quad Tandem
- Protection : Thermal Magnetic
Product Data
- UPC : 785901377030
- GTIN : 00785901377030
- Country of Origin : Mexico
- Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 0.85
- Standards : UL Listed
- Certification : UL Listed
- Wire Size : 1x AWG 14 to AWG 6, Copper, 1x AWG 12 to AWG 6, Aluminum, 1x AWG 12 to AWG 8, Aluminum
