HOMT1515 - Square D 15A 120/240V 1-Pole Tandem Plug-On Circuit Breaker 10kA Homeline

HOMT1515

HOMT1515 is a Square D Homeline 1-pole tandem circuit breaker rated for 15 amps and 120/240 volts with plug-on mounting.This tandem breaker combines two single-pole thermal magnetic breakers in one unit, providing individual switching and tripping actions while occupying a single pole space. It features a 10kA interrupting rating, UL and CSA certifications, and supports 14 to 8 AWG copper or aluminum wire. Designed for Homeline load centers, it ensures reliable circuit protection with compact dimensions of 3.13 x 1.00 x 2.98 inches.

Key Specifications
• Amperage: 15A
• Voltage: 120/240 VAC
• Poles: 1 (tandem)
• Mounting Type: Plug-On
• Interrupt Rating: 10kA
• Trip Unit: Thermal Magnetic
• Wire Size: 14-8 AWG Copper/Aluminum
• Series/Frame: Homeline (HOMT)
• Certifications: UL Listed, CSA Certified

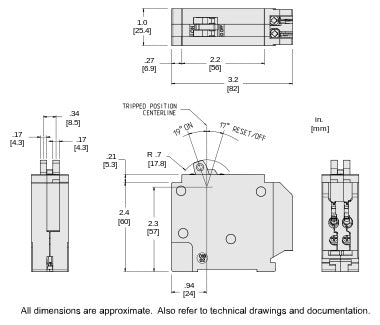

• Dimensions (HxWxD): 3.13 x 1.00 x 2.98 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT1515
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Tandem
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065388
• GTIN : 00785901065388
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.45
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
