HOM240EPD - Square D 40 Amp 2 Pole 120/240V Plug-In Ground Fault Circuit Breaker, HOM Series, 10kA Interrupt, Class B 30mA Trip, UL/CSA Listed

HOM240EPD

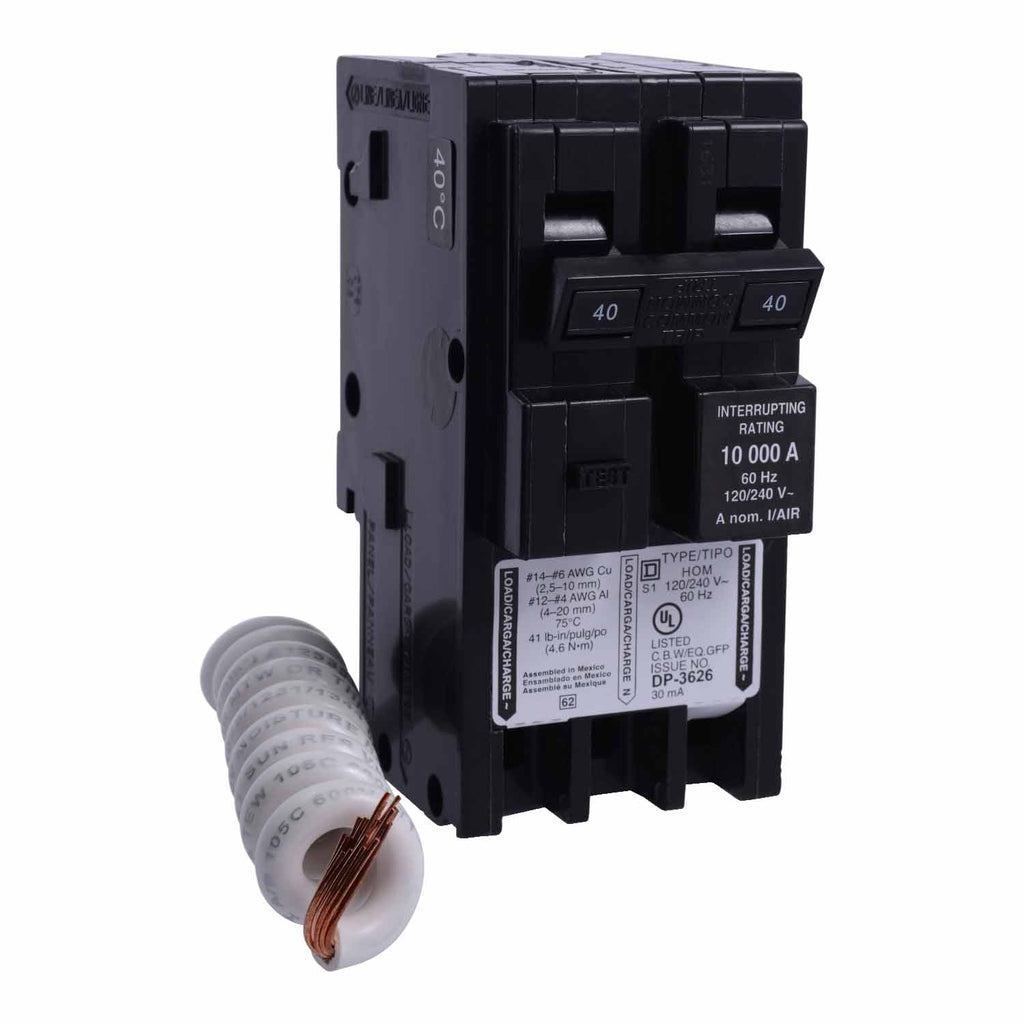

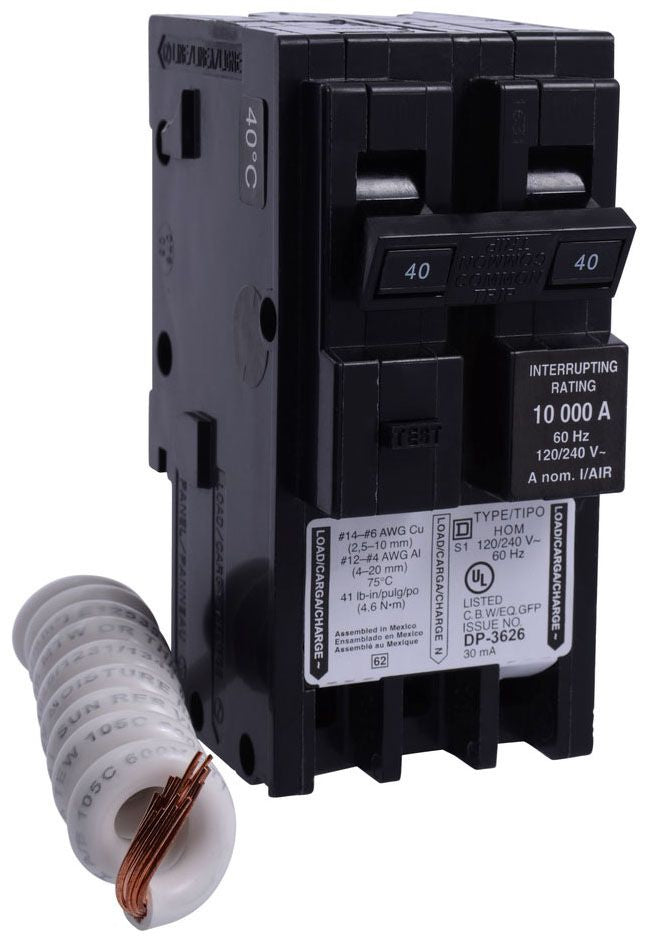

HOM240EPD is a Square D 2-pole, 40 Amp, 120/240V plug-in ground fault circuit breaker designed for reliable equipment protection in residential and light commercial applications.

This HOM series miniature circuit breaker features a thermal magnetic trip unit with long-time and instantaneous protection, a 10kA interrupting rating, and Class B 30mA ground fault protection. It is UL and CSA certified, HACR rated, and accepts 8 to 2 AWG aluminum or copper wire. The plug-in mounting design ensures quick installation in compatible load centers.

Key Specifications
• Amperage: 40A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 240V
• Series/Frame: HOM
• Trip Unit: Thermal Magnetic, Long-Time & Instantaneous
• Ground Fault Protection: Class B, 30mA trip sensitivity
• Wire Size: 8 to 2 AWG (Aluminum/Copper)
• Certifications: UL, CSA
• Temperature Rating: 104°F (40°C)
• Terminal Type: Screw Clamp

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM240EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901493358
• GTIN : 00785901493358
• Country of Origin : Mexico
• Dimensions : Depth 10.53 in (267.46 mm) Width 16 in (406.40 mm) Height 52.5 in (1333.50 mm)
• Weight : 1.5
• Certification : UL, CSA
• Wire Size : AWG 8, AWG 2 Aluminium/Copper)1
