HOM240 - Square D 40 Amp 2 Pole 120/240V Homeline Circuit Breaker Plug-In 10kA Interrupt Rating

HOM240

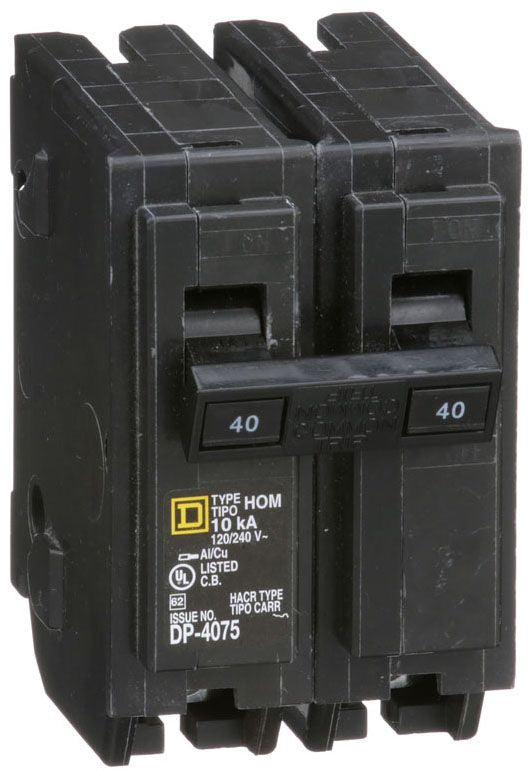

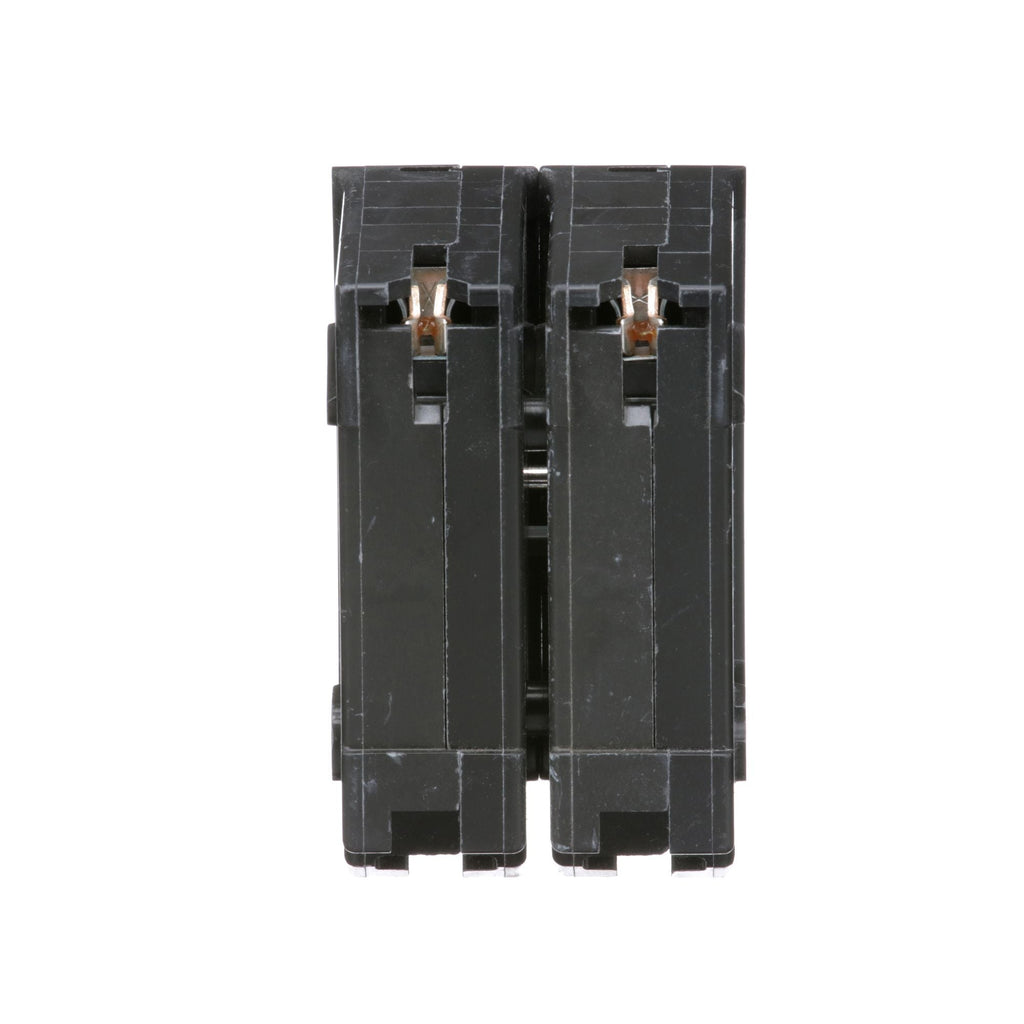

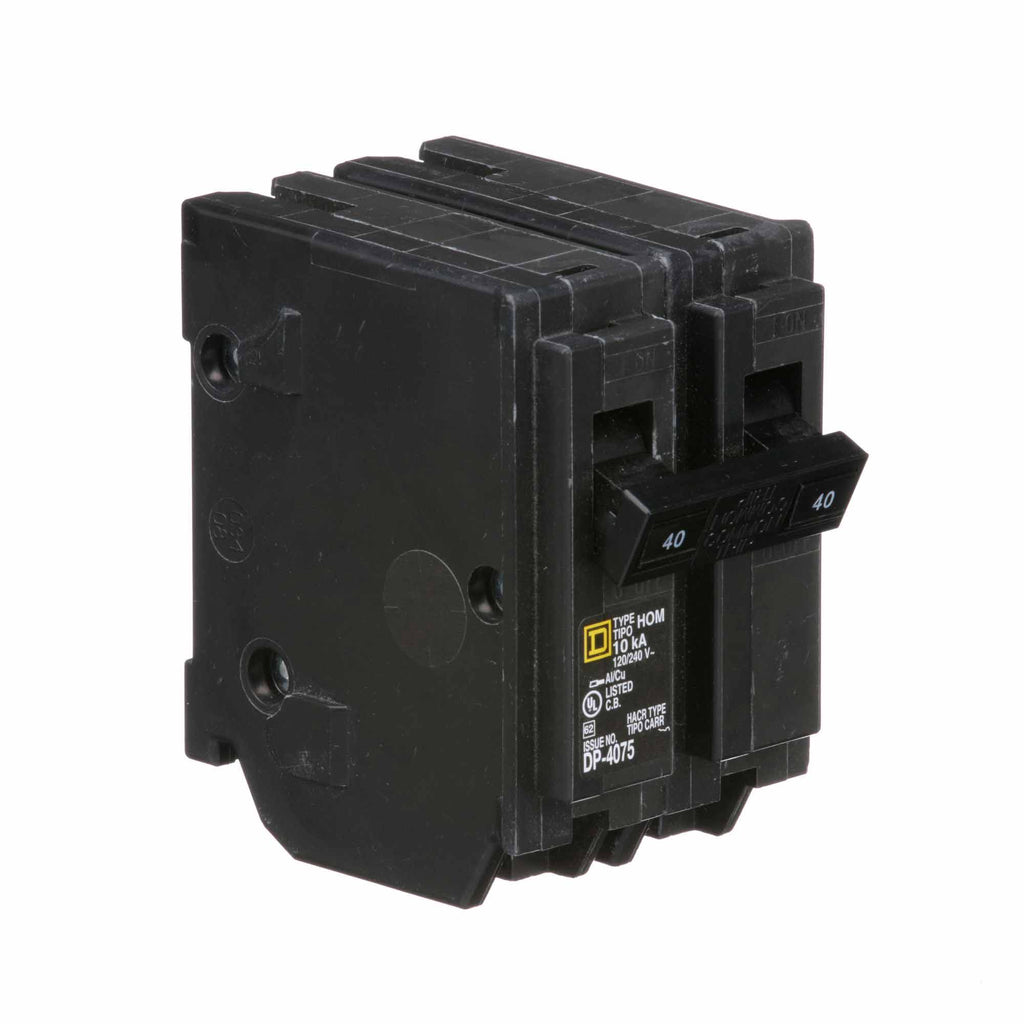

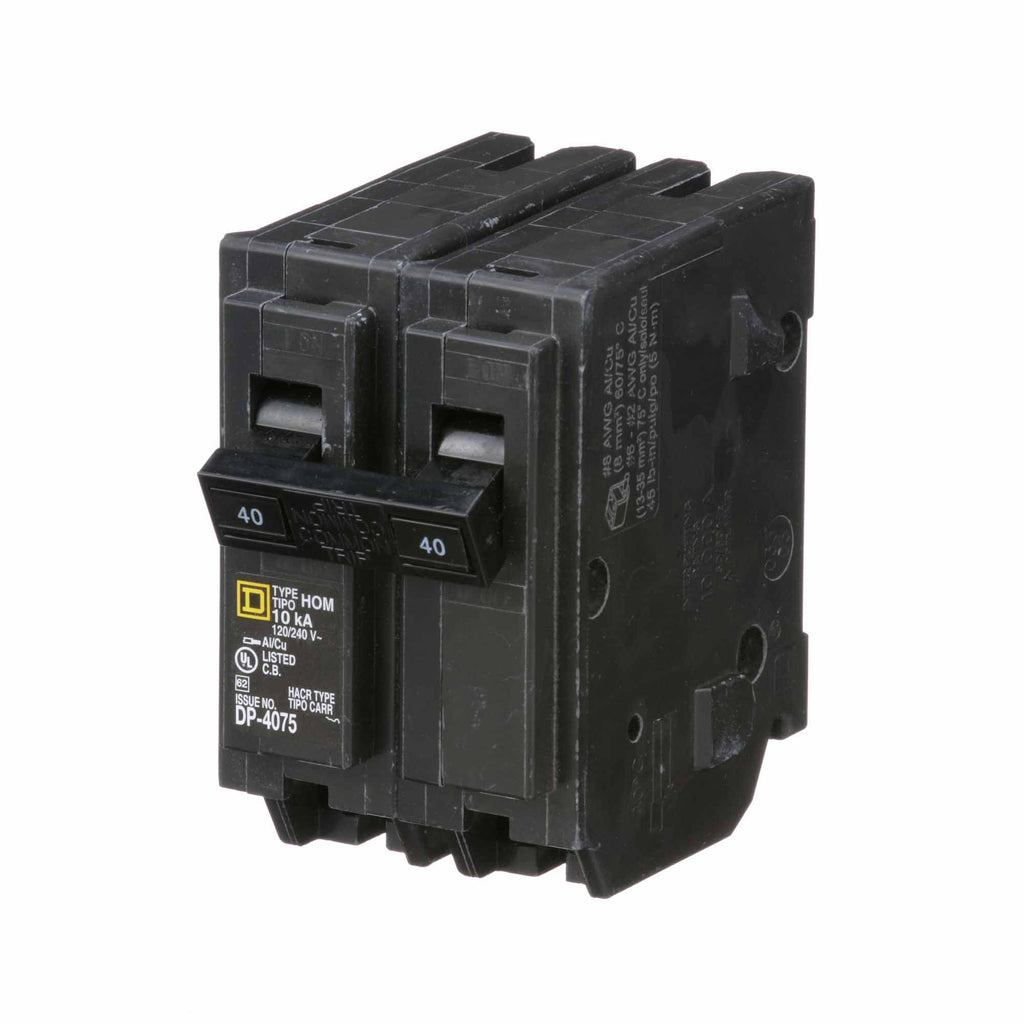

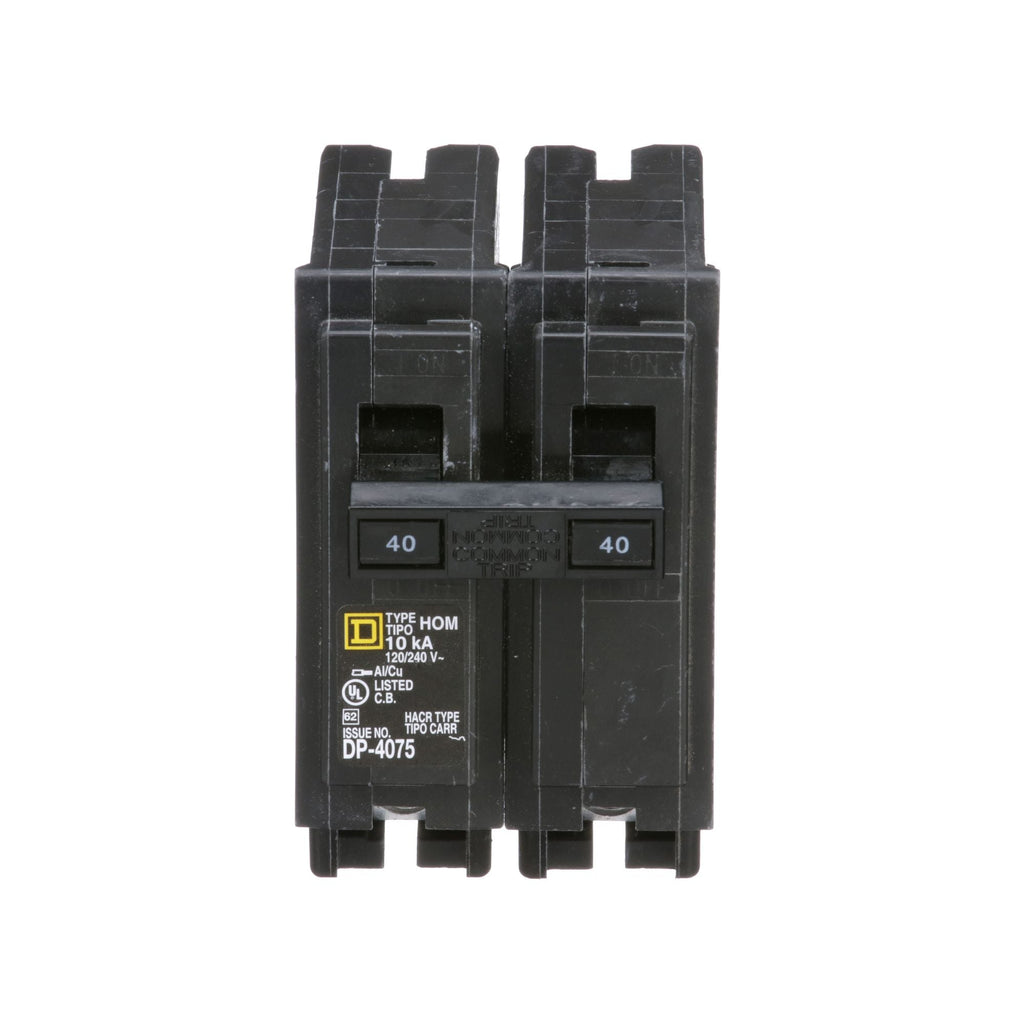

HOM240 is a 40 amp, 2 pole, 120/240 volt Homeline circuit breaker from Square D designed for plug-in mounting in Homeline load centers.This thermal magnetic circuit breaker provides reliable overload and short circuit protection with a 10kA interrupting rating at 240 volts. It features long-time and instantaneous trip functions and is UL listed and HACR rated. The breaker accepts 8 to 2 AWG copper or aluminum wire via box lug terminals and measures approximately 3.13 inches high, 2 inches wide, and 2.98 inches deep.

Key Specifications
• Amperage: 40A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 240V
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Connection Type: Box Lugs
• Wire Range: 8 AWG to 2 AWG Copper/Aluminum
• Certifications: UL Listed, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM240
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065302
• GTIN : 00785901065302
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.7
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 8 to AWG 2, Aluminum/Copper
