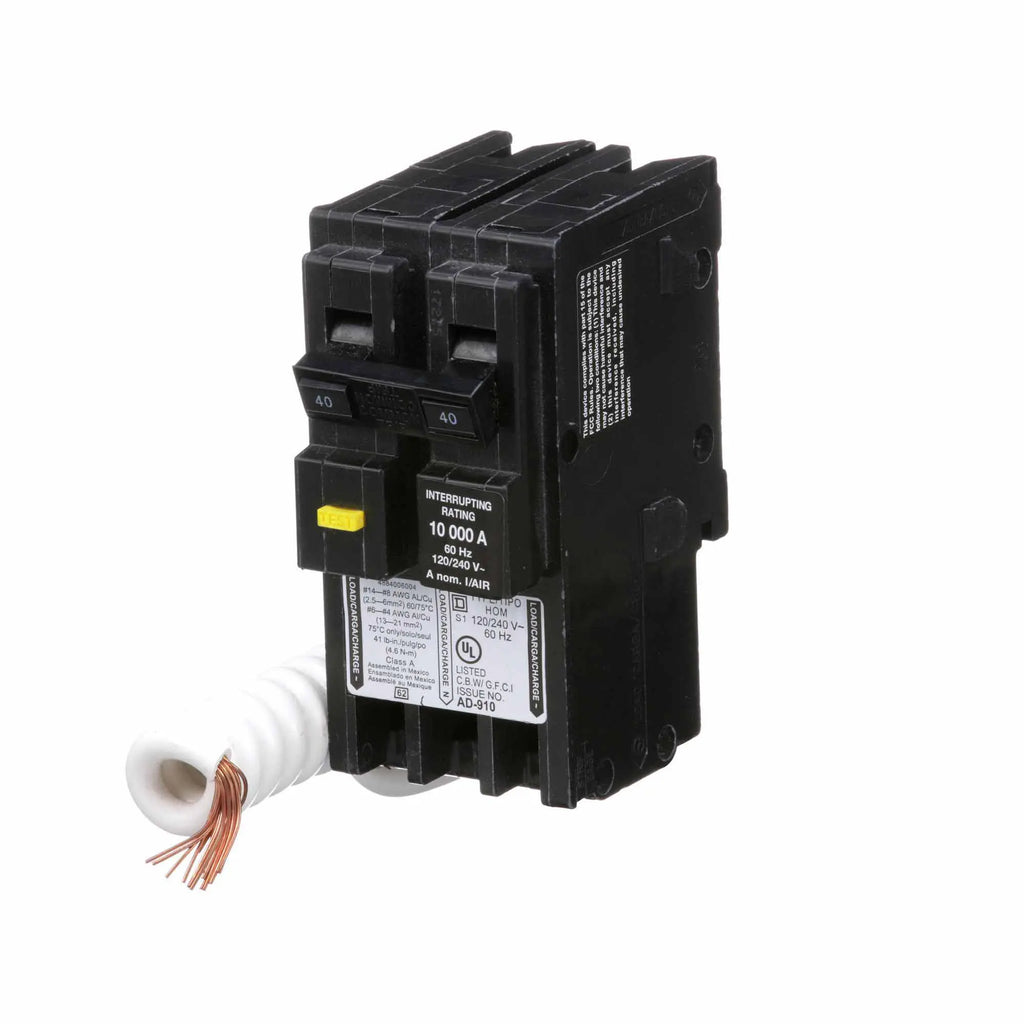

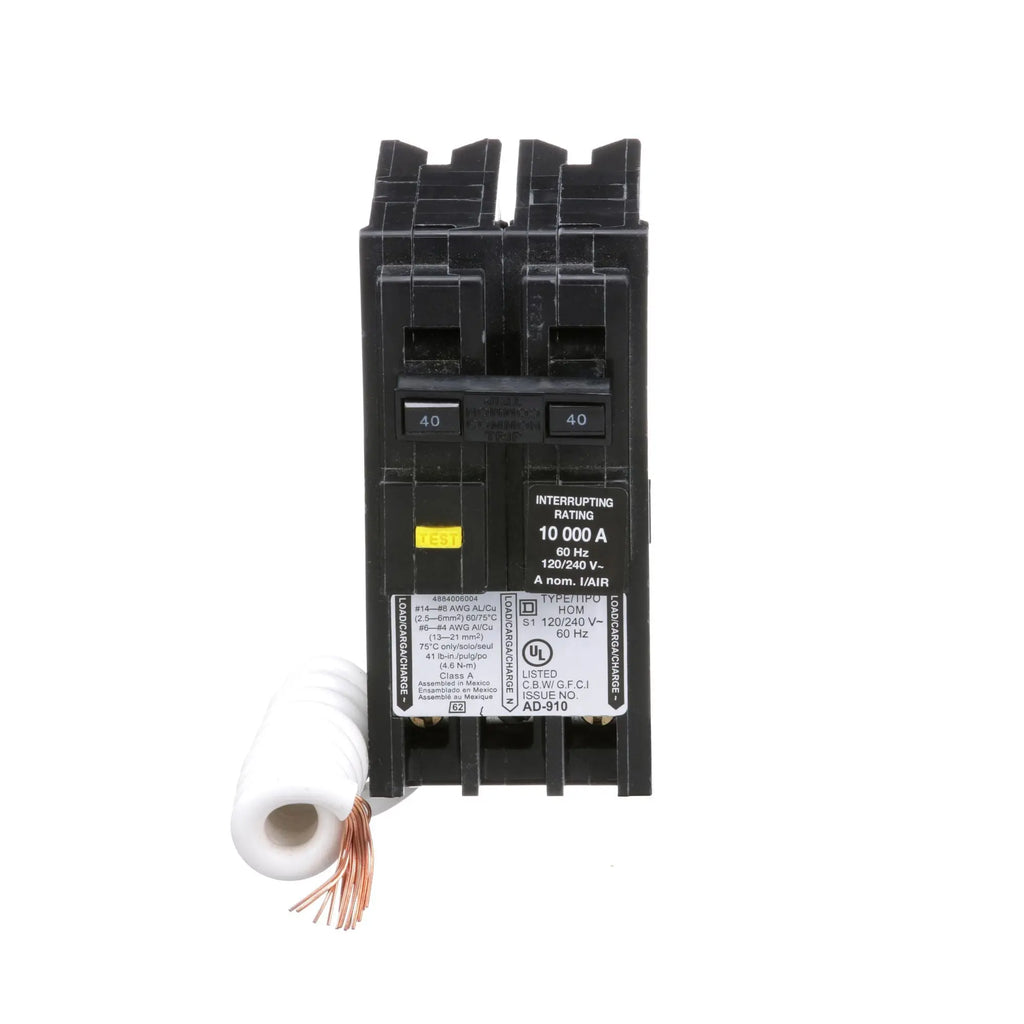

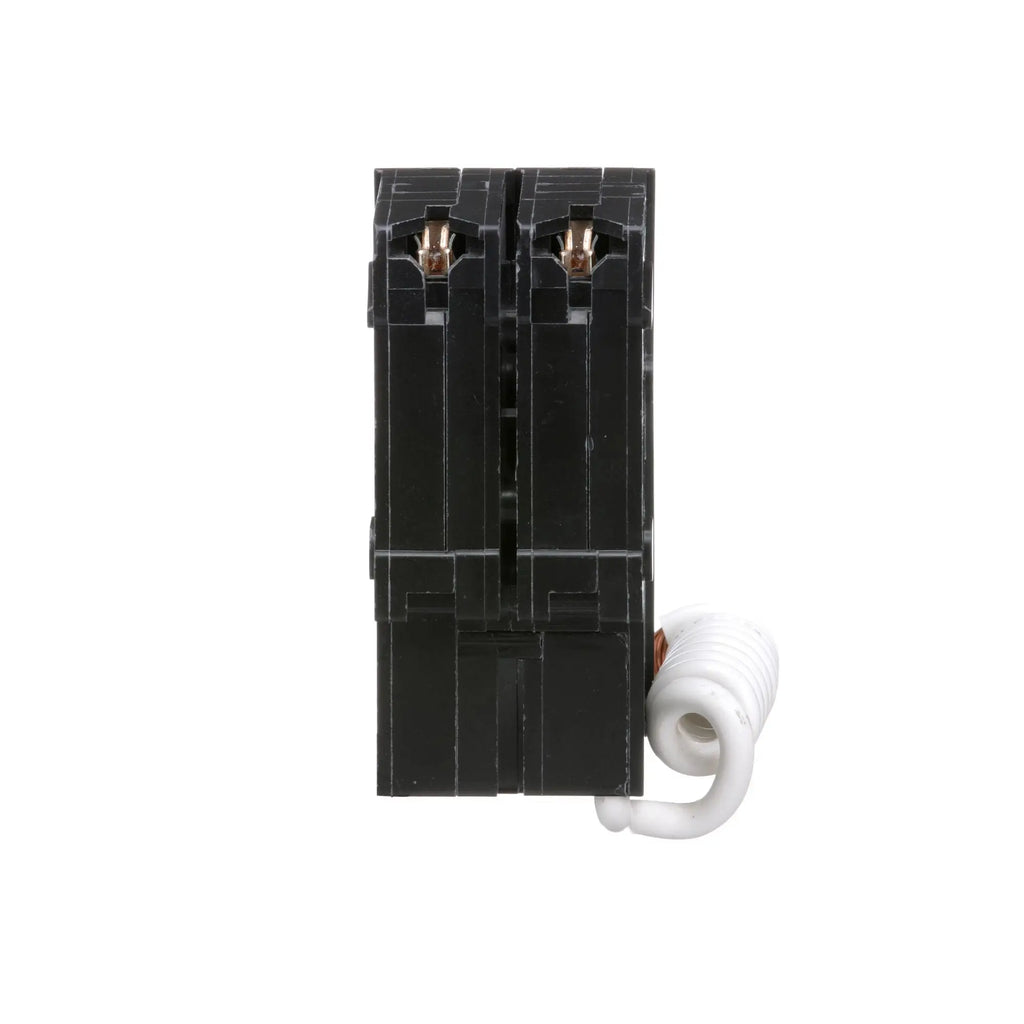

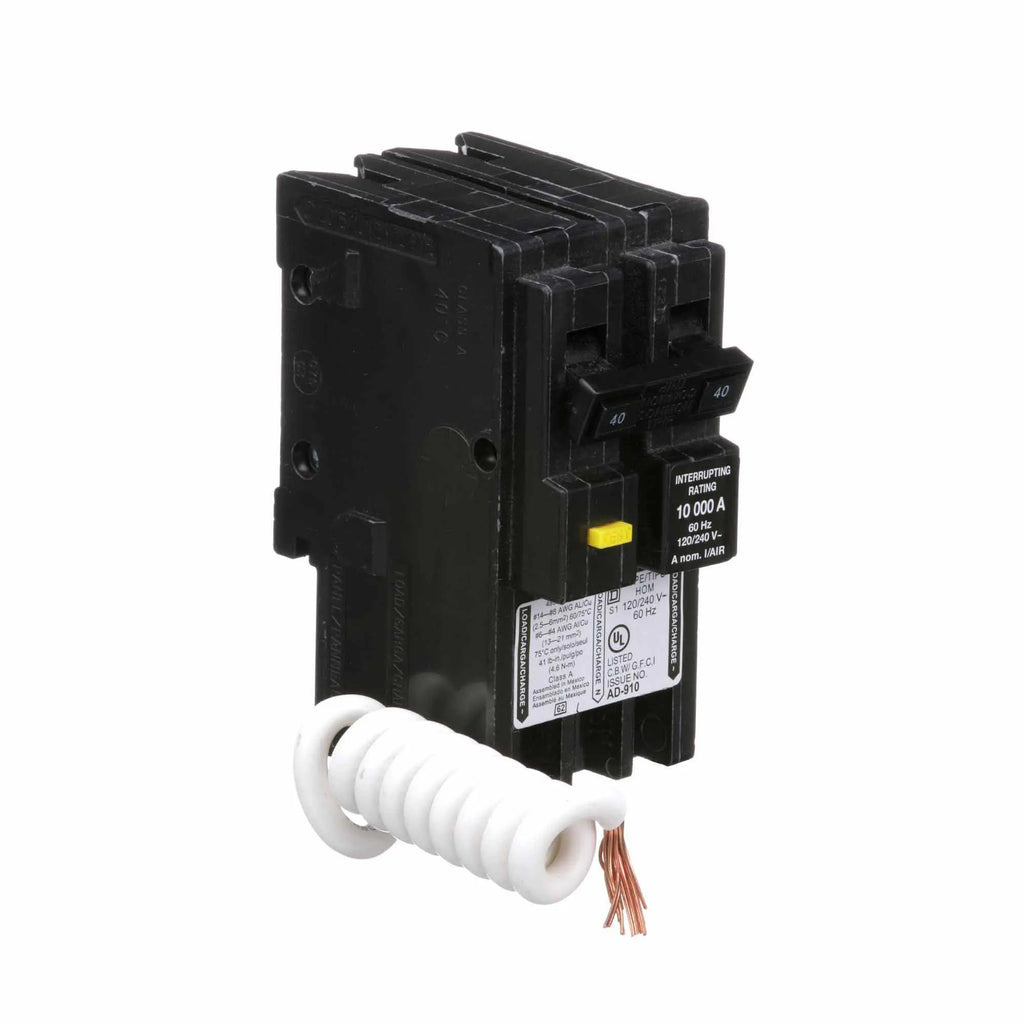

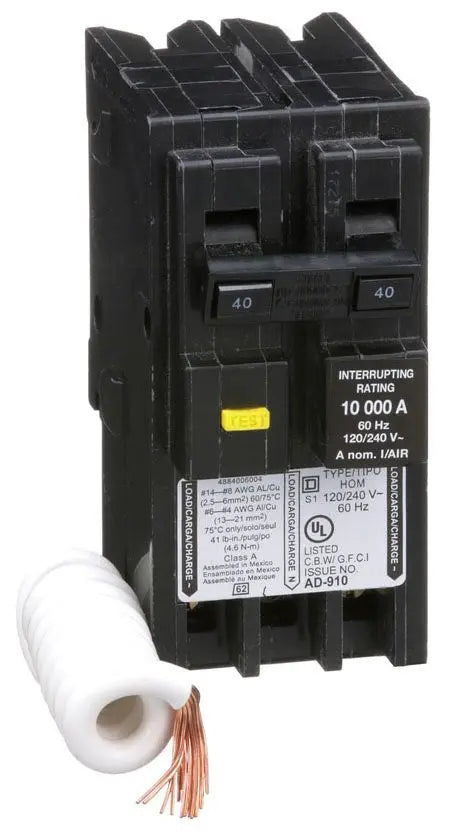

HOM240GFI - Square D 40A 2-Pole 120/240V Homeline Ground Fault Circuit Breaker Plug-In

HOM240GFI

HOM240GFI is a Square D Homeline 40 Amp 2-Pole Ground Fault Circuit Breaker designed for reliable circuit protection in residential and light commercial applications.This Homeline series breaker features a thermal magnetic trip unit with Class A ground fault protection, interrupt rating of 10 kA at 120/240 VAC, and plug-in mounting for easy installation in compatible load centers. It supports 1-phase circuits with wire size ranges from 14 to 6 AWG copper and 12 to 4 AWG aluminum. The breaker is UL listed, HACR rated, and built to operate safely at temperatures up to 75°C.

• Amperage: 40 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10 kA
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic with Class A Ground Fault
• Wire Size: 14-6 AWG Copper, 12-4 AWG Aluminum
• Phase: Single Phase
• Certifications: UL Listed, HACR Rated

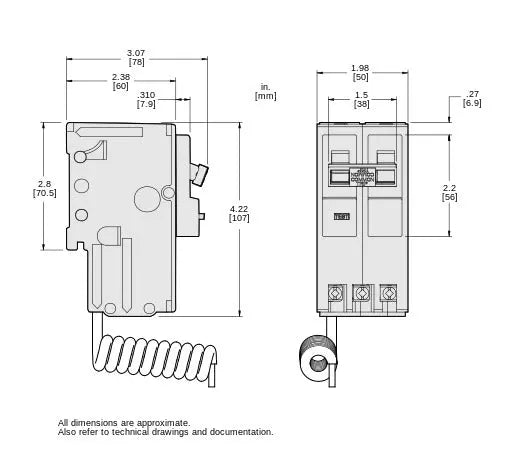

• Dimensions: Approx. 3.13" H x 2" W x 2.98" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM240GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901303466
• GTIN : 00785901303466
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 1.22
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 12 to AWG 4, Aluminum, 1x AWG 14 to AWG 6, Copper
