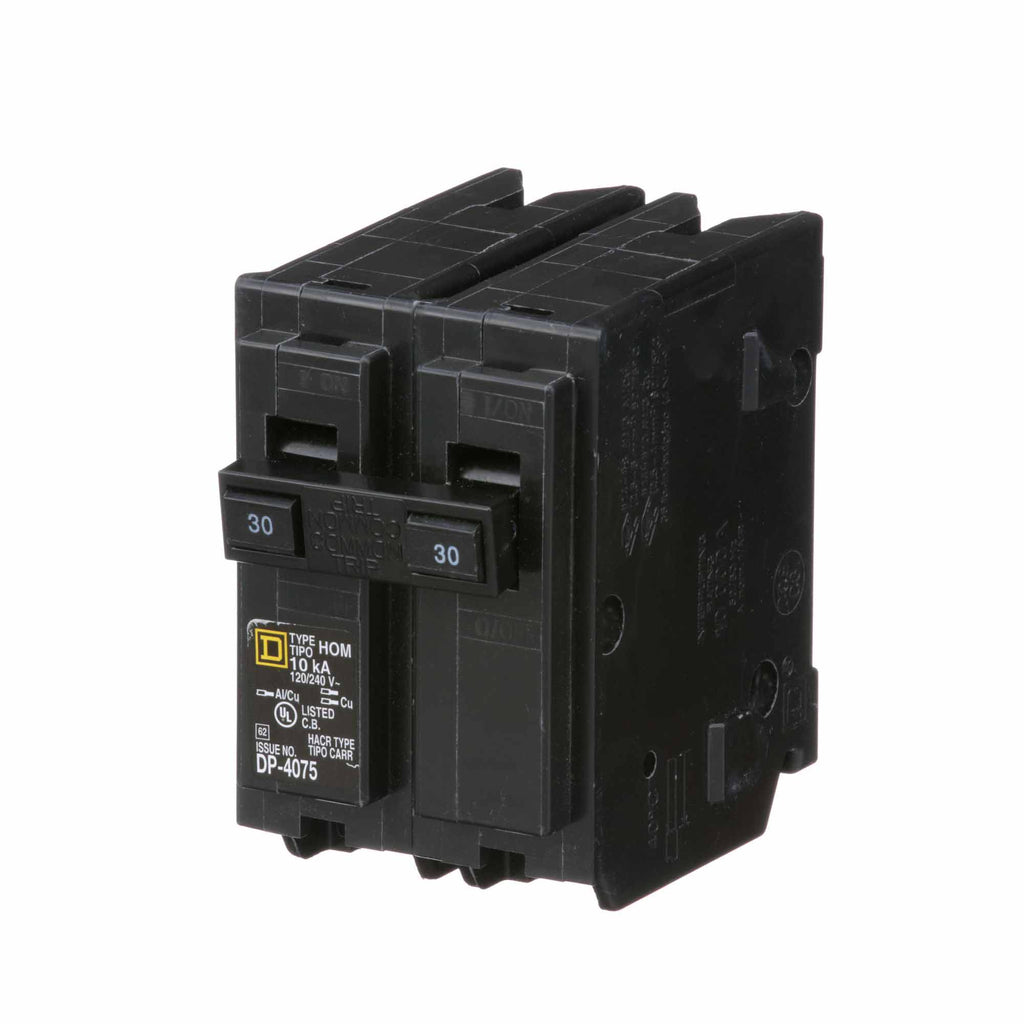

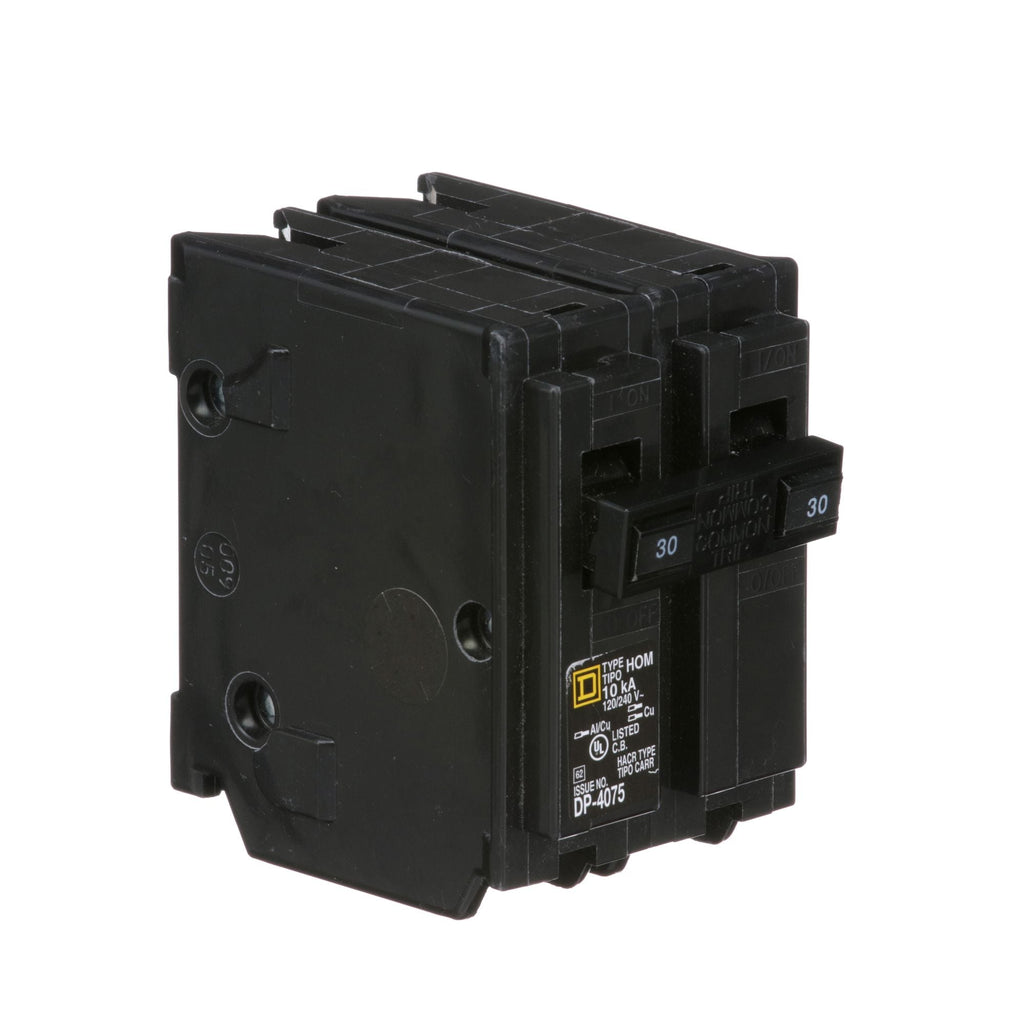

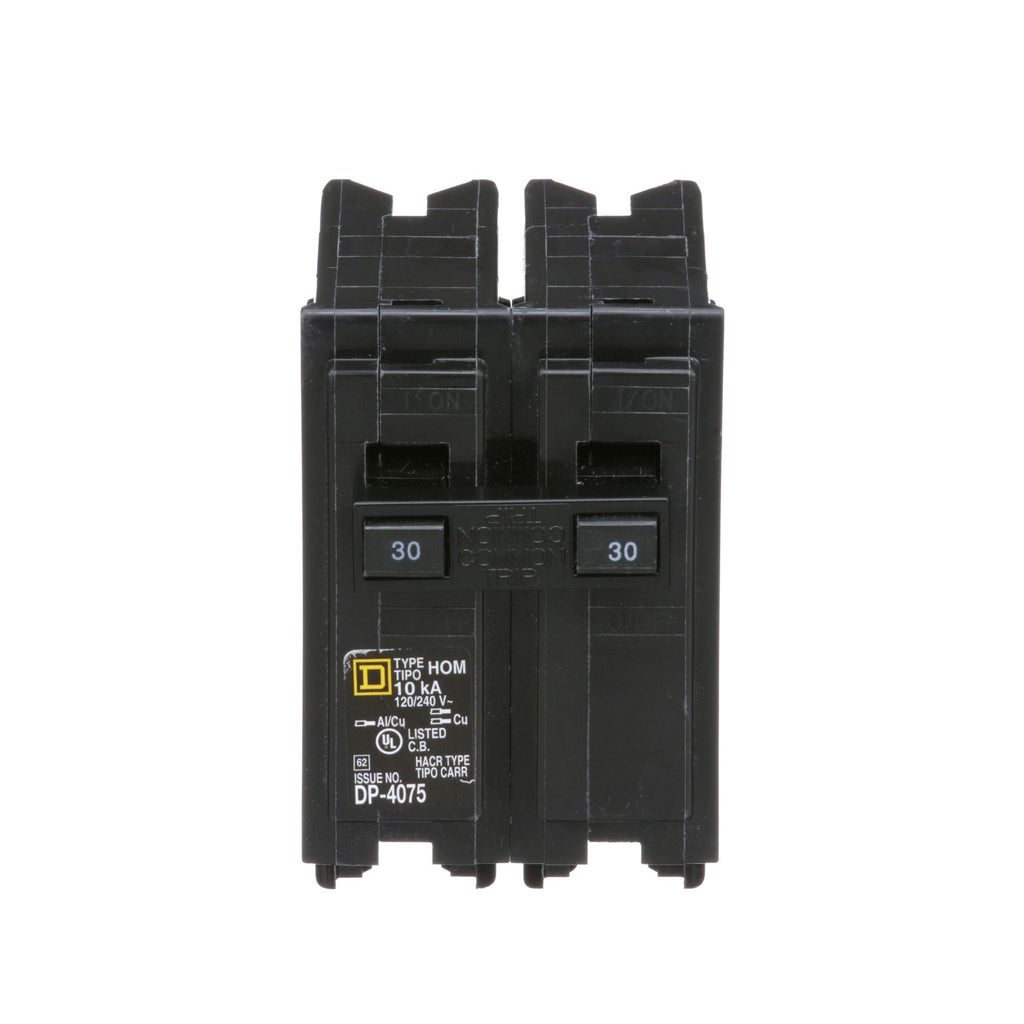

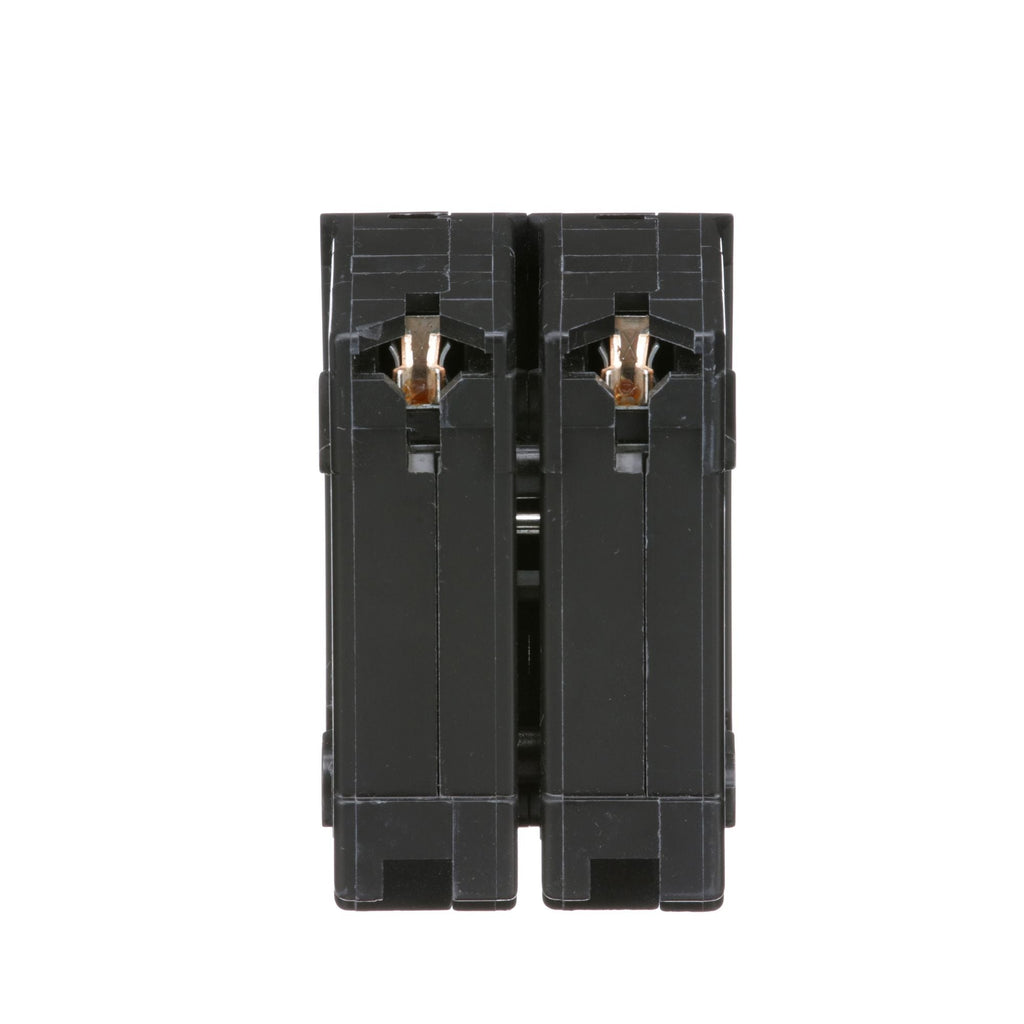

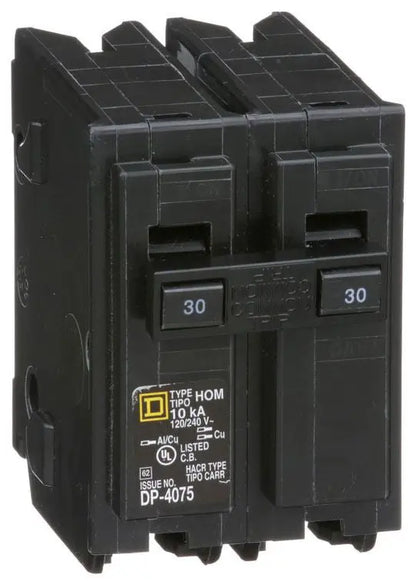

HOM230 - Square D Homeline 30 Amp 2 Pole 120/240V Plug-In Circuit Breaker, 10kA Interrupt, Thermal Magnetic Trip, UL Listed, HACR

HOM230

HOM230 is a Square D Homeline 2-pole, 30 Amp, 120/240V plug-in circuit breaker designed for fast installation and reliable circuit protection in residential and commercial applications.

This thermal magnetic molded case circuit breaker provides overload and short-circuit protection, features a plug-in mounting style for Homeline load centers, and is UL Listed and HACR rated for air conditioning and refrigeration equipment. The HOM230 accepts 14–8 AWG copper or aluminum wire and offers a 10kA interrupting rating at 240V.

Key Specifications
• Part Number: HOM230
• Manufacturer: Square D
• Series/Frame: Homeline (HOM)
• Amperage: 30A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 240V
• Trip Unit: Thermal Magnetic (Long-Time & Instantaneous)
• Certifications: UL Listed, HACR
• Wire Range: 14–8 AWG (Aluminum/Copper)
• Terminal: Clamp

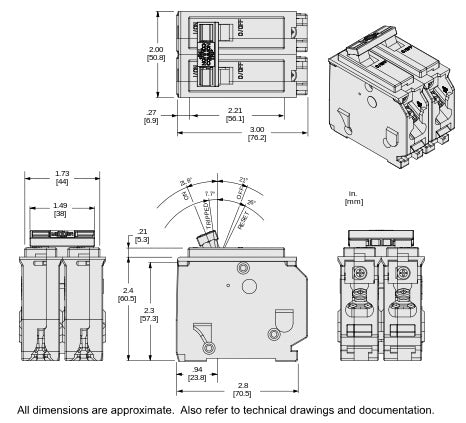

• Dimensions: 2.98" L x 2" W x 3.13" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM230
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts And Accessories
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065296
• GTIN : 00785901065296
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.65
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 2x AWG 14 to AWG 10, Copper
