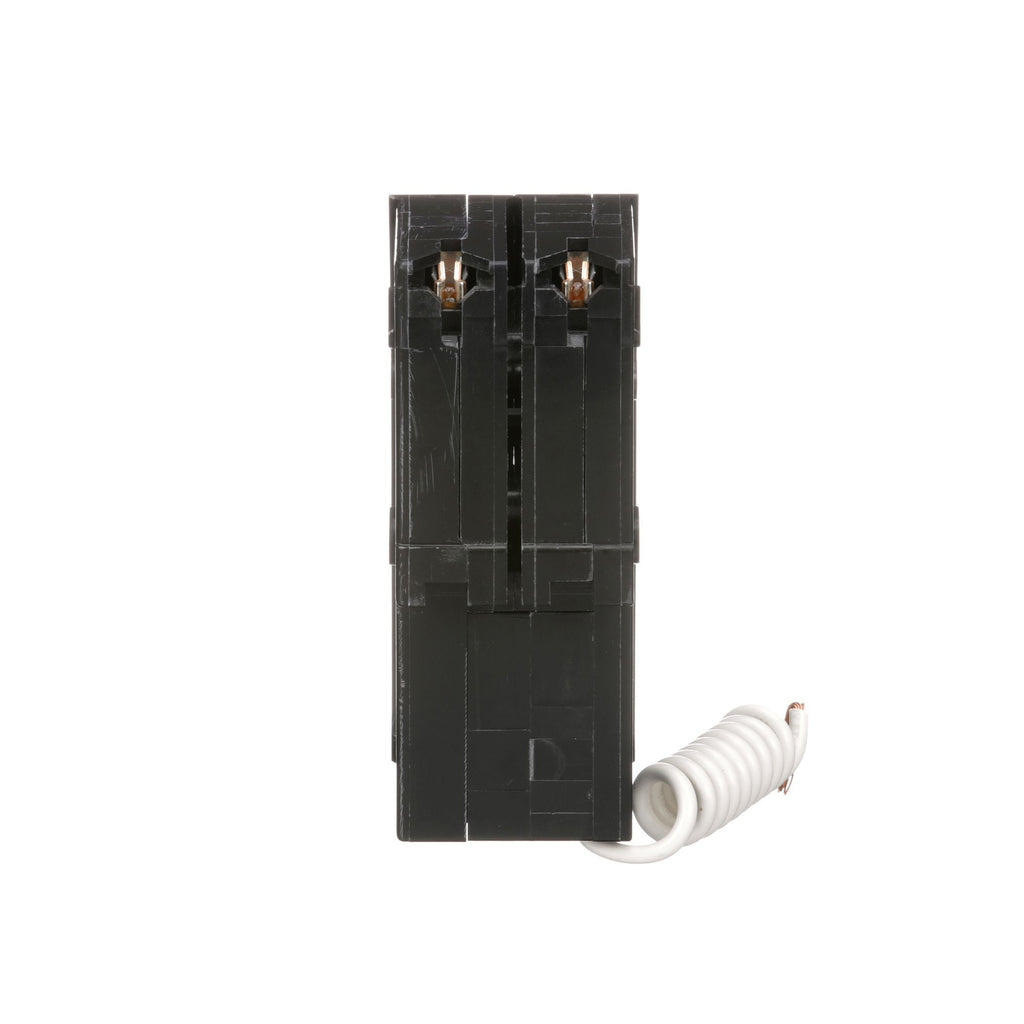

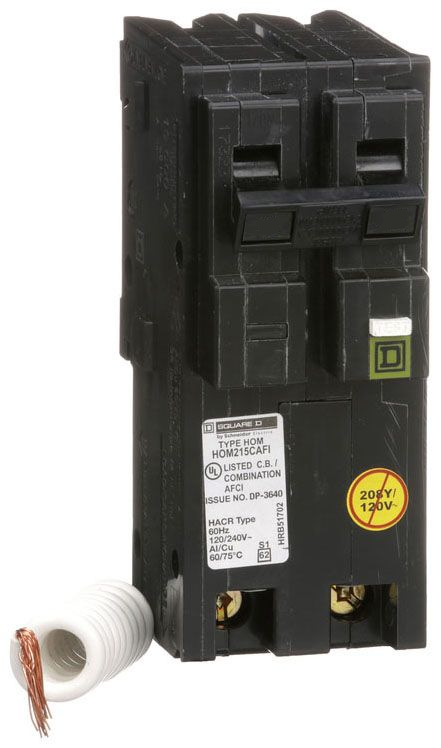

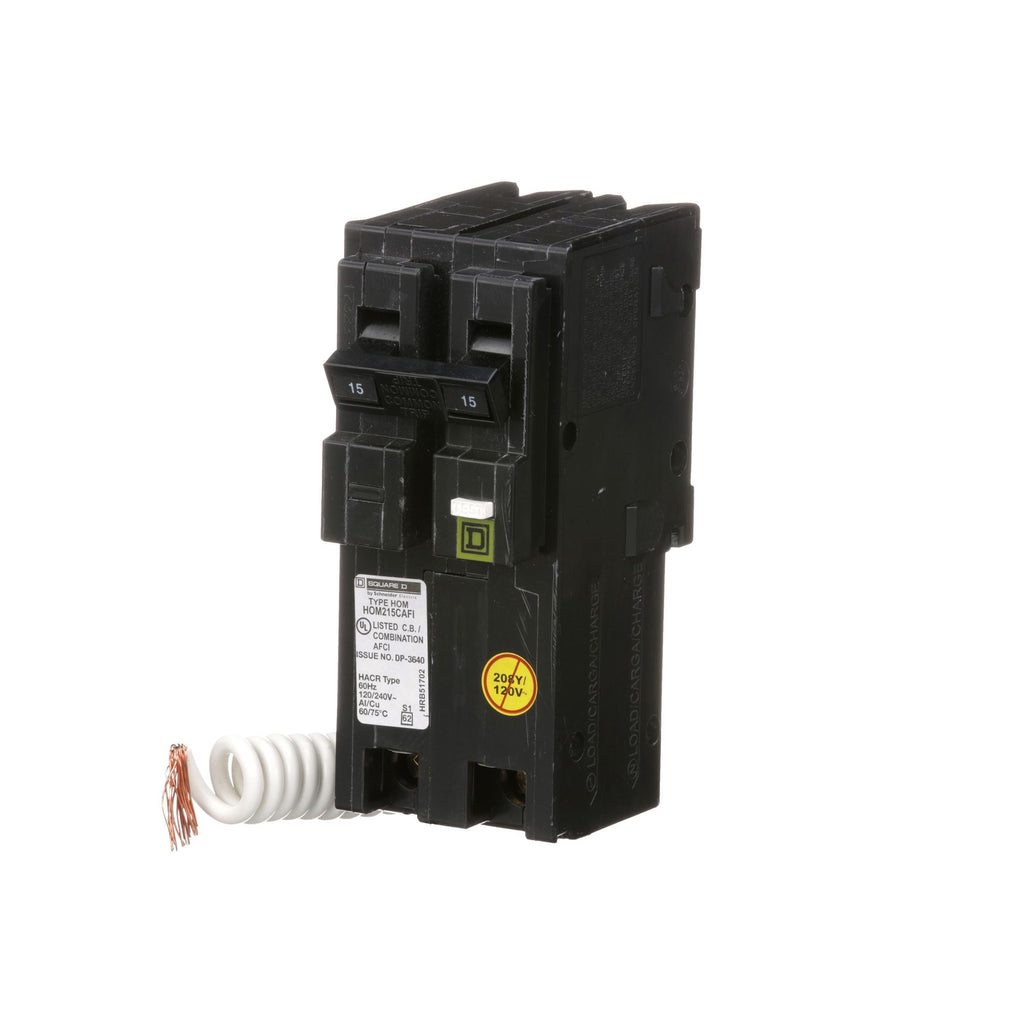

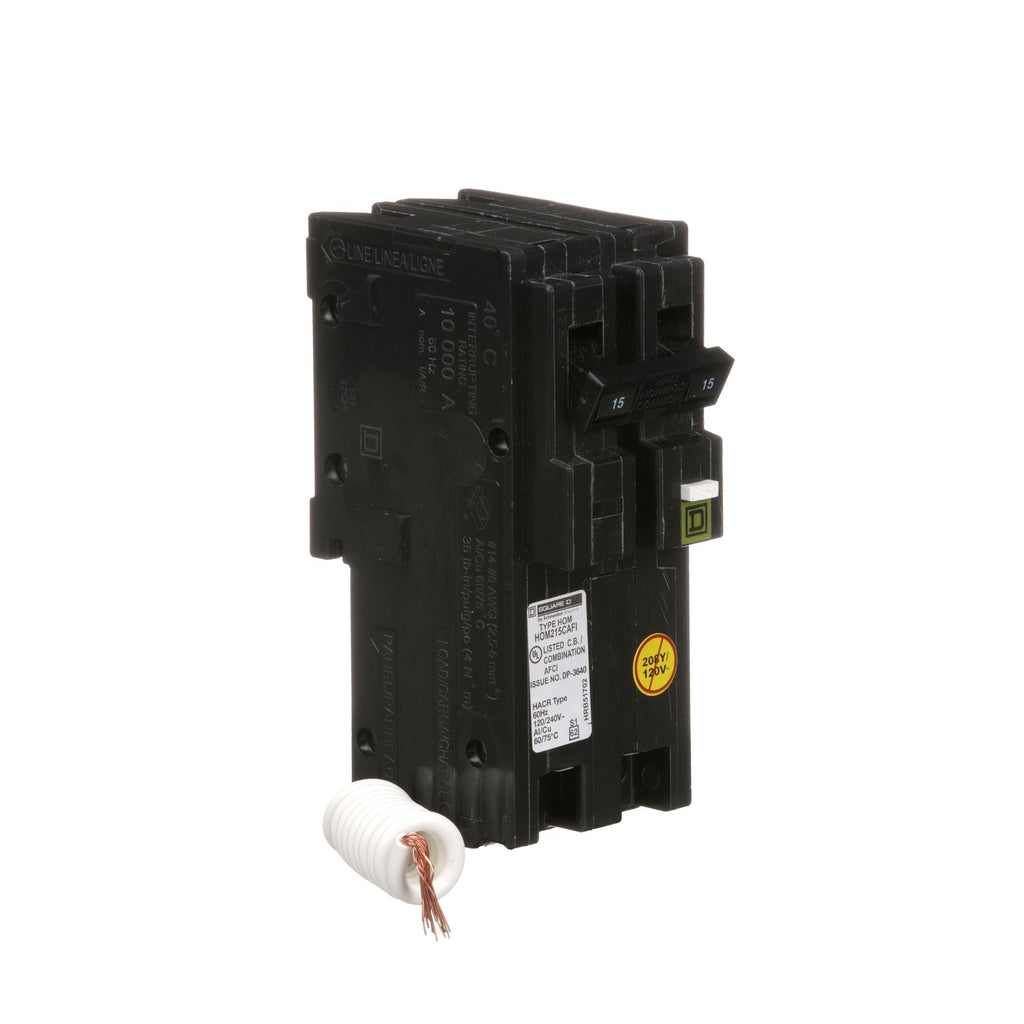

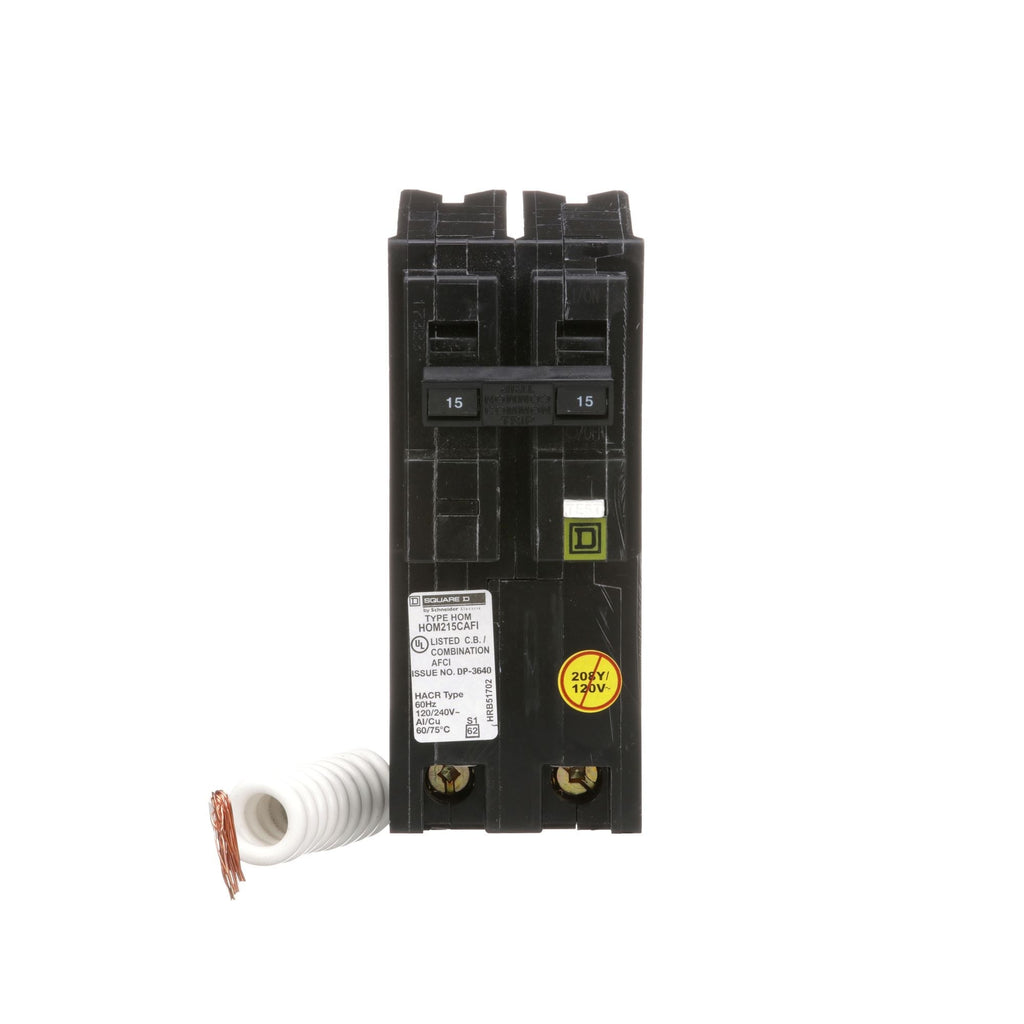

HOM215CAFI - Square D Homeline 2 Pole 15A 120/240V AFCI Circuit Breaker 10kA Interrupt Rating Plug-In

HOM215CAFI

HOM215CAFI is a Square D Homeline 2 pole, 15 amp, 120/240 volt combination arc fault circuit interrupter (AFCI) breaker designed for residential circuit protection.This circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions. It has a 10,000 amp interrupt rating (10 kAIC) at 120 volts, plug-in mounting compatible with Homeline load centers, and supports 1 phase electrical systems. The breaker includes a pigtail neutral and clamp terminals accepting 14 to 8 AWG copper or aluminum wire.

Key Specifications
• Manufacturer: Square D
• Series/Frame: Homeline
• Poles: 2
• Amperage: 15 A
• Voltage: 120/240 VAC
• Interrupt Rating: 10 kA
• Mounting Type: Plug-In
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Arc Fault Protection: Combination AFCI
• Phase: Single
• Wire Range: 14 to 8 AWG Copper/Aluminum
• Certifications: UL Listed, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM215CAFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901400912
• GTIN : 00785901392682
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 1.15
• Certification : UL
• Wire Size : AWG 14, AWG 8 Aluminium/Copper)1, AWG 14, AWG 10 Copper)2
