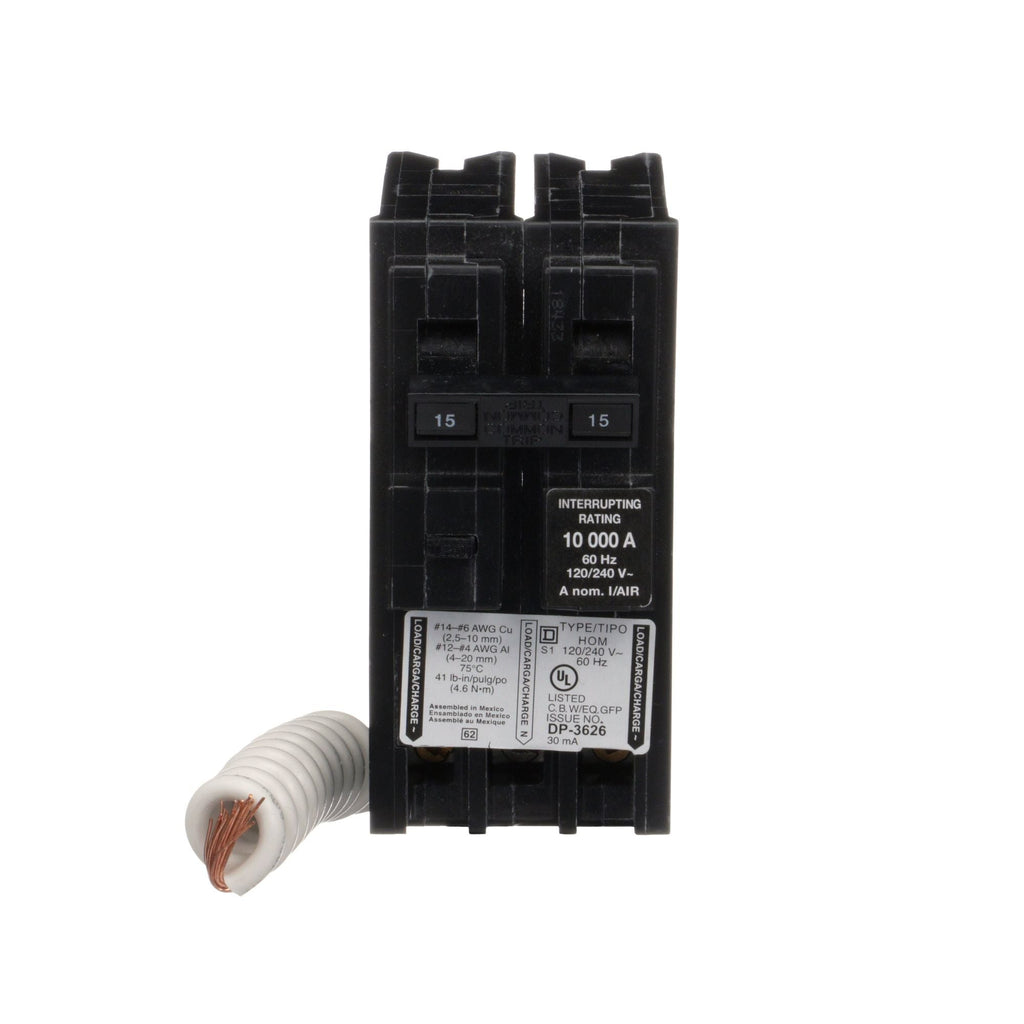

HOM215EPD - Square D 15A 2-Pole 240V Ground Fault Circuit Breaker Plug-In HOM Series

HOM215EPD

HOM215EPD is a 15 amp, 2-pole, 240 volt ground fault circuit breaker from Square D's Homeline series designed for plug-in mounting.This molded case circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions. It has a 10kA interrupting rating at 240V and is UL and CSA certified. The breaker supports single-phase systems and is suitable for residential, commercial, and industrial applications.

• Manufacturer: Square D
• Series: Homeline (HOM)
• Amperage: 15 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupting Rating: 10kA at 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Phase: Single-phase
• Certifications: UL, CSA
• Ground Fault Protection: Class B
• Wire Gauge Compatibility: AWG 14 to AWG 8 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM215EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901635789
• Dimensions : Depth 10.53 in (267.46 mm) Width 16 in (406.40 mm) Height 52.5 in (1333.50 mm)
• Weight : 1.16
• Certification : UL, CSA
• Wire Size : AWG 14, AWG 8 Aluminium/Copper)1
