Description

HOM120GFI


HOM120GFI is a Square D Homeline single pole GFCI circuit breaker designed for fast installation and reliable circuit protection in residential and light commercial applications.

This miniature circuit breaker offers both thermal magnetic overload and short circuit protection, plus Class A ground fault protection, tripping at 6 mA or more. It features a plug-in mounting style for Homeline load centers, a clamp terminal accepting 14–8 AWG copper or aluminum wire, and is engineered for superior performance and safety.

    Key Specifications
  • Part Number: HOM120GFI
  • Manufacturer: Square D
  • Series/Frame: Homeline (HOM)
  • Amperage: 20A
  • Voltage: 120V (120/240V AC)
  • Poles: 1
  • Mounting Type: Plug-In
  • Interrupt Rating: 10 kA
  • Trip Unit: Thermal Magnetic
  • Wire Range: 14–8 AWG (copper or aluminum)
  • Certifications: UL Listed, CSA Certified, HACR Rated

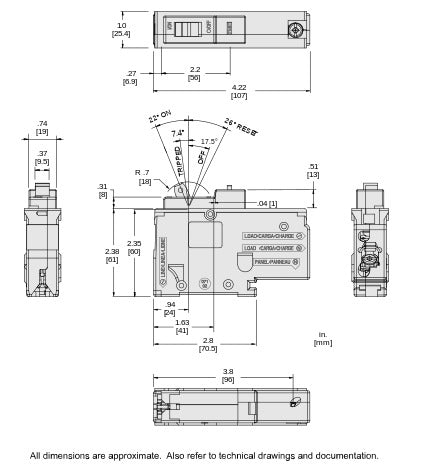

  • Dimensions: 3.13" H x 1" W x 2.98" D
  • Weight: 1.21 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HOM120GFI
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : HOMELINE
  • Type : HOM
  • Voltage : 120/240
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@120V
  • Connection : Plug-In
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Screw Clamp
  • Frame Size : 100A/HOM
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
  • Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901065371
  • GTIN : 00785901065371
  • Country of Origin : Mexico
  • Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
  • Weight : 0.61
  • Panel Type : Homeline Load Center
  • Standards : CSA Certified, HACR, UL Listed
  • Certification : CSA Certified, HACR, UL Listed
  • Wire Size : 1x AWG 14 to AWG 10, Aluminum/Copper
