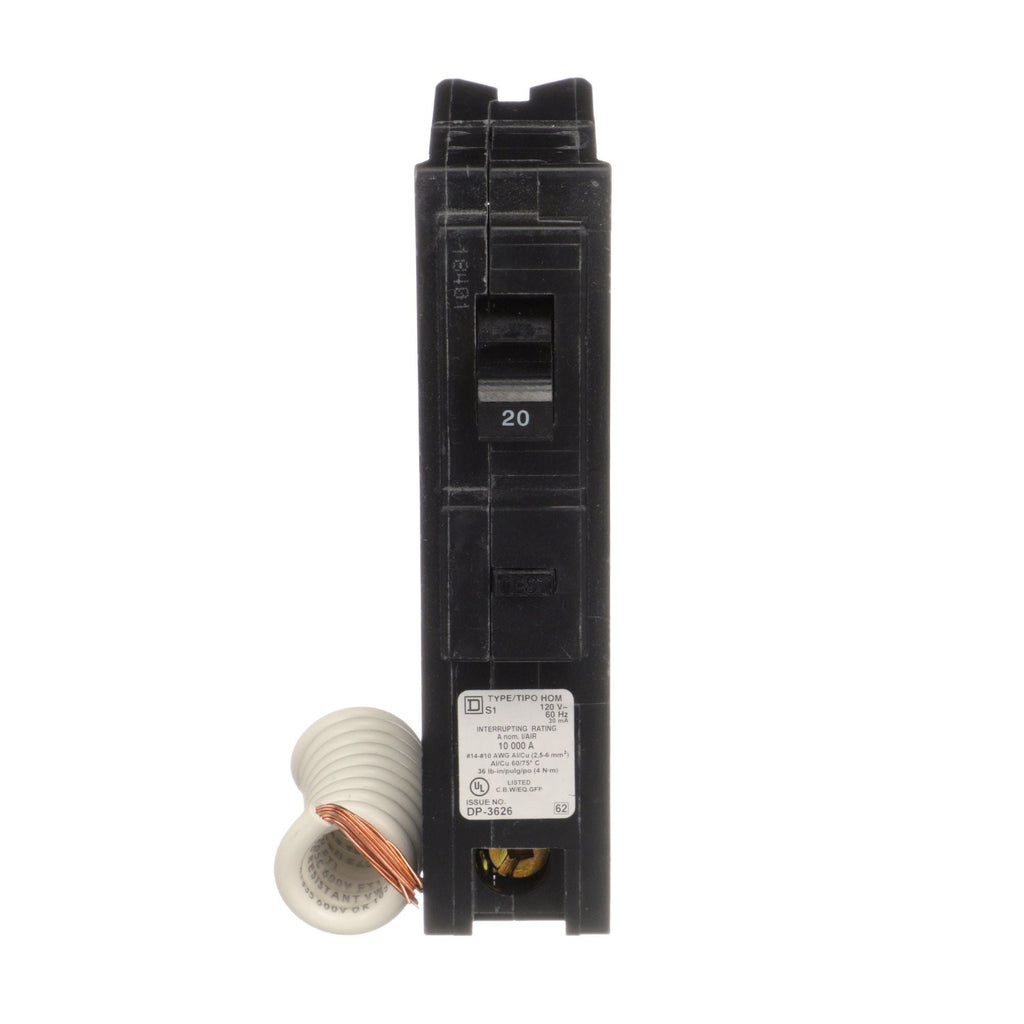

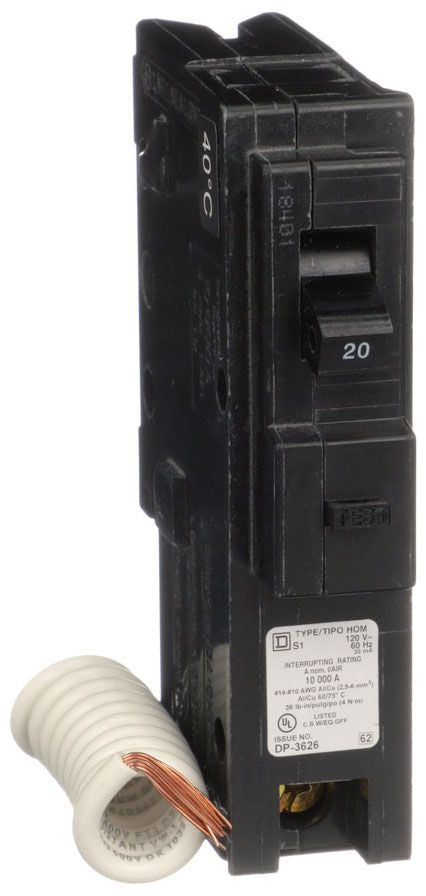

HOM120EPD - Square D 20A 120VAC 1 Pole Molded Case Circuit Breaker Plug-In Mounting

HOM120EPD

HOM120EPD is a 1 pole, 20 amp, 120VAC molded case circuit breaker from Square D designed for reliable circuit protection.This Square D HOM120EPD circuit breaker features plug-in mounting, a 10kA interrupting rating at 120V, and thermal magnetic protection with long time and instantaneous trip functions.

Key Specifications
• Amperage: 20 Amps
• Voltage: 120 VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupting Rating: 10kA at 120V
• Series/Frame: HOM
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Connection Type: Screw Clamp
• Wire Gauge: AWG 14 to AWG 8 Aluminum/Copper
• Certifications: UL, CSA, HACR, RoHS
• Circuit Breaker Type: Ground Fault Circuit Interrupter (GFCI)
• Temperature Rating: 104°F (40°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM120EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Screw Clamp Terminals
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901636502
• GTIN : 00785901636502
• Country of Origin : Mexico
• Dimensions : Length 17.89 in (454.5 mm)
• Weight : 0.61
• Standards : UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8 Aluminum/Copper
