HOM120CP - Square D 20A 1-Pole 120/240V Homeline Circuit Breaker Plug-In 10kA Interrupt Rating

HOM120CP

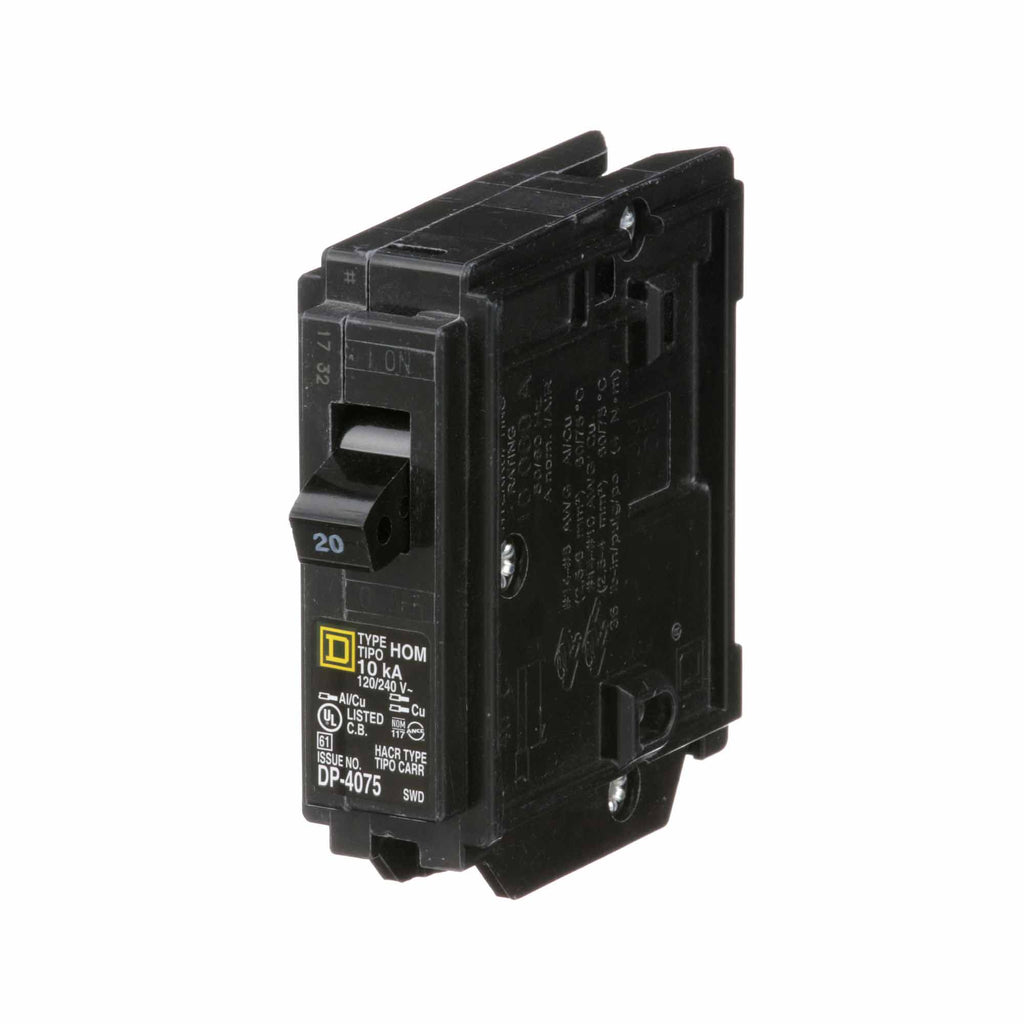

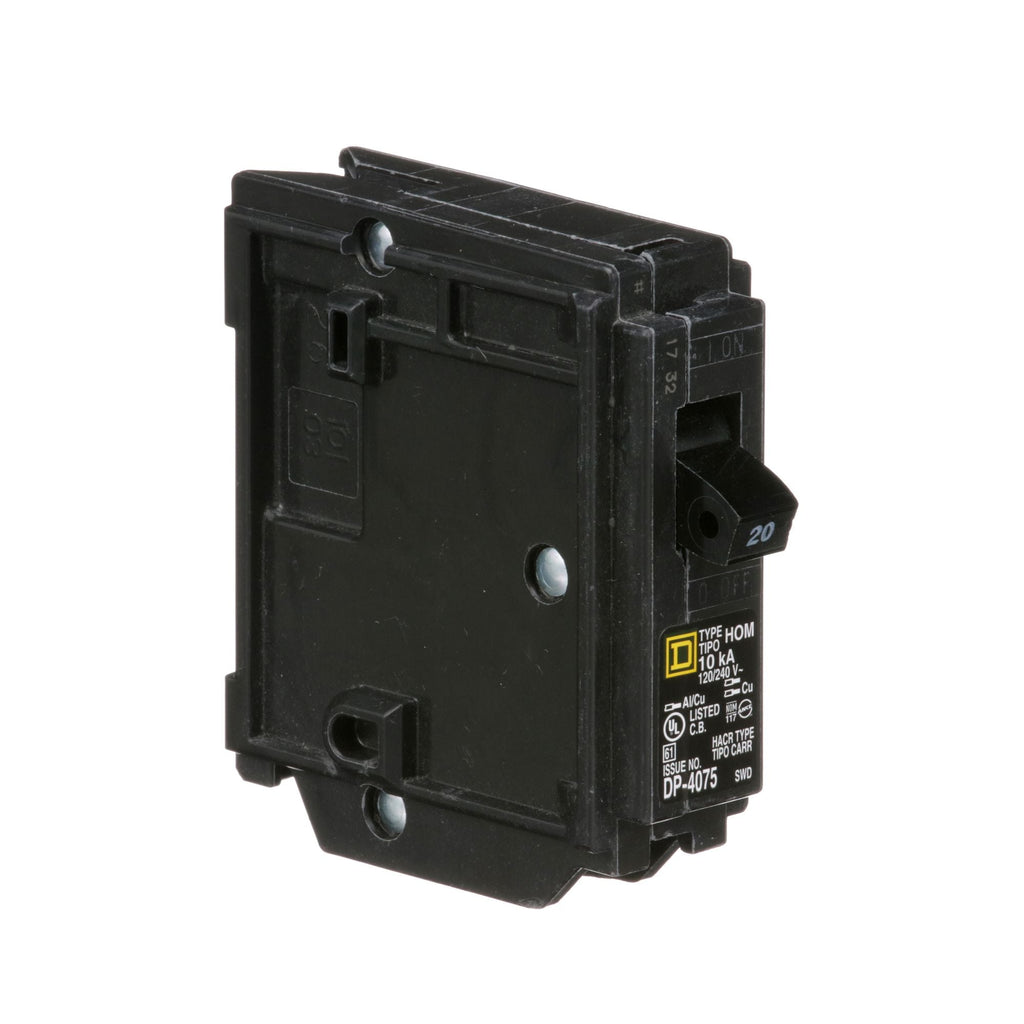

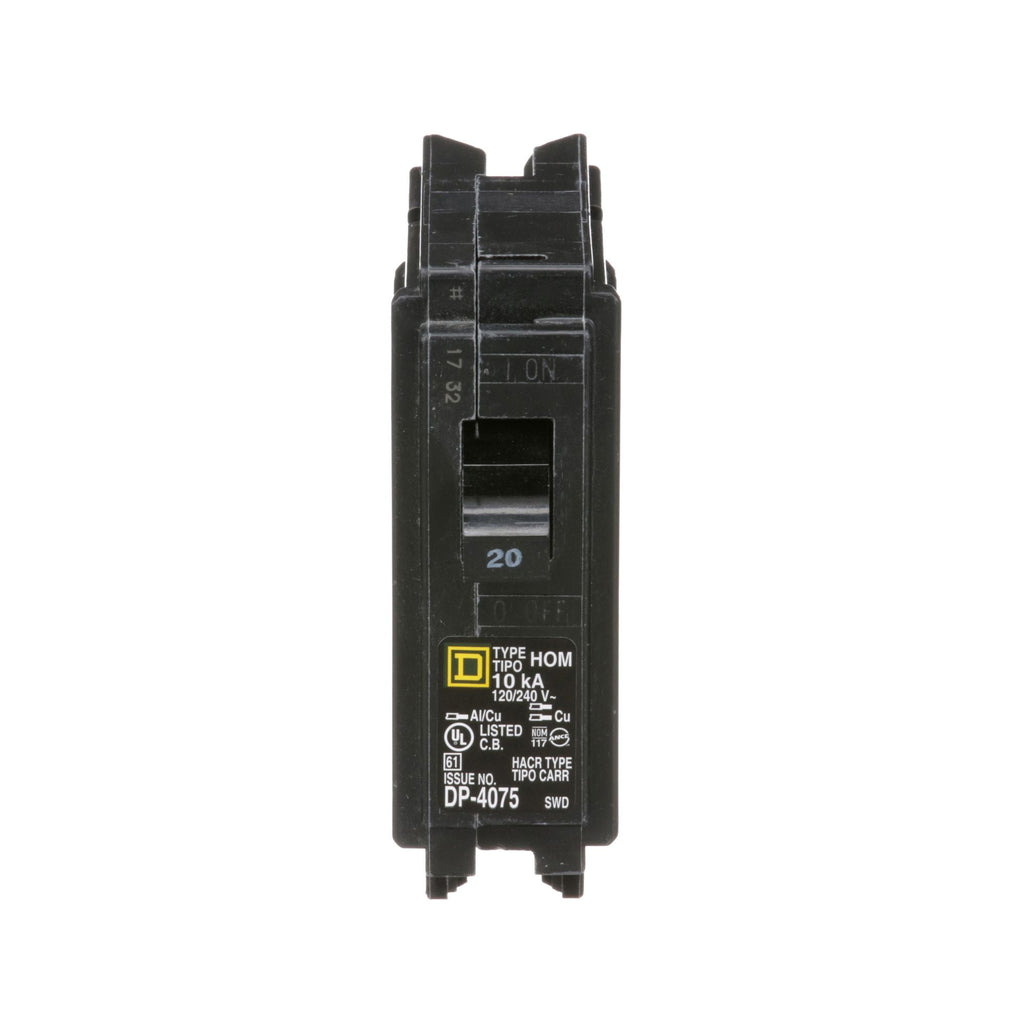

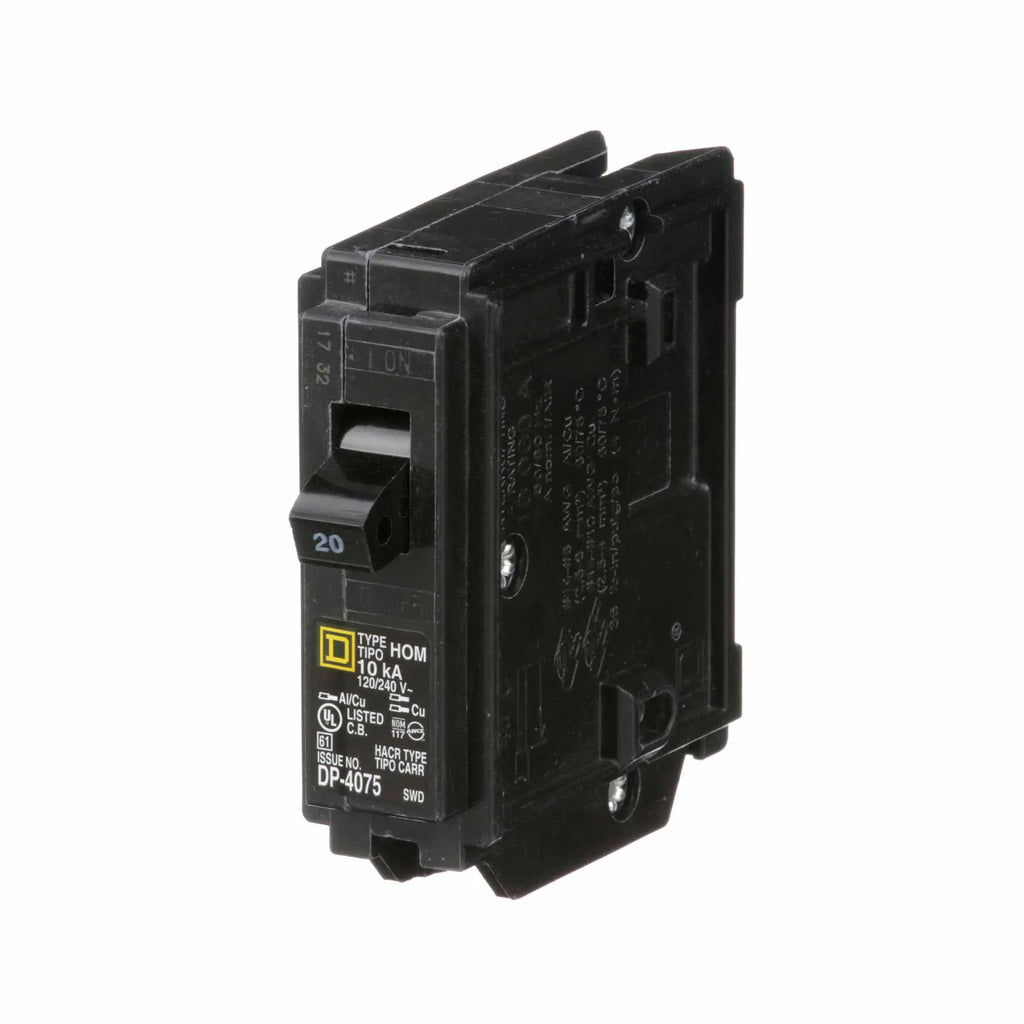

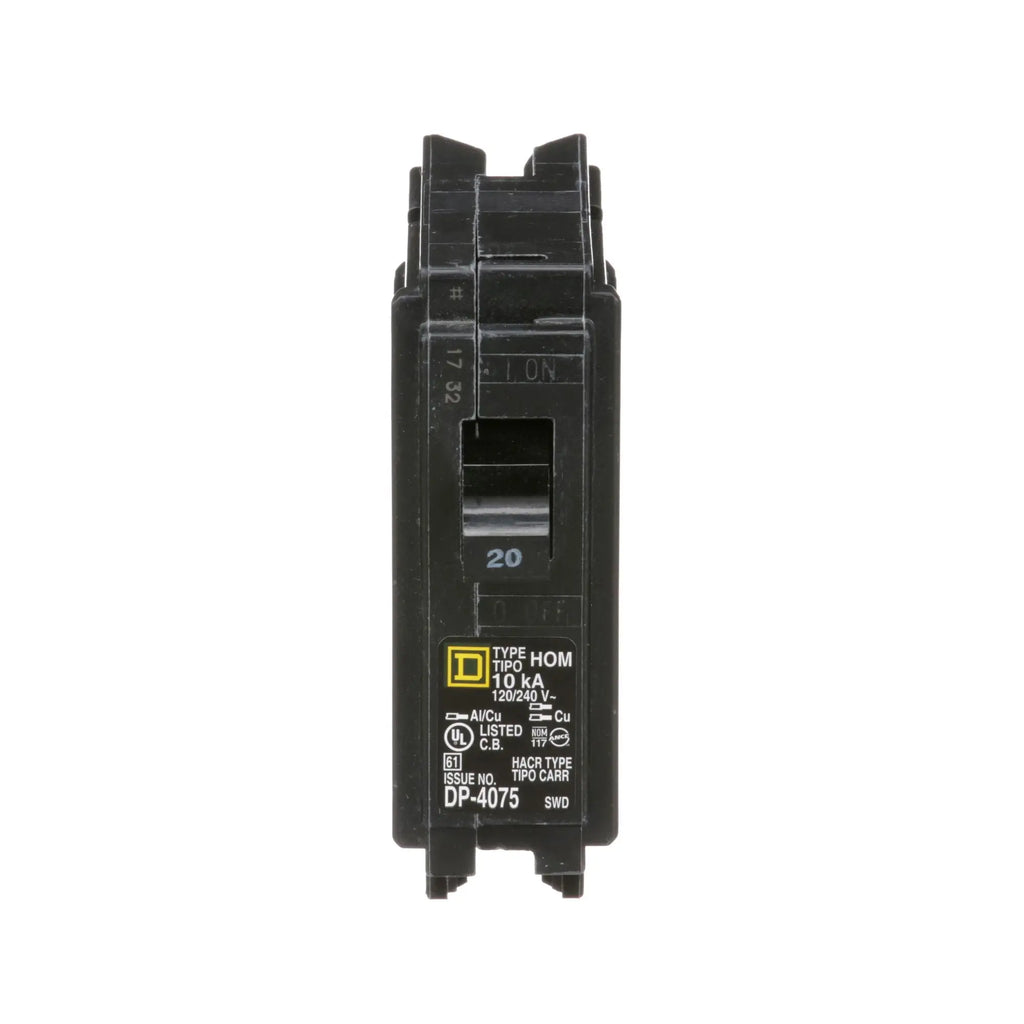

HOM120CP is a Square D Homeline 1-pole circuit breaker rated for 20 amps at 120/240 volts AC with a plug-in mounting design.

This Homeline miniature circuit breaker provides reliable thermal magnetic protection with a fixed trip unit and a 10,000 amp interrupt rating. It is designed for fast installation in Homeline load centers and features a clamp terminal connection that accepts 14 to 8 AWG copper or aluminum wire. The breaker is UL Listed and HACR rated, ensuring compliance with industry standards.

• Manufacturer: Square D
• Series: Homeline
• Amperage: 20A
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10 kA
• Trip Unit: Fixed Thermal Magnetic
• Wire Range: 14-8 AWG Copper/Aluminum

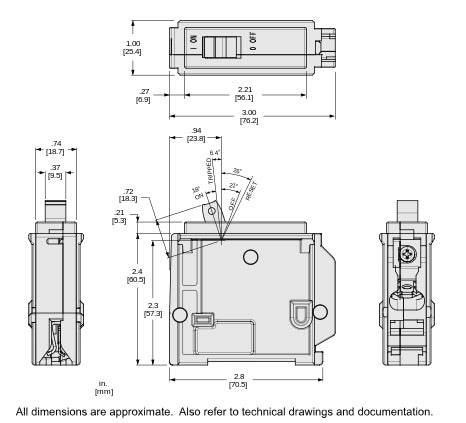

• Dimensions: 3.13 in H x 1 in W x 2.98 in D
• UL Listed and HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM120CP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Clamp Terminal
• MCM Size : Min. Wire Size 14 AWG (Cu/Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al), 10 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 047569062711
• GTIN : 00047569062711
• Country of Origin : United States
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.25
• Standards : UL Listed
