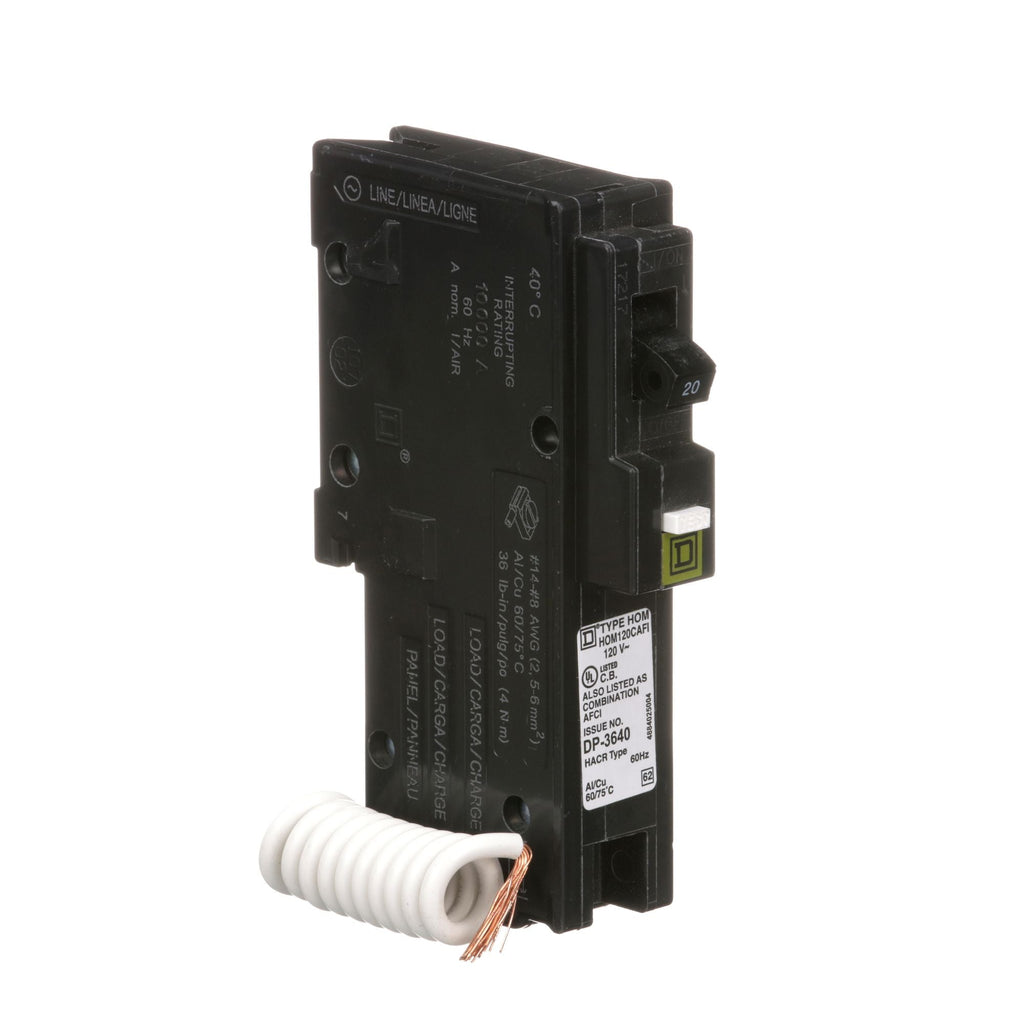

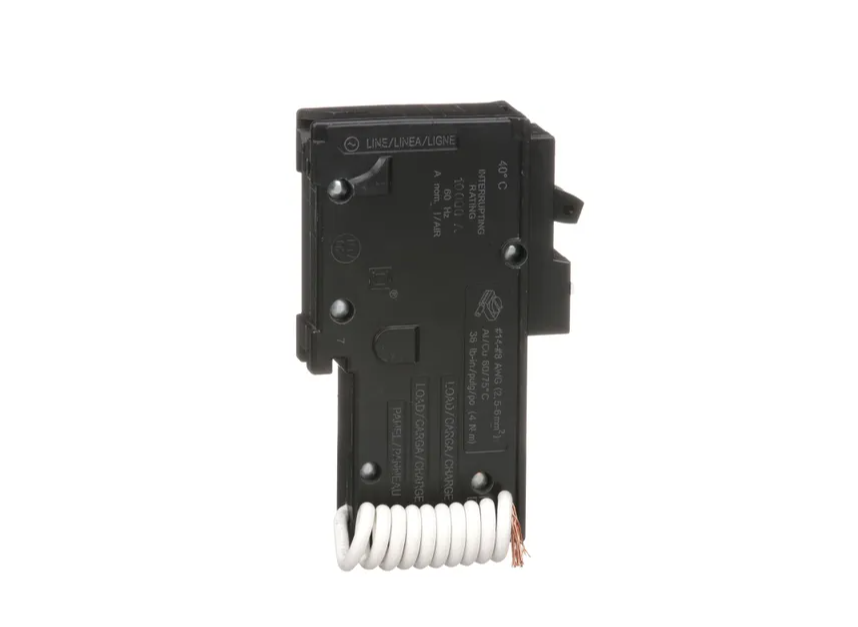

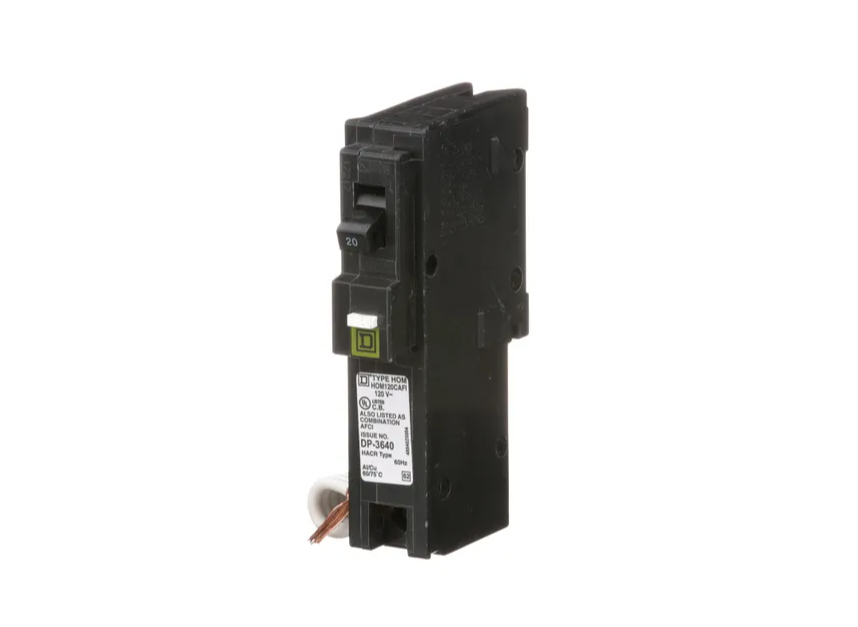

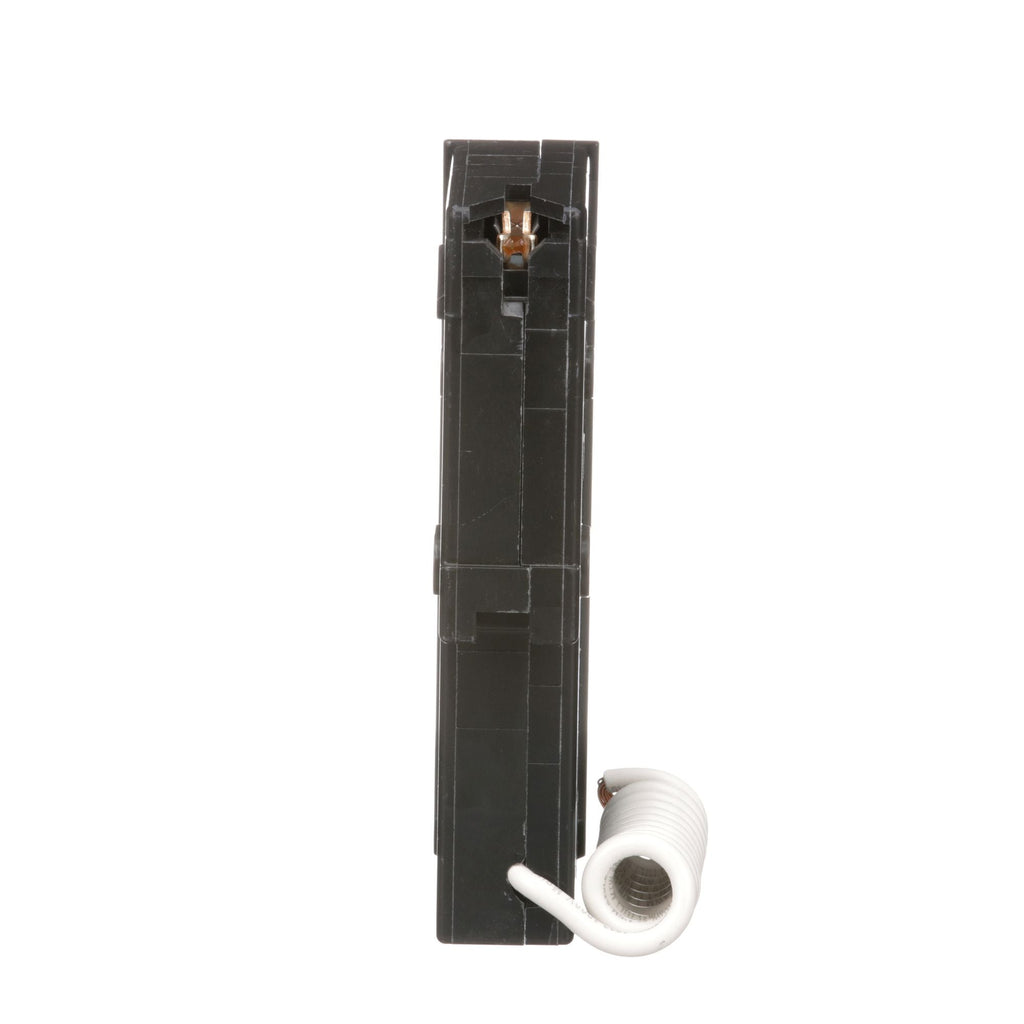

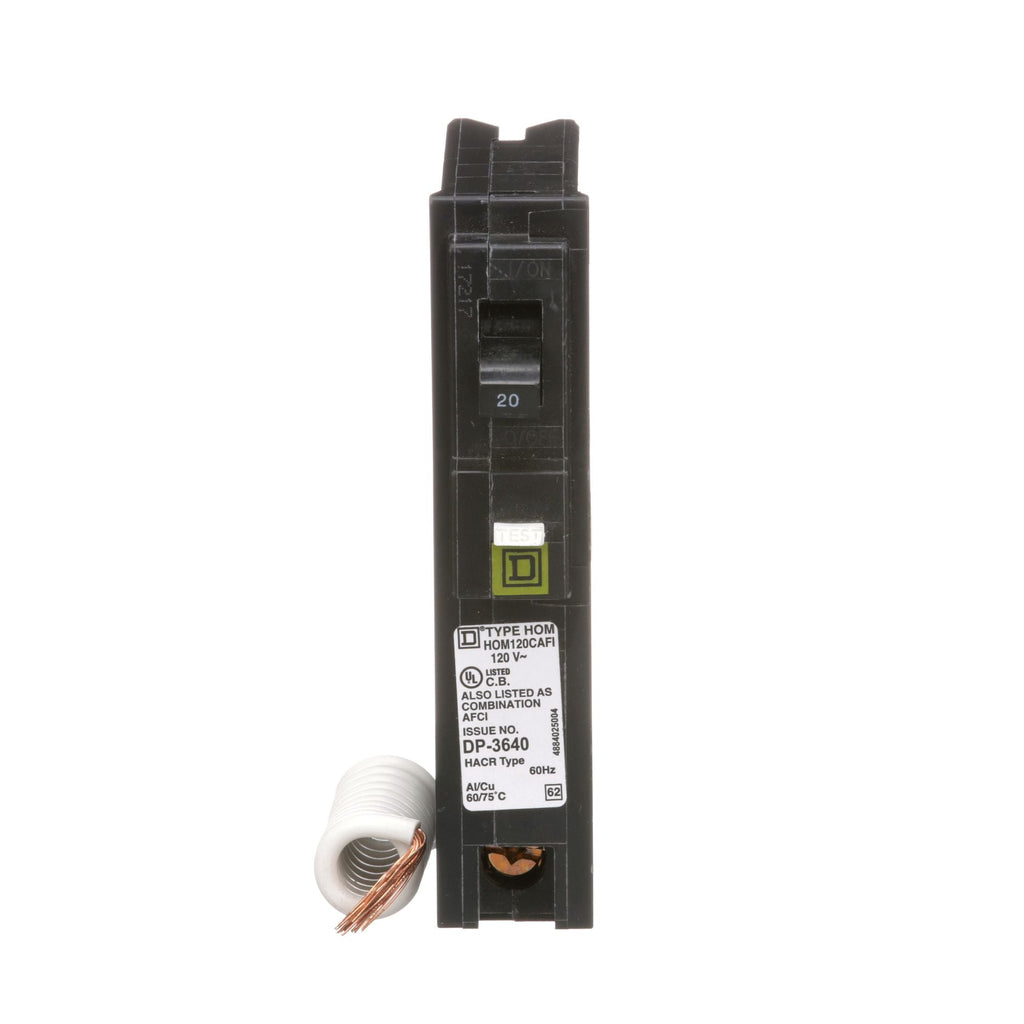

HOM120CAFI - Square D Homeline 20A 1 Pole Combination Arc Fault Circuit Breaker 120VAC Plug-In 10kAIC

HOM120CAFI

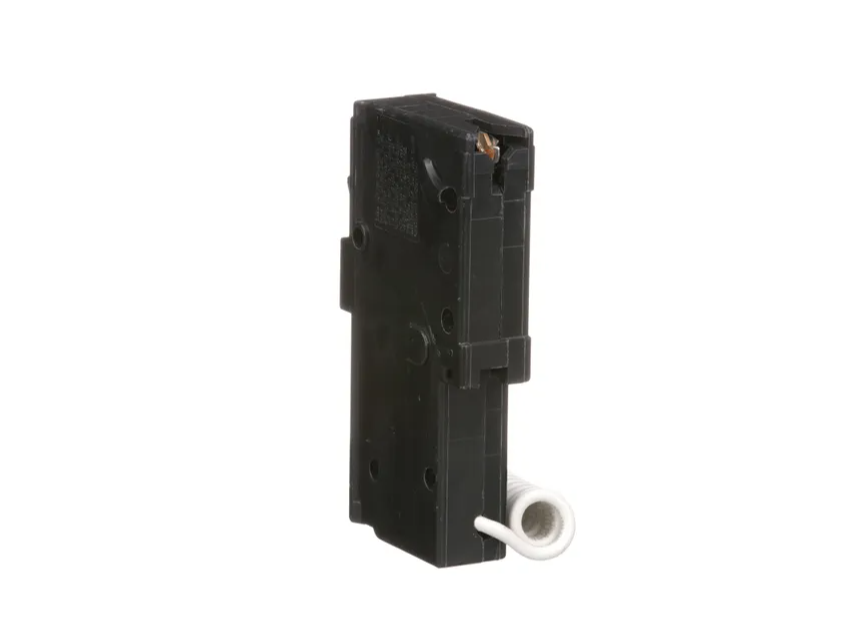

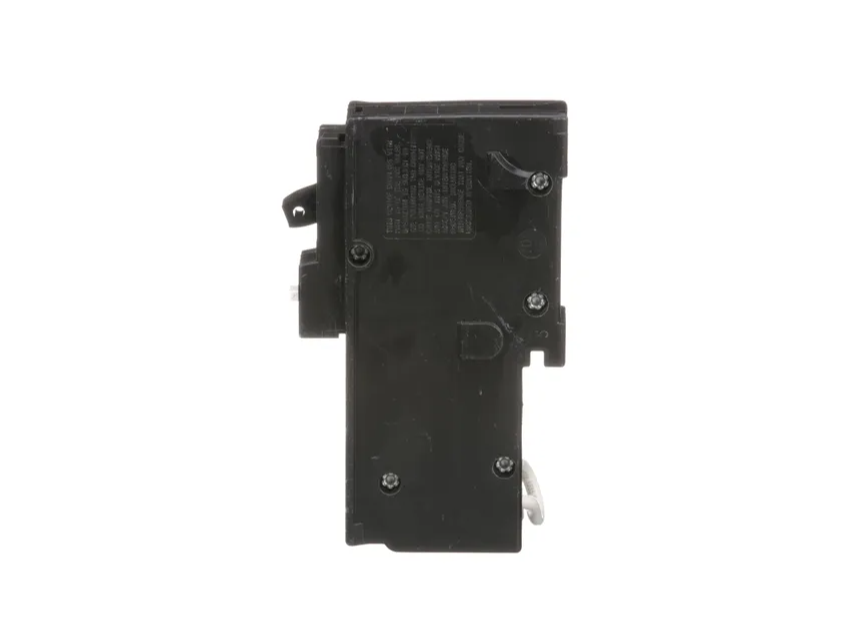

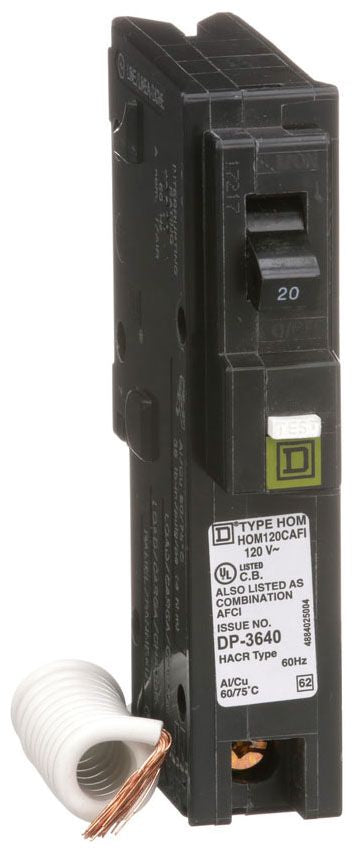

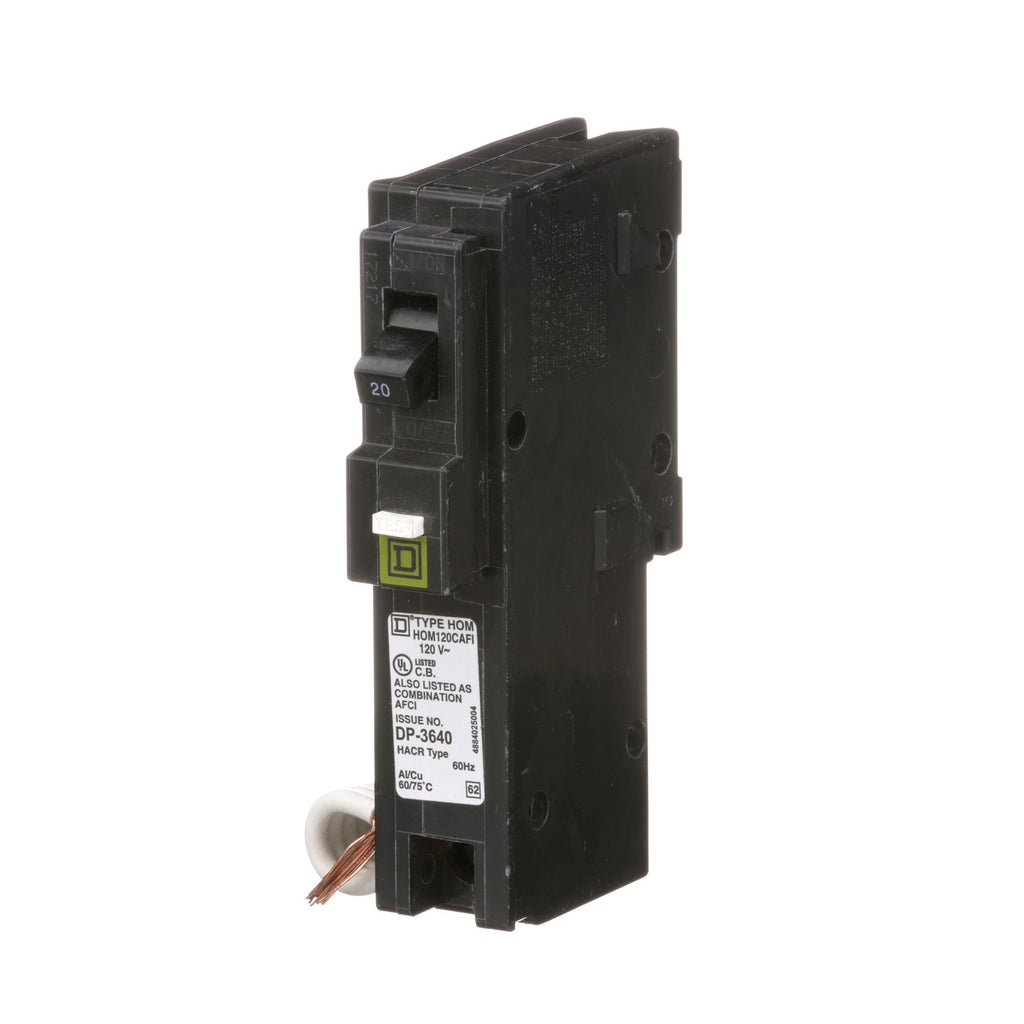

HOM120CAFI is a Square D Homeline 20A 1 Pole Combination Arc Fault Circuit Breaker designed for residential and light commercial applications requiring arc fault protection. This breaker features a plug-in mounting design for easy installation in Homeline load centers and provides reliable overload, short circuit, and arc fault protection. The HOM120CAFI breaker is rated for 120VAC, has a 10kA interrupting rating, and is UL Listed and CSA Certified. It includes long time and instantaneous trip functions, accepts wire sizes from 14 AWG to 8 AWG copper or aluminum, and features a pigtail neutral for arc fault detection. The breaker is HACR rated and mercury free, making it suitable for a wide range of HVAC and lighting circuits.

• Part Number: HOM120CAFI
• Manufacturer: Square D
• Series/Frame: Homeline
• Amperage: 20A
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10kAIC at 120VAC
• Trip Unit: Long Time/Instantaneous
• Protection Type: Combination Arc Fault (CAFCI)
• Wire Size: 14-8 AWG (Cu/Al)
• Certifications: UL Listed, CSA Certified, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM120CAFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : 104 °F (40 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Combination Arc Fault Circuit Interrupter
• Protection : Thermal Magnetic

Product Data

• UPC : 785901601517
• GTIN : 00785901601517
• Country of Origin : Mexico

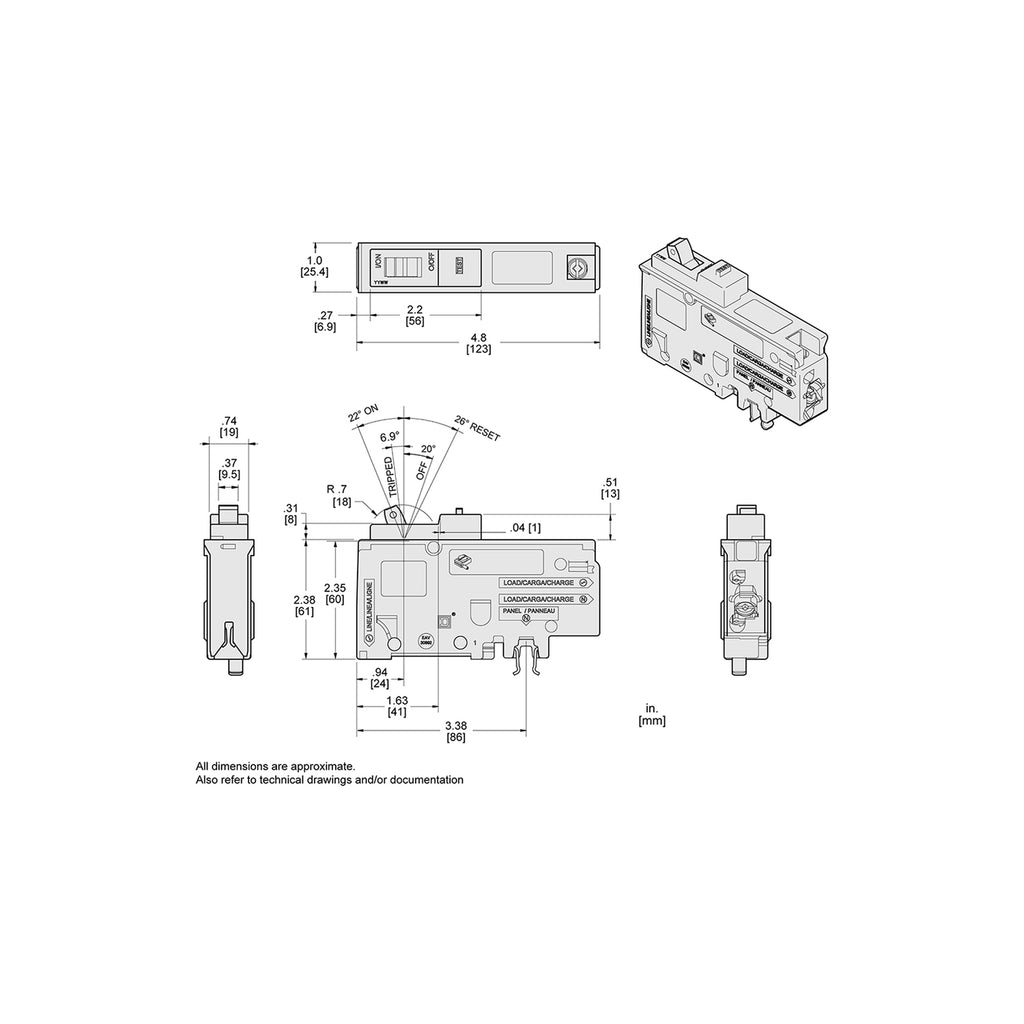

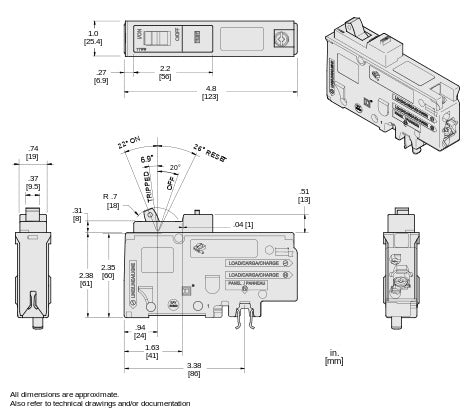

• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.65 lb
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Al/Cu
