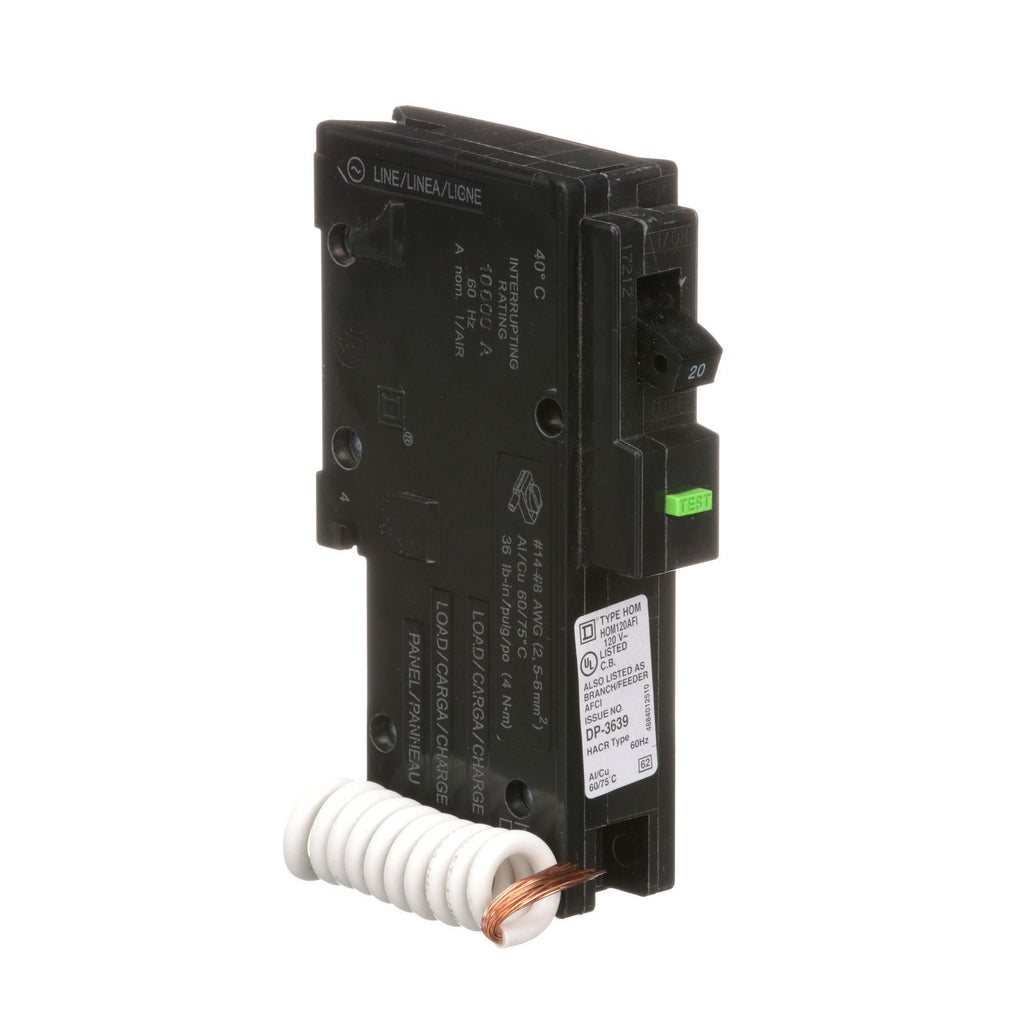

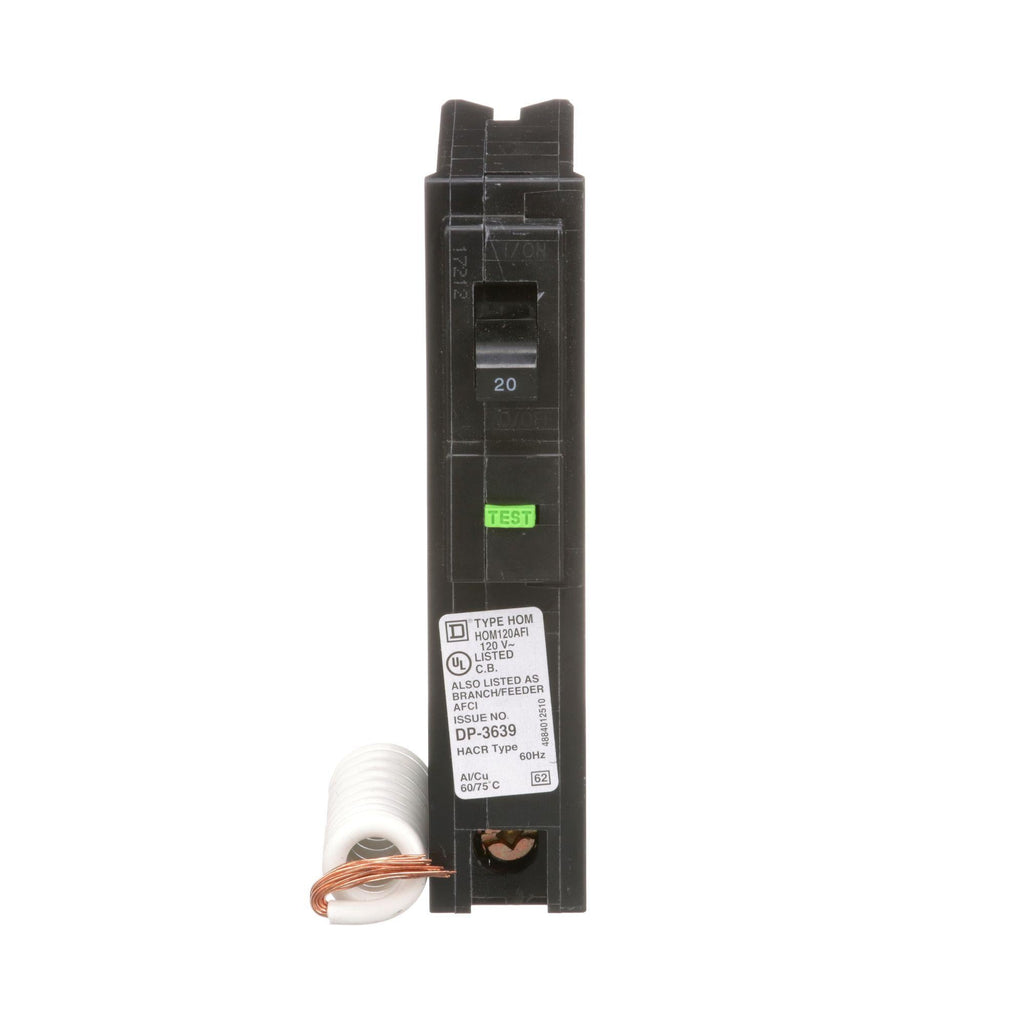

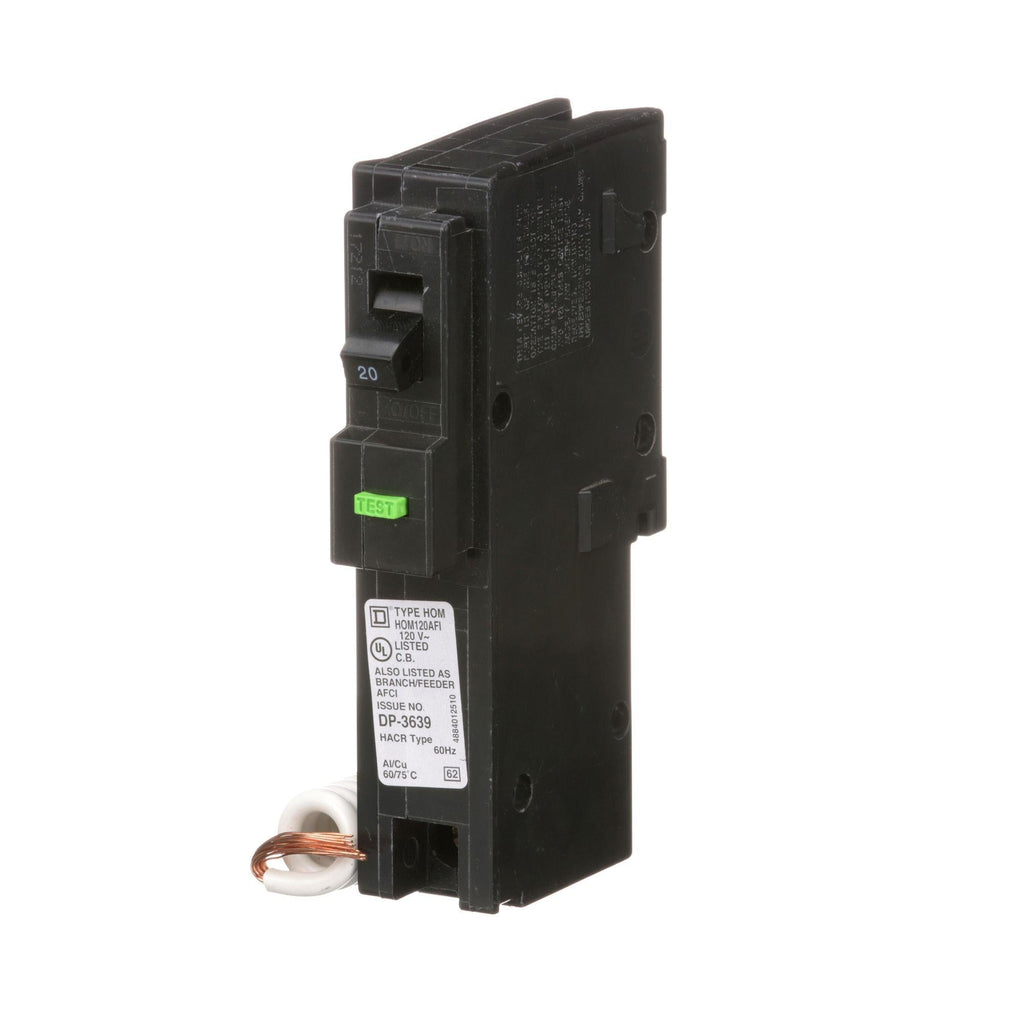

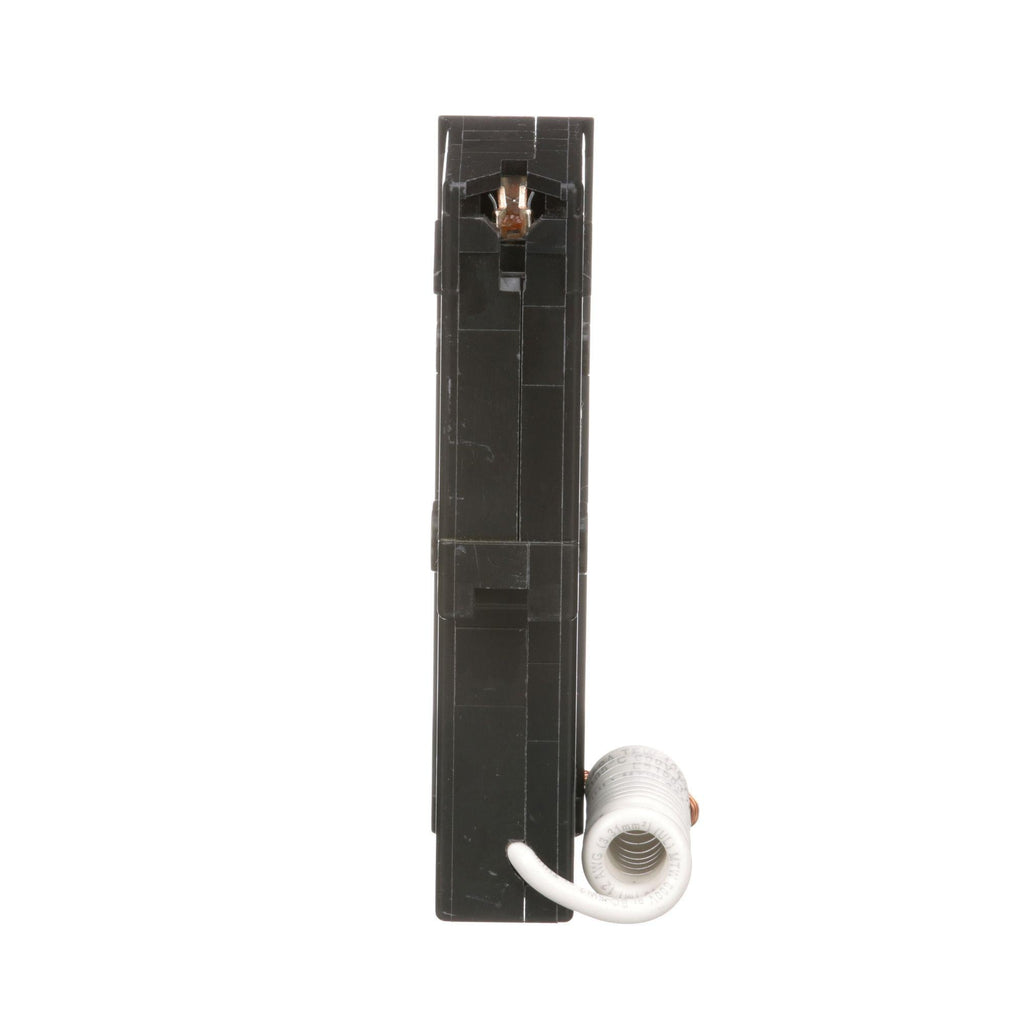

HOM120AFI - Square D Homeline 20A 120V 1 Pole Arc Fault Circuit Breaker Plug-In Thermal Magnetic 10kAIC

HOM120AFI

HOM120AFI is a 1 Pole Square D Homeline arc fault circuit breaker designed for 120VAC applications with a 20A current rating and plug-in mounting. This Homeline series breaker features thermal magnetic protection, a 10kAIC interrupting rating, and is suitable for use in Homeline load centers. It provides arc fault protection for enhanced safety and is mercury free for environmental compliance.

• Amperage: 20A
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupting Rating: 10kAIC at 120VAC
• Series/Frame: Homeline
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL, CSA, RoHS, REACh, HACR
• Connection Type: Plug-In
• Wire Size: 14-8 AWG (Al/Cu)
• Height: 3.13 in
• Width: 1.0 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM120AFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Arc Fault Circuit Interrupter
• Protection : Thermal Magnetic

Product Data

• UPC : 785901301325
• GTIN : 00785901301325
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 1.369
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Al/Cu
