Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HND63B800

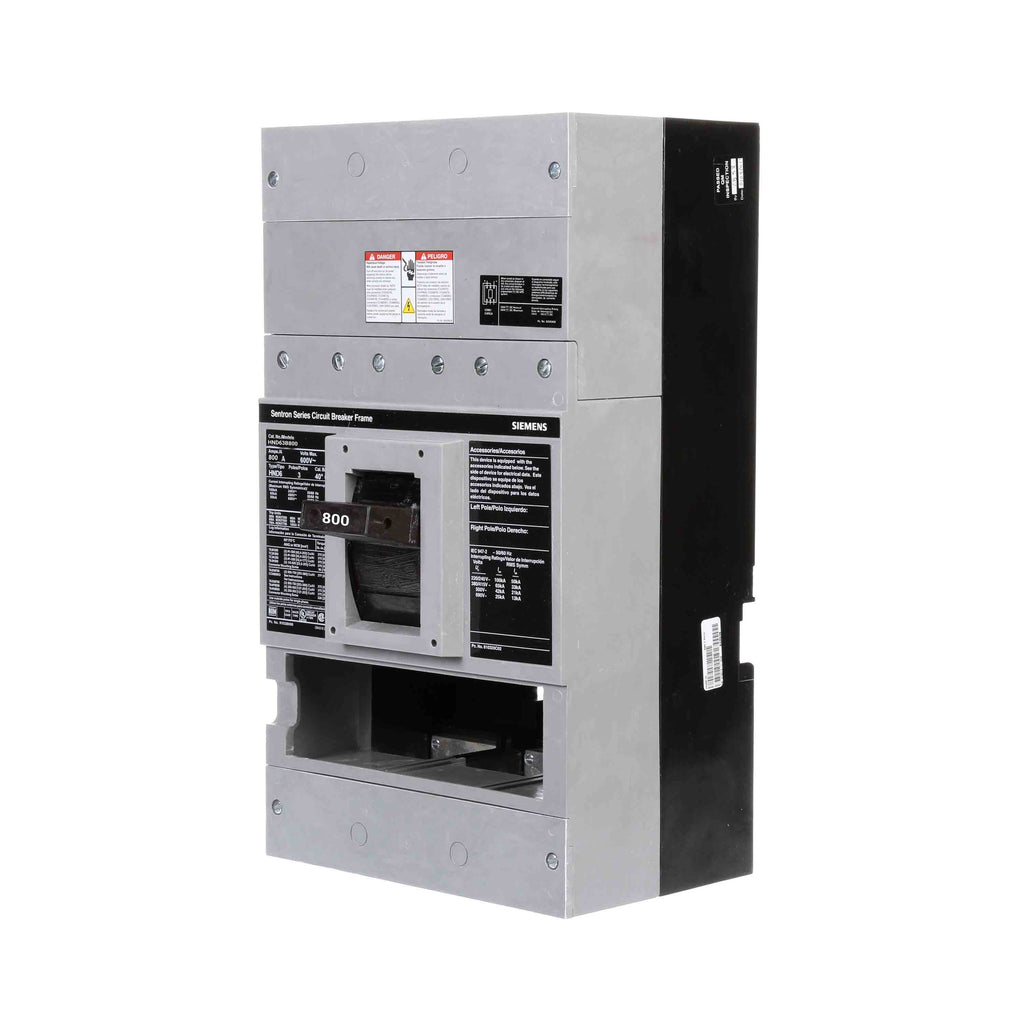

HND63B800 is a Siemens Sentron Type HND6 low voltage molded case circuit breaker designed for industrial and commercial power distribution applications. This 3-pole breaker features a thermal/magnetic trip unit and is rated for 800 amperes at 600 VAC or 500 VDC, delivering reliable overcurrent protection with high breaking capacity. The unit supports an interrupt rating of 50 kA at 600V and 65 kA at 480V, making it suitable for demanding electrical systems. Built with an interchangeable trip unit design, the HND63B800 offers flexibility and serviceability for critical installations.
- Manufacturer: Siemens
- Part Number: HND63B800
- Series: Sentron Type HND6
- Amperage Rating: 800 A
- Voltage Rating: 600 VAC / 500 VDC
- Poles: 3
- Trip Type: Thermal/Magnetic
- Interrupt Rating: 50 kA @ 600V, 65 kA @ 480V
- Frame: ND Frame
- Trip Unit: Interchangeable
- Operating Temperature: Standard 40 Degrees C
- Enclosure Type: NEMA 3R (optional MND63)
Specifications
- Part Number: HND63B800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HND
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ND Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643215610
- GTIN : 00783643215610
- Country of Origin : Mexico
- Weight : 65.08
