Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HND63B100

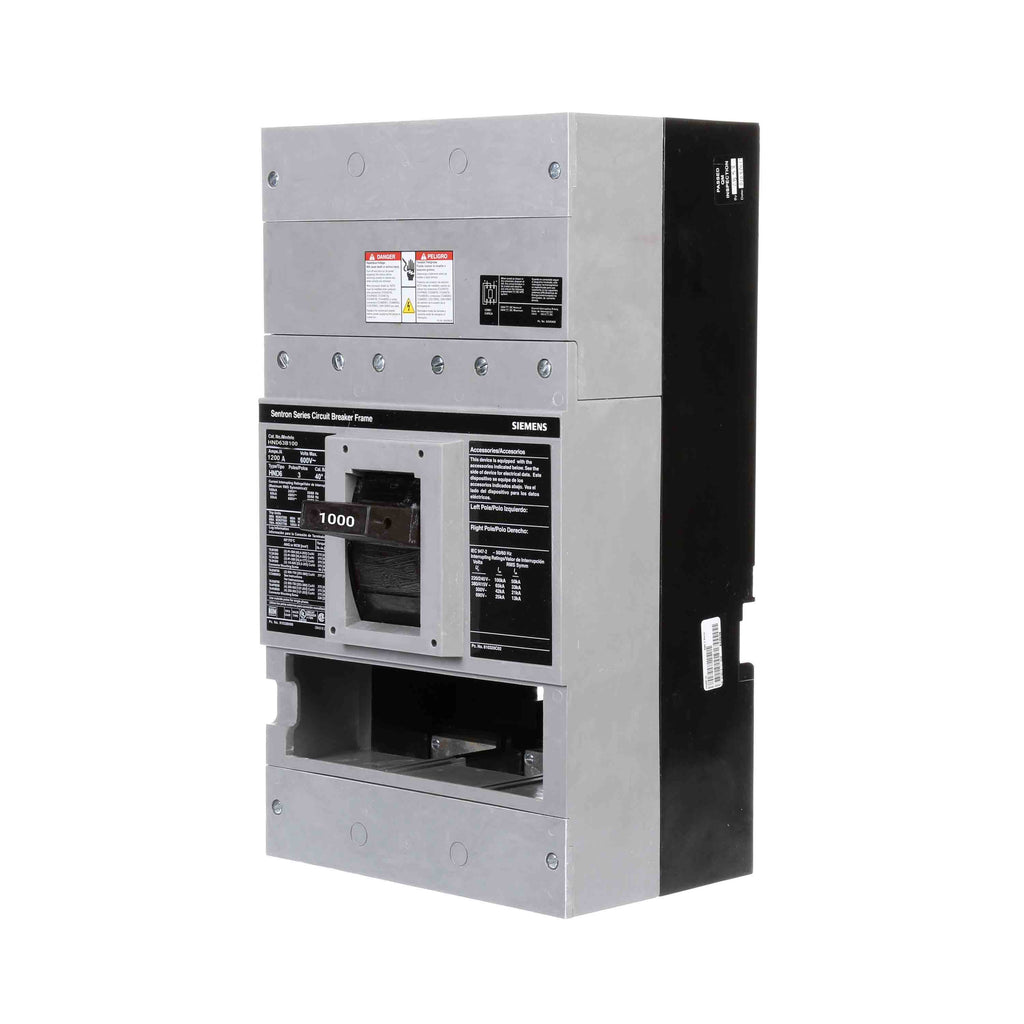

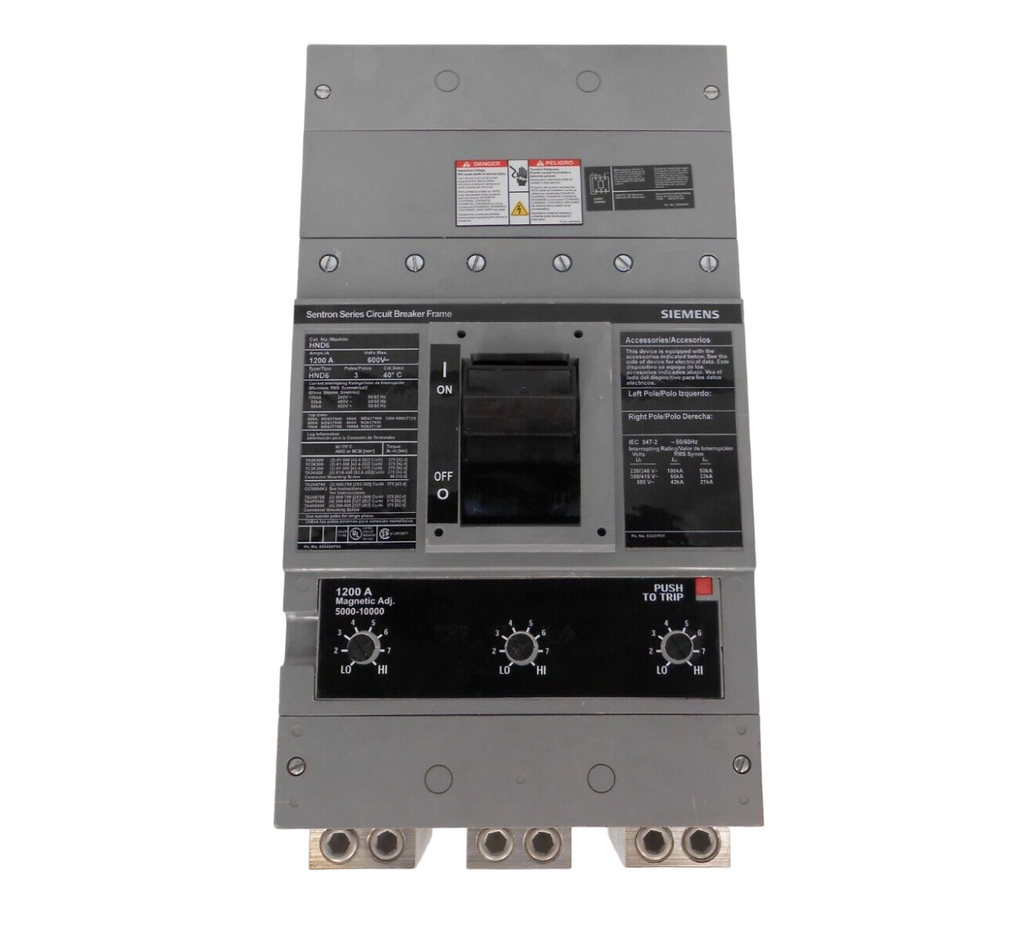

HND63B100 is a 3 pole, 1000A molded case circuit breaker from Siemens Sentron Series, designed for reliable protection in industrial and commercial power distribution systems.This Siemens HND63B100 circuit breaker features a 600V AC rating, ND frame, and thermal magnetic trip unit for precise overload and short-circuit protection. It is suitable for feed-thru applications and offers high breaking capacity for demanding environments.
- Part Number: HND63B100
- Manufacturer: Siemens
- Series: Sentron
- Frame: ND
- Amperage: 1000A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 50kAIC @ 600V, 65kAIC @ 480V
- Trip Unit: Thermal Magnetic, Interchangeable
- Standards: UL 489, IEC 60947-2
- Application: Feed-Thru, 3 Phase
Specifications
- Part Number: HND63B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HND
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : ND Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643215634
- GTIN : 00783643215634
- Country of Origin : Mexico
- Weight : 0.022
- Wire Size : AWG 250 to 500KCM, Cu/Al
