HND3800T77W - Eaton Series C 800A 600V 3-Pole Molded Case Circuit Breaker

HND3800T77W

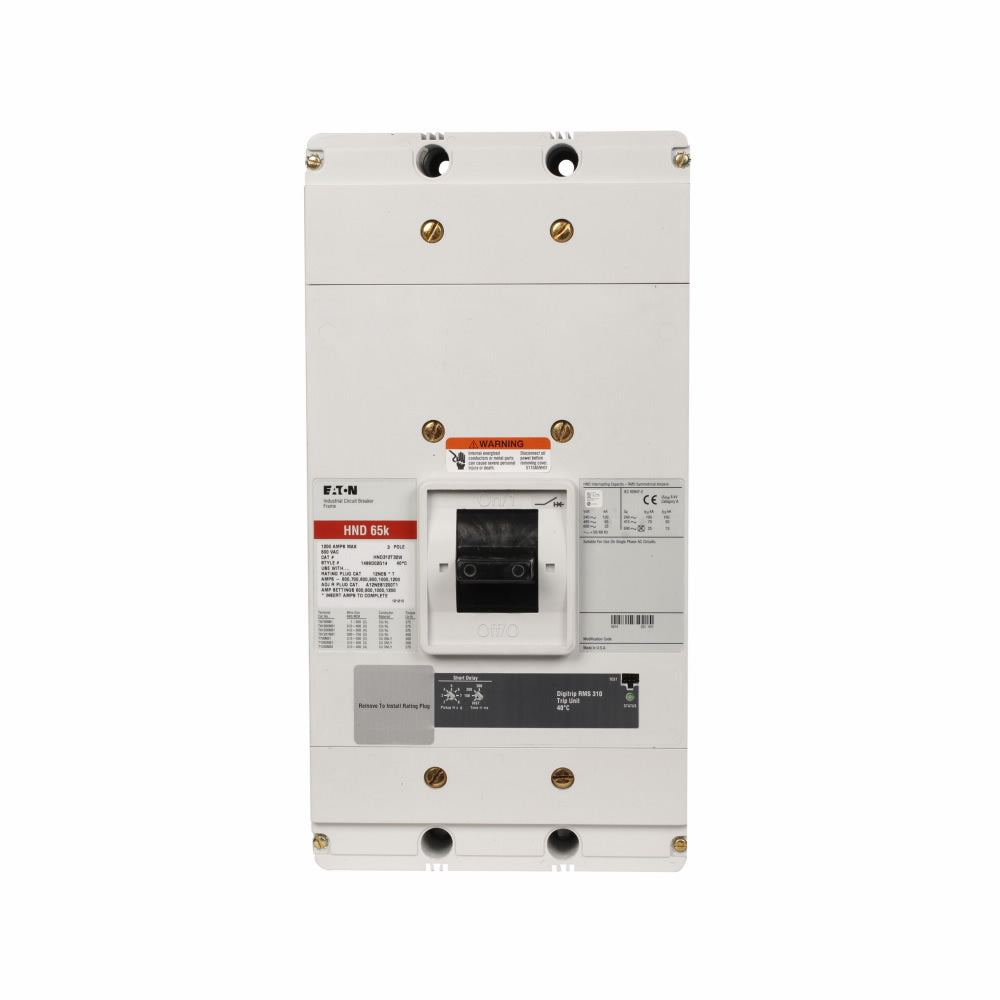

HND3800T77W is a Series C N-Frame molded case circuit breaker designed for industrial power distribution and protection applications.

This 3-pole, 800-amp rated circuit breaker operates at 600 volts and features solid-state trip protection with long-time, short-time, and instantaneous (LSIA) trip functions. The bolt-on mounting style integrates seamlessly into Eaton panelboards and distribution equipment. With an interrupting rating of 100 kiloamps at 240VAC and 50 kiloamps at 480VAC, this breaker provides reliable overcurrent and short-circuit protection for demanding electrical systems.

Key Specifications

• Part Number: HND3800T77W
• Manufacturer: Eaton (Cutler-Hammer Division)
• Type: HND Molded Case Circuit Breaker
• Amperage Rating: 800 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Style: Bolt-On
• Series: C N-Frame
• Trip Unit: Solid State with LSIA Protection
• Interrupting Rating: 100KA @ 240VAC, 50KA @ 480VAC
• Frame Size: N-Frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HND3800T77W
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HND
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
• Protection : Solid State

Product Data

• UPC : 78667905040
• GTIN : 00786679050408
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 48
• Certification : HACR Rated
